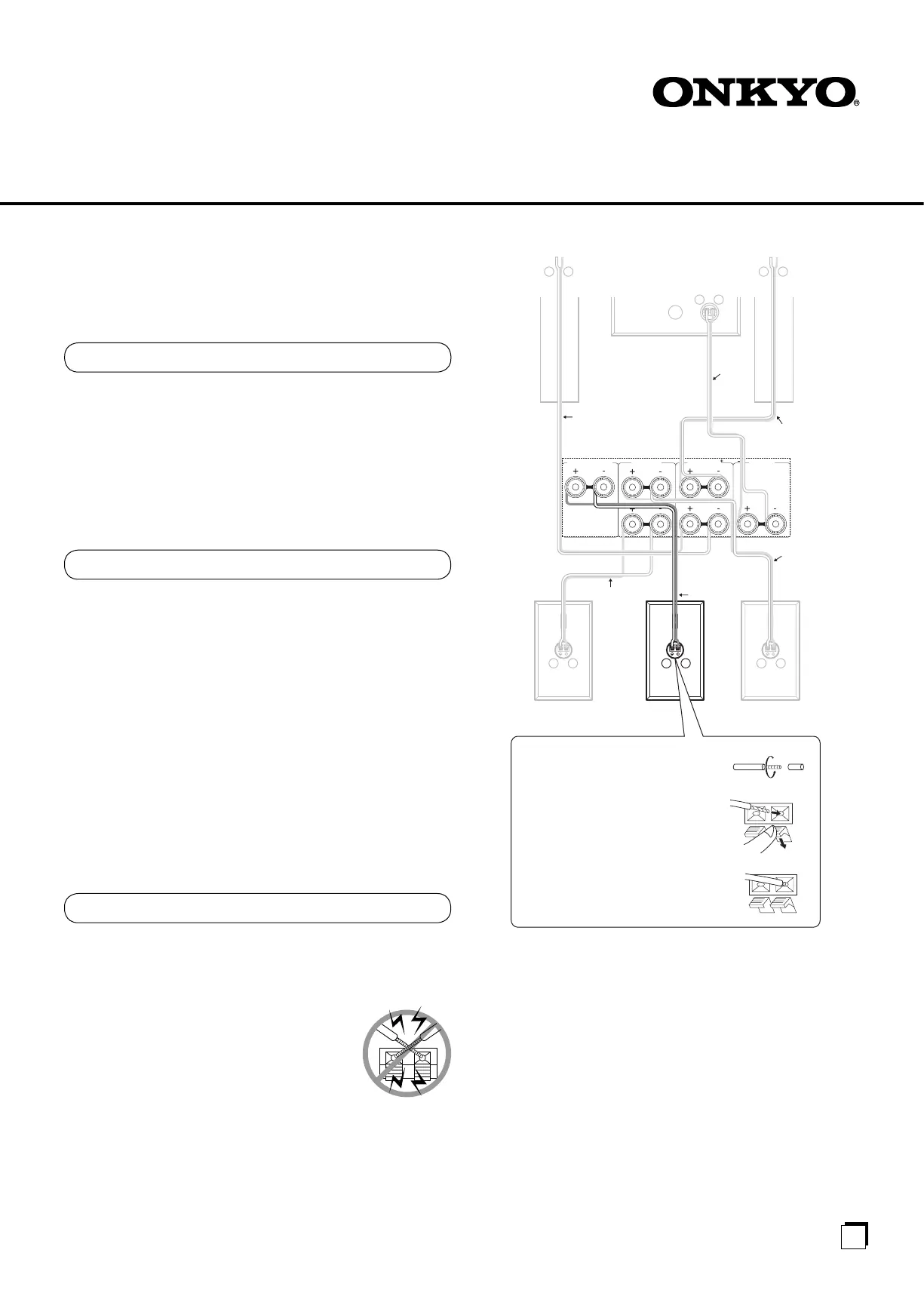

Sida 1/4

SURROUND

SPEAKERS

FRONT

SPEAKERS A

CENTER

SPEAKER

SURROUND BACK

SPEAKER

+–

+–+–+–

Thank you for purchasing of the Onkyo speaker system.

Please read this manual thoroughly before using it.

Following the instructions in this manual will enable you to

obtain optimum performance and listening enjoyment from

your new speaker system.

Please retain this manual for future reference.

Before using this unit

●

The speaker cabinet is made of wood and sensitive to extreme

temperatures and humidity. Avoid placing the speaker system

in locations subjected to direct sunlight or in humid places such

as near an air conditioner, bathroom, or kitchen.

●

Be sure to turn off your ampliﬁ er before connecting the speaker

system. Connecting it while the ampliﬁ er is on may result in

damage to the ampliﬁ er or the speaker system.

●

The nominal impedance of this speaker system is 8 Ω. Use

only ampliﬁ ers capable of handling this impedance.

Before turning on the ampliﬁ er’s power switch:

●

Make sure that the positive (+) and negative (-) speaker cables

do not contact each other. Otherwise, a short-circuit may occur,

causing damage to the ampliﬁ er.

●

Be sure to connect the speaker cables with correct polarity

(connect the speaker’s positive (+) and negative (-) binding

posts with the ampliﬁ er’s corresponding speaker terminals).

Reversed polarity results in impaired bass-range reproduction,

causing mislocalization of the sound image. Also, be sure to

connect the Right and Left speakers with the ampliﬁ er’s

corresponding speaker terminals.

●

Pull lightly on the speaker cables to ensure that they are

connected ﬁ rmly.

Instruction Manual

SKR-4700

Precaution on use

●

This speaker system can handle the speciﬁ ed input power

when it is used for ordinary music reproduction. If the following

abnormal signals are fed to the speaker, however, an overcurrent

may ﬂ ow in the internal circuits, causing burning or breakage

of the wires even if the input power is below the speciﬁ ed

rating.

1. Noise produced when FM station is not tuned in.

2. Sound produced when fast-forwarding cassette tape

deck.

3. High-frequency sound generated by an oscillator, an

electronic musical instrument, etc.

4. Oscillating ampliﬁ er signals.

5. Special test signals produced by audio checking CD, etc.

6. Sound produced when connecting or disconnecting audio

connection cables. (Always turn off the ampliﬁ er’s power

before connecting or disconnecting cables.)

7. Howling when a microphone is used.

Connections

●

Turn the sound volume to the minimum and disconnect the power

cord from the ampliﬁ er before connecting the speaker cables.

●

The nominal impedance of this speaker system is 8 Ω. Use

only ampliﬁ ers capable of handling this impedance.

●

Use the supplied speaker cables to connect

between speaker’s input terminals and the

ampliﬁ er’s speaker terminals as illustrated on

the right.

●

Connect the speaker cables securely to the

terminals, with the core wires twisted properly.

In this case, make sure that the core wires do

not touch each other. Note that a short circuit in core wires

may result in damage to the ampliﬁ er.

SPEAKER SYSTEM

Connecting to AV ampliﬁ er

SKF-4700

Front right

speaker

SKC-4700

Center speaker

SKM-4700

Surround right speaker

SKF-4700

Front left

speaker

SKM-4700

Surround left speaker

Red

Green

Blue

Gray

White

Brown

1. Strip the insulation of speaker

cables, and twist the core wires

tightly.

2. While pressing the lever, insert the

wire into the hole, and then release

the lever.

3. Make sure that the terminals are

gripping the core wires, not the

insulation.

SKR-4700

Surround

back

speaker

AV ampliﬁ er
