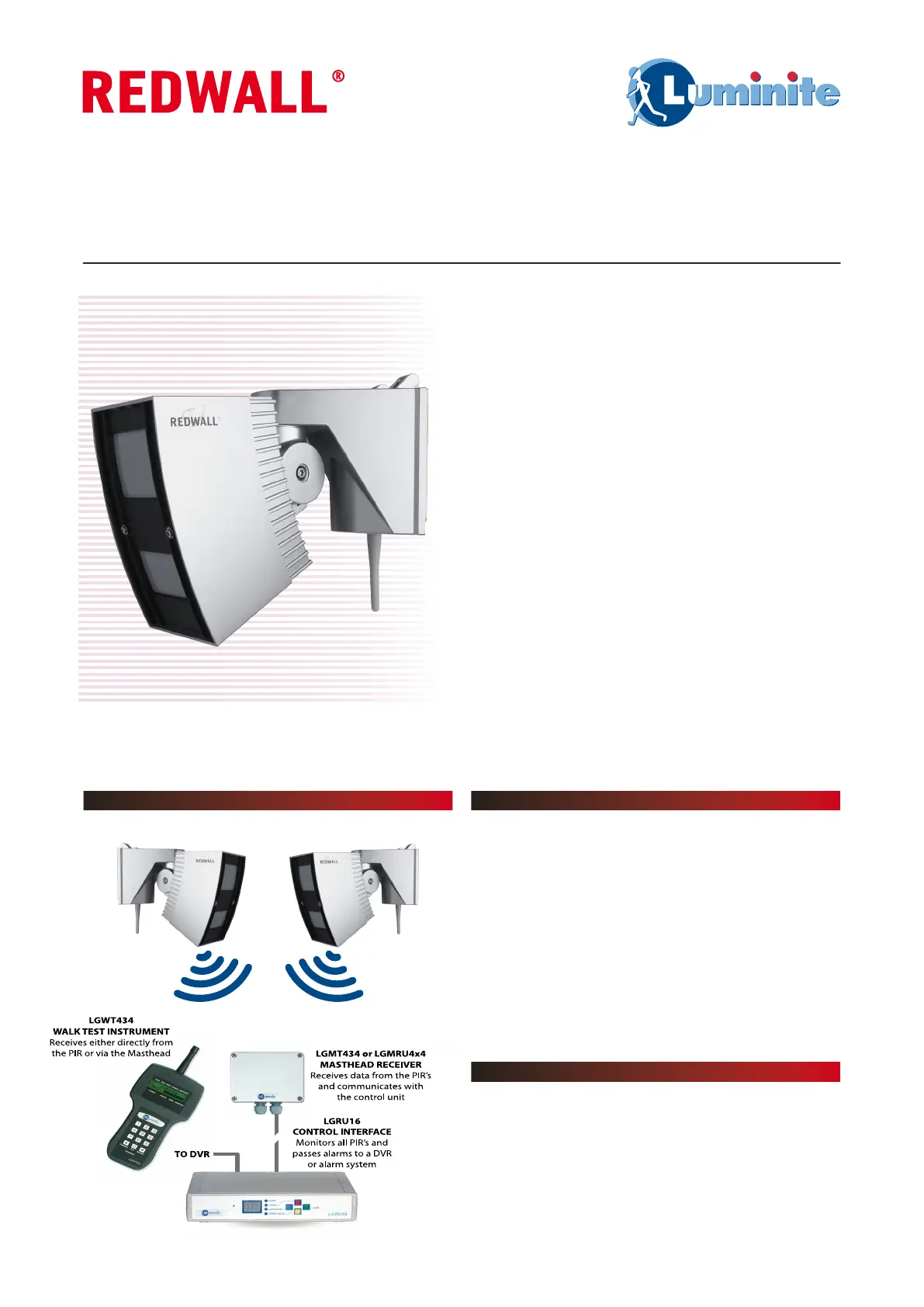

The SIP-3020WFLT and SIP-4010WFLT are
outdoor wireless detectors designed to cover
a detection area of 30mx20m or 40x10m and
to be used mainly where seamless integration
with CCTV systems is required. These detectors
are pre-tted with a long life SAFT battery
and a Luminite wireless radio-frequency (RF)
transmitter.
The SIP-3020WFLT and SIP-4010WFLT feature
an intelligent detection system that monitors
the temperature and the illuminance of the
ambient environment and automatically adjust
the sensitivity. They are also equipped with
anti-rotation, anti-masking functions in addition
to the anti-tamper feature which provides further
security.
They can be used in conjunction with the
REDWALL LGMT434 (Masthead) and LGRU16
(16 Channel Relay controller) or the LGMRU4X4
(Masthead+ 4 channel outputs), to form a
complete radio-linked system.
SIP-3020WFLT SIP-4010WFLT
• Pre-tted with SAFT long life battery
• Pre-tted with the Luminite wireless transmitter, up to 800m
transmission range (line of sight)
• Intelligent PIR Detection System including automatic sensitivity
management, advanced detection algorithm and three dual
pyro-elements with Double Conductive shielding
• Anti-vandalism functions including anti-masking and anti-rotation
function
• Max.4m (13 ft.) installation height
• Independent sensitivity selector for near/far areas
• Detection logic selector
• Detection range selector
• Independent N.C. and N.O. ALARM output
• Adjustable alarm interval time
• BS8418 Compliant- U.K.
SIP-AT SIP Adjustment tools (includes AVF-1 Area view nder and
AWT-3 Audible walk tester)
AVF-1 Area nder
AWT-3 Audible walk tester
SIP-MINIHOOD Sun/Snow shield
LGMT434T Masthead
LGMRU 4X4 Masthead +4 channel Receiver
LGRU16 8 channel Relay Controller
Wireless REDWALL PIR Detector
With pre-tted Luminite wireless transmitter and battery

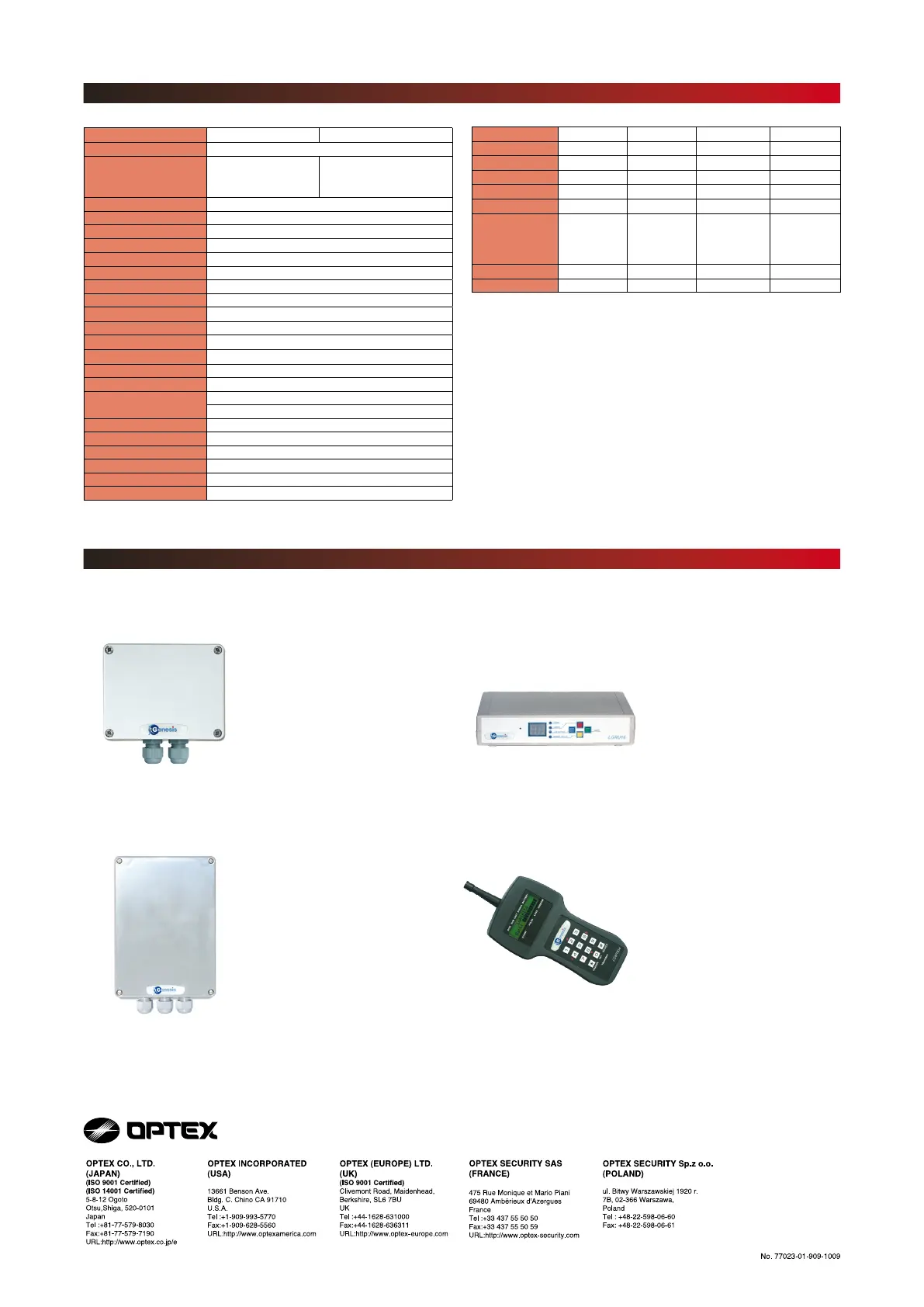

SPECIFICATIONS
WIRELESS RECEIVER AND OTHER ACCESSORIES
SPECIFICATIONS
WIRELESS RECEIVER AND OTHER ACCESSORIES
Model SIP-3020WFLT SIP-4010WFLT
Detection method Passive infrared
Coverage 30x20m (100x65ft.) 40x10m (130x33ft.) 40x4m
(130x13ft.) - can be obtained by
masking some detection areas of
SIP-4010WFLT
Power Input pre-tted 3.6volt SAFT Lithium battery
Operating voltage 2.5to10VDC
Current draw 40 A(Standby) 5mA max.(Operating LED ON)
Mounting height 2.3 to 4m (7.6 to 13ft.)
Sensitivity selector Far. SH/H/M/L Near.SH/H/M/L
Range selector Far. On/Off
Detection logic selector AND/OR
Alarm output N.C. 10VDC, 0.01A max. N.0. 10VDC, 0.01A max.
Alarm interval period Off/ 5,60,150 sec.
Trouble output N.C. 10VDC, 0.01A max.
Tamper output N.C. 10VDC, 0.01A max.
Alarm period Approx. 2 sec.
Warm-up period Approx.120sec.
Operating temperature -25 to +60°C (-13 to +140°F)
IP rating Main unit: IP65
Chassis: IP55
Wireless transmission range Up to 800m (line of sight)
Radio frequency** +10dB on 434.525Mhz at 10mw
Dimensions (H x W x D) 227 x 102 x 266 mm (9.0 x 4.0 x 105 in.)-
Weight 1.2kg (42 oz)-
Power input 3VDC
Current Draw 30mA
Model LGMT434 LGMRU4x4 LGRU16 LGWT434
Power Input 12VDC 12VDC 12VDC 12-14.4VDC
Current Draw 100mA 100mA 500mA 200mA
Antenna Connection BNC BNC n/a Screw terminal
RF Input/Output 434.525 434.525 n/a 434.525
Transmission Range Up to 1 km Up to 1km n/a 500m
Alarm Inputs/Outputs 64 64 8 expandable to
16 relay outputs
Global temper
output
Supervisory
n/a
IP Rating 66 66 n/a n/a
Dimensions (HxWxD) 115x90x55mm 200x160x95mm 50x250x180mm 190x105x85mm
LGMT434 MASTHEAD RECEIVER
LGMT434 Masthead Receiver forms the
heart of the Luminite Genesis wireless
system by receiving alarm data from up to
64 WF-434T transmitters and passing it to
the LGRU16 control unit via an RS232 link.
The Masthead can transmit data as well
as receive it, which means it can transmit
back to a walk test instrument (LGWT434)
showing all received information as well
as the signal strength received from
each transmitter on the wireless network.
In addition it can perform as a repeater for
for systems that require greater transmission
distances.
LGRU16 RELAY CONTROLER
LGRU16 Relay control unit provides a
physical alarm and tamper outputs from
the LGMT434 or LGMRU4x4 Masthead
Receiver. Between one and four LGRU16
relay units can be connected to a single
Masthead Receiver to provide up to 64
alarm and tamper outputs that can be
interfaced to any alarm system. The
LGRU16 is provided with one LGRM8 relay
module which can provide 8 alarm and 8
tamper outputs. An additional LGRM8 can
be provided to increase the number to 16
alarm and 16 tamper outputs. Up to four
LGRU16 control units can be connected
together to provide 64 outputs if required.
LGMRU4x4 MASTHEAD RECEIVER
LGMRU4x4 is an alternative option to the
LGMT434 which can be connected directly
to the alarm presets of a dome camera.
It can also be used to connect directly to
DVRs/alarm systems where a small number
of outputs are required. It has 8 relay
outputs which can be used as 4 alarms
plus 4 tampers or alternatively as 8 alarm
outputs. Expansion cards are available to
increase the number of alarm outputs to a
maximum of 32. The expansion card is a
LGREM4x4 which provides an additional 8
outputs (maximum of 3 per LGMRU4x4).
LGWT434 WALK TEST INSTRUMENT
LGWT434 Walk test instrument is a
transceiver which has the ability to receive
signals from the SIP-3020WFLT and
SIP-4010WFLT or Masthead as well as
being able to act as a transmitter. This
ability to mimic a transmitter is used to
check the proposed transmitter positions
before installation begins. The LCD shows
transmitter information such as ID number,
signal strength and battery condition.
The key pad is used to set the site code and
sub net codes for the site under test. All unit
codes can be displayed or ltered to show
