CinePuck CNP0010
CinePuck
This page provides specifications and additional information for the CinePuck.
The CinePuck is designed specifically for Virtual Production or Broadcast studios. For more information on how to use
the CinePuck for Virtual Production, please visit the Virtual Production section of this documentation.
Active Markers
LED Specifications
The following specifications apply for active IR LEDs on the CinePuck:
850 nm IR spectrum
8 LEDs
Illuminations synchronized with camera exposures
Illumination angle: ±60°
Basic Specs
Spec
Description

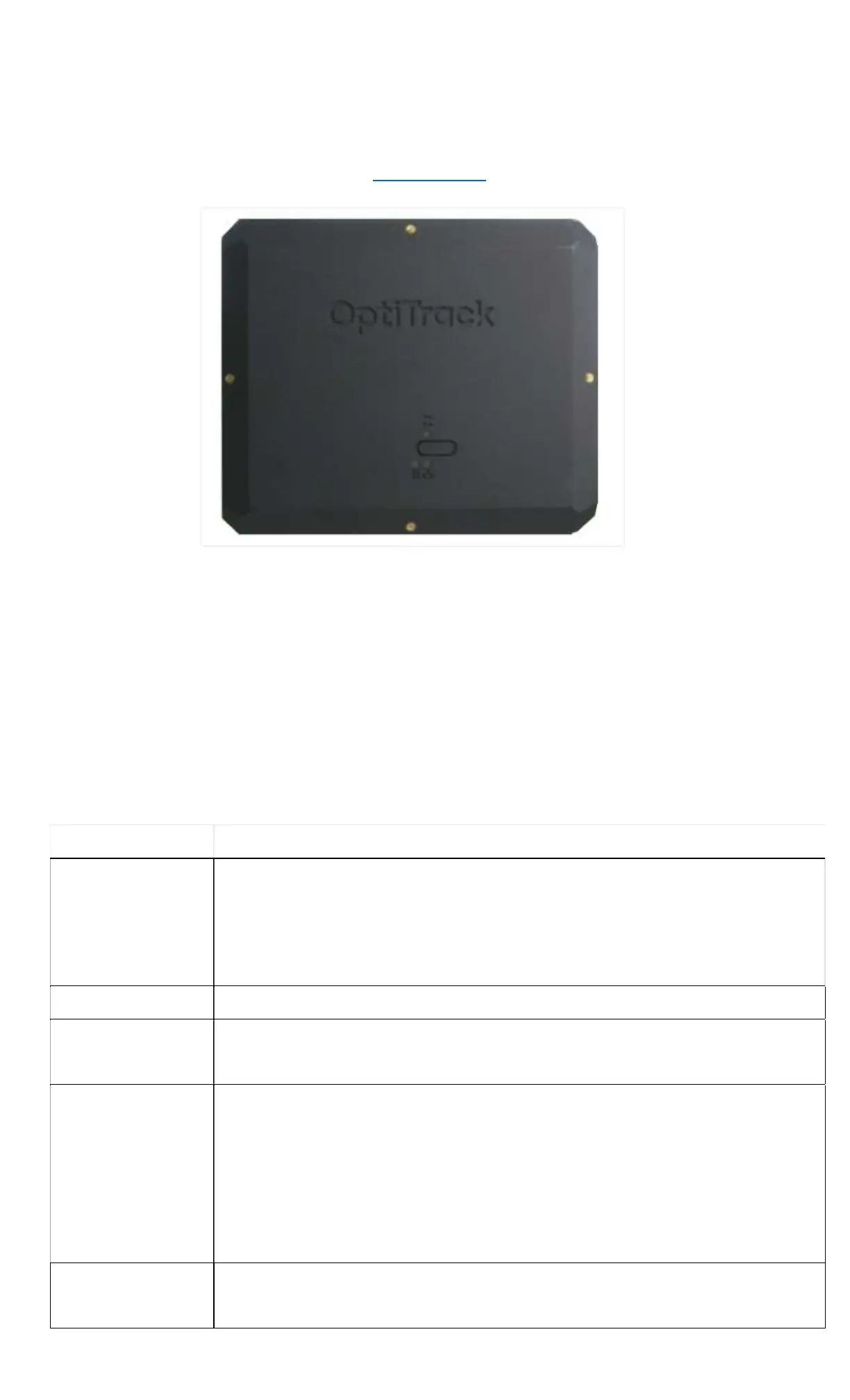

CinePuck Body
Dimensions
Dimensions
Width: 153.30mm (~6.04”)
Length: 127.68mm(~5.03”)
Height: 25.70(~1.01”)
Weight
11.58 oz (~328.29g)
Attachment
x1 ARRI
-
Style Anti
-
Twist Mount w/ 3/8"
-
16 threads
x6 Standard Tripod Mounts w/ 1/4"-20 threads
Battery
2200mAh Lithium polymer battery
Charging
5V micro USB Type C
~7.5 hours* of battery life (*Battery life varies depending on frame rate and exposure
settings)
5hrs zero to full charge
IMU
Dimensions
Width: 15mm
Spec
Description
Length: 15mm
Height: 5.720mm
Weight
< 1.75g
Gyroscope
Dynamic Range
500 +/- °/sec
BaseStation Load Capacity
The number of devices with IMUs (such as CinePucks) that can attach to a BaseStation is determined by the system
frame rate and the divisor applied to the BaseStation. The table below shows the IMU maximum for common frame
rates with a divisor rate of 1, 2, and in some cases 3.
FrameRate
Divisor Rate 1
Divisor Rate 2
Divisor Rate 3
60
26
54
83
70
22
47
71
80
19
39
62
90
16
36
54
100
14
32
49
110
13
29
44
120
11
26
40
130
10
24
140
9
22
34
150
9
20
160
8
19
30
170
7
17
180
7
16
26
190
6
15
200
6
14
23
210
5
14
220
5
13
21
230
5
12
240
4
11
18
250
4
11
As noted, the table does not include all possible frame rate and divisor combinations. If you are familiar with using Tera
Term or PuTTy, you can determine the maximum number of IMUs for any specific frame rate and divisor combination
not shown on the table.
1. Use PuTTy to change the divisor rate on the BaseStation.
2. Connect an IMU puck to PuTTy.
3. Attempt to set the ID of the puck to an unrealistically high value. This triggers a warning that includes the
current number of slots available for the given frame rate.
4. Set the IMU puck ID to the highest available slot for the frame rate and confirm that it appears in Motive.
5. BaseStations have 16 radio frequency (RF) channels available for use (11-26).
When adding more than one BaseStation to a system, the IMU count is simply the
maximum number of IMUs multiplied by the number of BaseStations (up to 16). For
example, in a system with 4 BaseStations running at 90Hz and a divisor rate of 3,
the number of allowable IMUs would be 216 (54*4=216).
6. CinePuck in Motive
7. To use a CinePuck in Motive, it must first be an asset. Please see the Builder pane
page for instructions on creating a rigid body asset, and the page IMU Sensor
Fusion for instruction on pairing the IMU.
8. Use the Auto-Configure feature to automatically pair and align a CinePuck to its
associated IMU. When auto-configured, Motive changes the name of the Rigid Body
and its associated marker constraints to CinePuck_G###.
9. To use a different naming convention, use the Manual Pair option instead.
10. Once the CinePuck rigid body is created, it will be available in the Assets
pane. Select the CinePuck either in the Assets pane or the 3D Viewport to display
its properties in the Properties pane.
11.

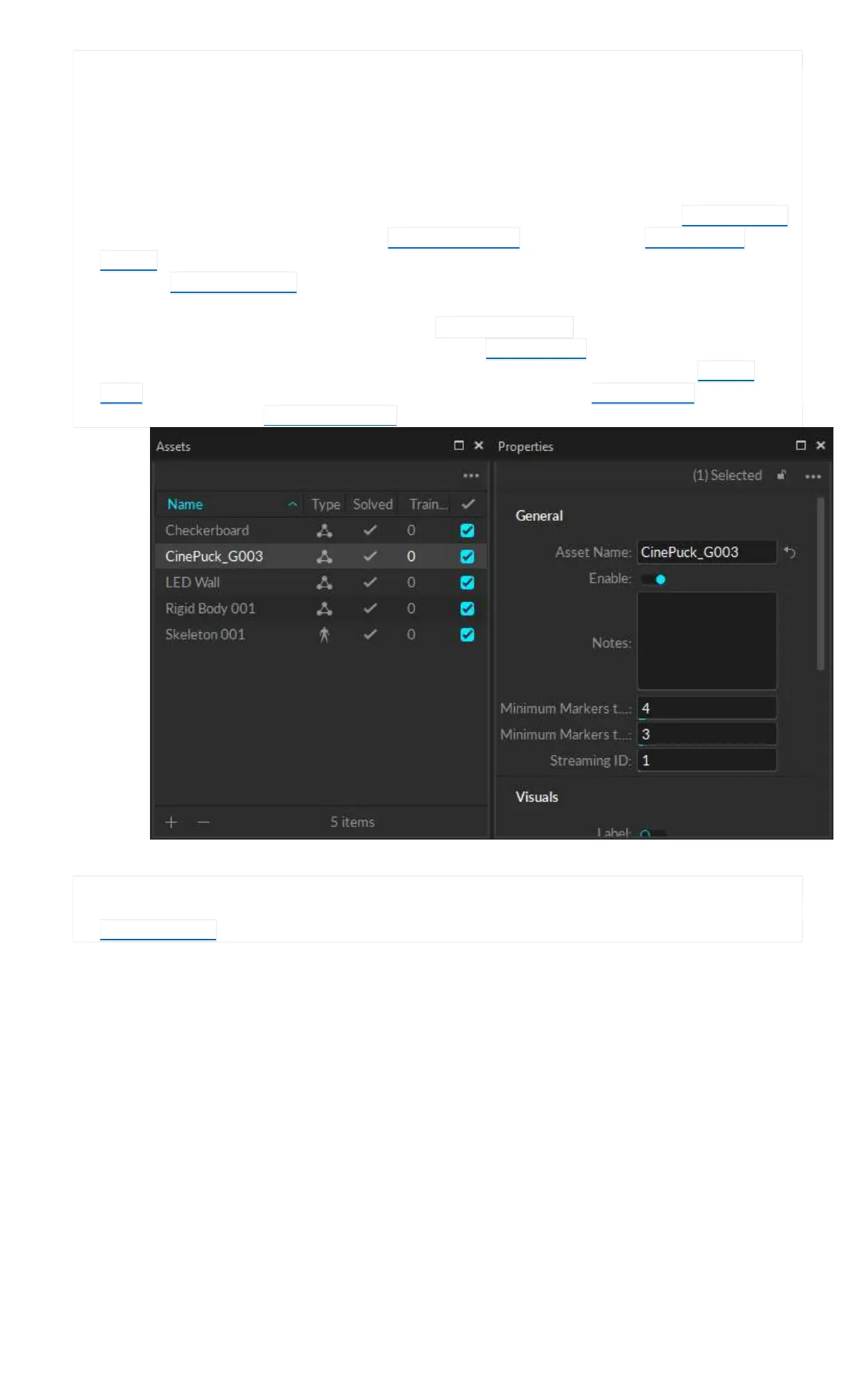

12. CinePuck in the Assets pane (left) and the Properties pane (right).
13. When connected to the OptiTrack system, the properties for the CinePuck
IMU and its associated BaseStation are shown in the Devices Pane. Please see the
Devices Pane page for more details.
