S SERIES MKII
SPECIFICATIONS & FEATURES
Black S Series MK2 Tech R1.indd 1 10/6/21 11:19 AM
S SERIES MKII
Features
Setup 1 Setup 2
1. Custom-designed and -built crossovers. 2nd Order, 12dB per octave crossover. Higher-quality air-core chokes with 100% oxygen
free copper windings, 5% resistors and polypropylene/metal lm German capacitors are used in the elegantly laid out and highly
rened crossovers. All soldering uses Japanese silver solder for better conductivity.
2. The S81 and S82 use a triple tweeter array that sits on a rotatable faceplate, allowing the tweeters to be oriented vertically or
horizontally. This ensures perfect high-frequency timbre matching regardless of orientation. It also provides a way to choose whether
the room’s acoustical characteristics would benet from a wider or narrower sound eld. When mounted vertically the tweeter array
has wider horizontal dispersion and narrower vertical dispersion – reducing oor and ceiling reections. The triple tweeter array also
allows for much higher SPL levels and less restricted sound.
3. The 8-inch woofer’s cones are made from long wood ber. A coarser type of paper that further reduces cone resonance, while
maintaining rigidity at high SPLs, ensures pistonic air displacement and, as a result, lower distortion. The improved magnet structure
uses a larger low-carbon steel magnet. We also introduced a Triangular ‘silent’ spider to attach to the pure copper edge-wound voice
coil. Flat to 80Hz, -3dB at 70Hz and -10dB at 30Hz, the 12dB per octave roll off is an easy match for subwoofers.
2. Triple Tweeter Array
Left
Left
Right
RightCenter Center
Flat Screen TV Flat Screen TV
3. 8” Long Wood Fiber Inter-thread
Double Compressed Woofer Cone
1. Custom Second Order X-Over
Black S Series MK2 Tech R1.indd 2 10/6/21 11:19 AM
Specications:
S82 MKII
8” Home Theater / On-Wall Speaker
Woofer: Dual 8” Long Wood Fiber Inter-thread
Double Compressed Cone
Tweeter: Triple Tweeter Array Silk Dome
X-Over: 12db Second Order at 2200hz
Cabinet: Front Inverted With High Transparency Grille
Gold Plated Speaker Terminals - 5-way binding posts
Power Handling: 300W
Sensitivity: 92dB 1w/1m
Max SPL: 116 dB
Freq Response: 70Hz - 22kHz (Measured On-Wall)
+/- 3dB and 45Hz -10dB
Impedance: 4 ohms
Finish: Black PUV Coated Surface
Dimensions: HxWxD 39.2” x 10” x 6.25”

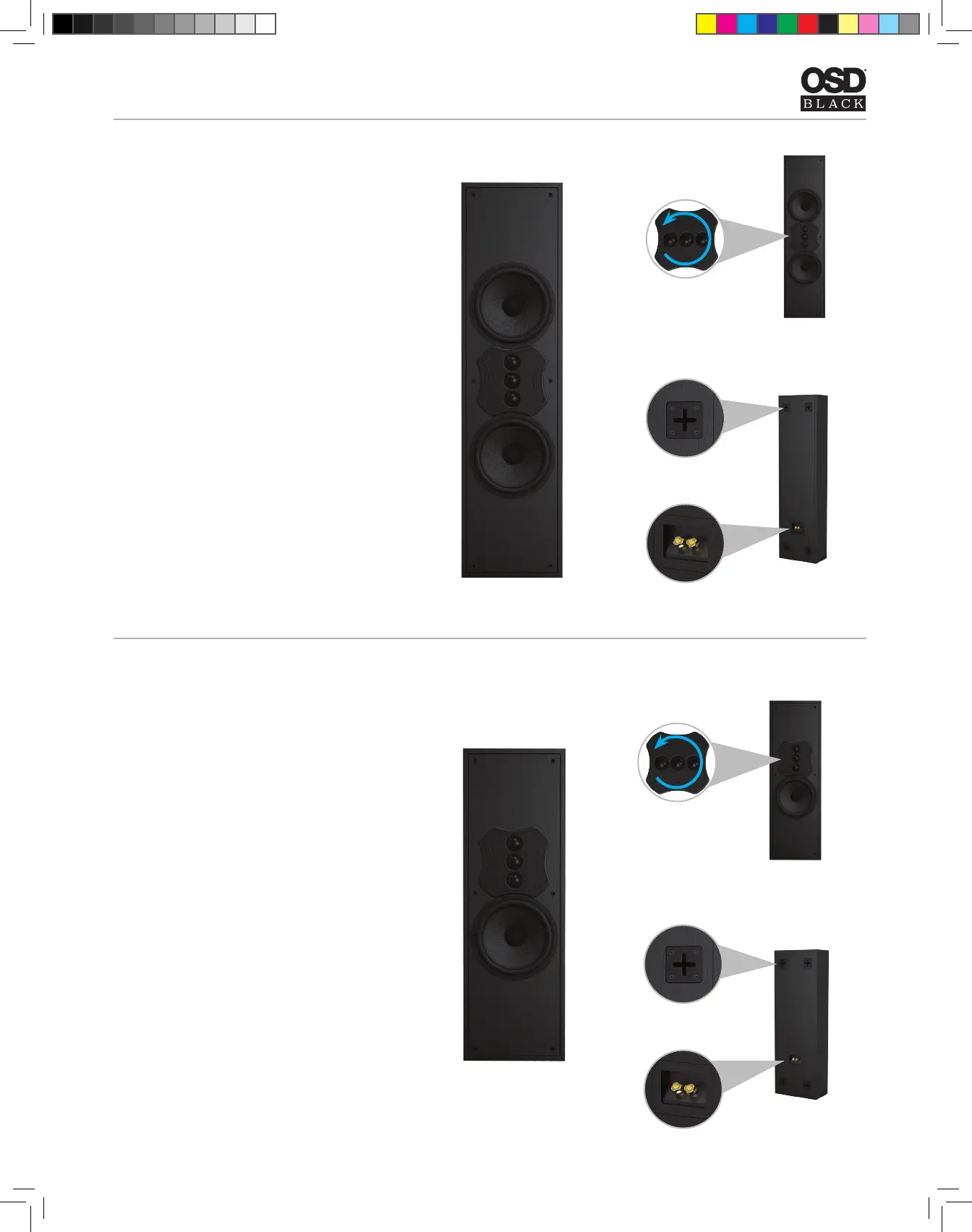

Tweeter Position
Back
Connection
Mounting
Tweeter Bae can be
Rotated
Tweeter Position
Back
Connection
Tweeter Bae can be
Rotated
Specications:
S81 MKII
8” Home Theater / On-Wall Speaker
Woofer: 8” Long Wood Fiber Inter-thread
Double Compressed Cone
Tweeter: Triple Tweeter Array Silk Dome
X-Over: 12db Second Order at 2200hz
Cabinet: Front Inverted With High Transparency Grille
Gold Plated Speaker Terminals - 5-way binding posts
Power Handling: 200W
Sensitivity: 91dB 1w/1m
Max SPL: 112dB
Freq Response: 70Hz - 22kHz (Measured On-Wall)
+/- 3dB and 45Hz -10dB
Impedance: 4 ohms
Finish: Black PUV Coated Surface
Dimensions: HxWxD 30.9” x 10” x 6.25”
Mounting
Black S Series MK2 Tech R1.indd 3 10/6/21 11:19 AM
