Panduit CDCLP3 Bruksanvisning

Läs gratis den bruksanvisning för Panduit CDCLP3 (4 sidor) i kategorin ej kategoriserat. Guiden har ansetts hjälpsam av 30 personer. Har du en fråga om Panduit CDCLP3 eller vill du ställa frågor till andra användare av produkten? Ställ en fråga

For Technical Support: www.panduit.com/resources/install_maintain.asp

INSTALLATION INSTRUCTIONS

© Panduit Corp. 2012

RW207

1

32

4

3a

- or -

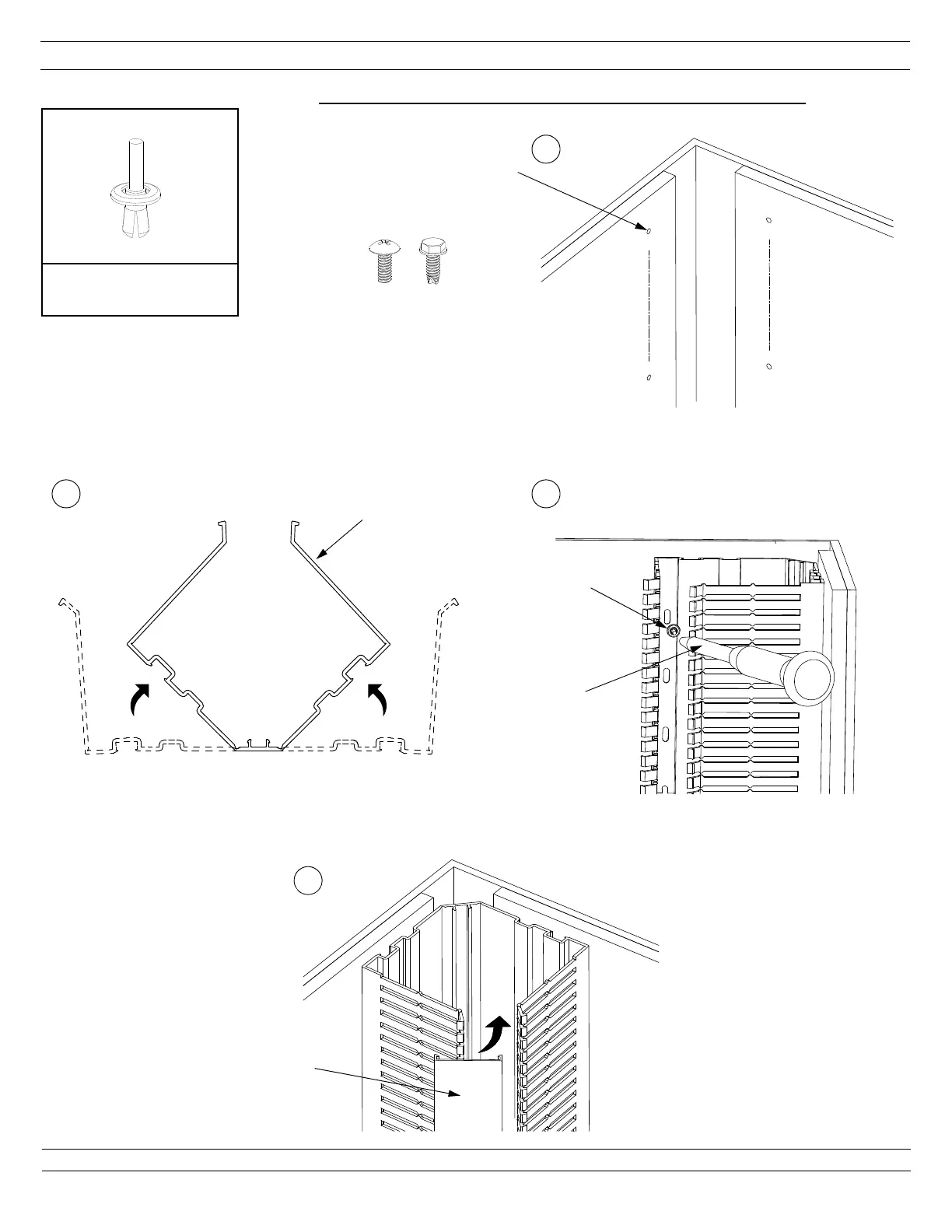

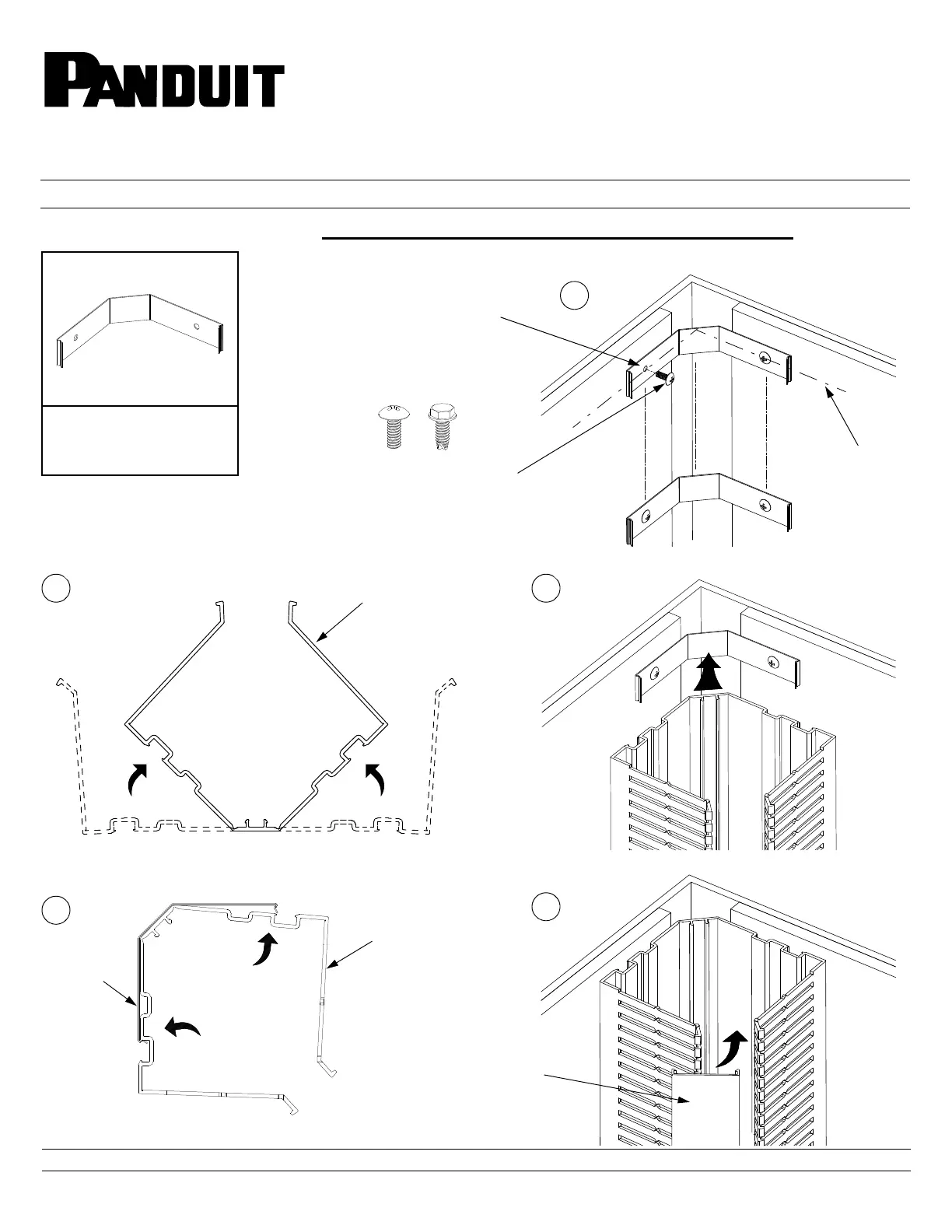

Option 1 - Panduct Corner Wiring Duct Mounting Clip

Note: Clips provide a permanent installation and are not intended to allow for product removal

Panduct PanelMax One-Piece Corner Wiring Duct

For use with Panduit Panduct Types

F, G, FS and D Wiring Duct

Part Numbers:CWD2**6, CWD3**6, CWD4**6, C2**6, CDCLP2, CDCLP3,

CDCLP4, CDLB3, CDLB4

CDCLP2, CDCLP3,

CDCLP4

(sold separately)

CWD2**6

CWD3**6

-or-

CWD4**6

Note: #10-32 x 1/2" (or sheet metal

screw equivalent) to be supplied by

the installer/end user

Refer to chart on page 4 for

mounting hole locations

Mounting clips must

be installed level

Wiring Duct

Mounting

Clip

C2**6

(sold separately)

Page 1 of 4

** Denotes color.
