Sida 1/14
For Technical Support: www.panduit.com/resources/install_maintain.asp
INSTALLATION INSTRUCTIONS
© Panduit Corp. 2012
CM546B
Duct System for a Server or Switch Cabinet Mounted
Cisco 9506 (CNLTD72A3)
9506 Duct
(Installed in Server or
Switch Cabinet)

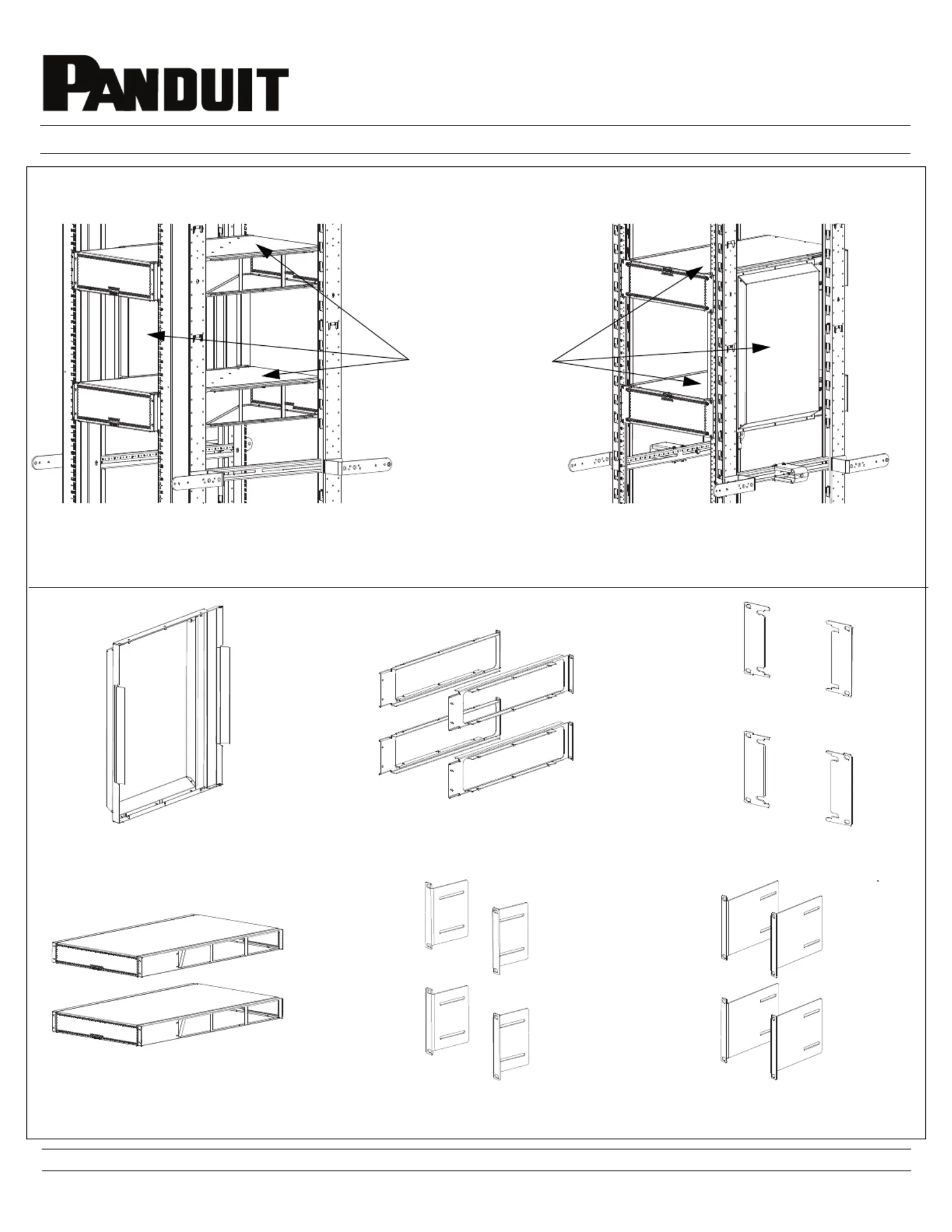

Component Guide
Front of Cabinet
(Cold Aisle)
Rear of Cabinet
(Hot Aisle)
Side
Brackets
Ducting
Assembly
Duct Boxes
Adjustment Brackets
(Server Application)
Seal Plates
Adjustment Brackets
(Switch Application)
Front of Cabinet
(Cold Aisle)
Rear of Cabinet
(Hot Aisle)
Server Cabinet Application
Switch Cabinet Application
Device Ports Facing Hot Aisle
Device Ports Facing Cold Aisle
Page 1 of 14
For Technical Support: www.panduit.com/resources/install_maintain.asp
INSTALLATION INSTRUCTIONS
© Panduit Corp. 2012
CM546B
Table of Contents – 9506 Ducting
Section 1 – Device Placement
Device Placement.....................................................................................................................................................
Section 2 – SERVER APPLICATION
Determine Location of 9506 Duct...........................................................................................................................
Cage Nut Installation...............................................................................................................................................
Left and Right Hand Bracket Installation................................................................................................................
Ducting Installation..................................................................................................................................................
Duct Box Installation...............................................................................................................................................
Section 3 – SWITCH APLICATION
Page
Determine Location of 9506 Duct...........................................................................................................................
Left and Right Hand Bracket Installation................................................................................................................
Ducting Installation.................................................................................................................................................
Duct Box Installation...............................................................................................................................................
Section 4 - Day Two Installation
Net-Access Cabinet Installation..............................................................................................................................
Net-Serve Cabinet Installation.................................................................................................................................
3
4
5
6
7
8
9
10
11
12
13
14
PAGE
Page 2 of 14
For Technical Support: www.panduit.com/resources/install_maintain.asp
INSTALLATION INSTRUCTIONS
© Panduit Corp. 2012
CM546B

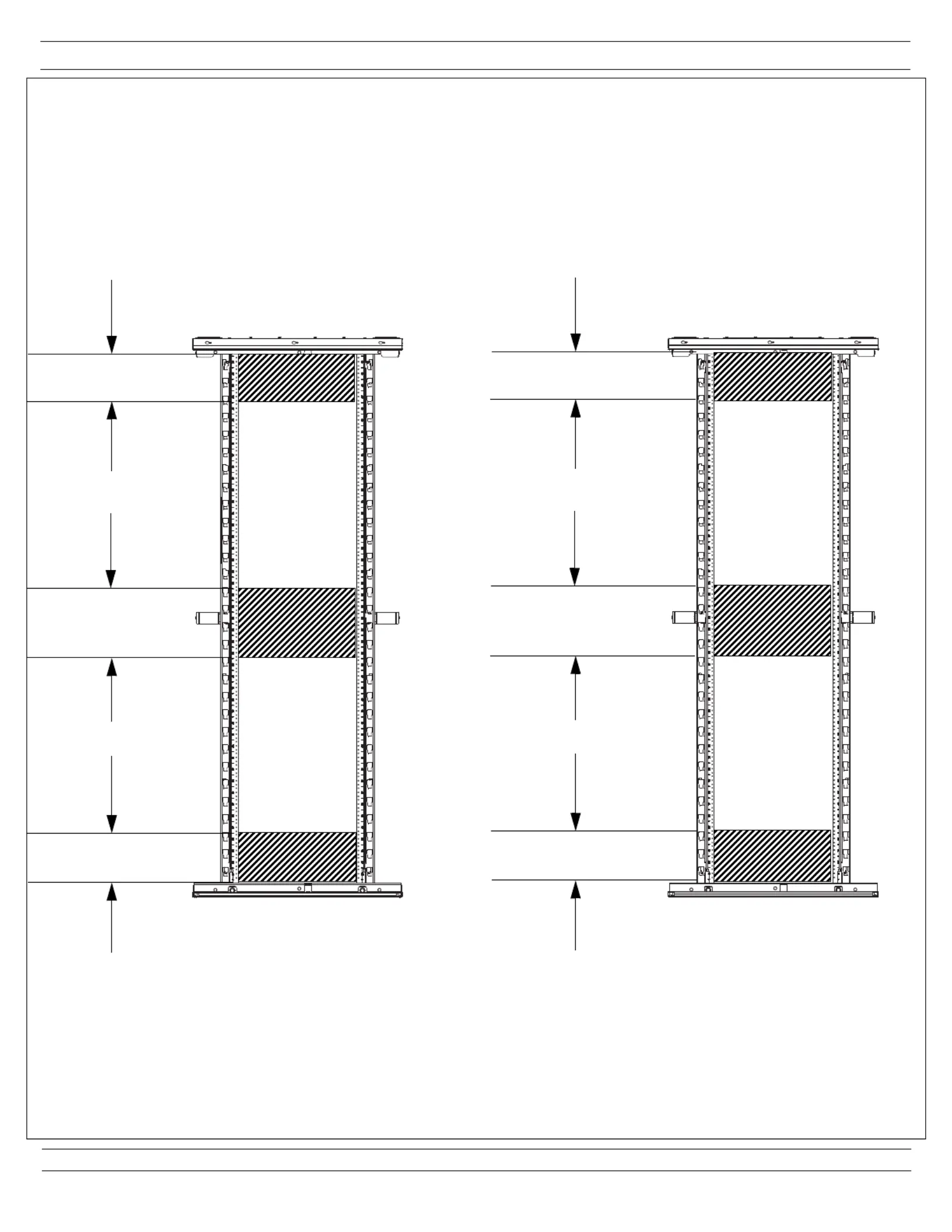

Device Placement
• Due to physical constraints posed by the front-to-back beams on the legacy Net-Access cabinet, there are
certain areas of the cabinet that the device cannot be mounted when used in conjunction with this inlet duct.
• For new Net-Access switch ca striction on device binets (N***), there are no device keep-out areas. The only re
is that 3 RU must be left open above and below the switch.
• NOTE: Numbers-up RU numbering (#1 at bottom) assumed.
45 RU Net-Access CN*** or CS***
Cabinet (Legacy)
42 RU Net-Access CN*** or CS***
Cabinet (Legacy)
Device KEEP-OUT
area - RU 41 - 45
Device KEEP-OUT
area - RU 20 - 26
Device KEEP-OUT
area - RU 1 - 5
Device can be installed
in RU 6 -19
Device can be installed
in RU 27 - 40
Device KEEP-OUT
area - RU 38 - 42
Device KEEP-OUT
area - RU 20 - 26
Device KEEP-OUT
area - RU 1 - 5
Device can be installed
in RU 6 - 19
Device can be installed
in RU 27 - 37
Page 3 of 14
