For Technical Support: www.panduit.com/resources/install_maintain.asp

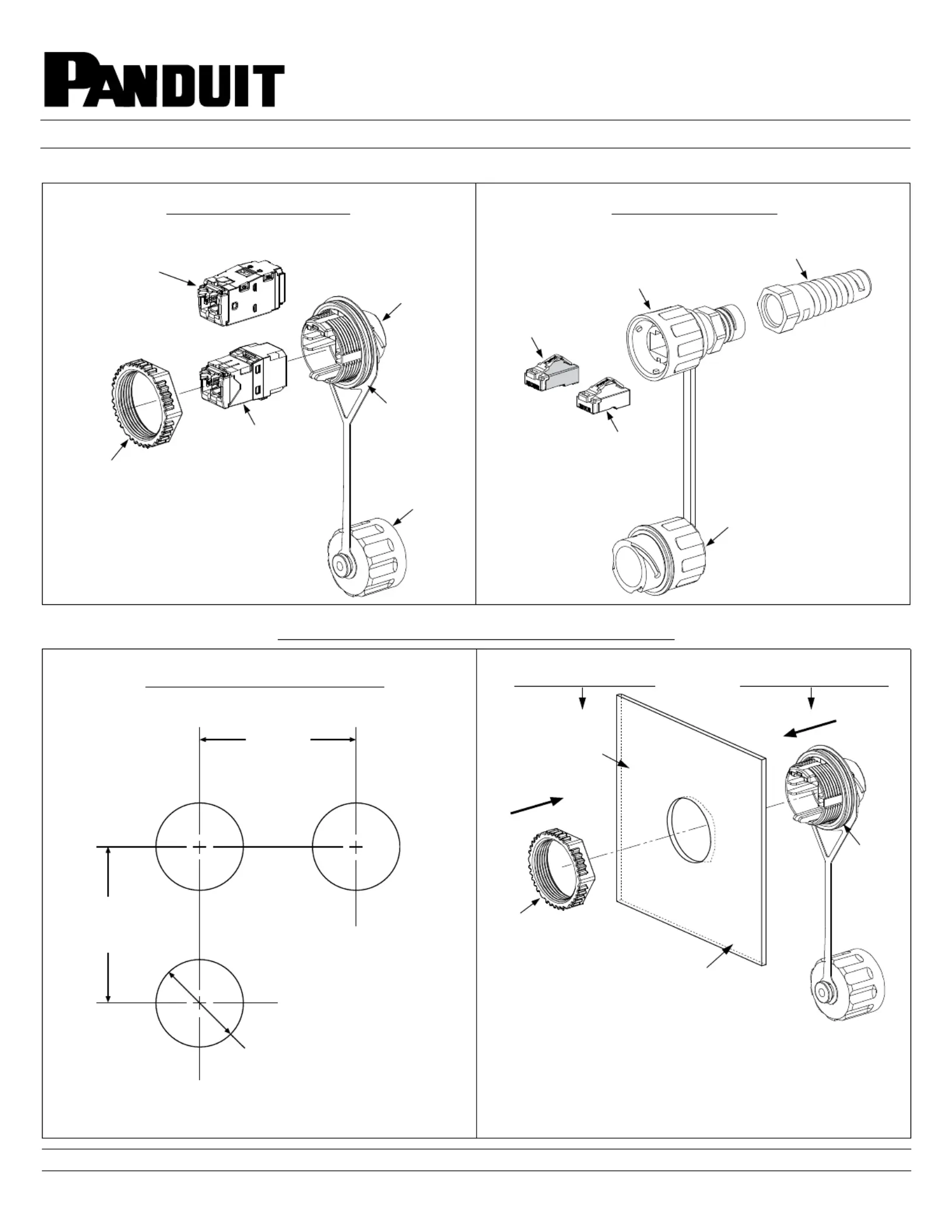

INSTALLATION INSTRUCTIONS

© Panduit Corp. 2018

PN367E

Page 1 of 4

IAEBH5E / IAEBH6 / IAEBH6X / IAEBH5ES / IAEBH6S/

Shielded

Bulkhead w/

Nut

(For IAEBH5ES,

(For IAEBH5E,

UTP

Face Seal

Tether

Industrial Jack

Flex Tail

Shielded

(For MPSI588T)

(For MPI588T)

UTP

Plug Holder

Tether w/ Cap

(Optional)

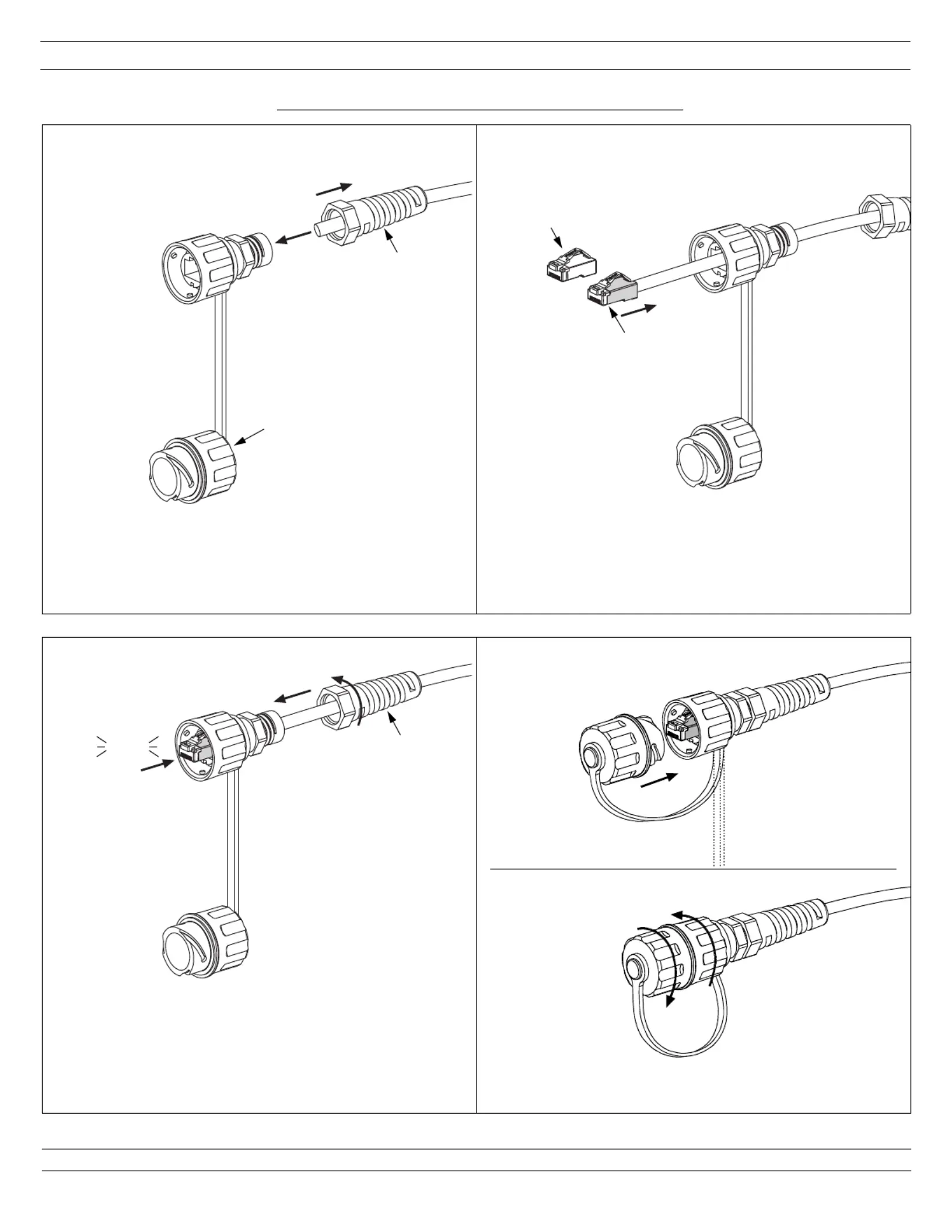

Industrial Plug

MPSI588T / MPI588T

IAEBH6

w/ Cap

IAEBH6S,

Bulkhead

Seal

IAEBH6XS/ IAEBH (jack module not included)

Jack Module

Jack Module

Modular Plug

Modular Plug

and IAEBH6XS)

and IAEBH6X)

IndustrialNet

TM

TX

TM

Bulkhead Connectors

Part Numbers:IAEBH5E, IAEBH5ES, IAEBH6, IAEBH6S, IAEBH,

MPSI588T, MPI588T, IAEBH6XS, IAEBH6X

1

2

{not to scale}

Ø 1-13/64"

(30.6mm)

1-7/8"

(47.6mm)

1-7/8"

(47.6mm)

Enclosure Wall

Insert Bulkhead into prepared opening from outside of enclosure.

While holding Bulkhead in place, secure with Nut on inside of

enclosure. Hand turn Nut 4-1/4 to 5 full turns. Be careful not to

tighten to the point the Bulkhead Seal is over compressed and

displaced from the enclosure wall and the Bulkhead.

Note: If using wrench, flats on Nut should be on the outside.

Inside of EnclosureOutside of Enclosure

or Outlet Plate

Min. thickness: 0.035" (20 gauge)

Max. thickness: 0.135" (10 gauge)

Bulkhead

Seal

Nut

Bulkhead Opening Requirements

Installation for Industrial Jack Module

Note: Bulkhead combination must be used on a flat surface of a NEMA 4X Enclosure to maintain rating.
