Sida 1/16

For Technical Support: www.panduit.com

INSTALLATION INSTRUCTIONS

V00029MX_08

Page 1 of 16

PATCH UNNERR

2 Vertical Managers and Racks

Part Number(s): See Sheet 2

Part Numbers and Part Contents.....................................................................................................2

Door Removal..................................................................................................................................3

Installation of Vertical Managers to Racks.......................................................................................4

Door Installation...............................................................................................................................5

Finger Removal and Replacement..................................................................................................7

End Panel Installation......................................................................................................................8

Waterfall Installation.......................................................................................................................11

Other Compatible Accessories.......................................................................................................13

Table of Contents

Description Page

For Technical Support: www.panduit.com

INSTALLATION INSTRUCTIONS

V00029MX_08

Page 2 of 16

PATCH UNNERR

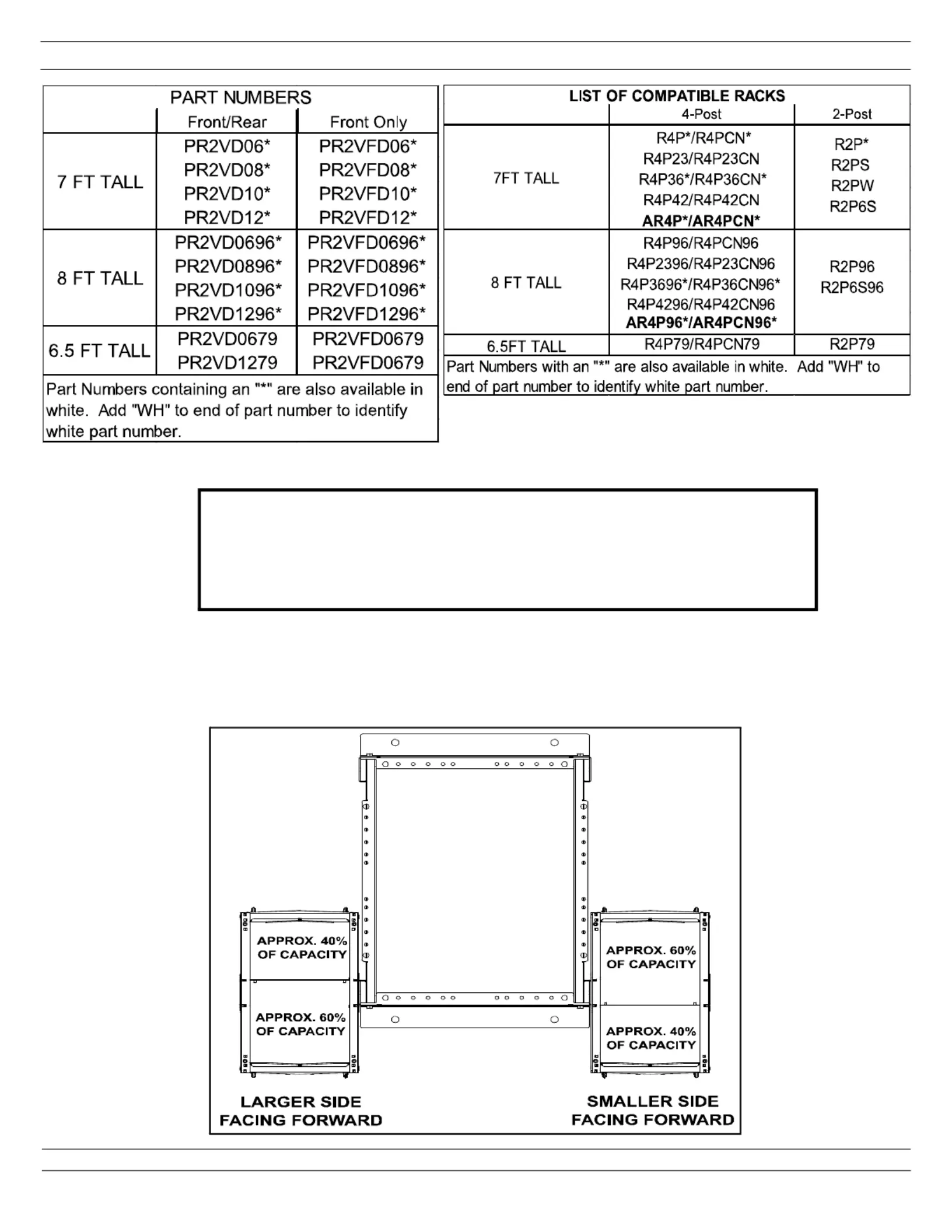

2Vertical Cable Managers may be installed with either side facing forward.

PART CONTENTS

(1) PATCHRUNNER

2 Vertical Cable Manager with (1) door per side

(8) M10 Serrated Flange Bolts

(8) M10 Serrated Flange Nuts

For Technical Support: www.panduit.com

INSTALLATION INSTRUCTIONS

V00029MX_08

Page 3 of 16

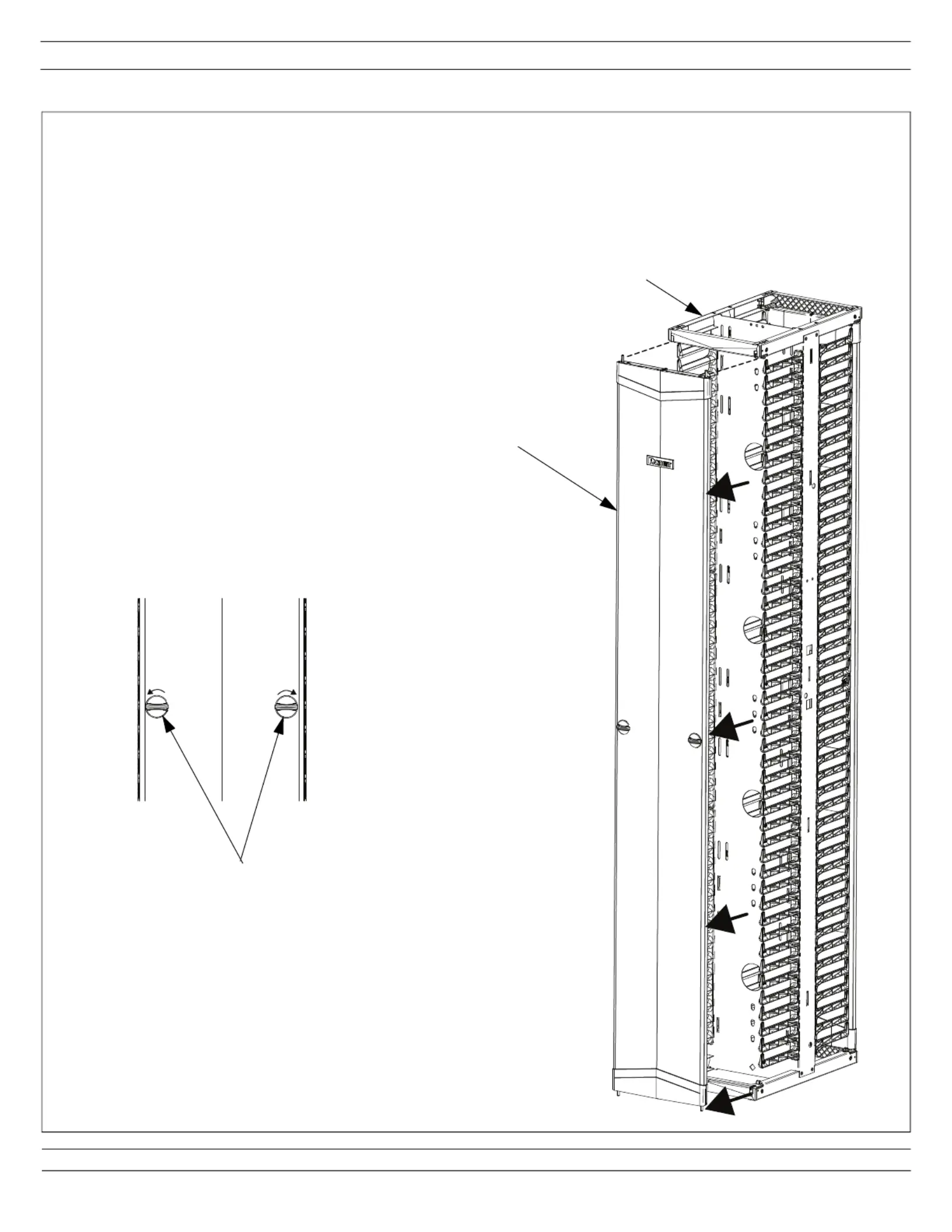

Note: If the installer does not wish to

fully remove the door while finishing

the Vertical Cable Manager installa-

tion then he/she may opt to open the

side of the door closest to the rack.

Door opening is illustrated on page 7

of this document.

Vertical Cable

Manager

Door(s)

To remove door(s),

turn both knobs

outward.

Door Removal

Produktspecifikationer

Varumärke:	Panduit
Kategori:	ej kategoriserat
Modell:	R2PWH
Bredd:	516 mm
Djup:	76 mm
Höjd:	2134 mm
Material:	Gjuten aluminium
Modell:	Fristående rack
Snabbinstallationsguide:	Ja
Antal skruvar:	36
Rackkapacitet:	45U
Maxvikt:	453.6 kg
Produktens färg:	Vit
Hållbarhetscertifiering:	RoHS
Skruvar medföljer:	Ja
Muttrar inkluderade:	Ja
Antal muttrar:	12
