INSTALLATION INSTRUCTIONS

For Technical Support: www.panduit.com/resources/install_maintain.asp

V00029WU

Page 1 of 15

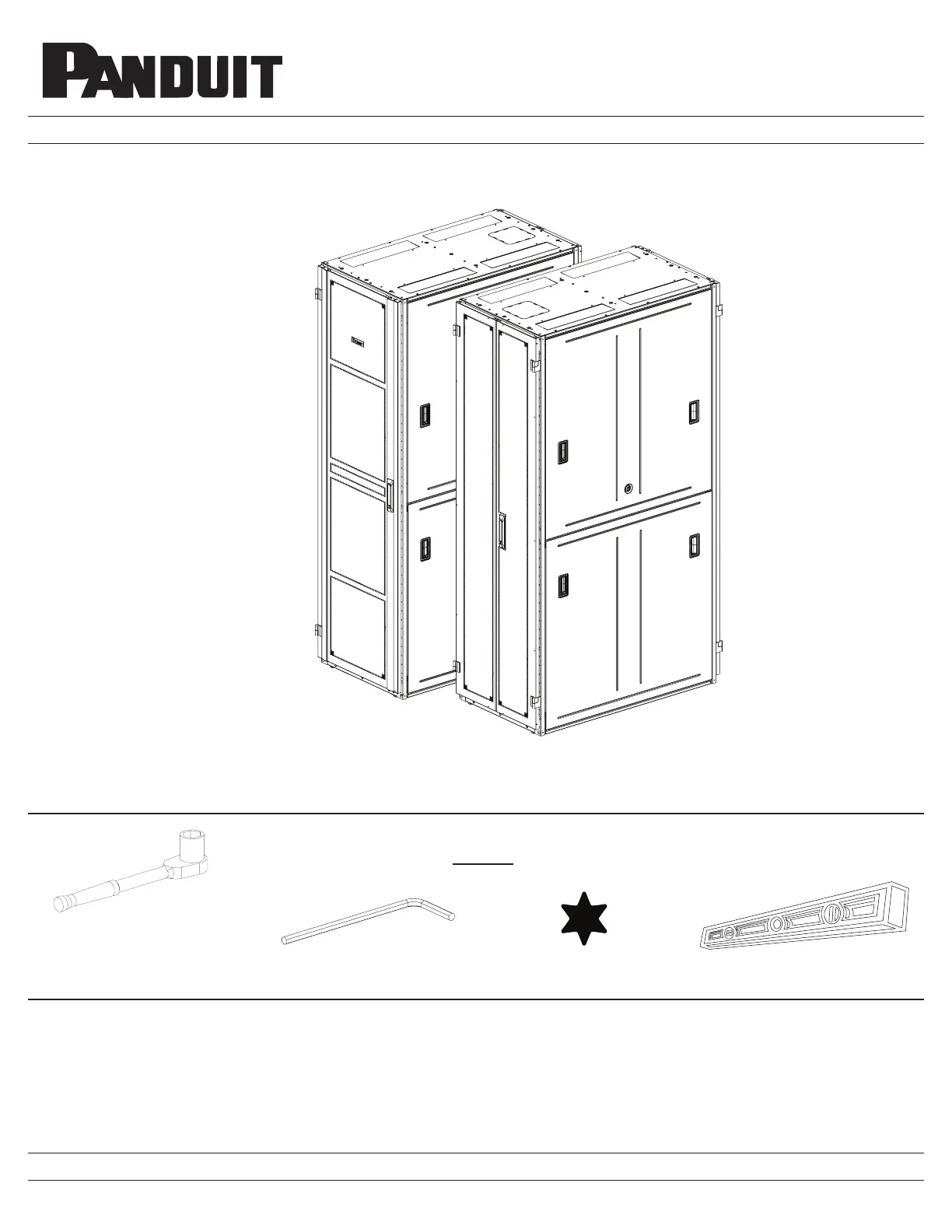

FlexFusion XGL Server Cabinet

Part Number(s) : XGL6****B, XGL6****W, XGL8****B, XGL8****W

Disclaimer:

The information contained in this manual is intended as a guide for use by persons having technical skill at

their own discretion and risk. The recommended practices are based on average conditions. Panduit makes

no representation or warranty, express or implied, nor assumes any responsibility for the accuracy or

completeness of these installation instructions. Panduit does not guarantee any favorable results nor assume

any liability for damages, improper installation, system failures, or any other problems that could arise in

connection with the use of these installation instructions.

NOTE: Some views in this document may vary slightly from your actual cabinet conguration. Components missing

from some views for clarity purposes.

Back of Cabinet

Front of Cabinet

FlexFusion Cabinets

Tool List

13mm Socket

Wrench

15mm Socket

Wrench

122mm (48”) Level

T25 Torx driver

6mm Hex Key

INSTALLATION INSTRUCTIONS

For Technical Support: www.panduit.com/resources/install_maintain.asp

V00029WU

Page 2 of 15

CABINET TIPPING HAZARD

This cabinet can easily be tipped. Use extreme caution when unpacking or moving the cabinet.

Use at least [2] persons to remove cabinet from pallet and move cabinet into position

(refer to page 5).

After the cabinet has been removed from the pallet, ensure that the leveling legs are in the

fully-retracted position (refer to pages 5-6) before rolling the cabinet on casters. It is recommended to

add at least 136Kg (300 lbs.) of equipment to the bottom 10RU of the cabinet to provide extra stability

before rolling the cabinet.

When rolling the cabinet on casters, push the cabinet from the front or rear only, to prevent the cabinet

from tipping on its side.

When rolling the cabinet on it’s casters, gaps in the oor, including elevator thresholds, should be

covered with a rigid plate capable of bearing the cabinet’s load

FAILURE TO FOLLOW THESE INSTRUCTIONS CAN LEAD TO SERIOUS INJURY, DEATH,

OR DAMAGE TO YOUR EQUIPMENT.

IMPORTANT SAFETY INFORMATION

Safety Notes:

The maximum static weight load of the cabinet is 1588 kg (3500lbs.) The maximum weight load when the

cabinet is rolling on casters is 454 kg (1000 lbs.) The weight load should be evenly distributed across the

height of the cabinet, with the heaviest components mounted at the bottom of the cabinet.

The maximum operating temperature is 50º C; so that the installer is able to determine acceptability of use

of accessories and components in the operating state.

The equipment shall be installed or serviced by trained service personnel in accordance with the applicable

requirements of the National Electric Code, ANSI/NFPA 70 or Canadian Electrical Code and the applicable

sections of ANSI C2, the National Electrical Safety Code. These instructions shall not result in the risk of

re, electric shock, or injury to persons.

UL Listing covers enclosure cabinet only

WARNING

Produktspecifikationer

Varumärke:	Panduit
Kategori:	ej kategoriserat
Modell:	XGL84212W
Bredd:	800 mm
Djup:	1070 mm
Höjd:	2022 mm
Certifiering:	EIA/ECA-310-E, TIA/EIA-942, UL2416
Material:	Stål
Modell:	Fristående rack
Rackkapacitet:	42U
Maxvikt:	1588 kg
Produktens färg:	Vit
bruksanvisning:	Ja
Medföljande sidopaneler:	Ja
Styrhjul:	Ja
Knapplås:	Ja
Konstruktion på främre dörr:	Perforerad
Konstruktion på sidopanel:	Stål
Konstruktion på bakre dörr:	Perforerad
