channel1
EPHEMERE

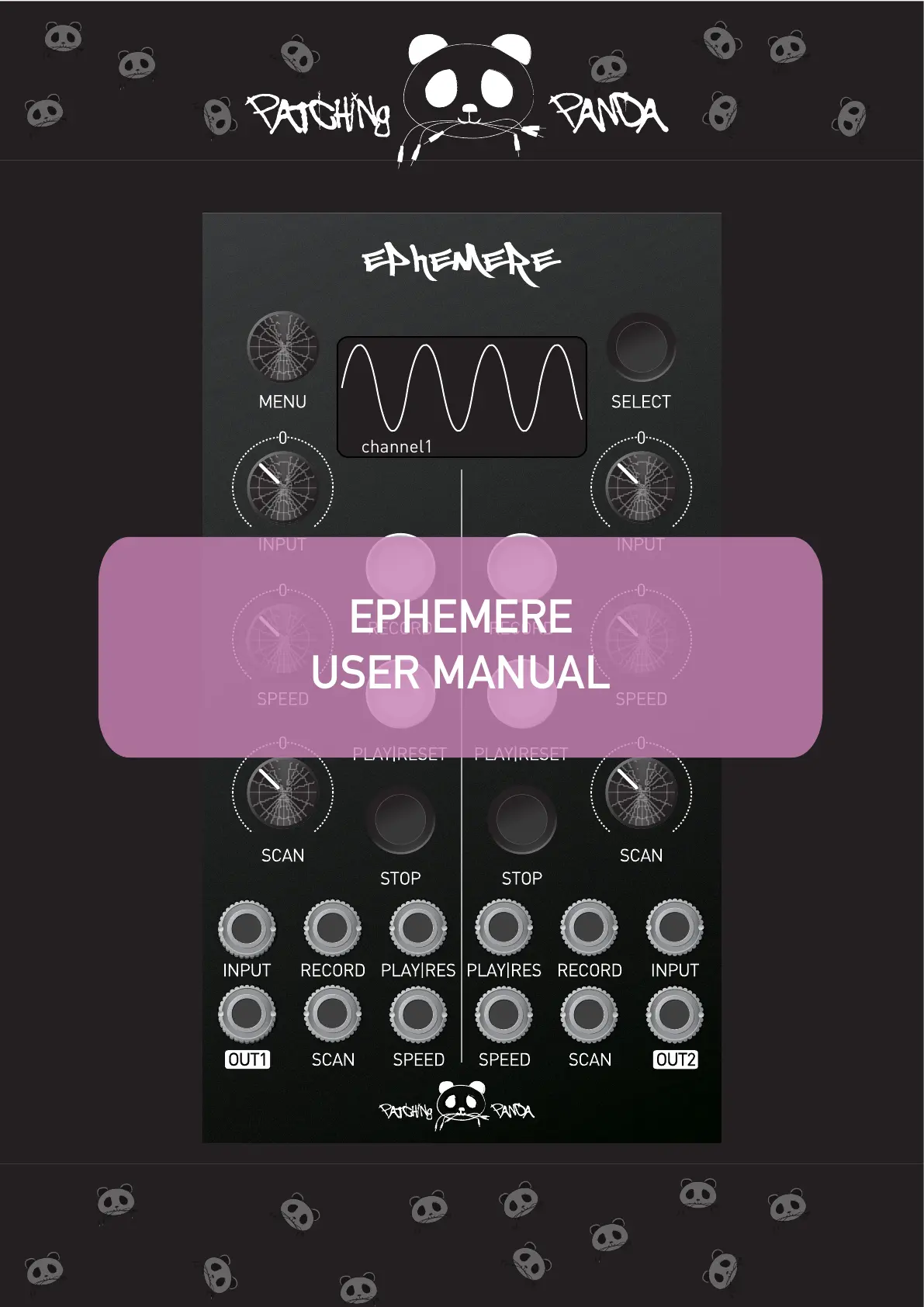

USER MANUAL
INSTALLATION:
This is a high-resolution dual-channel recording interface for your signals
mainly focused on recording control voltages.
You can record from 1014 sec at 172Hz up to 4 sec at 44.1kHz of signal
on each channel, change the playback speed and scan through the
recorded CV.
There is a dedicated attenuverter pot for your incoming signals. When
nothing is patched to the input you can use the input pot as an offset/cv
generator and record pot movements into the module.
It´s possible to save, load your signals and settings on the SD card up to
16GB of space
There are 4 different recording modes to choose from to make more
complex signals to prepare your live performances.
INTRODUCTION:
* Disconnect your synth from the power source
* Double check polarity from the ribbon cable
* After connecting the module check again you have connected the right
way, the red line should be on the -12V
* BE CAREFUL THE PINS FROM THE BACK OF THE PCB SHOULD
NOT TOUCH ANYTHING WHILE IS POWERED
BEWARE IF YOU DON´T FOLLOW THE STEPS DESCRIBED ABOVE
DAMAGING THE MODULE, WARRANTY WILL NOT BE COVERED
Lorem ipsum
Lorem ipsum
Lorem ipsum
A
B
C
D
E
F
G
H
I
J

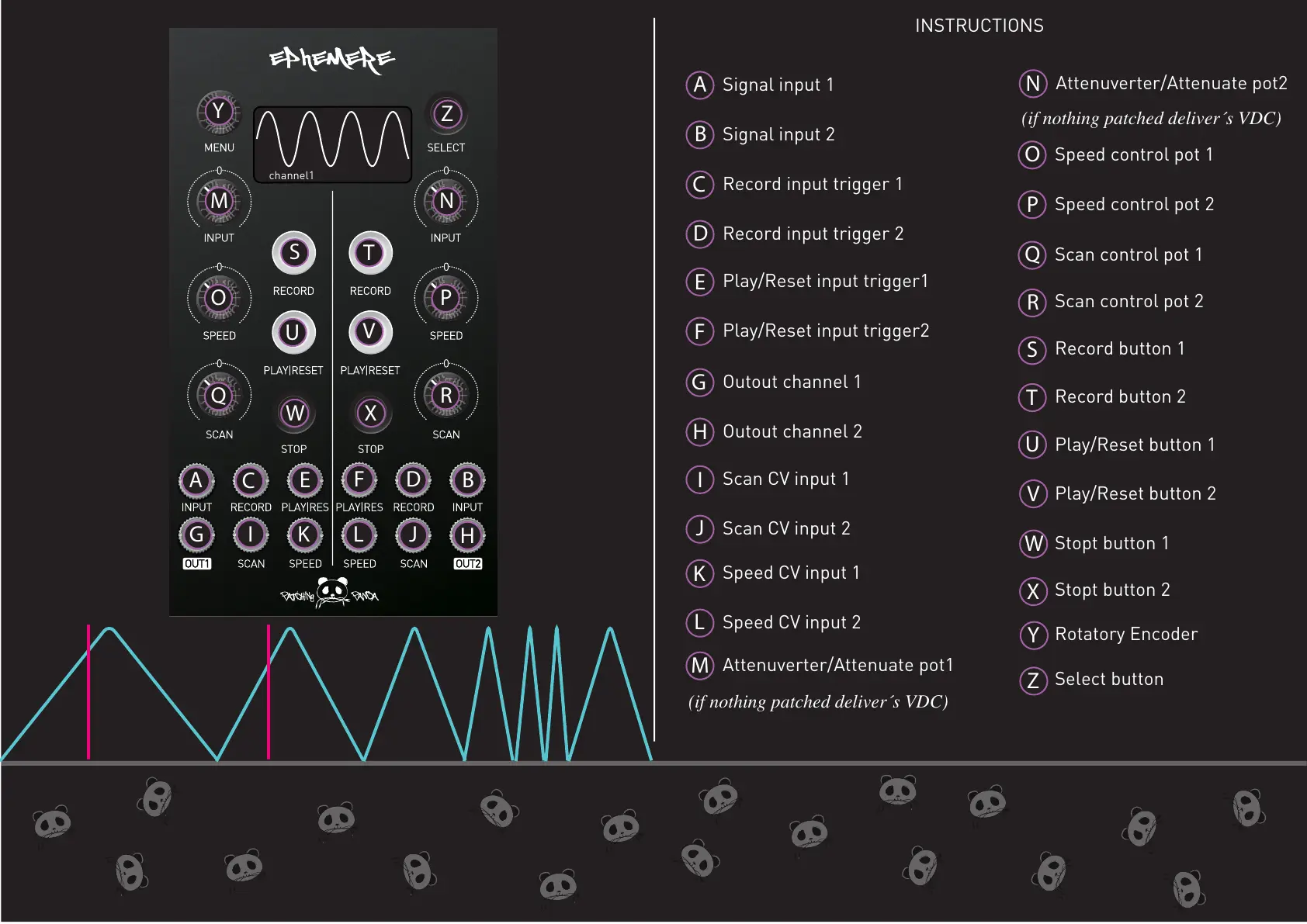

INSTRUCTIONS
Signal input 1
Signal input 2
Play/Reset input trigger2
Outout channel 1
Outout channel 2
Scan CV input 1
Scan CV input 2
Record input trigger 1
Record input trigger 2
Play/Reset input trigger1
K
L
M
N
O
P
Q
Speed CV input 1
Speed CV input 2
Speed control pot 2
Record button 1
Record button 2
Play/Reset button 1
Play/Reset button 2
Stopt button 1
Stopt button 2
Rotatory Encoder
Select button
Scan control pot 1
Scan control pot 2
Attenuverter/Attenuate pot1
Attenuverter/Attenuate pot2
Speed control pot 1
(if nothing patched deliver´s VDC)
(if nothing patched deliver´s VDC)
channel1
A
B
C
D
E
F
G
H
I
J
K
L
M
S
S
T
T
U
U
V
V
Y
Y
Z
Z
W
W
X
X
N
O
P
R
R
Q
