Sida 1/3
HATZ
CH OHEXT IN
TRIG
TRIG
ACC
FREQ
FREQ HOLD
DECAY
DECAY
FREQFREQ
EXT LVL
ACC LVL METALS
HATZ
USER MANUAL
INTRODUCTION:
Hatz is a 2-channel analog hit-hat creation module combining 2 kinds of
sound source – white noise and metallic.
The module is designed to give you a closed hat on one channel and
open on the other. Each channel has a 2-pole Voltage-Controlled
State Variable BP Filter with individual and variable control over decay
curve from linear to exponential.
Hatz features an accent input and choke functionality with CV controlled
decay over the open hatz.
The external input allows you design your own percussion sounds
depending on what you feed in, while the Hold input manually opens the
envelope via gates or CV.
SNR = 80dB
INSTALLATION:
* Disconnect your synth from the power source.
* Double check polarity from the ribbon cable, unfortanetly if you damage
the module by powering in the wrong direction it will not be covered by
the warranty.
* After connecting the module check again you have connected the right
way, the red line should be on the -12V.
HATZ
CH OHEXT IN
TRIG
TRIG
ACC
FREQ
FREQ HOLD
DECAY
DECAY
FREQFREQ
EXT LVL
ACC LVL METALS

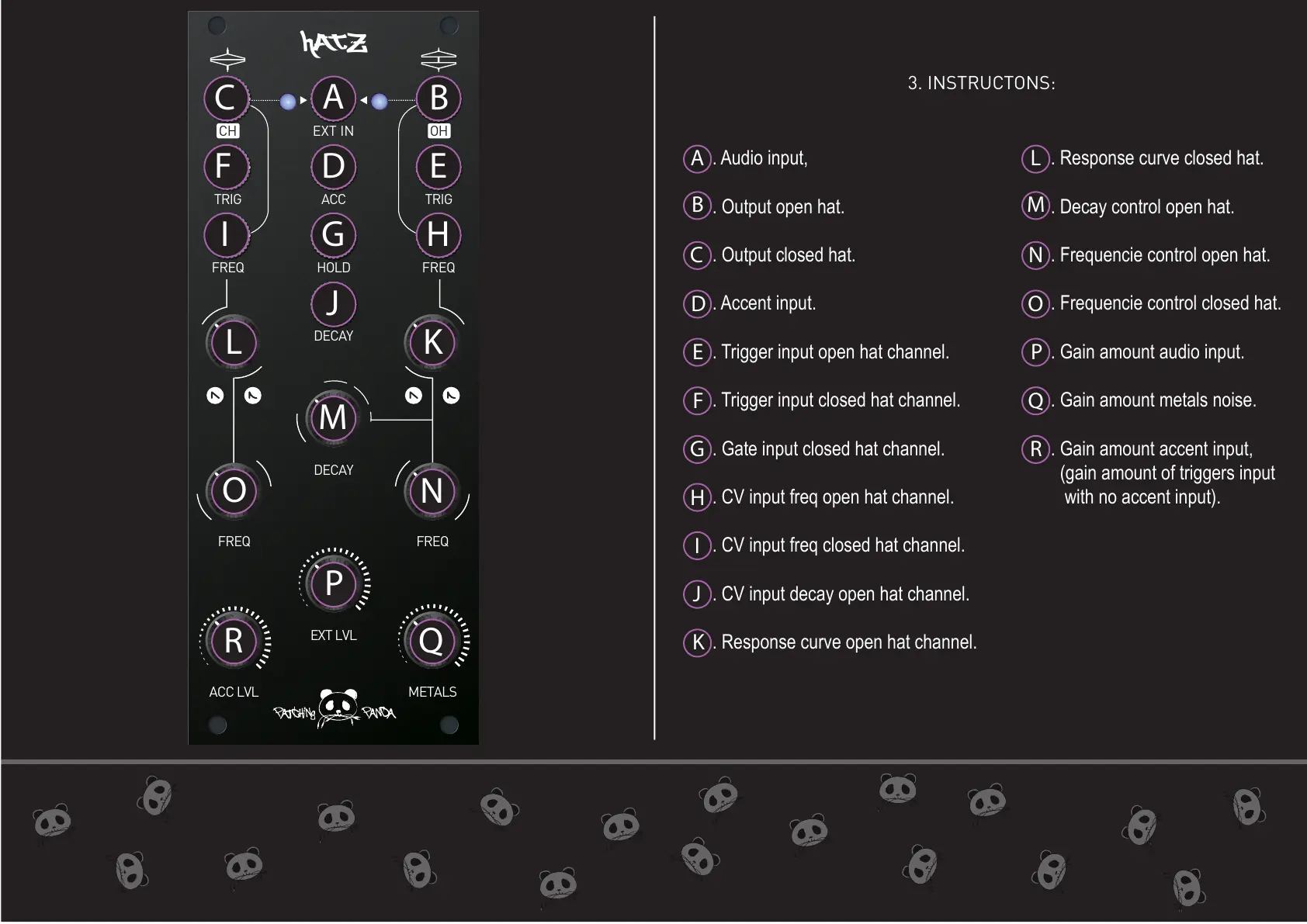

3. INSTRUCTONS:
. Audio input,
. Output open hat.
. Output closed hat.
. Accent input.
. Trigger input open hat channel.
. Trigger input closed hat channel.
. Gate input closed hat channel.
. CV input freq open hat channel.
. CV input freq closed hat channel.
. CV input decay open hat channel.
. Response curve open hat channel.
A
A
H
C
G
J
M
P
I
K
L
N
O
Q
R
E
DF
B
C
B
D
E
F
G
H
I
J
K
. Response curve closed hat.
. Decay control open hat.
. Frequencie control open hat.
. Frequencie control closed hat.
. Gain amount audio input.
. Gain amount metals noise.
. Gain amount accent input,
(gain amount of triggers input
with no accent input).
L
N
M
O
P
Q
R
