Instruction Manual
Congratulations on your purchase! To get optimum performance from your Pearl drum set,
please read this Instruction Manual first before playing.
Tom Holder
Hi-Hat Stand
Snare Stand
Drum Pedal
Cymbal Stand
Ride Cymbal
Hi-Hat Cymbal
Snare Drum
Tom Tom
Bass Drum
Floor Tom
PEARL DRUMS
- M D T -

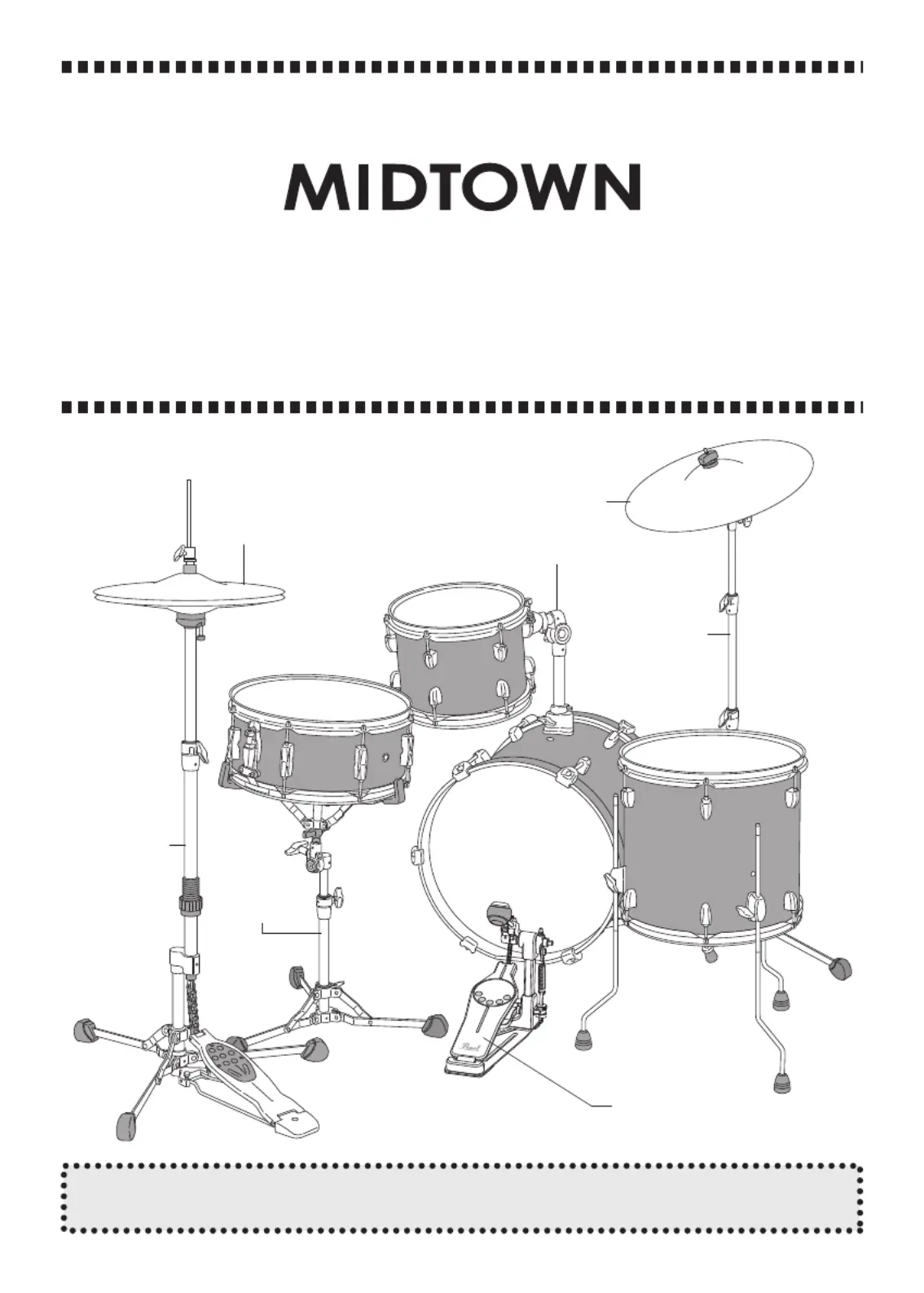

Set-Up Example
*Stands and Cymbals are not included in the set.
Bass Drum Spur
Bass Drum Hoop
Front Head (w/Logo)
Shell
4. Insert the Pedal Clamp Plate into the Clamp Plate Base
as shown and tighten the Wing Bolt to secure. Loosen
the Wing Nut on the Bass Drum Spur and rotate it to the
position shown in Fig.6. Tighten the Wing Nut to secure.
Loosen the Wing Bolt and extend the Spurs making
sure that both sides are equal in length, and tighten the
Wing Bolt to secure. The Bass Drum Spurs have Spike
Tips (for added slip resistance) that can be exposed by
turning the Lock Nut and Rubber Tip clockwise (Fig.5).
1. Place the Shell on a clean, solid surface with the front
side (the side with the Bass Drum Spurs attached)
facing upwards. Put the Front Head with Pearl Logo on
the Shell then attach the Bass Drum Hoop with flat side
down on the Rim of the Head (Fig.1).
3. Turn the shell over to the batter side and place the other
Head and Bass Drum Hoop on the Shell. Position the
Bass Drum Hoop so that the cut is aligned with the
Clamp Plate Base (Fig.3). Attach the Tension
Rods/Hooks in the same way as the front side (Fig.4).
Bass Drum Assembly
The Bass Drum is packed with the Shell, Bass Drum
Hoops, Heads and Parts unassembled. Please follow the
instructions below to assemble the Bass Drum.
Fig.2
Fig.3
2. Pass a Tension Rod through a Hook, and hook it on the
Bass Drum Hoop above a Lug. Finger tighten the
Tension Rod into the Lug and do the same with the rest
of the Tension Rods/Hooks on this side of the drum
(Fig.2). Using a Tuning Key, tighten the Tension Rod
until secure.
CAUTION
The Spike Tips are sharp. Be careful not to hurt yourself or
others when using them. Use the Spike Tips only on thick
carpeted surfaces to prevent damage to the flooring underneath.
Note
The Bass Drum Hoop WITHOUT the cut is used on the front
side.
Tension Rod
Hook
Lug
Bass Drum Hoop
Hook
Head
Tension Rod
Bass Drum Hoop
Clamp Plate Base
Bass Drum Hoop
Cross-section
drawing
Fig.1
(Front side)
Fig.4
(Batter side)
Fig.5
Pedal
Clamp
Plate
Clamp
Plate
Base
Wing Bolt
Wing Bolt
Wing Nut
Bass Drum Spur

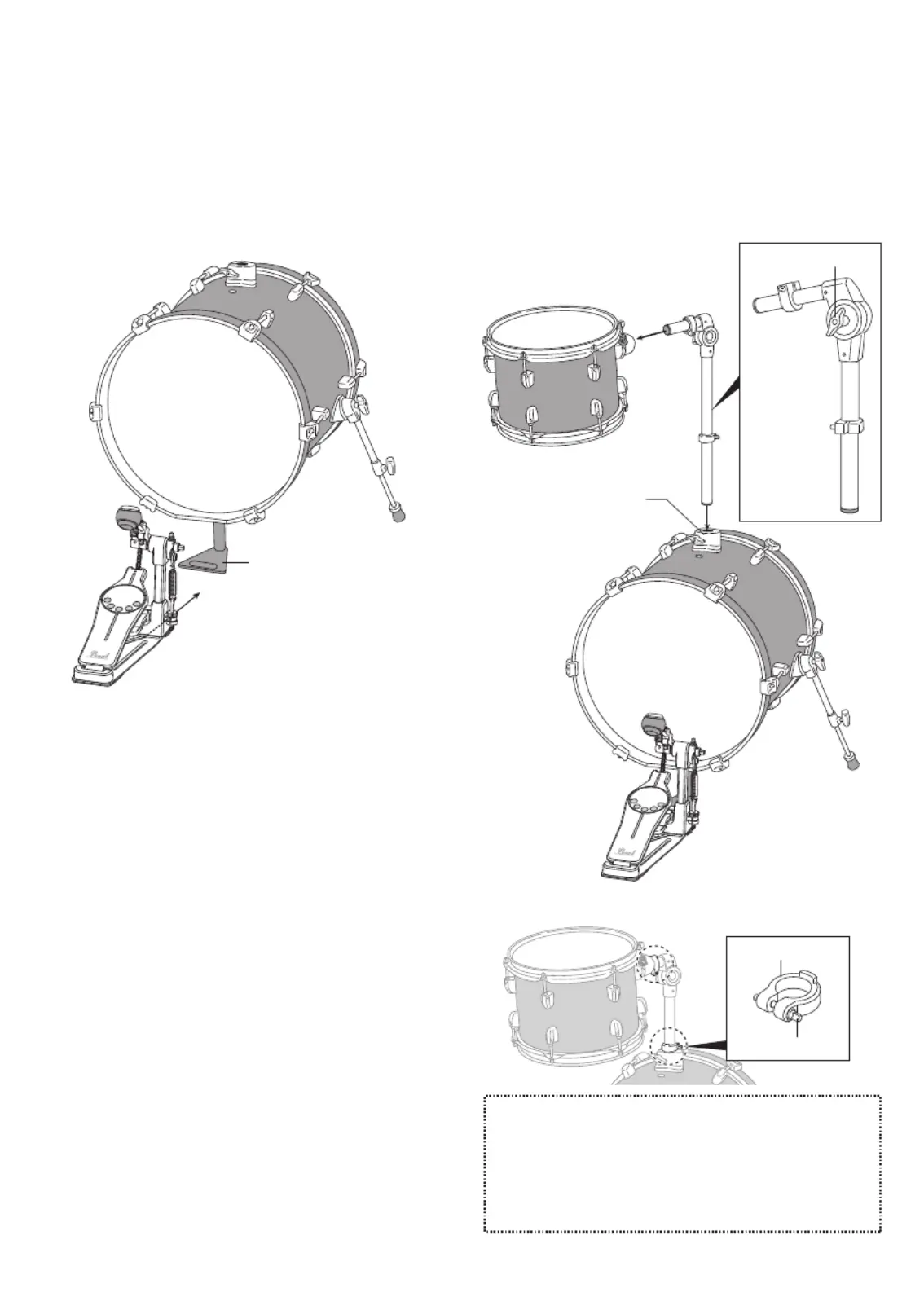

Tom Tom Setting
Insert the long ends of the Tom Holders into the Tom
Holder Bracket on the Bass Drum as shown (Fig.7) and
tighten the Wing Nut on the Tom Holder Bracket. Next,
loosen the Wing Nut on the TH-70I Tom Holder. Adjust the
angle of the Tom Holder so you can attach the Tom Tom
easily then retighten the Wing Nut (Fig.8). Attach the Tom
Tom to the other end of the Tom Holder and tighten the
Wing Nut on the mounts on the Tom Tom.
Drum Pedal Setting
Position the Bass Drum upright as shown and attach your
Bass Drum Pedal to the Pedal Clamp Plate. Adjust the
height of the Pedal Clamp Plate and the length of the
Spurs if necessary. When making the adjustment, hold the
Bass Drum with one hand to prevent the drum from falling
over. When the height is set, make sure to tighten the
Wing Bolts on the Clamp Plate Base and the Spurs, and
the Stop Lock on the Pedal Clamp Plate (Fig.6).
Note
The Tom Holders are equipped with StopLocks that keep the
drums from slipping or rotating and to memorize position
settings for quick and repeatable set-ups. When the position
of the Tom Toms are set, place each StopLock into the slots
in the Tom Holder Bracket and the mounts on the Tom Toms
to retain these settings (refer to the Set-Up Example
illustration on the first page of this manual) (Fig.9).
Fig.6
Fig.9
Fig.7
Fig.8
Pedal Clamp Plate
Tom Holder Bracket
StopLock
Key Bolt
Wing Nut
