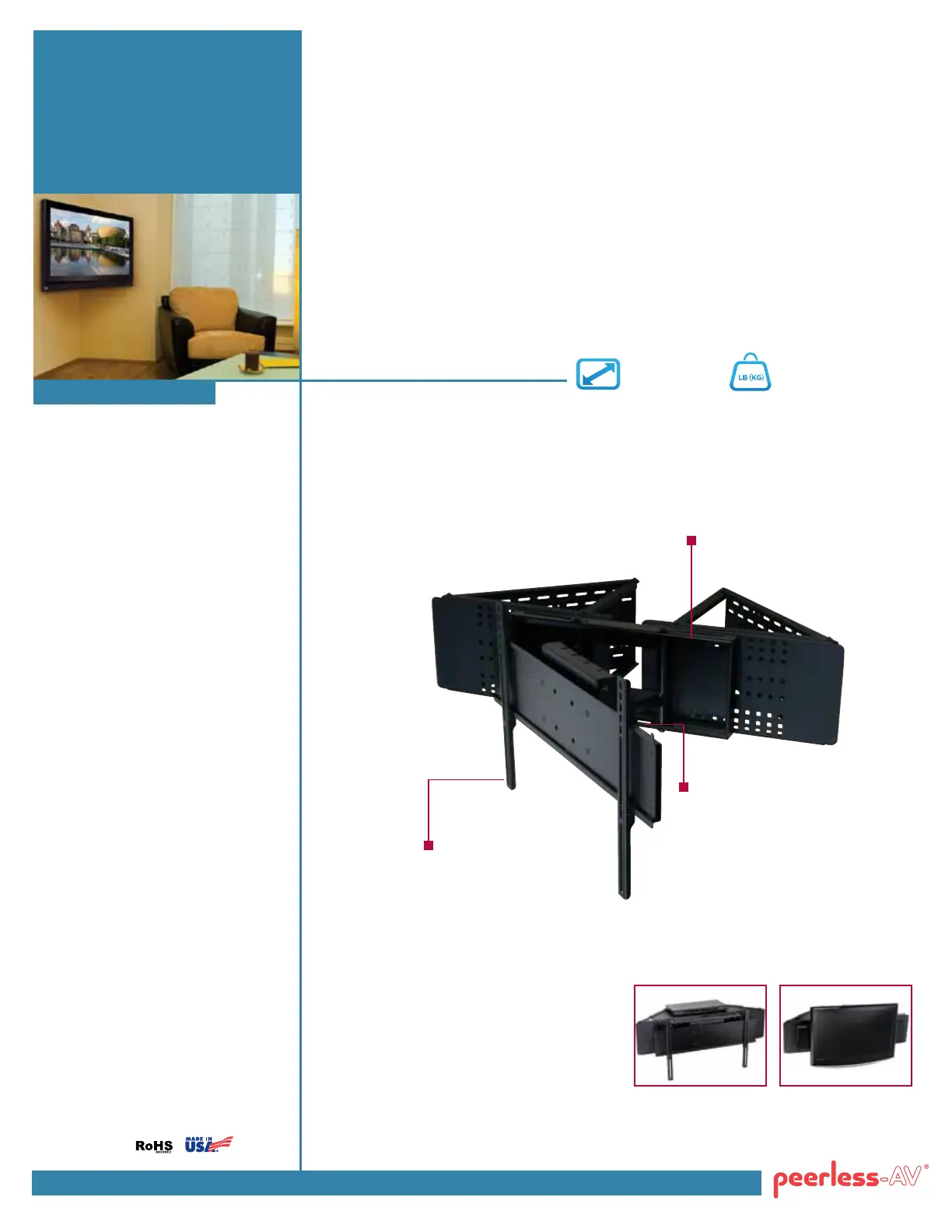

Corner Mount

For 32" to 60" Displays

The industry’s first and only mount designed for direct corner mounting — only from

Peerless-AV! With its pull-out pivot capability (up to 10.75 ), the CM850 easily adapts"

to wider displays with no need for wall mount repositioning. Enjoy perfect viewing

from all angles with this flexible corner mount model that pulls-out, swivels and

tilts. Display attachment plate accommodates speakers when used with smaller flat

panels. Out of the way, but still in clear view, the direct corner mount is the perfect

solution for displays mounted directly to the corner.

Display size: 32" to 60" Max load: 150lb (68kg)

CM850

 Allows display to be

mounted directly in to

the corner

 Includes SmartMount®

Pull-Out Pivot Mount

(SP850-UNL)

 Extendable arms

accommodate multiple

display sizes without

having to adjust wall

unit placement

 Extends up to 10.75" (273mm);

pull-out pivot with up to

90° rotation; 0°, 5° or 10°

lockable tilt

 Accommodate speakers

when used with smaller

displays (wall unit may be

visible with some smaller

displays)

 Optional shelving available

for AV components

FEATURES

SWIVEL MOUNT INCLUDED

Includes SmartMount©

Pull-Out Pivot Mount

(SP850-UNL)

EXPANDABLE ARMS

Up to 10.75" (273mm)

Wall units accommodate

speakers when used with

smaller displays

Optional shelf available for AV

components

SPEAKERS

Designed to

accommodate speakers

CLICK: CALL: FAX: peerless-av.com 800.865.2112 800.359.6500

Patented. Utility Patent No. 7,823,850; 8,517,322.

A R C H I T E C T S S P E C I F I C A T I O N S

The corner mount shall be a Peerless-AV model CM850 and shall be located where indicated on the plans.

Assembly and installation shall be done according to instructions provided by the manufacturer.

LIT-0347 rev.4

PACKAGE SIZE (W x H x D) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS UNITS IN PACKAGE

CM850

Box 1: 46 x 12" " x 4"

(1168 x 304 x 101mm)

Box 2: 32 x 12" " x 4.69"

(812 x 304 x 119mm)

Box 1: 39lb (17.7kg)

Box 2: 30.5lb (13.8kg) 735029259688

Wall plates (2), display

attachment plates (2),

support brackets (4),

SP850-UNL,

assembly and mounting

attachment hardware

Package Speciﬁcations

DIMENSIONS (W x H x D) LOAD CAPACITY FINISH AVAILABLE COLORSPRODUCT WEIGHT

CM850 36.60 -43.80" " x 16.89" x 18.04"-25.79"

(930-1113 x 429 x 457-655mm) 64.5lb (29.3kg) 150lb (68kg)

Scratch

resistant

fused

epoxy

Black

Product Speciﬁcations

Model Numbers WARRANTY: Limited 5-year

All dimensions = (mm)inch

Corner Mount for 32" to 60" DisplaysCM850

Accessories

ACC324: Corner Mount Shelf

Fastener Kit for Speaker MountsACC930:
