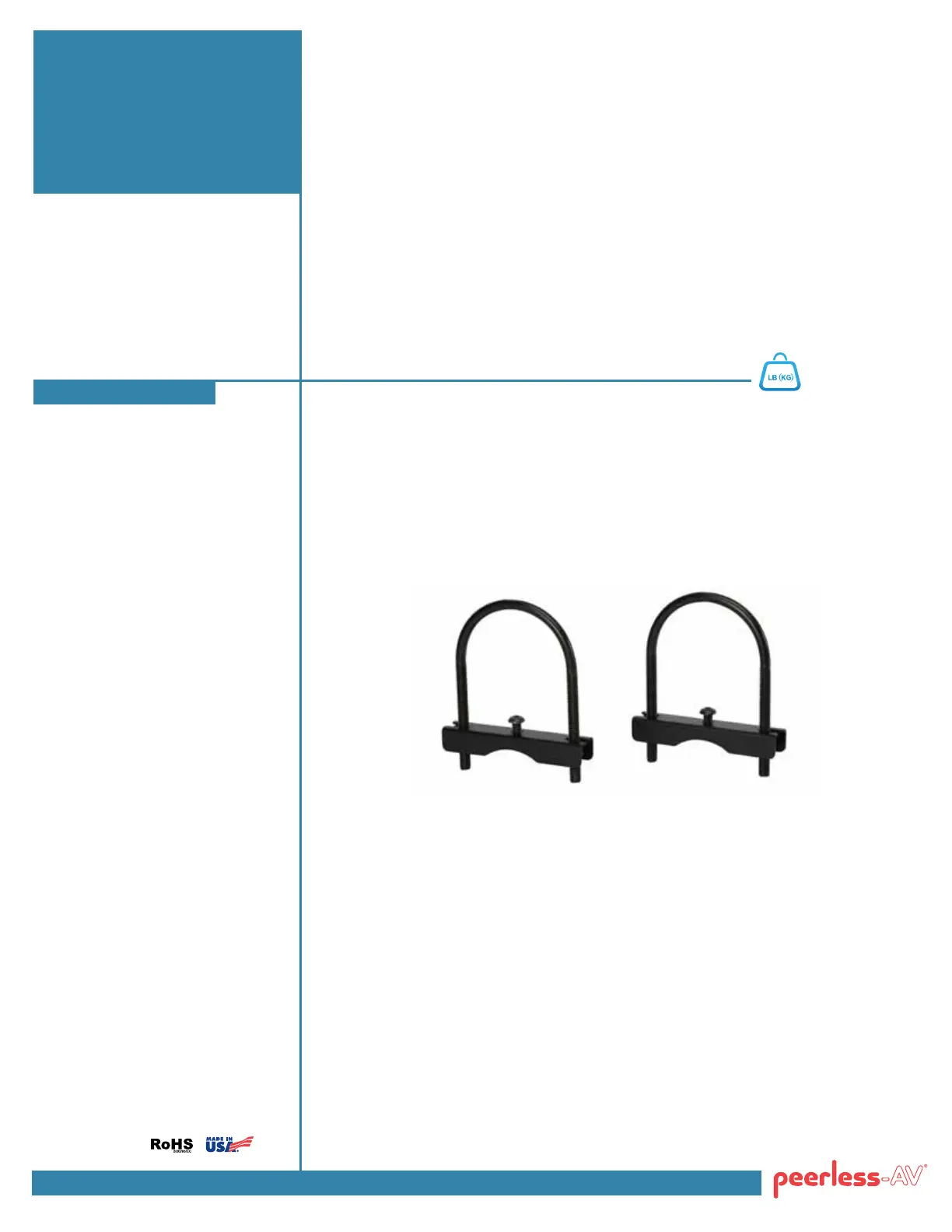

U-Bolt Adaptor Accessory

For Modular Series Square Ceiling Plate (MOD-CPF)

and Cathedral Ceiling Plate (MOD-CPC)

The Peerless-AV Modular Mounts Line features a full range of products that can fulll multiple

requirements from a limited number of SKUs. With the universality of the components, congure

your own perfect custom at-panel display or projector mounting solution for any application.

The Modular Mount Line was developed with the professional AV installer in mind. Designed

around a 2" (50mm) diameter pole, the line is ideal for new projects as well as for upgrading

existing installations.

The MOD-AUB serves as an accessory for installing to pipes, trusses, mini I-beams and other

construction materials.

MOD-AUB

 Clamps around 1.5"-3.3"

(40-85mm) diameter pipes,

trusses, mini I-beams,

and other construction

materials

 Adapts to MOD-CPC

and MOD-CPF

FeatureS

CLICK: CaLL: FaX: peerless-av.com 800.865.2112 800.359.6500

Max load: 264lb (119.7kg)

A R C H I T E C T S S P E C I F I C A T I O N S

The U-Bolt Adaptor Accessory shall be a Peerless-AV model MOD-AUB and shall be located where indicated on the plans.

Assembly and installation shall be done according to instructions provided by the manufacturer.

LIT-0948 rev.1

PACKAGE SIZE (W x H x D) PACKAGE

SHIP WEIGHT

PACKAGE

UPC CODE PACKAGE CONTENTS UNITS IN

PACKAGE

MOD-AUB 6.25" x 9.62" x 6.00"

(158 x 244 x 152mm) 1.6lb (0.75kg) 735029269908 U-Bolt clamp, nuts 1

Package Speciﬁcations

DImENSIONS (W x H x D) LOAD CAPACITy FINISH AVAILABLE COLORSPRODUCT WEIGHT

MOD-AUB 1.96" x 5.00" x 4.92"

(50 x 127 x 125mm) 0.65lb (0.29kg) 264.0lb (119.7kg) Power coat Black

Product Speciﬁcations

Model Numbers WARRANTY: Limited 5-year

All dimensions = (mm)inch

MOD-AUB U-Bolt Adaptor Accessory for Modular Series Square Ceiling Plate (MOD-CPF) and Cathedral Ceiling Plate (MOD-CPC)

Accessories

MOD-ACF(-W): Accessory Cover for MOD-CPF Ceiling Plate

MOD-ADF: Accessory Drill Fixture for 50mm Pole

MOD-APC: Accessory Pole Coupler

MOD-APRG(-W): Accessory Projector Adaptor, PRG Mount

MOD-APRS(-W): Accessory Projector Adaptor, PRS Mount

MOD-ASC: Accessory Display-Stacking Clamp

Peerless Industries, Inc. 2300 White Oak Circle Aurora, IL 60502 (800) 865-2112 (630) 375-5100 Fax: (800) 359-6500       peerless-av.com

MOD-ATD-W: Accessory Trim Disc

MOD-CPC(-W): Ceiling Plate, Cathedral

MOD-CPF: Square Ceiling Plate, Flat (7.4” x 6.8”)

MOD-CPI: I-Beam Ceiling Plate, Flat

MOD-FPMD: Flat Panel Mount, Dual Back-To-Back

MOD-FPMS(-W): Flat Panel Mount, Single

MOD-P100(-B): 50mm Extension Pole - 39" (1.0m)

MOD-P150(-B): 50mm Extension Pole - 59" (1.5m)

MOD-P200(-B): 50mm Extension Pole - 78" (2.0m)

MOD-P300(-B): 50mm Extension Pole - 118" (3.0m)

MOD-UNL: Universal Display Adaptor, Large

MOD-UNM: Universal Display Adaptor, Medium

TOP VIEW

ISOMETRIC VIEW

FRONT VIEW

SIDE VIEW

1.38"

(35mm)

R1.77"

(45mm)

R2.15"

(54mm)

5.60"

(142mm)

0.79"

(20mm)

0.98"

(25mm)

0.38"

(10mm)

Visit peerless-av.com to see the complete line of AV solutions from Peerless-AV, including at panel mounts, projector mounts, carts/stands, furniture, cables, screen cleaners and a full assortment of accessories.
