Sida 1/12

2014-09-24 #:203-9450-2 (2017-04-04)

42" - 80"

(107 - 203 cm)

150 lb

(68 kg)

MAX

ESF655P

Not wind rated

ESF655P

ENG

2014-09-24 #:203-9450-2 (2017-04-04)

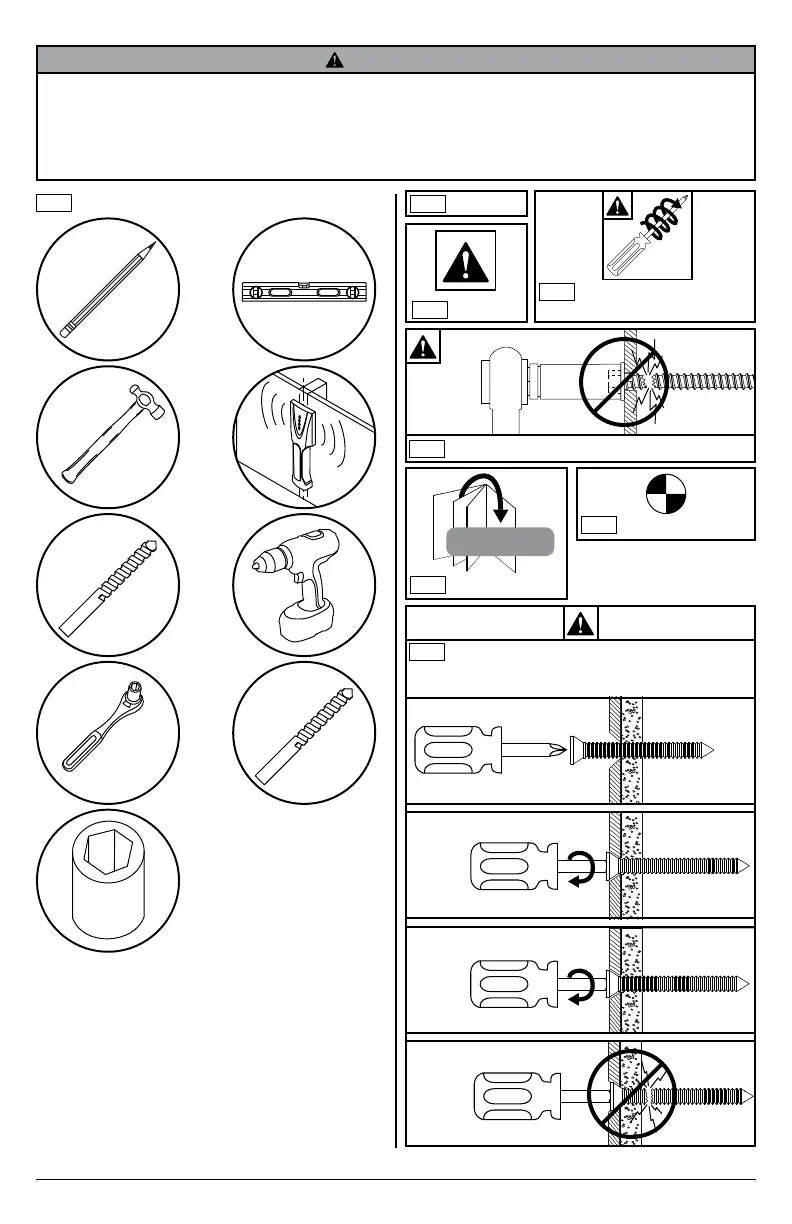

ENG - This product is designed to be installed on wood stud, solid concrete or cinder block walls. Hardware is

included for wood stud, solid concrete and cinder block installation. Before installing make sure the supporting

surface will support the combined load of the equipment and hardware. Screws must be tightly secured. Do

not overtighten screws or damage can occur and product may fail. Never exceed the Maximum Load Capacity.

Always use an assistant or mechanical lifting equipment to safely lift and position equipment. Be careful not to

pinch ngers when operating the mount. For support please call customer care at 1-800-865-2112.

WARNING

Symbols

ENG

WARNING

ENG

Skip to step.

ENG

Screws must get at least

three full turns and t snug.

ENG

Tools Needed for Assembly.

ENG

To properly tighten screws: Tighten until screw

head makes contact, then tighten another 1/2

turn. Do not overtighten screws.

+1/2

5/32"

(4mm)

5/16"

(8mm)

3/8"

(10mm)

Do not overtighten screws.

ENG

Display center.

ENG

2014-09-24 #:203-9450-2 (2017-04-04)

(

)

allen wrench

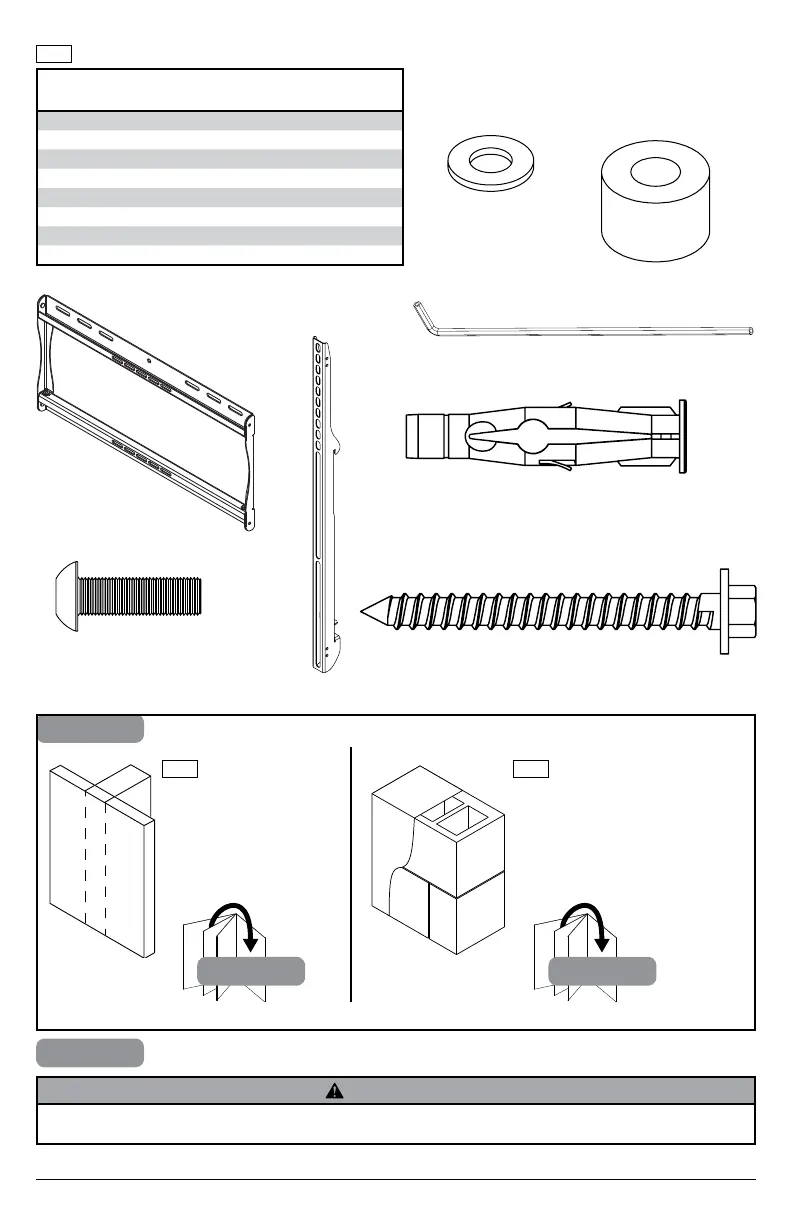

Parts (Before beginning, make sure you have all parts shown below).

ENG

(

)

wall plate

Parts List

ESF655P

Part #Description Qty

A wall plate 1 201-T5946

B adapter bracket 2 200-T5946

C 4mm allen wrench 1 560-1727

D concrete anchor 4 590-0320

E #14 x 2.5" wood screw 4 520-D1033

F M8 x 25mm 4 520-5027

G washer 4 540-D9406

H spacer 4 540-1059

(

)

8mm concrete anchor

(

)

#14 x 2-1/2" wood screw

(

)

M8 x 25mm

(

)

spacer

(

)

washer

(

)

adapter bracket

ENG - When installing Peerless wall mounts on a wood stud wall covered with gypsum board (drywall), verify that

the wood studs are a minimum of 2" x 4" nominal size. Do not install over gypsum board thicker than 5/8".

WARNING

Wood stud wall. Concrete/Cinder block.

ENGENG

Produktspecifikationer

Varumärke:	Peerless-AV
Kategori:	Wandstöd
Modell:	ESF655P
Vikt:	3100 g
Bredd:	492 mm
Djup:	45 mm
Höjd:	768 mm
Förpackningens bredd:	911 mm
Maximal skärmstorlek:	55 "
Minsta skärmstorlek:	42 "
Maxvikt:	55 kg
Produktens färg:	Svart
Låddjup:	89 mm
Vikt inkl. förpackning:	3700 g
Hållbarhetscertifiering:	RoHS
Monteringssätt:	Vägg
Harmonized System (HS)-kod:	85299097
Antal displayer som stöds:	1
Monteringsgränssnitt kompatibilitet (min):	400 x 600 mm
Monteringsgränssnitt kompatibilitet (max):	400 x 600 mm
