2013-08-09 #:150-9007-1
ENG
BLACK
KIP540B
KIP542B
KIP546B
KIP547B
KIP555B
SILVER
KIP540B-S
KIP542B-S
KIP546B-S
KIP547B-S
KIP555B-S
2
2013-08-09 #:150-9007-1
ENG - Do not begin to install product until you have read and understood the instructions and warnings
contained in this user guide. Always use an assistant or mechanical lifting equipment to safely lift and position
equipment. This product must be installed onto at, hard, level surface to prevent tipping. This product is
intended for indoor use only. Use of this product outdoors could lead to product failure or personal injury. To
reduce the risk of electric shock or re, do not expose product to water or moisture. Be sure power cord is routed
so that it will not be tripped on, stepped on, or pinched by heavy items. Avoid overloading electrical outlets or
extension cords. Always disconnect the power cord from the power outlet when installing, servicing, or not using
the product for an extended period of time. Do not block ventilation slots or fan exhaust on product. Blocking
airow could damage product. Arrange product to allow air to ow freely around product. Keep product away
from direct sunlight or any source of heat. For support please call 800-4-SIGNAGE.
WARNING
Symbols
ENG
WARNING
ENG
#
Skip to step.
ENG
x3
Screws must get at least three
full turns and t snug.
ENG
Front of mount.
ENG
F
Do not overtighten screws.
ENG
Tools Needed for Assembly.
ENG
7/16"
(11mm)
3
2013-08-09 #:150-9007-1

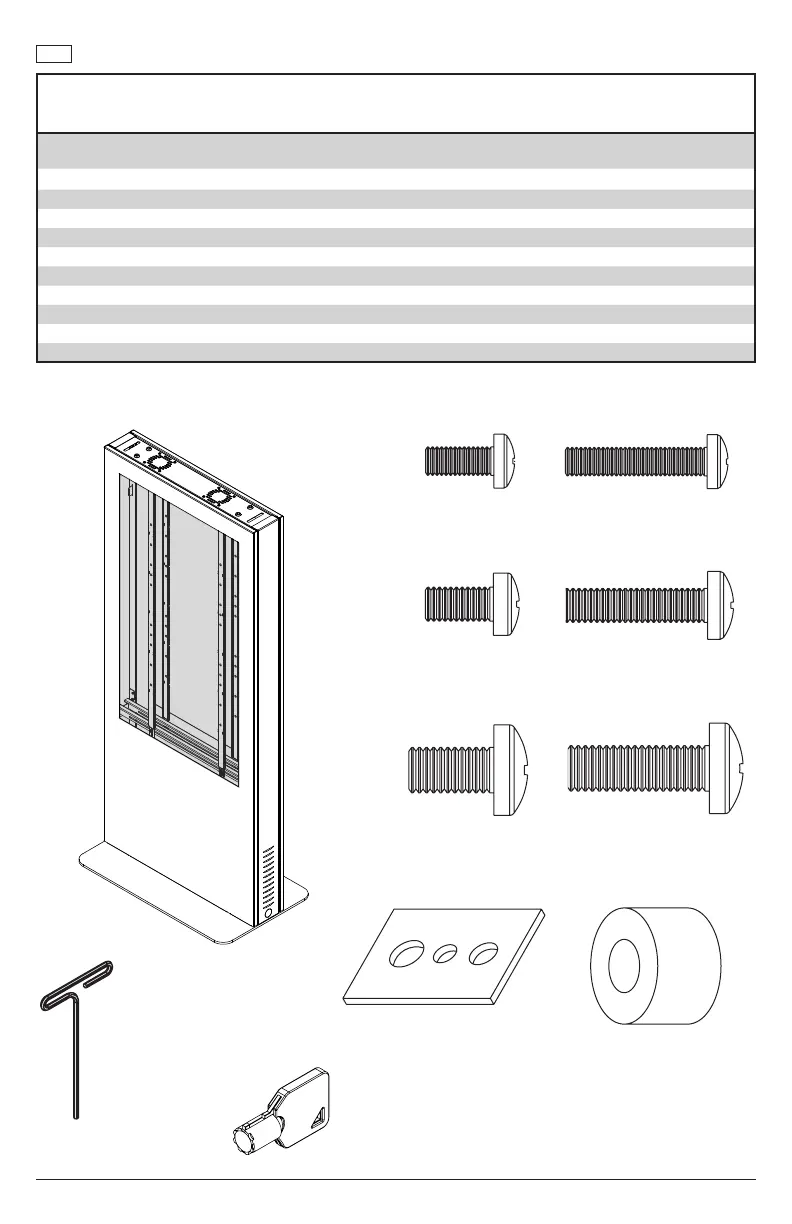

Parts (Before beginning, make sure you have all parts shown below).
ENG
A
(
1
)
kiosk
J
(
2
)
key
B (8)
M5 x 12 mm
C (8)
M5 x 25 mm
D (8)
M6 x 12 mm
E (8)
M6 x 25 mm
M5/M4/M6 washer
H (8)
M8 x 12 mm
F (8)
M8 x 25 mm
G (8)
spacer
I (8)
K
(
1
)
t- wrench
Parts List
KIP540B
KIP540B-S
Part #
KIP542B
KIP542B-S
Part #
KIP546B
KIP546B-S
Part #
KIP547B
KIP547B-S
Part #
KIP555B
KIP555B-S
Part #
Description Qty
A kiosk BLK
kiosk SLV
1 150-P1070
150-4070
150-P1072
150-4072
150-P1073
150-4073
150-P1074
150-4074
150-P1075
150-4075
B M5 x 12mm 8 520-1027 520-1027 520-1027 520-1027 520-1027
C M5 X 25mm 8 520-9543 520-9543 520-9543 520-9543 520-9543
D M6 x 12mm 8 520-1128 520-1128 520-1128 520-1128 520-1128
E M6 x 25mm 8 520-1208 520-1208 520-1208 520-1208 520-1208
F M8 x 12mm 8 520-9571 520-9571 520-9571 520-9571 520-9571
G M8 x 25mm 8 520-1031 520-1031 520-1031 520-1031 520-1031
H M5/M4/M6 multi washer 8 580-1398 580-1398 580-1398 580-1398 580-1398
I spacer 8 540-1059 540-1059 540-1059 540-1059 540-1059
J key 2 565-0049A 565-0049A 565-0049A 565-0049A 565-0049A
K t-wrench 1 560-1718 560-1718 560-1718 560-1718 560-1718
