Installation and Assembly:

Paramount™ A/V Component Shelf

Model: PS200

Maximum UL Load Capacity:

100 lb (45.4 kg)

This product is intended for use with UL

Listed products and must be installed by a

qualiﬁ ed professional installer.

2 of 21

ISSUED: 06-08-07 SHEET #: 083-9004-4 05-25-10

Note: Read entire instruction sheet before you start installation and assembly.

Tools Needed for Assembly

• stud ﬁ nder ("edge to edge" stud ﬁ nder is recommended)

• phillips screwdriver

• drill

• 5/16" bit for concrete and cinder block wall

• 1/2" bit for metal stud wall

• 5/32" bit for wood stud wall

• level

For customer care call (800) 865-2112 or (708) 865-8870.

Accessories (sold separately)

• 2 piece Metal Stud Fastener Kit (ACC 215) (Metal Stud

not evaluated by UL)

• Safety Belt (ACC 322)

Table of Contents

Parts List.................................................................................................................................................................................3

Installation to Wood Stud Wall ................................................................................................................................................4

Installation to Solid Concrete or Cinder Block ........................................................................................................................5

Installing Support Arms and Wall Plate Cover ........................................................................................................................6

Installing Safety Belt (ACC 322 sold separately) ....................................................................................................................7

• Do not begin to install your Peerless product until you have read and understood the instructions and warnings

contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US

customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact

your local distributor.

• This product should only be installed by someone of good mechanical aptitude, has experience with basic building

construction, and fully understands these instructions.

• Make sure that the supporting surface will safely support the combined load of the equipment and all attached

hardware and components.

• Never exceed the Maximum Load Capacity. See page one.

• If mounting to wood wall studs, make sure that mounting screws are anchored into the center of the studs. Use of

an "edge to edge" stud ﬁ nder is highly recommended.

• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

• Tighten screws ﬁ rmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding

power.

• This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal

injury.

• This product was designed to be installed on the following wall construction only;

WALL CONSTRUCTION HARDWARE REQUIRED

• Wood Stud Included

• Wood Beam Included

• Solid Concrete Included

• Cinder Block Included

• Metal Stud Do not attach except with Peerless Metal Stud Accessory Kit;

(not evaluated by UL)

• Brick Contact Qualiﬁ ed Professional (not evaluated by UL)

• Other or unsure? Contact Qualiﬁ ed Professional

WARNING

3 of 21

ISSUED: 06-08-07 SHEET #: 083-9004-4 05-25-10

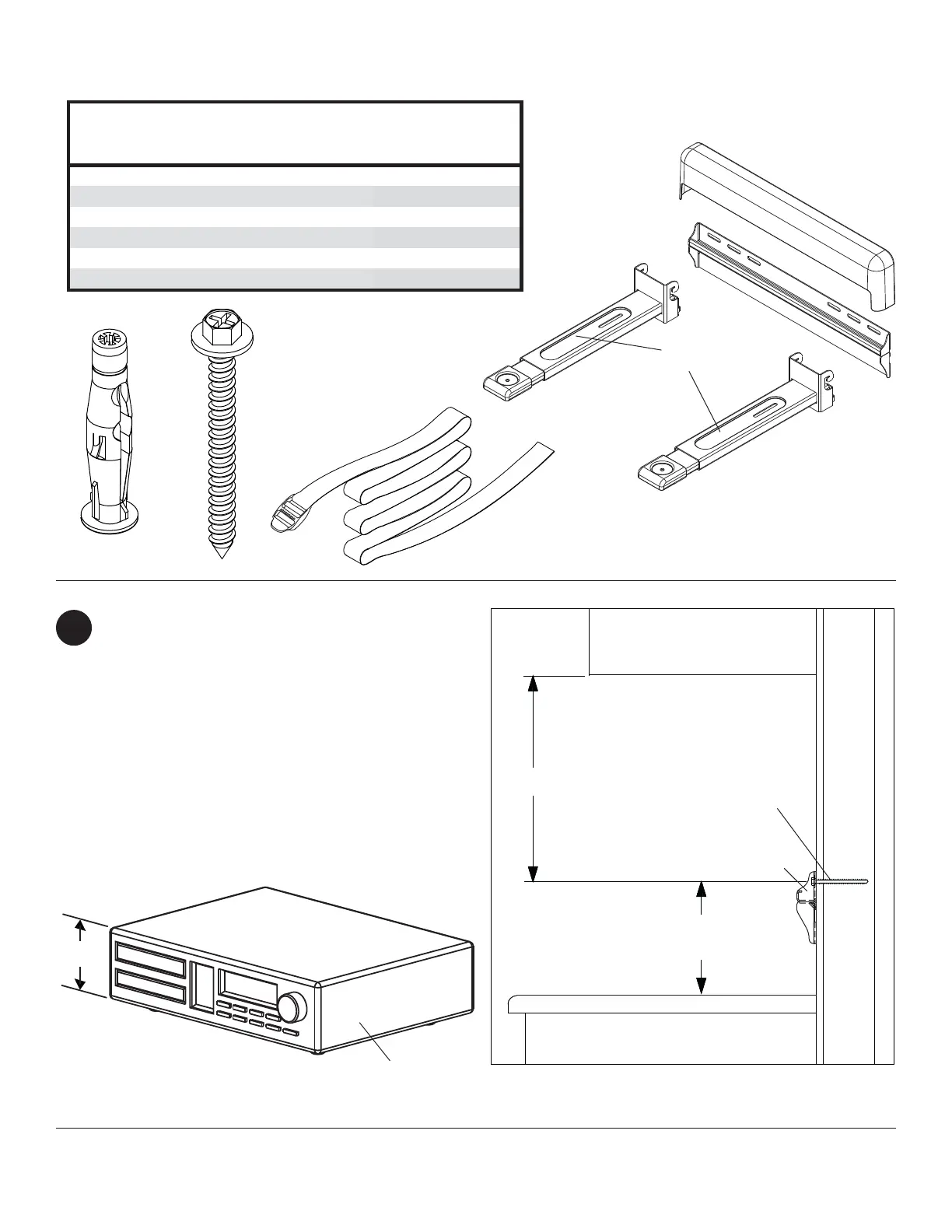

Before you begin, make sure all parts shown are included with your product.

Parts may appear slightly different than illustrated.

For mounting under a surface

Measure the height of the component to be placed onto

the mount, this measurement will be referred to as H.

Determine minimum distance X from surface bottom to

mounting hole centers using the formula X = H - 0.5" or

X = H - 13 mm

Note: If height of component is less than 4.5" (114

mm), a minimum distance of 4" (102 mm) is required for

For mounting above a surface locate mounting hole

centers no less than 7.25" from surface top.

X = H - 0.5"

X = H - 13 mm

SIDE VIEW

7.25"

(184 mm)

MINIMUM

SURFACE TOP

SURFACE BOTTOM

DVD PLAYER,

AMPLIFIER, ETC.

PS200

Description Qty. Part #

support arm 2

083-0016

wall plate 1

083-P1019

wall plate cover 1

590-1281

concrete anchor 2

590-0320

#14 x 2.5" wood screw 2

5S1-015-C03

safety belt 1

083-8015

Parts List
