Universal Ultra Slim Flat Wall Mount

For 40" to 80" Ultra-thin Displays*

One of the world’s slimmest mounts at only 0.33" (8mm) thin, this near-invisible mount is the beauty

that supports the modern style of the latest ultra-thin displays. Its all-steel, clean-line, high-gloss

modeling features universal compatibility with virtually any ultra-thin display innovation. This

unmatched solution delivers space-saving, ultra-sleek looks and brings the display ultra-close

to the wall.

Easy InstallatIon

Simple hook-on design makes

installation quick and easy

Ultra slIm

dEsIgn

The mount

virtually

disappears

behind the

display

VIEwIng FlExIbIlIty

Horizontal adjustment up to 8"

(203mm) for perfect display

positioning

Display size: 40"-80" Max load: 150lb (68kg)

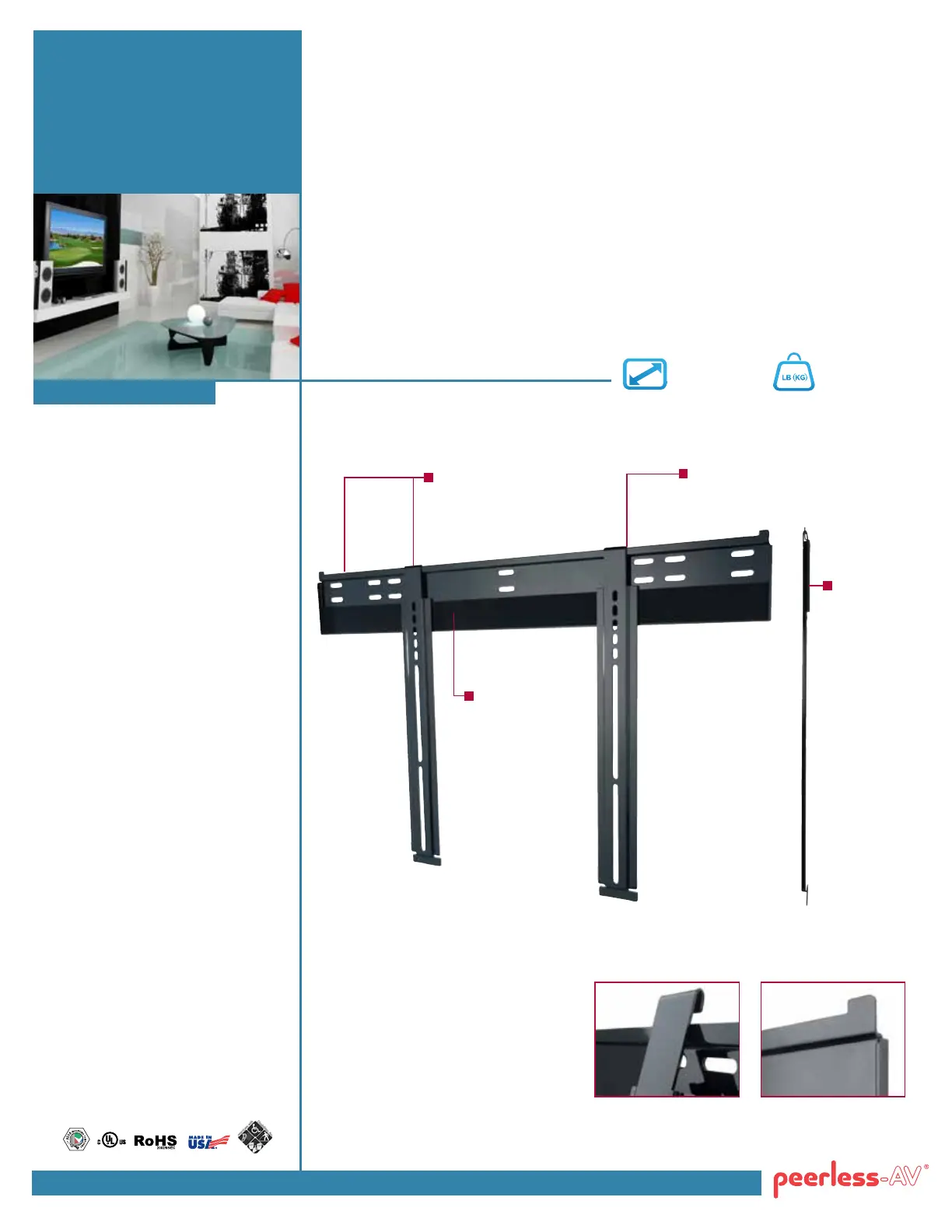

SUF660P

 Ultra-thin design holds

display only 0.33" (8mm)

from the wall for a near-

invisible application

 Universal mount compatible

with ultra-thin displays

with mounting patterns

up to 825 x 449mm

(32.48" W x 17.67" H)

 Universal brackets easily

hook onto wall plate for an

easy installation

 Industrial-strength Velcro®

latching system secures

display adaptors to wall

plate in a single step,

making installation fast

and secure

 Lateral shift adjustment of up

to 8" (203mm) (depending

on display model) for

perfect display placement

 Mounts to wood studs,

concrete, cinder block

or metal studs (metal stud

accessory required)

 Comes with fastener pack

with all necessary display

attachment hardware

FEatUrEs

sEcUrE

InstallatIon

Industrial strength

Velcro® latching

system holds

the display in

place preventing

accidental bump-

off or unwanted

horizontal

adjustment

Specially designed safety

tabs for secure support

Easy hook-on design

* Designed exclusively for use with ultra-

thin displays 2" (51mm) deep or less

clIcK: call: Fax: peerless-av.com 800.865.2112 800.359.6500

Patented. Design Patent No. D679,571. Utility Panent No. 8,154,885.

PACKAGE SIZE (W x H x D) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS UNITS IN PACKAGE

SUF660P 37.06” x 2.375”x 6.313”

(941 x 60 x 160mm) 7.8lb (3.6kg) 735029258377

Wall plate, universal

display adaptors,

mounting and display

attachment hardware

Package Speciﬁcations

Accessories

DImENSIONS (W x H x D) LOAD CAPACITy FINISH AVAILABLE COLORSPRODUCT WEIGHT

SUF660P 35.44" x 21.8" x .33"

(900 x 554 x 8mm) 7.1lb (3.2kg) 150lb (68kg)

Scratch

resistant

fused

epoxy

Gloss Black

Product Speciﬁcations

Model Numbers WARRANTY: Limited 5-year

A R C H I T E C T S S P E C I F I C A T I O N S

The Ultra-Thin Universal Flat Wall Mount shall be a Peerless-AV model SUF660P and shall be located where indicated on the plans.

It shall be constructed of cold rolled steel and feature scratch resistant gloss black fused epoxy nish.

Assembly and installation shall be done according to instructions provided

Metal Stud Accessory PackACC615:

All dimensions = (mm)inch

Universal Ultra Slim Flat Wall Mount for 40" to 80" Ultra-thin DisplaysSUF660P:

LIT-0389 rev.3

NOTE: Display Compatibility Requirements

Designed exclusively for use with ultra-thin displays 2” (51mm) deep or less

 The display does not require any additional heat ventilation room than 0.33” (8mm). Please refer to the manufacturer’s requirements for mounting your display on the wall.

The .display display must have a at mounting surface, or the mounting holes need to be on the furthest back surface of the

 Input/Output connection must be properly orientated to accommodate mounting 0.33” (8mm) from the wall.

Visit peerless-av.com to see the complete line of AV solutions from Peerless-AV, including at panel mounts, projector mounts, carts/stands, furniture, cables, screen cleaners and a full assortment of accessories.
