1. LOUDSPEAKER
ENCLOSURE
2. REFERENCE AXIS
3. REFERENCE PLANE
4. HORIZONTAL PLANE
ROUND METAL CEILING
LOUDSPEAKERS
f
RCS8FT/EN
f
RCS8FT/ENC
INSTALLATION INSTRUCTIONS
EN54-24:2008
Certificate No: 0359-CPD-0120 TYPE A
Circuit Diagram
f
RCS8FT/EN
f
RCS8FT/ENC
* with capacitor

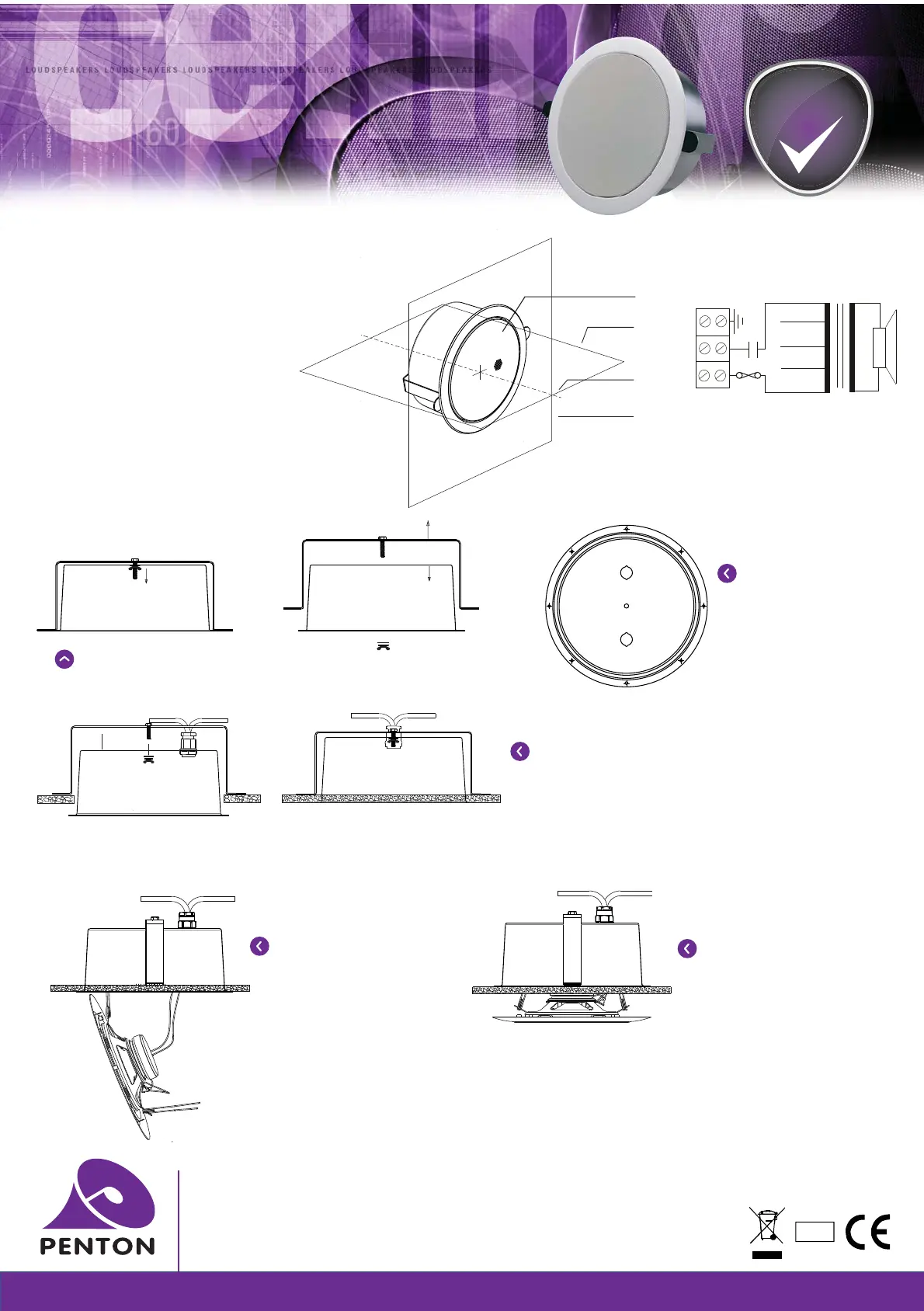

1.Remove wingnut and washer and
separate the fixing bar and fire dome.
FITTINGTHE DOME INTO A CEILING
3.Cut a 246mm hole paying attention to ensure that the cut-out is
accurately made. If not the speaker may not fit correctly and stop the
speaker from sitting flush to the surface.
Place the fixing bar into the voided area and insert the fire dome into the
pre-cut hole. Locate the retaining bolt through the centre hole in the
fire dome, fit the washer and wingnut. Tighten the wingnut to
secure the fire dome into position.
FITTING THE
SPEAKER INTO
THE FIRE DOME
4.Fitting the speaker into the
fire dome.
Compress one of the “V” springs
and locate into the retaining
ear within the fire dome.
Terminate the installed cable to
the 3 way terminal block located
on the speaker.
5.Compress the second “V”
spring and locate this into the
second retaining ear within the
fire dome. Please ensure cables
are clear of the “V” springs.
Gently push the speaker up into
the fire dome and the “V” springs
will locate the unit into the fire
dome.
Please do not push against the
perforated grille of the speaker.
2.Gland the
installation cable
through the 20mm
gland entry(s) “B”
4
3
2
1
EN54-24
ZCL0504-064
JULY 2013
COMMON
*
10W
5W
2.5W
1.25W
