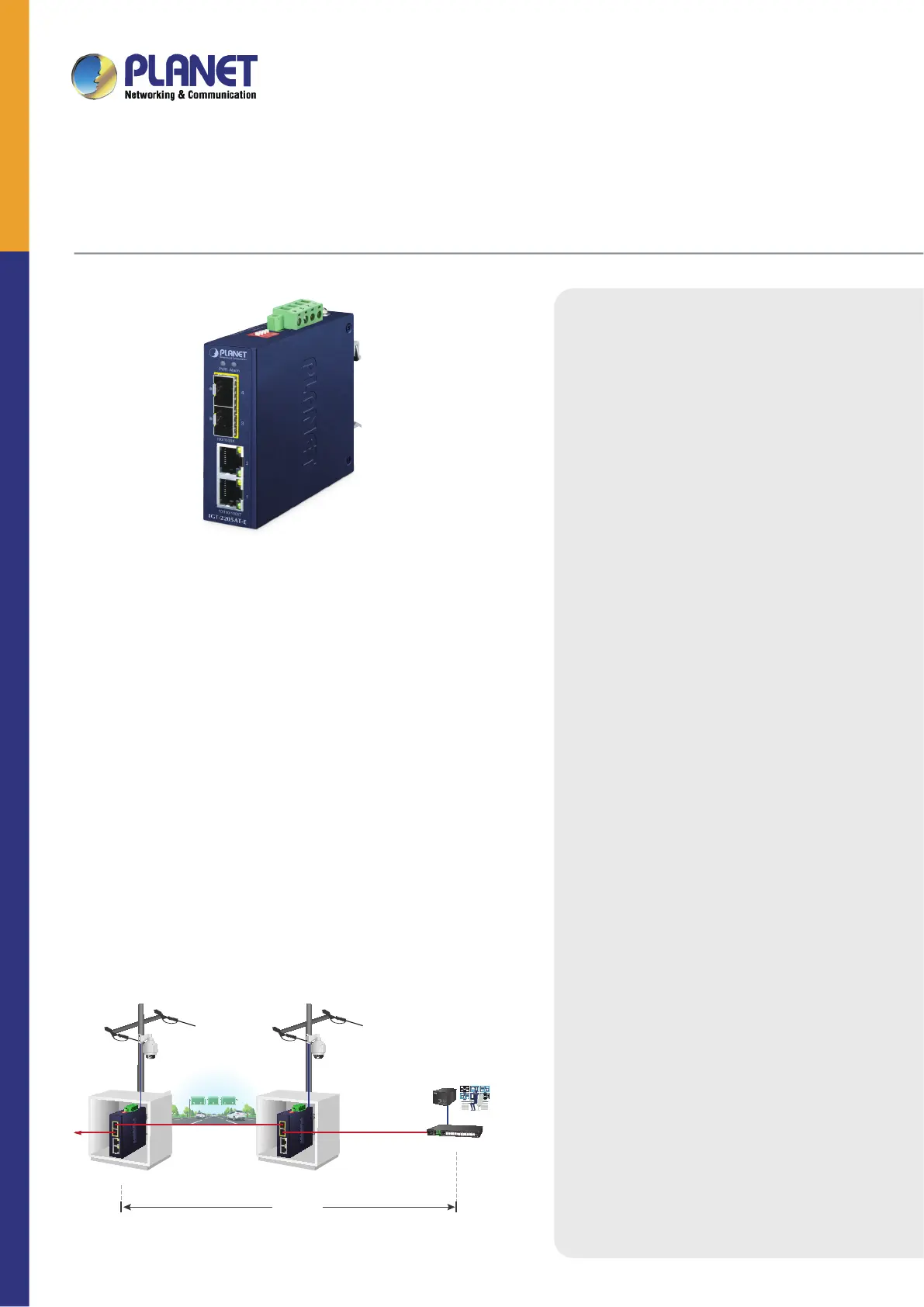

IGT-2205AT-E

Flexible, Reliable and Industrial-grade Network Distance Extension Solution

PLANET IGT-2205AT-E is an industrial-grade Gigabit media converter that

provides non-blocking wire-speed performance and high flexibility for extending

Gigabit Ethernet in harsh industrial environments. It is equipped with two

10/100/1000BASE-T RJ45 copper ports and two 100/1000BASE-X SFP ber optic

interfaces, enclosed in a rugged IP40-rated case with a redundant power system.

The IGT-2205AT-E is ideal for applications such as surveillance deployment,

industrial control, and wireless service in environments with extreme temperatures

ranging from -40 to 75 degrees C.

Fiber-Optic Link Capability Enables Extension of Network Deployment

The two SFP slots are compatible with 100BASE-FX and 1000BASE-X ber-optic

transceivers. The robust fiber uplink capability ensures stable throughput for all

connected network nodes. Gigabit Ethernet transmission can be extended up to

300 meters over multi-mode fiber and up to 10/20/30/40/50/70 kilometers over

single-mode fiber. Fast Ethernet can be extended up to 2 kilometers with multi-

mode ber or up to 20/40/60 kilometers with single-mode ber. This makes it well-

suited for use in factory data centers and distribution networks.

Physical Port

• 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X

function

• 2-port SFP, supporting 100/1000BASE-X transceiver type auto

detection

Fiber Port Redundancy (This function is only

enabled when DIP Switch 1 is set to ON)

• Only primary port is active at a time, while the backup port is

blocked.

• When primary port link failure occurs, the trafc will swap to

back up port automatically.

• Once the primary port status is back to link up, the trafc will

swap from backup port to primary port.

Layer 2 Features

• Supports auto-negotiation and 10/100Mbps half / full duplex

and 1000Mbps full duplex mode

• High-performance Store and Forward architecture, runt/CRC

ltering eliminates erroneous packets to optimize the network

bandwidth

• IEEE 802.3x ow control for full duplex operation and back

pressure for half duplex operation

• 10K jumbo frame size support

• Integrated address look-up engine, supporting 8K absolute

MAC addresses

• Automatic address learning and address aging

Industrial Case and Installation

• Slim IP40 metal case protection

• DIN-rail, side wall-mount design for redundant power design

• Redundant Power Design

– 12 to 58V DC, redundant power with reverse polarity

protection function

• Supports 4000 VDC Ethernet ESD protection

• -40 to 75 degrees C operating temperature

Industrial Compact 2-Port 10/100/1000BASE-T to 2-Port

100/1000BASE-X SFP Media Converter

Outdoor

IP Camera

IGT-2205AT-E IGT-2205AT-E

240km

Fiber Optic Cable

up to

120km

Fiber Optic Cable

up to

120km

Extending Ethernet Distance

Ethernet up to

100 meters

Outdoor

IP Camera

Ethernet up to

100 meters

Network Video

Recorder

Gigabit Fiber Switch

IGT-2205AT-E

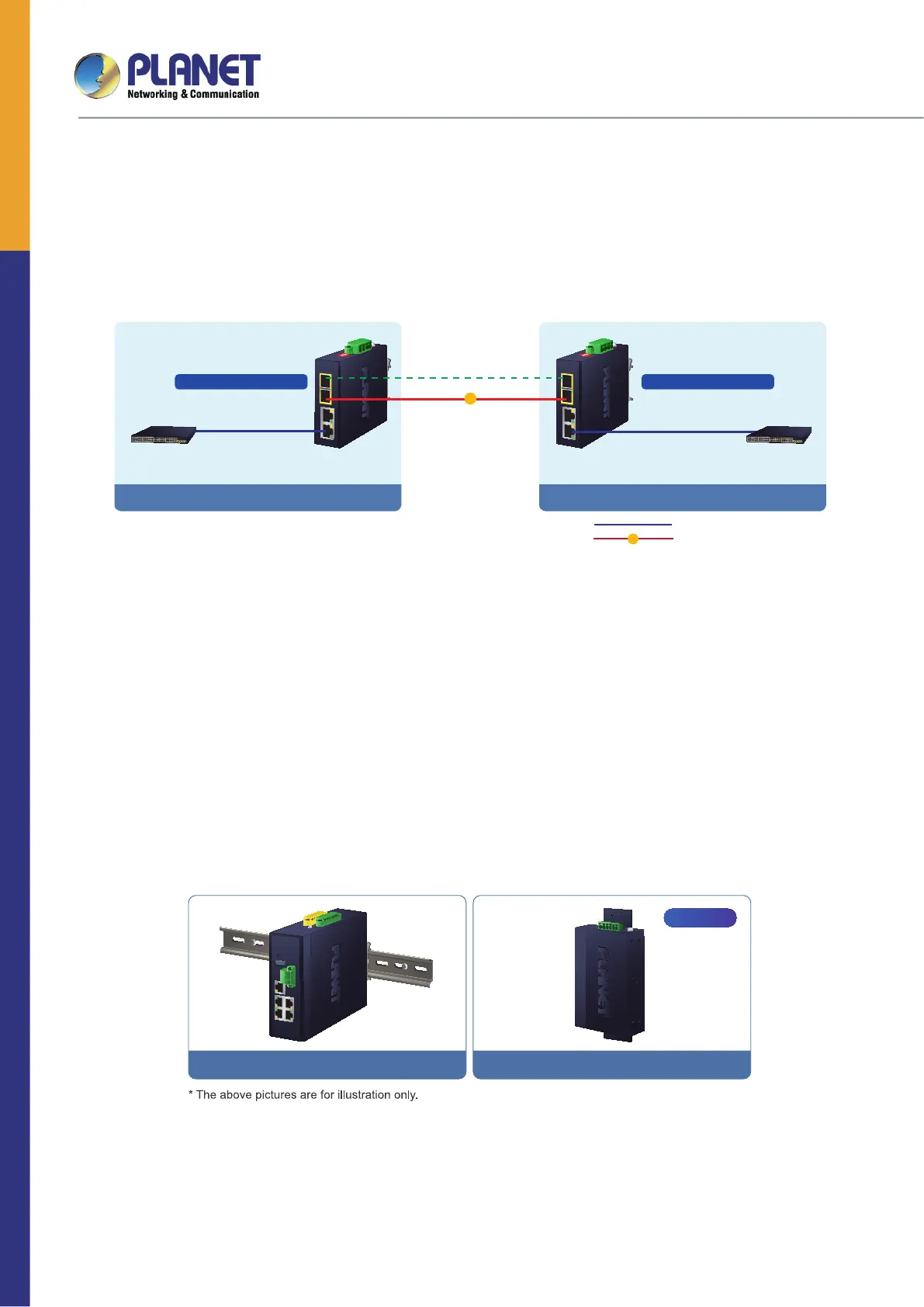

Adjustable 4-port Switch Mode or 2-port Fiber Redundant Mode

Via the built-in DIP switch, the two SFP ber interfaces of the IGT-2205AT-E can be congured as Ethernet switch mode or ber redundant mode. With

the Ethernet switch mode, it can operate in Store-and-Forward mechanism with high performance; with the 2-port Fiber redundant mode, it provides rapid

ber redundancy of link for highly critical Ethernet applications. The redundant mode supports auto-recovering function. If the destination port of a packet is

link-down, it will forward the packet to the other port of the backup pair.

Location A Location B

Gigabit

Ethernet Switch

1000BASE-T UTP

1000BASE-SX/LX Fiber Optic

1000

20Km

Redundant Link

1000BASE-X Fiber

(Disabled)

10/100/1000BASE-T UTP 10/100/1000BASE-T UTP

Site to Site Fiber Link Redundancy — ISP, Bank and Enterprise

Gigabit

Ethernet Switch

IGT-2205AT-E

Primary Link

1000BASE-X Fiber

(Forwarding)

1000

Fiber Redundant Mode

IGT-2205AT-E

Fiber Redundant Mode

Environmentally Hardened Design

The IGT-2205AT-E is equipped with a slim-type IP40-rated metal case for easy deployment in demanding industrial environments. With IP40 industrial-grade

protection, the IGT-2205AT-E provides a high level of immunity against electromagnetic interference and heavy electrical surges typically found on plant oors

or in curbside traffic control cabinets. Capable of operating in a wide temperature range from -40 to 75 degrees C, the IGT-2205AT-E can be installed in

almost any harsh environment. It also supports both DIN rail and wall mounting, allowing for efcient use of cabinet space.

Convenient and Reliable Power System

To enhance operational reliability and flexibility, the IGT-2205AT-E is equipped with two DC power input connectors for redundant power installation. It

supports a wide input voltage range from 12 to 58V DC, making it suitable for global high-availability applications requiring dual or backup power inputs.

Flexible and Easy Installation with Limited Space

The compact-sized IGT-2205AT-E is specially designed for installation in narrow spaces such as wall enclosures. It can be mounted via wall mounting or DIN

rail, offering greater exibility and ease of installation in space-constrained environments.

DIN-rail Mounting Side Wall Mounting

(Space saving)

Installation method

Optional
