Package Contents
SA-505 Magnetic Stripe Reader
2 Fixing Screws
User Manual
Peripheral Information CD
RFID MiFare Ring Tag
or RFID Mifare Card Tag
(if the RFID reader is built in)
2 iButton Keys
(if the iButton reader is built in)
Features
3-in-1 (MSR + iButton Reader + RFID) side attachment for Posiflex
15”/17” XT series terminals
Bi-directional swipe
3-track support
Supporting ISO 7811 magnetic card
Options: RFID module (HID or VCOM) and iButton reader
Interface: USB

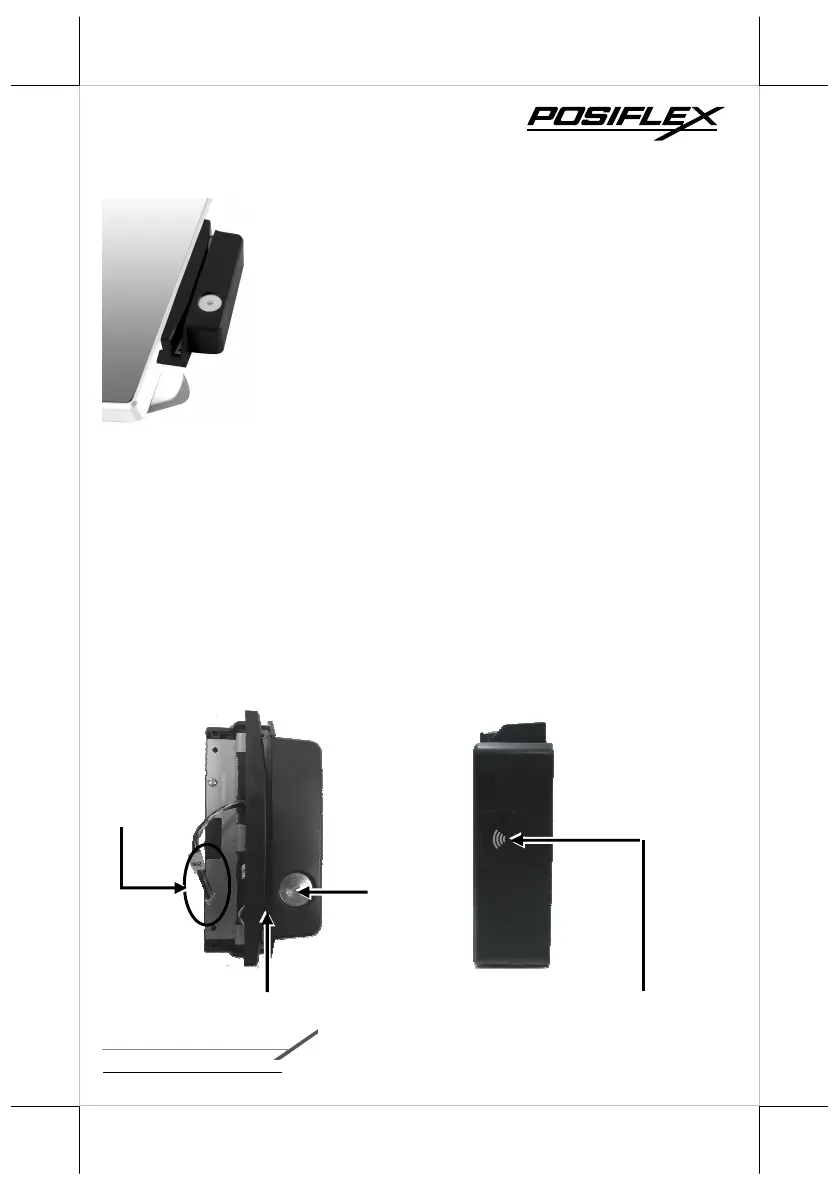

Views of the Magnetic Stripe Reader
Front View Right Side View
SA-505
Magnetic Stripe Reader
User Manual
USB I/O Cable
3
-
track Magnetic Stripe Reader
iButton Reader
(Optional)
RFID Mifare Card Reader
(Optional)
18640900010 Ver. Original
http://www.posiflex.com
2
Hardware Installation
During Installation of the SA-505, do NOT power ON your terminal and
monitor.
Installation of SA-505 onto the 15”/17” XT Series Terminals
Start to install SA-505 onto the terminal according to the following steps.

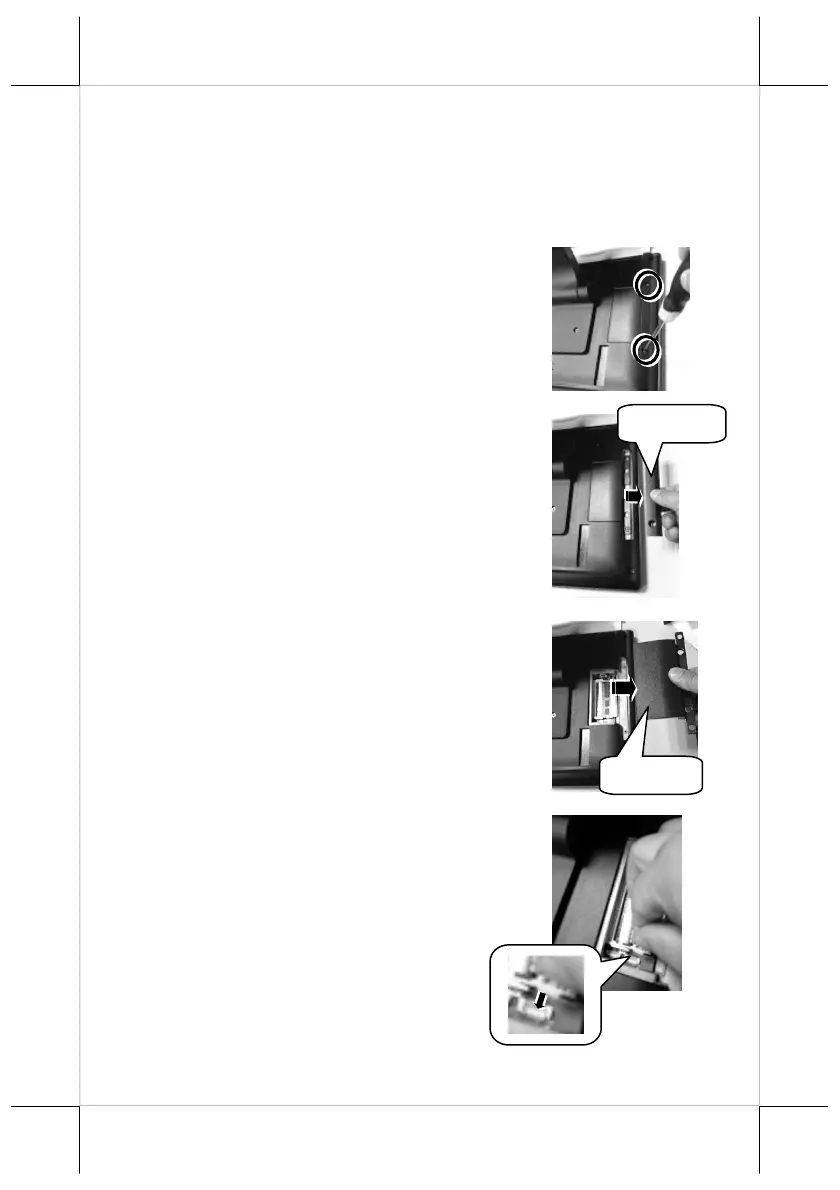

1. Loosen and remove the two fixing screws
from the side mount cover on the back of
the right side of the terminal.
2. Remove the side mount cover A from the
back of the right side of the terminal.
3. Remove the side mount cover B from the
terminal.
4. Insert the USB IO cable of the SA-505 into
the cable connector of the main board.
Cover A
Cover B
3
5. Determine that the USB IO cable is securely
connected to the cable connector of the
main board.
6. Put the large side mount cover back in
place.
7. Move the USB IO cable to the middle, as
shown in the right figure.
8. Align the two screw holes of the SA-505
MSR cover with the two screw holes on the
terminal.
9. Fix the SA-505 MSR onto the terminal by
locking the two long screws shipped with
the package.
