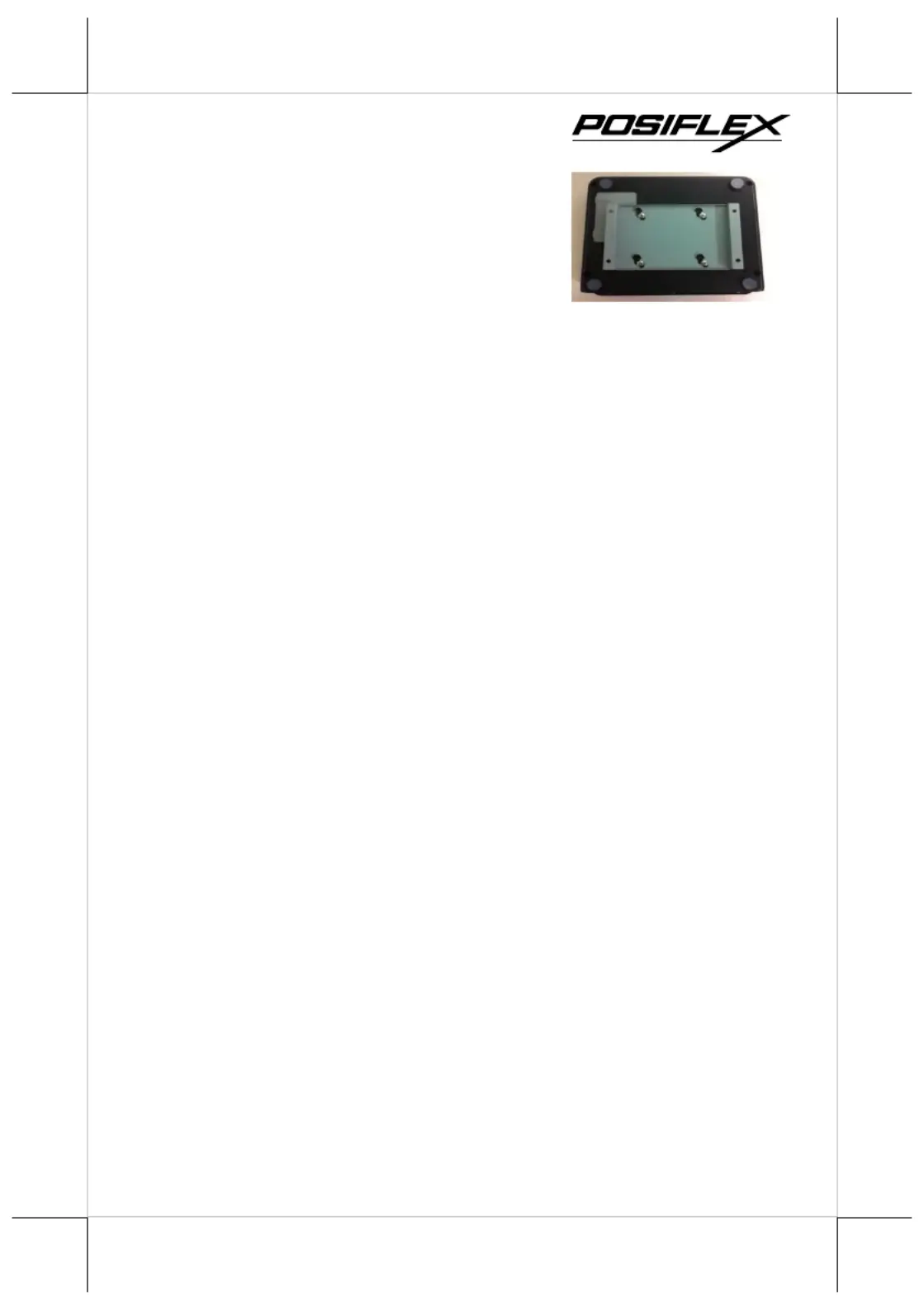

KIT NAME: - WB 4200
WB- wall mount bracket - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 pcs 4200
Self tapping screw 3.5φ-16L (P/N: 10642035162) For -4200/4200E Wall TX
mount use- - - - - - - -- -- - - - - - - - - - - - - - - - - - - - - - - 4 pcs -- -- -- -- -- --
Shoulder screw (P/N: 10504140062 applied on back of main unit if this kit
ordered with it) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -4 pcs
Plastic Cotter (P/N: 10241000021) - - - - - - - - - - - - - - - 4 pcs -- -- -- -- -- --
Washer 4.2* 12*1 (Ni) (P/N: 10410421210) For RT Series Wall φ φ mm
mount use………………………………….……………………………4 pcs
Installation guide - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 copy --
ABOUT THIS PRODUCT
This -4200 wall mounting kit is applicable for wall mount application WB
of main unit of -4200/4200E and RT series. With this robust kit, TX-TX
4200/4200E Series is so versatile that it can be used as a full edge POS
Box, a Kitchen Video System (KVS) controller and a Digital Signage
controller.
INSTALLATION PROCEDURE
FOR WALL MOUNTING
This bracket kit supports wall mounting of -4200/E, separately packaged TX
at delivery. However, this kit is ordered separately from the main unit and
to be installed on a system initially. Some preparations must be taken on the
main unit and then come back for the operation of wall mounting .
Please kindly follows steps below to x the WB-4200 wall mount with
the main unit TX- series on the wall. 4200
This bracket can be t to a supportive mechanism compliant to standard
with 75 mm pitch in vertical direction &146 mm pitch in horizontal
direction .
WB-4200
Wall Mounting Bracket
Installation Guide
Rev.: B0
P/N: 14520901030
2
Step A): Select a at surface on wall of adequate strength and
thickness and with proper ventilation and space condition.
Step B): To apply the plastic cotters, please drill 4 holes in
rectangular layout as marked in the template that gives a rectangular
drill pattern of 5.75” or 146 mm wide (horizontal) and 2.95” or 75 mm
high (vertical). Hole diameter should be 1/4” or 6.35 mm each. Hole
depth should be at least 1 and 3/8” or 35 mm.
Step C): Apply the 4 plastic cotters into the drilled holes then 4 self-
tapping -16L screws through the arrowed holes in bracket to hold 3.5φ
it rmly on the wall.
Step D): Aim the 4 heads of shoulder screws into the 4 arrowed holes
(75mm x 75mm VESA mount pitch) on the TX-4200 series main unit.
Self-tapping
screw
3
Step E): Hold the main unit then slide down the winding grooves in
the wall mount bracket. Apply some downward force to the main unit
so that it holds rmly in the bottom of the grooves.
Self-
tapping
screw
Shoulder
Screw
TX-4200 Series
Main Unit
