Sida 1/1
Vintage
Rat
Turbo
Rat
Clean
Rat
Vintage
Rat
Turbo
Rat
Clean
Rat
To cascade A through B, use Ch. A input and Ch. B output
INOUT INOUT
+9V
Vintage
Rat
Turbo
Rat
Clean
Rat
Vintage
Rat
Turbo
Rat
Clean
Rat
To cascade A through B, use Ch. A input and Ch. B output
Channel
B
Channel
A
INOUT INOUT
+9V
Vintage
Rat
Turbo
Rat
Clean
Rat
Vintage
Rat
Turbo
Rat
Clean
Rat
To cascade A through B, use Ch. A input and Ch. B output
Channel
B
Channel
A
INOUT INOUT
+9V
Vintage
Rat
Turbo
Rat
Clean
Rat
Vintage
Rat
Turbo
Rat
Clean
Rat
To cascade A through B, use Ch. A input and Ch. B output
Channel
B
Channel
A
Owner’s Instructions
1. BATTERY INSTALLATION: All RATs are designed to operate from either
a standard 9-volt battery or from any external 9-volt power supply. If
battery operation is desired, a high-quality alkaline type battery should
be used.
To install the battery: 1) remove the thumbscrew on the bottom of the
unit which holds the battery door closed. 2) snap or slide the battery
into the battery holder located on the reverse side of the battery door.
3) match up the positive and negative terminals to their corresponding
mate and secure the terminal. 4) Replace the battery door (Please note
that on some RATS, the battery will press against the circuit board. This
should not harm the device but, please make sure that there is nothing
else in the battery compartment except for one standard size 9-volt
battery.) 5) Line up the screw holes and tighten down thumb screw
making sure not to cross thread the screw. A 9-volt power supply is
recommend for the Deucetone.
IMPORTANT NOTE: Plugging the cable from your instrument into the
INPUT jack turns on the power from the battery. Be sure to unplug the
INPUT cable when you are finished using the RAT; this will prevent
unnecessary drain on the battery.
2. CABLE INPUTS: The input plug must be a standard 1/4” 2-conductor
type cable end, such as the BF2P or RF2P phone plugs (standard
equipment on Pro Co cables). 3-conductor (stereo) plugs WILL NOT
work in the RAT. When connecting the Deucetone, either one or both
sides can be connected. If you wish to have two independent effects
pedals, connect your instrument into Channel A / B inputs, the output of
Channel A into the input of Amp A, and the output of Channel B into
your amplifier. If you wish to have the ability to cascade Channel A into
Amp B, connect your instrument into Channel A and the output of
Channel B will connect to your amplifier. See Wiring Diagram
3. POWER SUPPLIES: The jack marked “+9V” disconnects the battery
when a plug is inserted in it, thus permitting the RAT to be powered
from a line-operated power supply. This power supply must be a
negative-ground DC power source. It should be well filtered to prevent
excessive hum and should not exceed +12VDC. The current
requirements are extremely low (about 5 mA is more then enough). A
9-volt 50 mA calculator-type power supply found at many electronic
stores should be adequate. For the best possible performance and
reliability use a Pro Co Sound RPS1 Battery Eliminator is definitely
recommended for the Deucetone.
4. OPERATION: Obtaining a desirable sound is very simple and virtually
self-explanatory. Install either a 9-volt battery or appropriate 9-volt
power supply. Connect your instrument to the Deucetone as explained
in the CABLE INPUTS section or review wiring diagram.
Remember that the Duectone is two RAT distortion devices in one. The
first set of setting can be used on either channel on any “RAT” setting to
get you in the ball park. Switching between the different “RATS” on the
back panel will give you a very different sound.
The second group of settings take advantage of the Deucetone's ability
to cascade one channel into the other. Cascading channels may prove
to be more difficult but will have larger room for variations. Remember
to change one side at a time. It is also helpful to write down some
custom settings for easy reference. To share your settings, log onto
www.procosound.com and submit them on our message board.

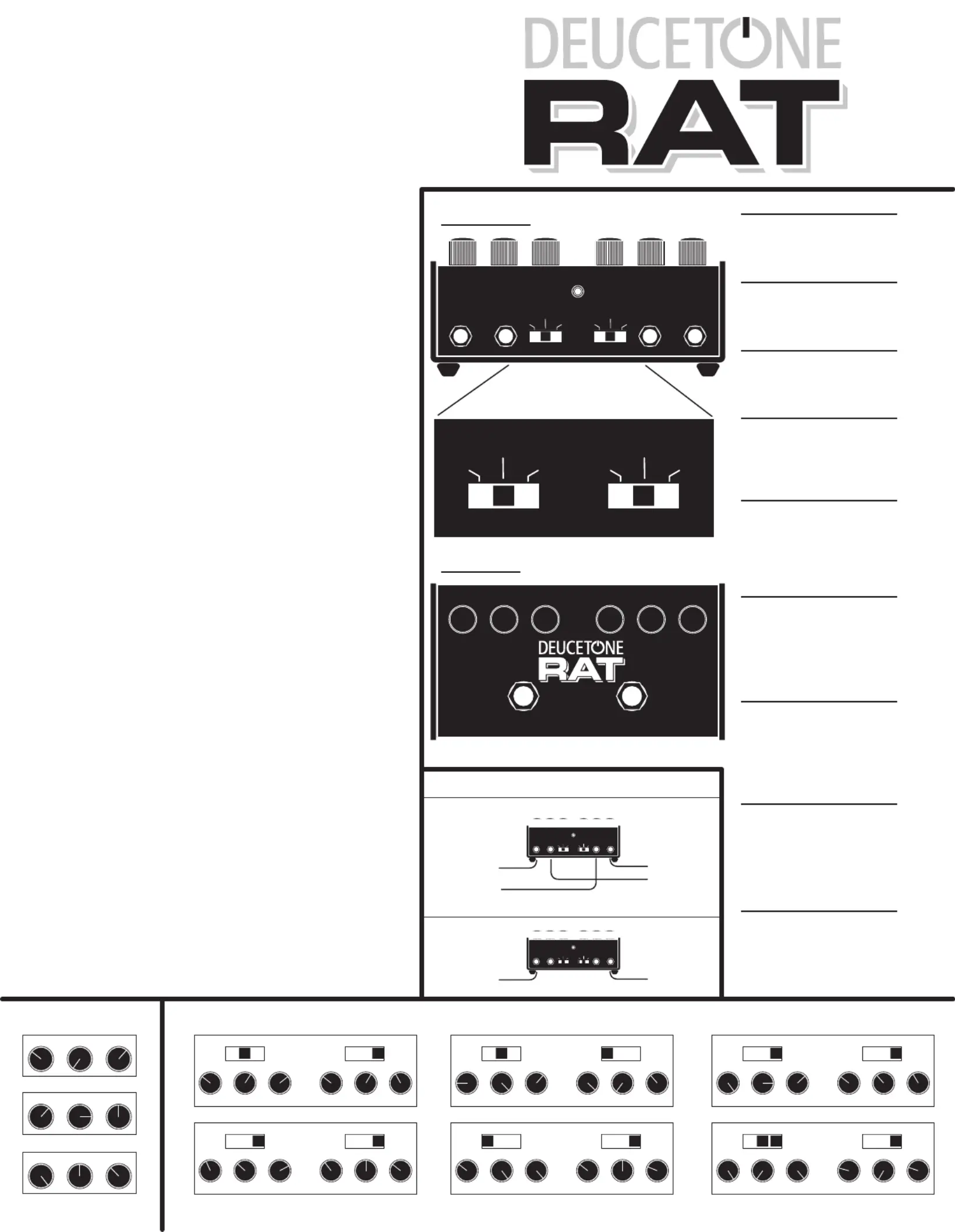

Back View
Top View
INPUT:
Connect your instrument
using a 1/4” phone jack here
9-VOLT PLUG:
Connect your RPS-1 or other
external power supply here
OUTPUT:
Connect your amplifier
using a 1/4” phone jack here
DISTORTION:
Controls the amount of gain
in the op-amp circuit. Turn it
clockwise to increase the
amount of gain.
Blues Type Tone
Early Hendrix / Santana
A starting point for
single RAT channel
Lead Type Tone
Heavy Type Tone
FILTER:
This is the tone control. Turn
this high cut filter clockwise
to decrease the amount
of treble.
VOLUME:
This controls the total volume
output of the RAT. Turn this
clockwise to increase the total
volume.
FOOT SWITCH:
This control turns the RAT on
or off. When off the RAT does
not reduce signal quality.
TOGGLE SWITCH:
Use these toggle switches you
can choose one of four RAT
distortion devices
CASCADE:
The cascade feature trickels
channel A into channel B adding
both RAT distortions to the mix
Wiring Diagram
Distortion Filter Volume
Distortion Filter Volume Distortion Filter Volume
Distortion Filter Volume
Distortion Filter Volume
A starting point for using the Deucetone’s cascade effect where
Channel A cascades into Channel B
Distortion Filter Volume Distortion Filter Volume
Two totally
independent RATS
Option A
Guitar 1
Guitar 2
Amplifier 2
Amplifier 1
GuitarAmplifier
Have the ability to
cascade Channel A
into Channel B
Option B
Signal path is moving from right to left
Signal path is moving from right to left
Vintage
Turbo Clean
Vintage
Turbo Clean
Channel A Channel B
Southern Rock
Distortion Filter Volume Distortion Filter Volume
Vintage
Turbo Clean
Vintage
Turbo Clean
Channel A Channel B
90’s Hard Core Rock
Distortion Filter Volume Distortion Filter Volume
Vintage
Turbo Clean
Vintage
Turbo Clean
Channel A Channel B
Early Metallica
Distortion Filter Volume Distortion Filter Volume
Vintage
Turbo Clean
Vintage
Turbo Clean
Channel A Channel B
Meaty Buzz Saw
Distortion Filter Volume Distortion Filter Volume
Vintage
Turbo Clean
Vintage
Turbo Clean
Channel A Channel B
Fat Mosquito Fuzz
Distortion Filter Volume Distortion Filter Volume
Vintage
Turbo Clean
Vintage
Turbo Clean
Channel A Channel B
