Sida 1/4
Smart Music Controller
SP-PW8225T
User Manual
To use the in-wall amplifier quickly and correctly, please read this user manual carefully and keep
it properly.
Note: The appearance and interface icons and pictures of the product are for reference only.
Please refer to the actual product for details.
Web.: www.surpass-audio.com Email: info@surpass-audio.com
Ⅰ. Package Accessories
User Manual x 1 Screws × 4pcs
Bracket x 1 set
Ⅱ. Basic Parameters
Product
8'' in-wall amplifier
Resolution
1280*800 IPS
System
Android 8.1
CPU
Quad core Cortex 1.5GHZ
RAM
2GB
ROM
8GB
Power Supply
AC110-250V
Output Power
2*（10-25W）（MAX）
Output Impedance
4-8 ohms
THD
0.03%(1W,1KHZ）
Frequency Response
20Hz-20KHz
Audio S/N Ratio
98dB
Remote Control
Support
Wi-Fi
Support
Wire Box
80*80*57mm × 2pcs
Product Size
250*133*11MM

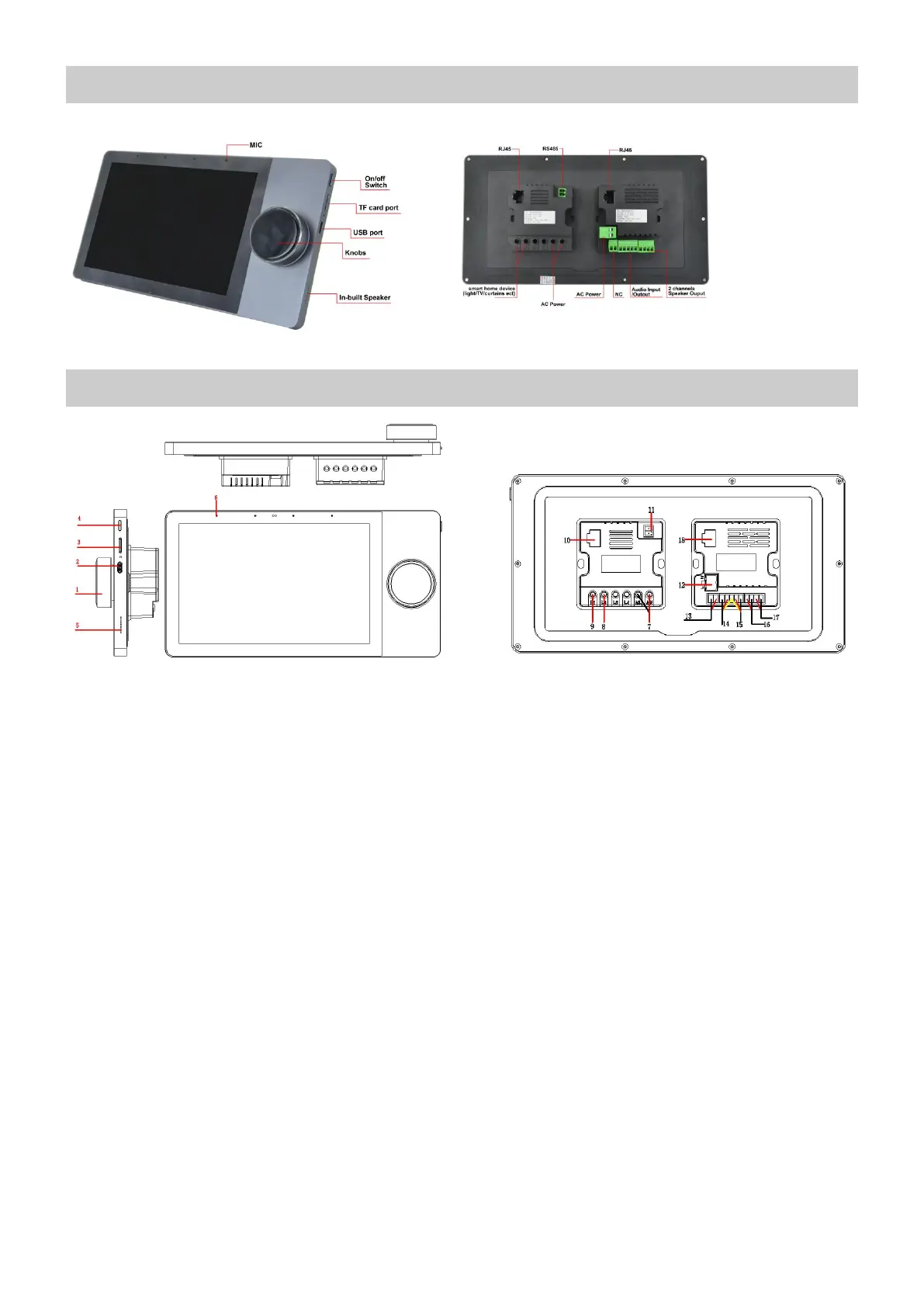

Ⅲ. Product Introduction
Ⅳ. External Interface Diagram
External interface description
1、Knobs: according to the software design you can adjust lights, air conditioning, curtains, volume, etc.
2、MICRO USB: external U disk; maximum support 32G.
3、TF card, TF card can be inserted, maximum support 32G.
4、Keys: long press to turn on/off, short press to lock screen/receive lock.
5、Built-in speaker: built-in 2W small speaker, comes with its own speaker.
6、Microphone: for voice pickup.
7、Power supply: connect to AC220V power supply(mainly to power the electric device).
8、Lighting and other electric device connecting terminal, maximum support 200W each way.
9、Lighting and other electric device connecting terminal, maximum support 200W each way.
10/18、Wired network port (Can't be use at the same time ).
11/13、485 interface: connect 485A +485B to the smart central system to achieve 485 control. (Can't be
use at the same time)
12、Power supply: connect to AC90-220V power supply, mainly to power the amplifier.
14、Audio input line: audio line (three-core shielded line: commonly known as microphone line), RVVP2X0.5,
RVVP2X0.75, connected to AUX L + AUX R + GND. external audio input.
15、Audio output: audio cable (three-core shielded cable: commonly known as microphone cable),
RVVP2X0.5, RVVP2X0.75, connected to OUT R +OUT L+GND, can be connected to other amplifiers.
16、Speaker: speaker cable (200 core), RVH2X100, RVH2X200 connected to SPK L+ SPK L-, speaker less than
25W.
17、Speaker: speaker cable (200 cores), RVH2X100, RVH2X200 connected to SPK L+ SPK L-, speaker less
than 25W.
