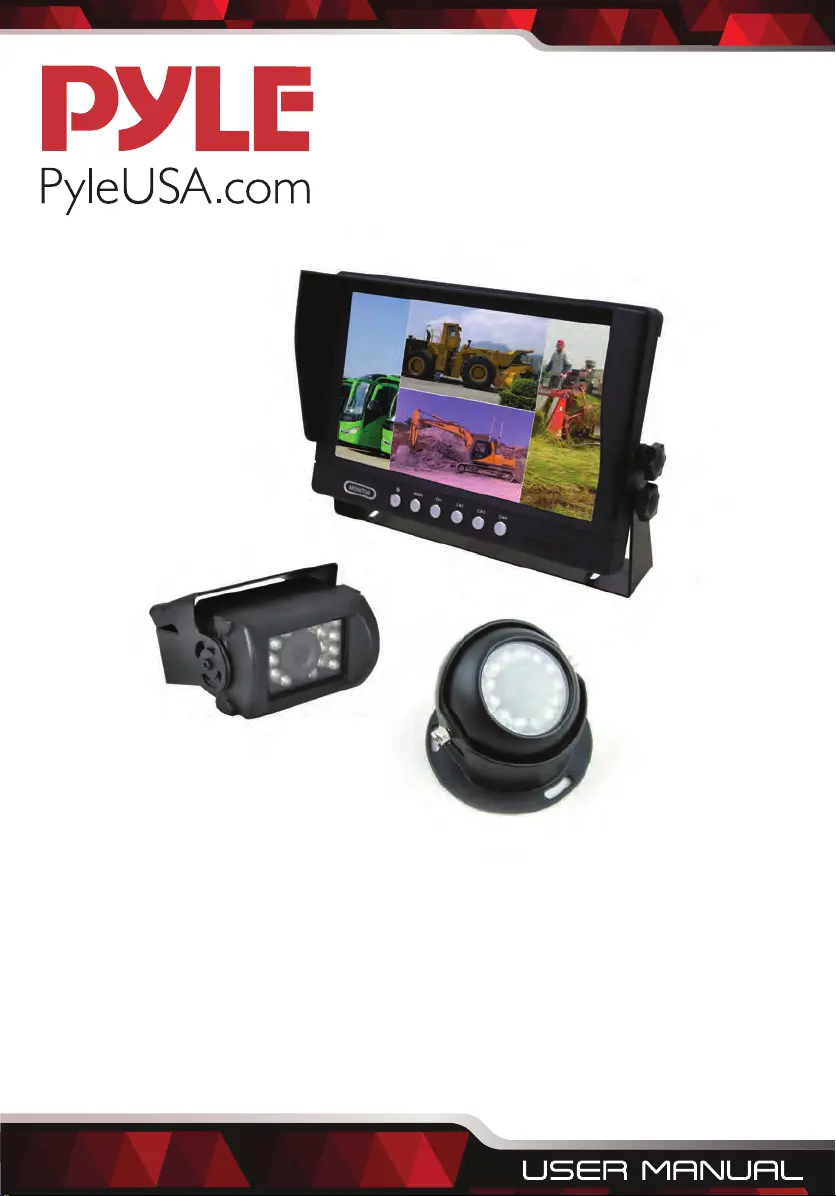

Vehicle Back-Up Camera & Monitor DVR Kit
PLCMTRDVR47
9’’ Display, Video Recording, Quad-View Ability,
Night Vision, Waterproof Cams (For Truck, Van, Bus, Trailer)
www.PyleUSA.com
2
Please read instructions carefully before installation and use.
Installation should be performed by a professional installer.
NOTICE
For your safety, please do not watch videos on the monitor when driving.
Except professional repair-men, do not modify the machine. lf the machine
doesn‘t work, please consult customer services or send the machine to local
maintenance departments.
WARNING:
Please install this machine in the place where laws and regulations allows it,
our company take no responsibility for illegal product installation.
ATTENTION:
The machine may appear darkscreen phenomenon when starting up in the
cold days, after power on and machine's temperature gradually rises up, the
display screen would gradually return to normal.
APPLICATION
This product adopts digital color of high denition real-time TFT LCD
monitoring, stored in card; built-in DVR recording function with one SD
single image or quad split images; supports 1way AV recording; built-in
speaker and with remote control. The installation is convenient and the
connection is simple.With no radiation, low comsumption, beautiful and
vivid image, small size etc features, widely applied in universal car security
and monitor.
BUTTON FUNCTION
www.PyleUSA.com
3
1. Labelling Mark
2. MENU: Compound key in the settings menu, four split & DVR mode.
3. CH 1: Direct channel CH 1 mode in split mode.
In four split state its the menu minus. Menu up in DVR state, its the last
page in the DVR video playback state is used to select videos.
4. CH 2: Direct channel CH 2 mode in split mode. Menu plus in four split
state. Drop down menu in DVR State. The next page in DVR video play
back state, used to select videos.
5. POWER: ON Monitor standby/switch
6. CH3: It is the direct channel 3 mode in split mode, it is the down in the
four split status menu, left in the DVR status menu, CH3 is the play button
in DVR video.
7. CH4: It is the direct channel 4 mode in split mode, UP in the four split
status menu, right in DVR status status menu, and in DVR videos CH4
indicates “pause”.
8. MODE: In four split screen, it is the cyclic switching of the mode 2 division,
-3 segmentation, -4 segmentation. In DVR state, MODE is used to switch
playback/video mode.
9. Remote Control window.
BUTTON FUNCTION
