1 170.929UK, 170.932UK User Manual

CX23, CX34

ACTIVE CROSSOVERS

Order ref: 170.929 , 170.932UK UK

User Manual

2 170.929UK, 170.932UK User Manual

Introduction

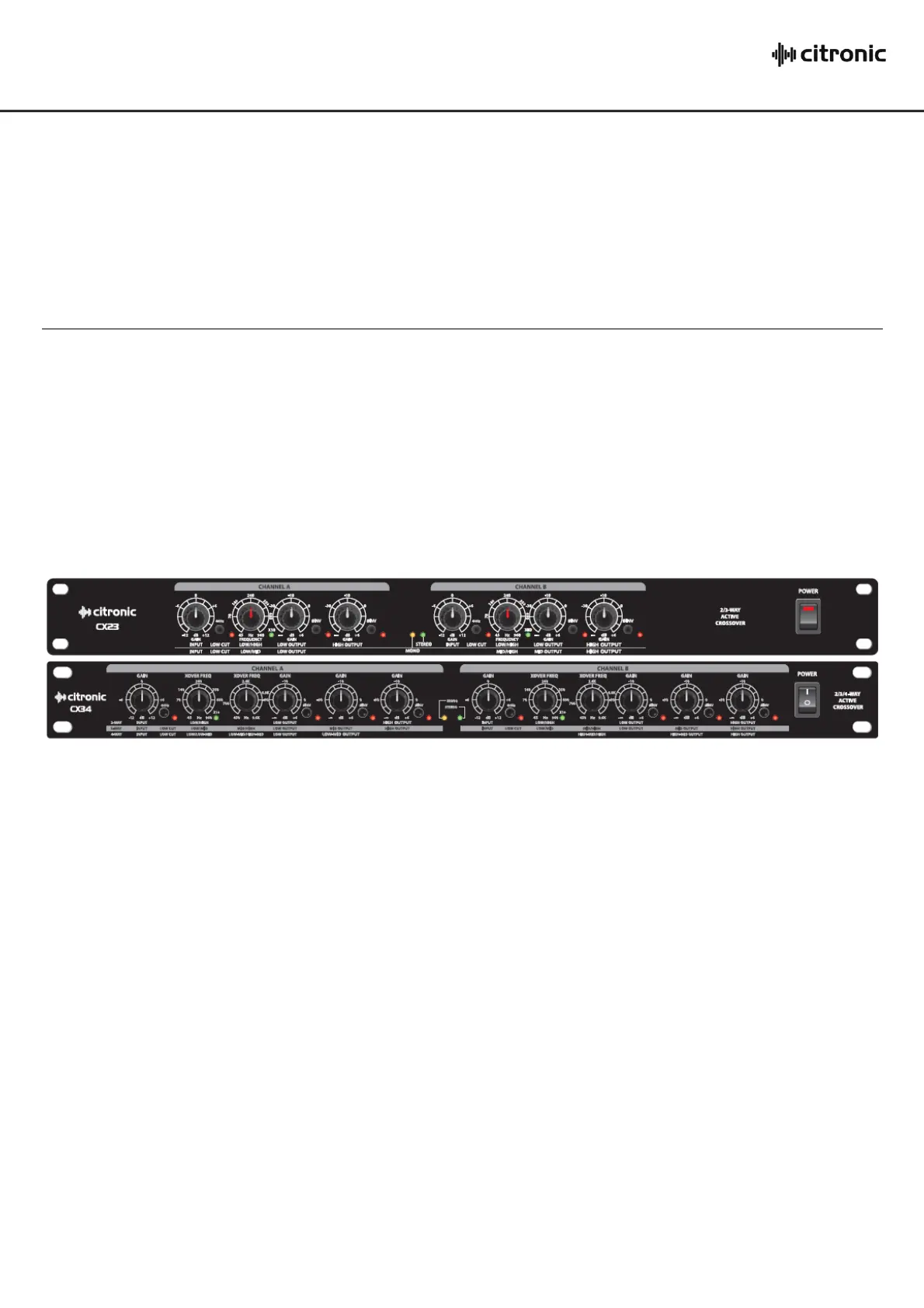

Thank you for choosing a Citronic active crossover. This product has been designed to give accurate

control for a multi-amplifier sound reinforcement system. In order to achieve the best results from

this equipment and avoid damage through misuse, please read and follow these instructions and

retain for future reference.

Warning

To prevent the risk of fire or electric shock, do not expose any part of the unit to rain or moisture.

If liquids are spilled on the surface, stop using immediately, allow unit to dry out and have checked

by qualified personnel before further use.

Avoid impact, extreme pressure or heavy vibration to the unit.

There are no user serviceable parts inside the crossover refer all servicing to qualified service –

personnel.

Safety

 Check that the supplied mains lead is in good condition and the supply voltage is correct.

 Ensure signal leads are of good condition and connected to appropriate inputs/outputs

 Do not allow any foreign particles to enter the console through control apertures or connector

apertures

Placement

 Keep out of direct sunlight and away from heat sources.

 Keep away from damp or dusty environments.

 When rack-mounting, avoid placing heavy units above the unit and ensure all connectors are

accessible

Cleaning

 Use a soft cloth with a neutral detergent to clean the casing as required

 Use a soft brush to clear debris from the control surface

 Do not use strong solvents for cleaning the unit.

3 170.929UK, 170.932UK User Manual

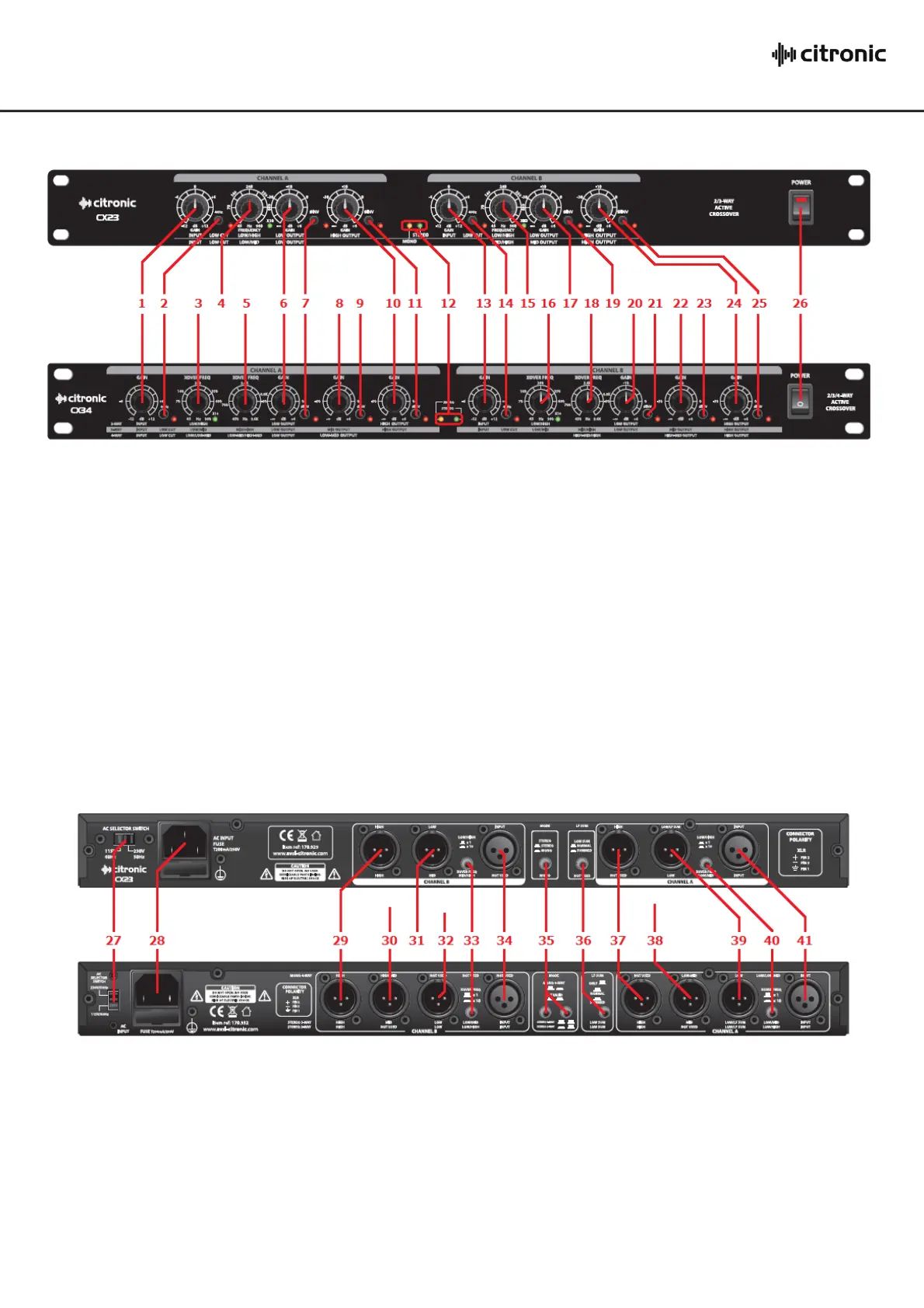

Front Panel

Rear Panel

14. Low Cut filter: Channel B

15. Low/High - Mid/High crossover Frequency: Channel B

16. Low/High - Low/Mid crossover Frequency: Channel B

17. Low or Mid output gain: Channel B

18. Mid/High - High-mid/High crossover frequency: Ch B

19. Low or Mid output phase switch: Channel B

20. Low output gain: Channel B

21. Low output phase switch: Channel B

22. Mid or High-mid output gain: Channel B

23. Mid or High-mid output phase switch: Channel B

24. High output gain: Channel B

25. High output phase switch: Channel B

26. Power switch

1. Input gain: Channel A

2. Low Cut filter: Channel A

3. Low/High X-over Frequency: Channel A

4. Low/High - Low/Mid crossover Frequency: Channel A

5. Low/Mid - Mid/High crossover Frequency: Channe l A

6. Low output gain: Channel A

7. Low output phase switch: Channel A

8. Mid or Low-mid output gain: Channel A

9. Mid or Low-mid output phase switch: Channel A

10. High output gain: Channel A

11. High output phase switch: Channel A

12. Mono/Stereo mode indicators

13. Input gain: Channel B

27. Voltage selector

28. IEC mains inlet

29. High output: Channel B

30. High-mid or Mid output: Channel B

31. Low or Mid output: Channel B

32. Low output: Channel B

33. Crossover frequency multiplier: Channel B

34. Input: Channel B

35. Mode selector buttons

36. Mono Normal/Summed switch

37. High output: Channel A

38. Low-mid or Mid output: Channel A

39. Low output: Channel A (or LF Sum both channels)

40. Crossover frequency multiplier: Channel A

41. Input: Channel A
