U-MIC

Item ref: 171.812UK

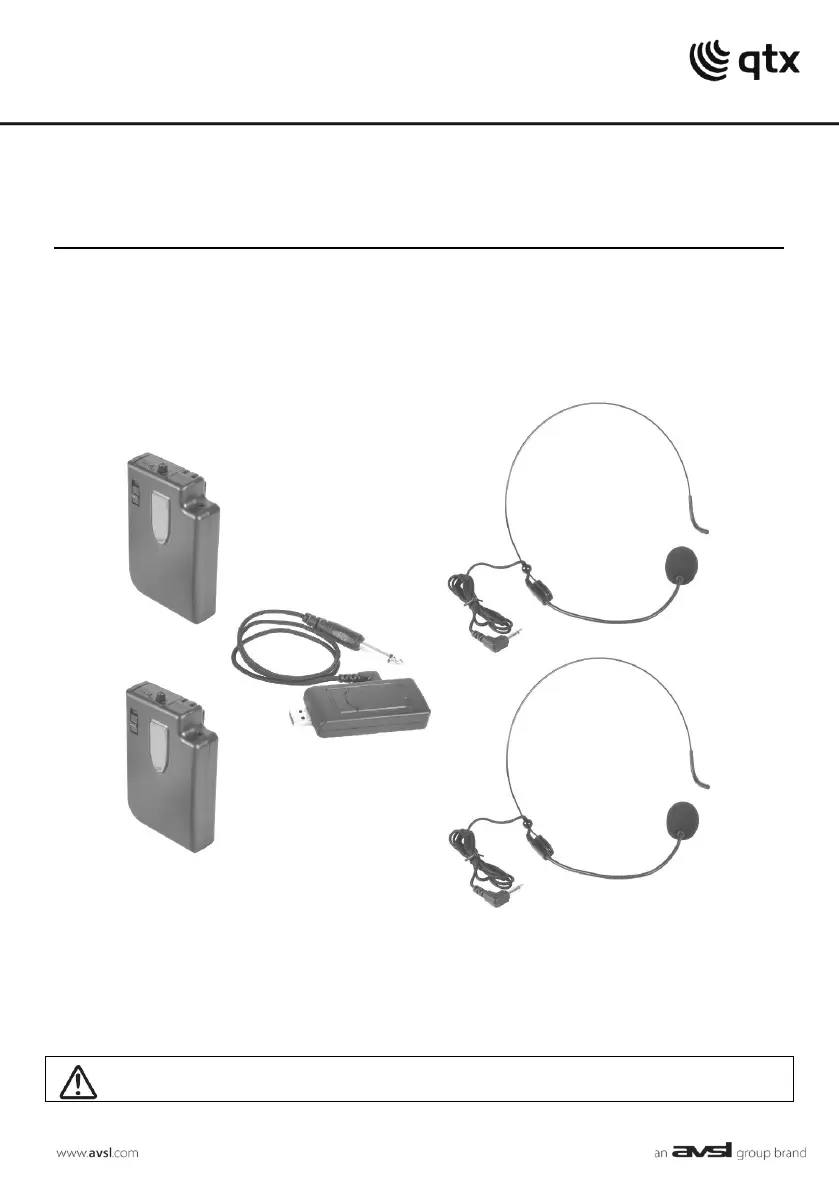

USB Dual Neckband UHF Wireless System

User Manual

Version 1.1

Caution: Please read this manual carefully before operating

Damage caused by misuse is not covered by the warranty

171.812UK User Manual

Introduction

Thank you for choosing the U-MIC for your wireless microphone requirements.

This system is designed to provide a reliable, cable-free solution with minimal

setup and ease of use. Please read and keep this user manual to get the best

results from your product and avoid damage through misuse.

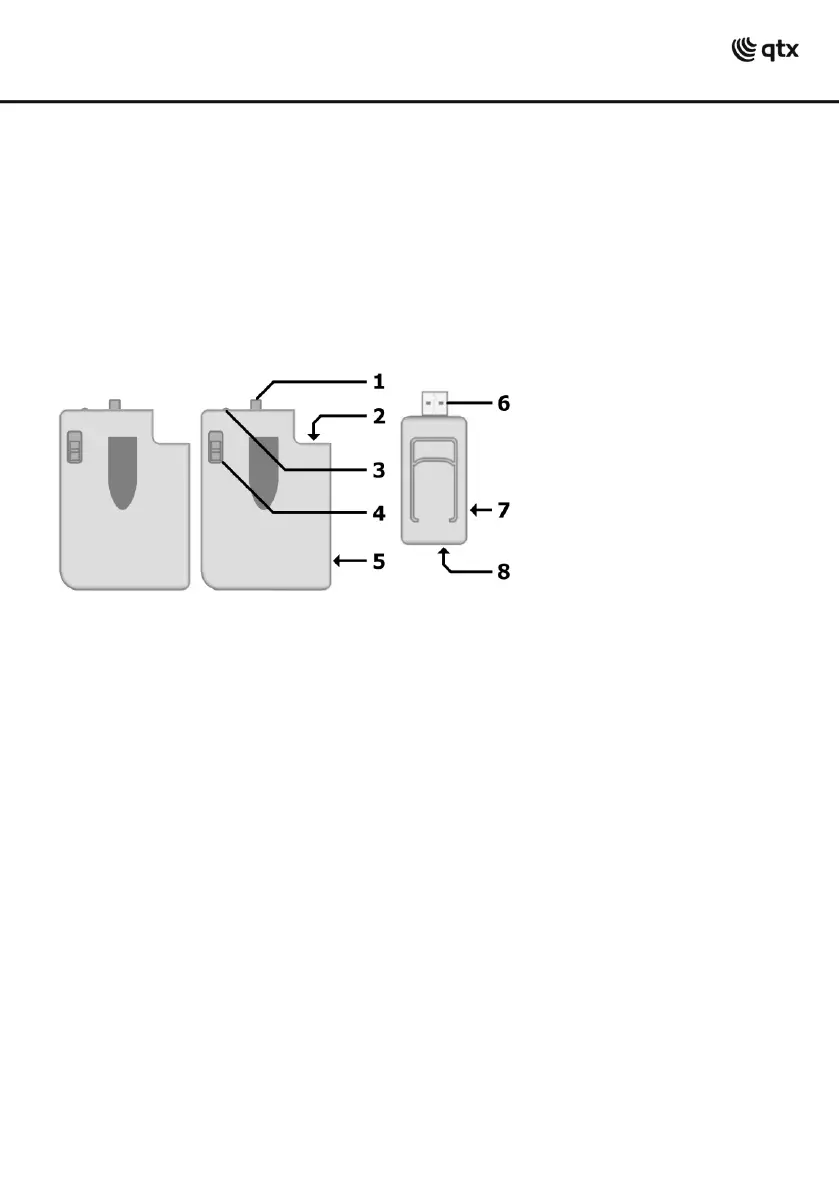

Layout

Setting up

The U-MIC is supplied as 2 individual beltpack microphone transmitters and a

USB receiver with a 3.5mm to 6.3mm jack lead.

The USB type A plug (6) on the receiver should be connected to a USB port for

power (5V, 1000mA). This can be from a USB power adaptor or power bank for

portable use if required. The connection can also be made to the receiver using

an optional USB extension lead if preferred.

Note: the audio is not transmitted to the USB port. The USB is for power only.

If the USB port is a U-Disk player or computer port, the digital media (USB stick)

or other peripheral device can still be connected through the receiver by

connecting to the USB type A socket (8) on the rear of the receiver.

Volume control

3.5mm mic input

LED power indicator

Power switch

Battery compartment

USB type A plug

3.5mm audio output

USB type A socket

Produktspecifikationer

Varumärke:	QTX
Kategori:	mikrofon
Modell:	U-Mic 171.812UK
Mikrofontyp:	Lavalier-mikrofon
Batterityp:	AA
Sändarens mått (BxDxH):	105 x 65 x 30 mm
Sändarens vikt:	67 g
Antal batterier:	3
Mikrofonvikt:	21 g
Mottagartyp:	Bodypack-mottagare
Arbetsfrekvens:	863.8 MHz
Mottagarvikt:	25 g
Mottagare (B x D x H):	80 x 34 x 15 mm
Täckning, trådlös router:	50 m
Mikrofon:	3,5 mm
Sändartyp:	Handhållen sändare
Antal inkluderade mottagare:	1
Antal mikrofoner inkluderade:	2
Mikrofonens frekvensrespons:	50 - 15000 hz
Antal inkluderade sändare:	2
Mikrofonens typ av energikälla:	USB
