Rackmount.IT RM-FR-T15 Bruksanvisning
Sidor 1 ej kategoriserat
Läs bruksanvisningen för Rackmount.IT RM-FR-T15 gratis online eller ladda ner PDF:en. 19 personer har tyckt att guiden var hjälpsam. Fråga om modellen? Ställ en fråga
Type
Product Line
Type
Supported Models
DIMENSIONS
COLOR
PRODUCT DIMENSIONS
PACKING DIMENSIONS
(height x width x depth)
PACKAGE CONTENTS
MOUNTING INSTRUCTIONS
Consider the environment,
recycle where applicable.
In case of problems please contact your
reseller or sales@rackmount.it.
EMEA Ofce
Nonnenveld 27
4811 HN Breda
The Netherlands
T +31 76 200 37 40
E sales@rackmount.it
WWW.RACKMOUNT.IT
US Ofce
9201 Metric Blvd - Unit A
Austin - TX 78758
United States
T +1 512 521 03 33
E sales-us@rackmount.it
Qty Description

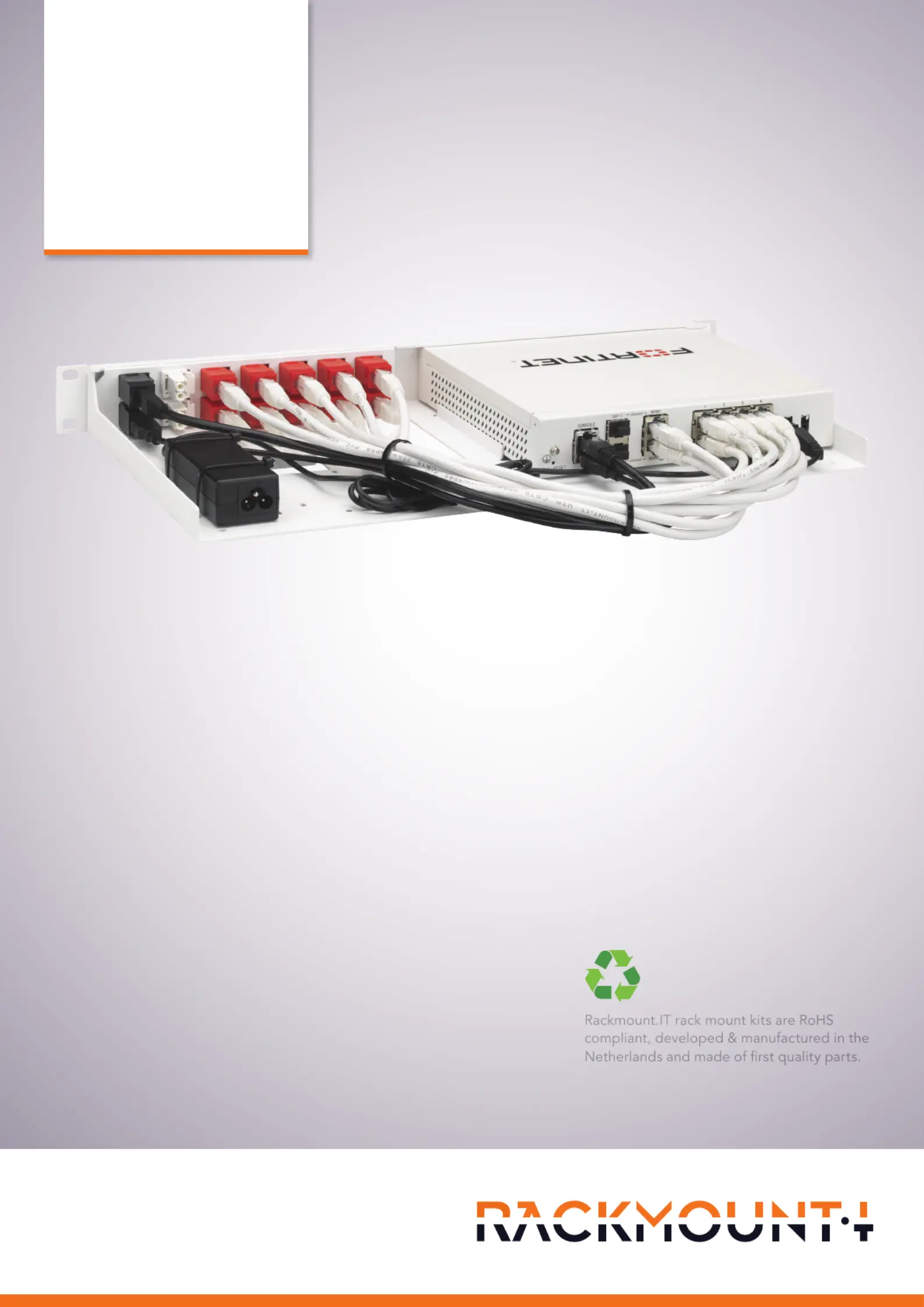

FORTIRACK
RM-FR-T15
RM-FR-T15i
FORTIGATE 80F
FORTIGATE 81F
1U
RAL 9003 White
80 x 520 x 270 mm
3.14 x 20.47 x 10.63 in
44 x 482 x 217 mm
1.73 x 18.98 x 8.54 in
1. Place up to 2 power supplies on the rack and tie them down with 2 zip ties each.
2. Remove the 4 rubber feet from the bottom of the FortiGate.
3. Place your FortiGate on the rack & x the FortiGate with the 2 bolts on the bottom and tighten
them lightly.
4. Tie the excess length of the power cable(s) down with a zip tie(s).
5. Connect the cables from your FortiGate to the connectors.
6. Optional: use ber patch cables (not supplied) to connect the SFP ports with ber keystones.
7. Optional: use two zip ties to hold the cables together.
8. Place your FortiRack in your 19 inch rack.
Please ensure proper ventilation according to the network appliance manufacturer guidelines.
1 FortiRack + RJ45 / Fiber / USB coupler
8 Zip ties
2 Bolts M3x6mm
12 Cables - 0.5 meter
Fiber patch cable is not supplied due to the variety of ber patch cables
Industrial version is supplied with shielded couplers and cablesRevision 3 - 08-12-2020
Produktspecifikationer
| Varumärke: | Rackmount.IT |
| Kategori: | ej kategoriserat |
| Modell: | RM-FR-T15 |
| Bredd: | 482 mm |
| Djup: | 217 mm |
| Höjd: | 44 mm |
| Förpackningens bredd: | 520 mm |
| Modell: | Monteringsskena |
| Snabbinstallationsguide: | Ja |
| Kompatibilitet: | Fortinet FortiGate 80F, FortiGate 81F |
| Rackkapacitet: | 1U |
| Kopplingstyp: | RJ-45 |
| Produktens färg: | Vit |
| Monteringssats: | Ja |
| Låddjup: | 270 mm |
| Kabel inkluderad: | LAN (RJ-45), USB |
| Antal kablar: | 14 |
| Harmonized System (HS)-kod: | 85389099 |
| Kopplingar ingår: | Ja |
| Antal kopplingar: | 10 |
