Sida 1/4

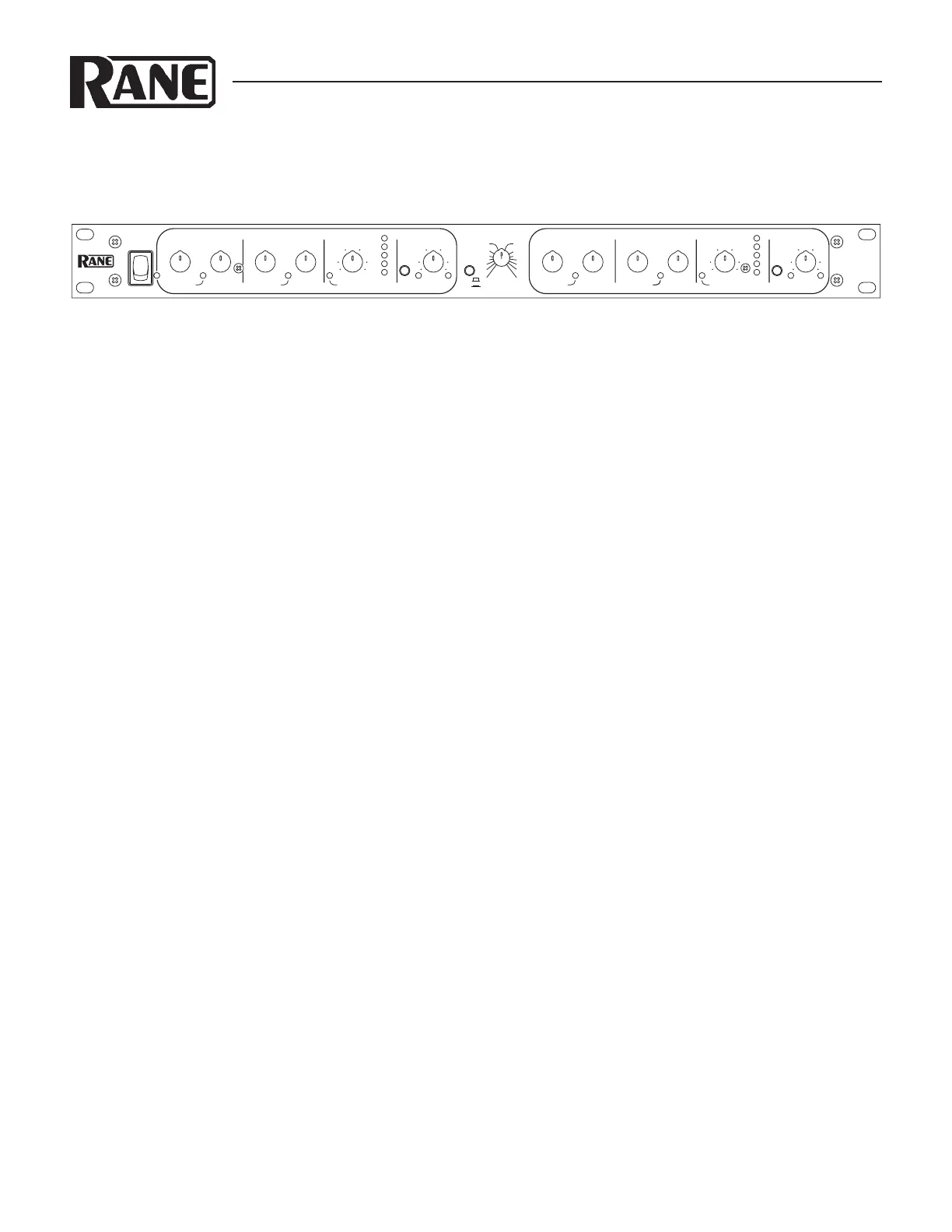

Manual-1
DC 24
DYNAMIC CONTROLLER
OPERATORS MANUAL
DC 24 CONNECTION
Placing the DC 24 within the chain of events in your system
varies slightly depending on application. If you are assembling
a sound reinforcement system, the DC 24 would typically be
placed between the equalizer (you do use one, don’t you?) and
the active crossover, or the power amplifier if passive crossovers
(or the DC 24 crossover) are used.
In recording applications, the DC 24 may be used in con-
junction with insert loops on the mixing console or in series
with the outputs en route to the recorder. Most consoles allow
headphone monitoring of the processed signal if the device is
connected to the inserts. A most useful feature. If the DC 24 is
used on mixdown, it may be connected to the output of the mul
-
tichannel recorder or again on inserts of the mixdown console.
Many recording situations require that the DC 24 be con-
nected to the patch bay in the system so it may be easily moved
from one signal location to another. is call should be made
based upon the requirements of the application.
Wiring of this and all components should follow the Sound
System Interconnection RaneNote included in this manual. is
note details standard wiring conventions which should be used
to prevent noise and distortion. Also see the Chassis ground
point on page Manual-3.
QUICK START
Shredded, this document makes excellent packing material. In its present form, it makes interesting and useful reading. If you
run out of patience quickly, at least read this part to make sure you don’t exterminate everything in a two mile radius by doing some-
thing wrong.
In a nutshell, to use the DC 24 as a conventional dual channel compressor/limiter, ensure that the CROSSOVER ENGAGE
switch on the rear is in its out position. Attach one or two channels of inputs and outputs to the respective connectors on the rear.
With all RATIOS down, LIMITER THRESHOLD all the way up and the LEVEL controls in center-detent you have an expensive
patch cord. Make sure the BYPASS switches are out and set the GATE and COMPRESSOR for the desired ratios and thresholds.
Turning the LIMITER THRESHOLD down decreases the level at which limiting occurs. e GATES and COMPRESSORS may
both be activated by the source material applied to Channel 1 if the DUAL/SLAVE switch is pressed in. is is a normal condition
for true stereo program material.
To use the DC 24 's crossover bandsplit mode, be sure the rear panel CROSSOVER ENGAGE switch is in. Connect the input to
CH 1/CROSSOVER IN. With the rear panel OUTPUTS switch set to SEPARATE, split outputs are available at the CH 1/LOW
OUT and CH 2/HIGH/COMBINE OUT jacks. With the OUTPUTS switch at COMBINE, use only the CH 2/HIGH/COM-
BINE OUT jack for a mono sum of high and low channels.
NEVER CONNECT ANYTHING EXCEPT AN RS 1 OR OTHER APPROVED RANE AC POWER SUPPLY TO THE
THING THAT LOOKS LIKE A TELEPHONE JACK ON THE REAR OF THE DC 24. is is an AC input and requires some
special attention if you do not have an operational power supply EXACTLY like the one that was originally packed with your unit.
WEAR PARTS: is product contains no wear parts.
DC 24
THRESHOLD THRESHOLDRATIO THRESHOLD RATIO SIG LEVEL OL
BYPASS
MODE
FREQUENCY
POWER
COMPRESSOR CH 1 OUTPUTLIMITER CROSSOVER
GAIN
REDUCTION
THRESHOLD THRESHOLDRATIO THRESHOLD RATIO SIG LEVEL OL
BYPASS
GATE / EXPANDERGATE / EXPANDER COMPRESSOR CH 2 OUTPUTLIMITER
GAIN
REDUCTION
LOW
(:1) (:1)
SLAVE
DUAL
DYNAMIC
CONTROLLER
-50 10
-40
2
-30
-20
3
-10
1 1
01 10
8
64
7
5
1.1
4
1.2
1.4
1.6
2
3
-6
24
12
+6
0
6
3
-40
-30
-20
10
0
+12-12
+6-6
0
HIGH
(:1) (:1)
24
12
6
3
0
7k
200
70
100
75
90
150
125
400
2k
800
1.2k
+20-20
-6 +6
0
+20-20
-6 +6
0
+12-12
-10
20-48
2
3
1 1
0
8
64
7
5
-50 10
-40
-30
-20
0
-10
(:1)
1 1
0
1.1
4
1.2
1.4
1.6
2
3
-40
-30
-20
0
10
-10
20-48
6k
4k
0
0
Manual-2
FRONT PANEL DESCRIPTION
1 POWER switch: It has been a tradition at Rane Corporation to say something clever about the POWER switch on all its prod-
ucts. Certain government restrictions now eliminate our option of continuing this tradition. Pity.
2 POWER indicator LED: is solid-state yellow illumination device lights up to let the operator know Item 1 (above) is working
and the thing is plugged in.
3 GATE / EXPANDER THRESHOLD control: allows the operator to set the input level below which the Gate/Expander oper-
ates. e LED illuminates yellow any time the input signal falls below the threshold level set by this control.
4 GATE / EXPANDER RATIO control: determines the Ratio to be applied to the Gate/Expander function. Increased clockwise
rotation increases the circuit slope. e full counter-clockwise position disables the Gate/Expander.
5 COMPRESSOR THRESHOLD control: determines above what input level the Compressor functions. Full clockwise rotation
disables the Compressor entirely. e LED illuminates yellow any time the input signal exceeds the threshold level set by this
control.
6 COMPRESSIOR RATIO control: determines the slope of the Compressor once it has exceeded the indicated threshold. Full
counter-clockwise rotation of the RATIO control disables all Compressor activity.
7 LIMITER THRESHOLD control: determines above what level the Servo Locked Limiter™ functions. Full clockwise rotation
of this knob disables all Limiter activity. e LED illuminates red any time the input exceeds the LIMITER THRESHOLD set-
ting.
8 GAIN REDUCTION meter: indicates the amount of reduction, below unity, being applied to the audio signal by the VCA.
9 BYPASS switch: When pressed in, this channel in the DC 24 is is hard-wire Bypassed. Each channel may be individually By-
passed for comparison and alignment purposes. See OPERATING INSTRUCTIONS on page Manual-4.
0 OUTPUT LEVEL control: increases or decreases the output gain of each channel by 12 dB. In the center detent, gain will be
unity. (NOTE: Channel 2 OUTPUT LEVEL controls overall output in COMBINE mode.)
q SIGnal present LED: illuminates any time the input signal exceeds approximately -40 dBu.
e OverLoad LED: illuminates any time the output exceeds a level equal to -4 dB below the clipping level.
w DUAL / SLAVE mode switch: In the in (SLAVE) position, this switch causes both channels’ Gate, Compressor and Limiters to
act together, i.e., they are “slaved.” All controls for both channels remain active, so independent settings are still possible; how-
ever, whenever a signal in one channel exceeds its settings, then both channels change by the same amount. In the out (DUAL)
position, both channels operate independently.
e CROSSOVER FREQUENCY control: is rotary control selects the crossover frequency. What did you think?
3
4
5
6
7
9 11
2
1
8
10
12
3
4
5
6
7
9 11
8
10
13
DC 24
THRESHOLD THRESHOLDRATIO THRESHOLD RATIO SIG LEVEL OL
BYPASS
MODE
FREQUENC
Y
POWER
GATE COMPRESSOR CH 1 OUTPUTLIMITER CROSSOVER
GAIN
REDUCTION
THRESHOLD THRESHOLDRATIO THRESHOLD RATIO SIG LEVEL OL
BYPASS
GATE COMPRESSOR CH 2 OUTPUTLIMITER
GAIN
REDUCTION
LOW
EXPANDER
(:1) (:1)
SLAV
E
DUA
L
DYNAMI
C
CONTROLLE
R
-50 10
-40
2
-30
-20
3
-10
1 1
01 10
8
64
7
5
1.
1
4
1.
2
1.
4
1.
6
2
3
-6
24
12
+6
0
6
3
-40
-30
-20
10
0
+12-12
+6-6
0
HIGH
EXPANDER
(:1) (:1)
24
12
6
3
0
7k
200
70
100
75
90
150
125
400
2k
800
1.2k
+20-20
-6 +6
0
+20-20
-6 +6
0
+12-12
-10
20-48
2
3
1 1
0
8
64
7
5
-50 1
0
-4
0
-3
0
-20
0
-1
0
(:1)
1 10
1.
1
4
1.
2
1.
4
1.
6
2
3
-4
0
-3
0
-2
0
0
10
-1
0
20-48
6k
4k
0
0
