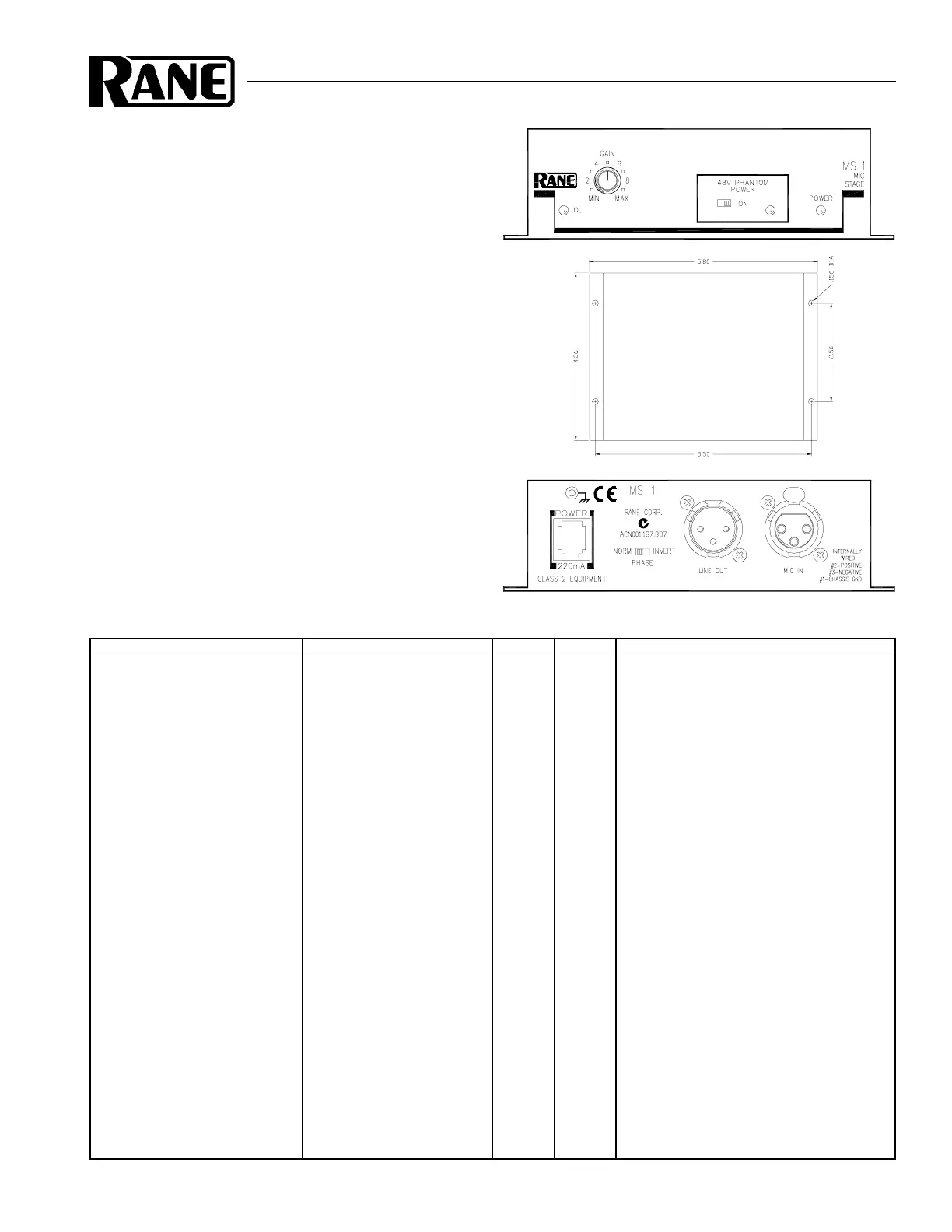

Data Sheet-1

MS 1

MICROPHONE STAGE

ParameterSpecificationLimitUnitsConditions/Comments

Input Impedance1k1%WBalanced 500 + 500

Gain Range+21.5 to +601.5dB

Phantom Power+484%VDCDIN 45596 & IEC 268-15

Max Input Level0/-381dBu21.5/60 dB gain

Equivalent Input Noise-130/-1172dBu20k BW, 60/21.5 dB gain, Rs=150 ohms

Signal-To-Noise Ratio102/75 (re +4 dBu)typdB20k BW, 21.5/60dB gain

Frequency Response20-20 kHz0.1dB-3 dB @ 130/90 kHz, 21.5/60 dB gain

THD+Noise0.007/.03.001%+20 dBu, 20-20 kHz, 21.5/60 dB gain

IM Distortion (SMPTE)0.008.002%60 Hz/7 kHz, 4:1, +20 dBu

Slew Rate61V/µsFully symmetrical

Max Output Level+201dBuBalanced out, 600 ohms

Output Impedance501%WBalanced

Output Cable Length1000' (305 m)typBelden 8451 or equivalent

Unit: Agency Listing

..........120 VAC modelClass 2 EquipmentNational Electrical Code

UL & CSAExempt Class 2 equipment

..........230 VAC modelCE-EMCEMC directive 89/336/EEC

CE-SafetyExempt per Art. 1, LVD 73/23/EEC

Power Supply: Agency ListingClass 2 Equipment

..........120 VAC modelULFile no. E88261

CSAFile no. LR58948

..........230 VAC modelCE-EMCEMC directive 89/336/EEC

CE-SafetyLV directive 73/23/EEC

..........100 VAC modelBuilt to JISJapan only

Power Supply Input18 VAC w/center tap10%VrmsRane RS 1 supplied with MS 1

Max Current Consumption220mA

Unit Size1.65" H x 5.1" W x 4.25" D(4.2 cm x 13 cm x 10.8 cm)

..........Weight1 lb(0.45 kg)

Shipping Size3.6" H x 11.75" W x 7.2" D(9.5 cm x 30 cm x 18 cm)

..........Weight4 lb(1.8 kg)

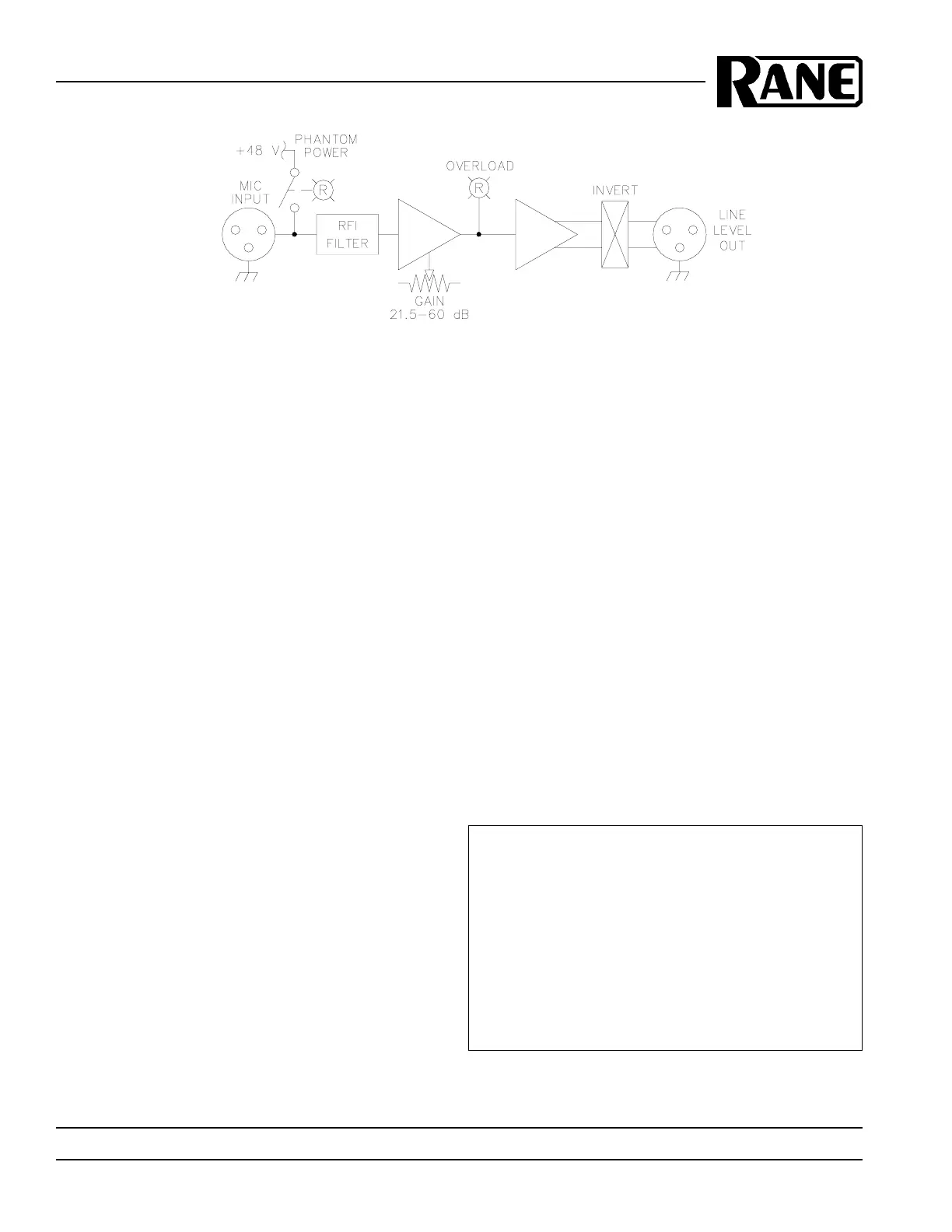

General Description

The Rane MS 1 Mic Stage preamplifier provides the

answer when you need just one microphone input in an

otherwise line-level world. Give us a call to go from either a

dynamic, condenser or electret microphone to a line level

input with a minimum of noise, distortion, cost and hassle.

The MS 1 provides 48 V switchable Phantom Power with

indicator LED, continuous rotary Gain trim between 21.5 dB

and 60 dB, overload LED, and XLR balanced Input & Output

connectors. A Phase Invert switch and high-current cross-

coupled output line drivers round out the features.

The MS 1 utilizes one of the finest ultra low noise

amplifier designs available. Featuring a true differential input

with high common-mode rejection, use of the MS 1 guaran-

tees performance usually found only in mixing consoles

costing thousands of times as much. Of course, for all of that

extra money you receive a proportional increase in KPSI

(knobs per square inch).

Features

•Gain Control with Overload Indicator

•Phase Invert Switch

•Switchable 48V Phantom Power

•Ultra Low Noise Design

DATA SHEET

•True Differential Input

•Cross-Coupled Line Driver

•UL/CSA/CE and 100/120/230 VAC Remote Power Supply
