Reflecta 23125 Bruksanvisning

Reflecta Platt panelstöd 23125

Läs gratis den bruksanvisning för Reflecta 23125 (12 sidor) i kategorin Platt panelstöd. Guiden har ansetts hjälpsam av 10 personer och har ett genomsnittsbetyg på 4.4 stjärnor baserat på 5.5 recensioner. Har du en fråga om Reflecta 23125 eller vill du ställa frågor till andra användare av produkten? Ställ en fråga

Ladda ner PDF

Sida 1/12

INSTALLATION MANUAL

Flat Panel Ceiling Mount

23125

55"

MAX

200x200/400x200

300x300/400x400

(

(11

110

)

RAT

ATE

50kg

(110lbs)

RATED

ISSUED: MAY. 2013

CAUTION: DO NOT EXCEED

RATED LISTED WEIGHT. SERIOUS

INJURY OR PROPERTY DAMAGE

MAY OCCUR!

reflecta gmbh

Merkurstrasse 8

72184 Eutingen i.G.

Germany

mail@reflecta.de

www.reflecta.de

NOTE: Read the entire instruction manual before you start installation and assembly.

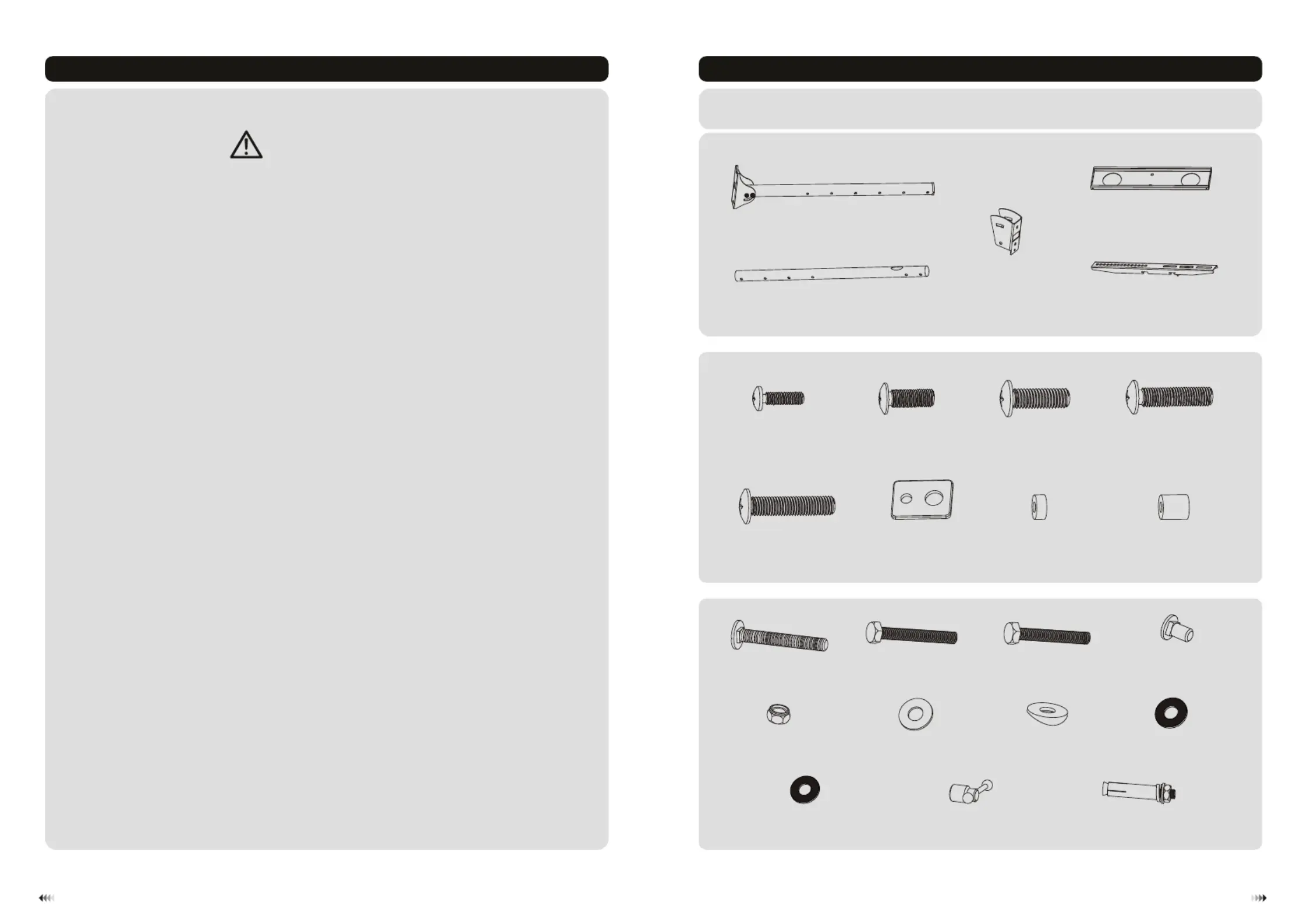

Component Checklist

IMPORTANT: Ensure that you have received all parts according to the component checklist prior to installation.

If any parts are missing or faulty, telephone your local distributor for a replacement.

top pipe (x1)

bottom pipe (x1)

connect plate (x1)

universal plate (x1)

adapter bracket (x2)

Package M

Package P

D8 ø8.5 ø16 (x5)x washer

P-F

M8 nut (x4)

P-E

M8 (x3)x70 iron expansion bolt

P-K

M8x60

P-A

(x1) M8x60

P-B

(x1)

M8x55

P-C

(x1)

washer

P-G

(x4)

ø10.5 ø20 (x1)x washer

P-H

ø8.5 ø17.5 (x3)x washer

P-I

M8 iron knob

P-J

(x1)

M8x14

P-D

(x2)

WARNING

• Do not begin the installation until you have read and understood all the instructions

and warnings contained in this installation sheet. If you have any questions

regarding any of the instructions or warnings, please contact your local distributor.

• This mounting bracket was designed to be installed and utilised ONLY as

specified in this manual. Improper installation of this product may cause damage

or serious injury.

• This product should only be installed by someone with good mechanical ability

who has basic building experience and fully understands this manual.

• Make sure that the supporting surface will safely support the combined weight of

the equipment and all attached hardware and components.

• Always use an assistant or mechanical lifting equipment to safely lift and position

the equipment.

• Tighten screws firmly, but do not over tighten. Over tightening can cause damage

to the items, This greatly reduces their holding power.

• This product is intended for indoor use only. Using this product outdoors could

lead to product failure and personal injury.

M5x14 (x4)

M-A

M6x14 (x4)

M-B

washer

M-F

(x4)

M8x20 (x4)

M-C

big spacer (x4)

M-H

M6x30 (x4)

M-D

M8x30 (x4)

M-E

small spacer (x8)

M-G

2. Assembling the the Universal Plate1. Assembling the Pipes

P-C

P-F

P-E

Run power cable through pipe.

Attach bottom pipe to top pipe

and fix them at the desired

height. Using correct

combination of screw, washer

and nut.

Attach connect plate to the universal plate using correct combination of screws, washers and nuts.

Assemble the universal plate and bottom pipe with connect plate. Using correct combination of screws,

washers, nuts and iron knob.

P-E

P-F

P-D

P-A

P-H

P-B

P-I

P-G

P-J

P-F

P-I

P-F

P-I

P-E

Produktspecifikationer

Varumärke:	Reflecta
Kategori:	Platt panelstöd
Modell:	23125
Färg på produkten:	Black, Blue
Antal effektnivåer:	3
Vikt:	1600 g
Kraftkälla:	Batterij/Accu
Typ av rengöring:	Droog
Dammkapacitet:	0.75 l
Maximal ineffekt:	- W
Typ av dammsugare:	Zakloos
Sugning:	60 AW
Variabel effekt:	Ja
Luftflöde:	1.5 m³/min
Inbyggd LED-belysning:	Ja
Maximal skärmstorlek:	42 "
Batteriteknik:	Lithium-Ion (Li-Ion)
Zuigkrachtstand:	High, Low, Medium
Minsta skärmstorlek:	23 "
Lutningsvinkel:	-15 - 15 °
Maxvikt:	50 kg
Produktens färg:	Svart
Monteringssätt:	Tak
Gränsssnitt för panelmontering:	200 x 100,200 x 200,200 x 400,400 x 400 mm
Höjdjustering:	Ja
Antal displayer som stöds:	1
Monteringsgränssnitt kompatibilitet (min):	100 x 200 mm
Monteringsgränssnitt kompatibilitet (max):	400 x 400 mm
Höjdjusteringsintervall:	1050 - 1560 mm
