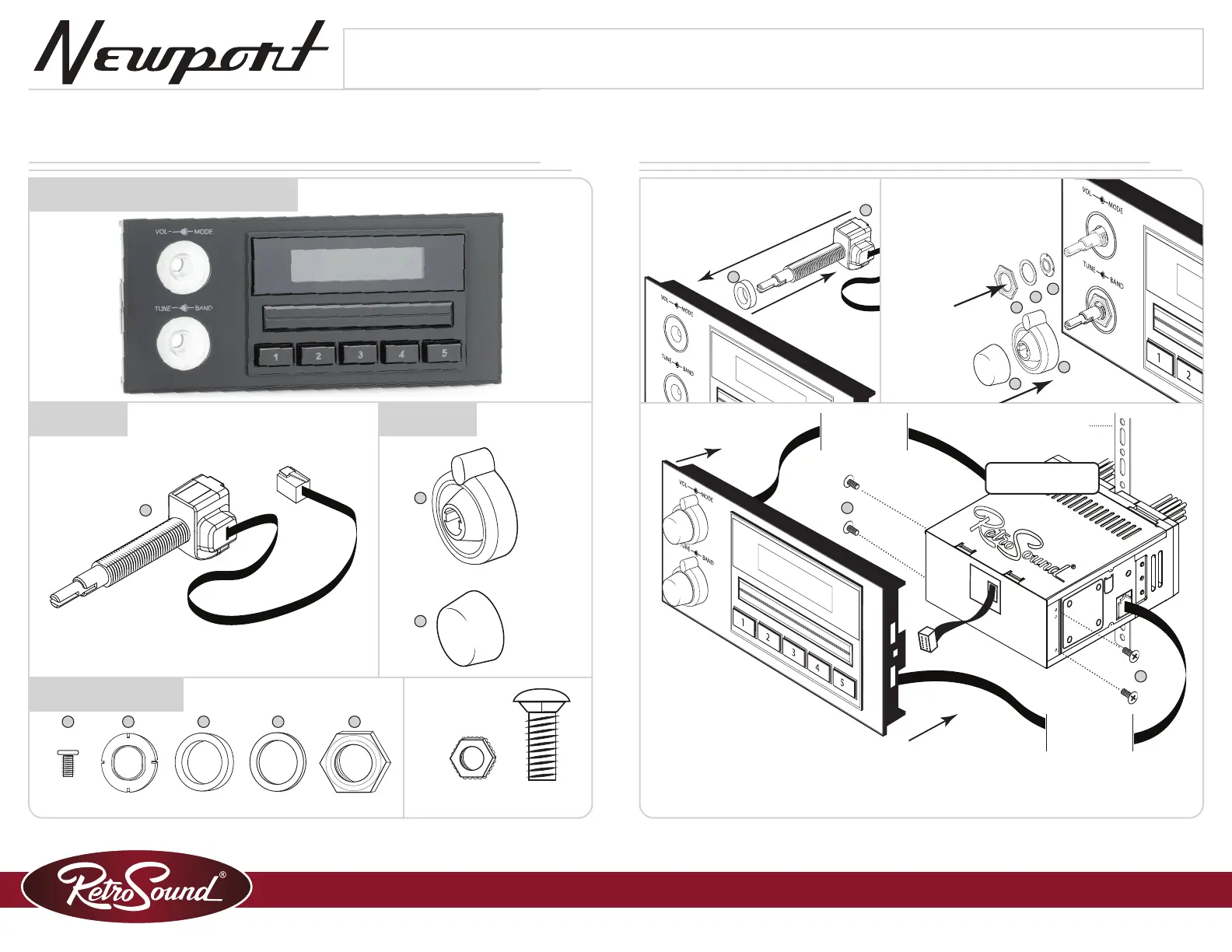

Radio Face Quick Start Guide
What’s in the BoxInstallation
Newport Face
ShaftsKnobs
x(2)
x(2)x(2)
x(2)x(2)
x(4)
Hardware
Backstrap must be
mounted securely
Top Control Shaft
Modern Sound For Your Classic
[email protected] | help.retromanufacturing.com
Refer to the user manual included in your motor box or on our website for more comprehensive instructions.
Plug the ribbon cable from the Radio Motor into the Radio Face. Attach the Radio Face to the Radio
Motor with the four small screws. With the Radio facing towards you, plug the top Control Shaft into
the left side of the Radio Motor. Plug the bottom Control Shaft into the right side of the Radio Motor.
Refer to Kit Installation
Instructions for use.
Place a metal spacer
on each shaft. Slide the
shafts into the Radio
Face.
Place the white plastic
spacer and thin metal
washer onto the shaft, then
secure with the shaft nut.
DO NOT OVERTIGHTEN.
Install the
rear knob
first, then the
front knob.
x(2)
x(2)
Bottom
Control Shaft
A
B
C
DEFGH
F
A
D
D
B
C
NOTE: The RetroSound®
logo should be facing up.
