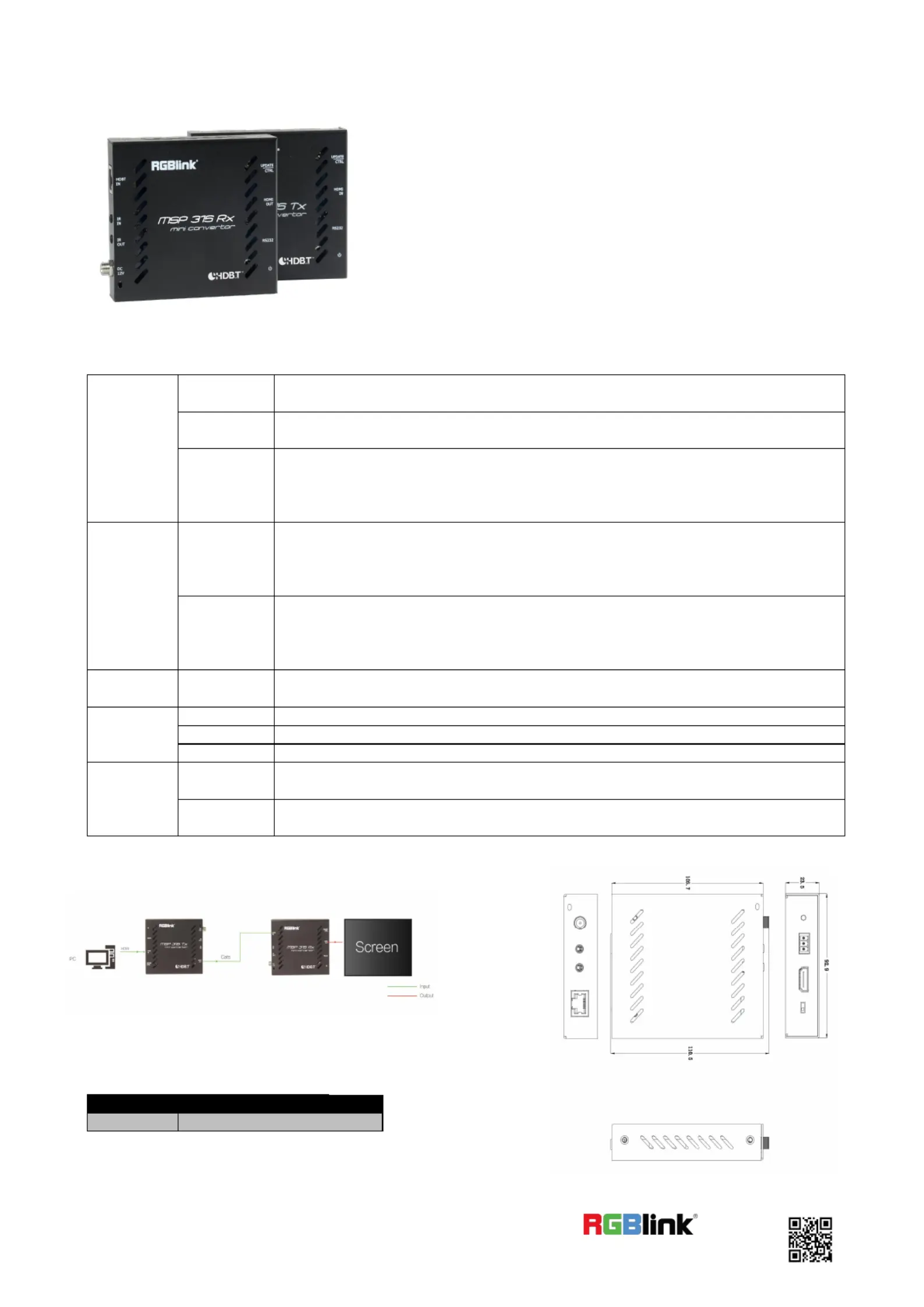

MSP 315-4

HDMI 1.4 to HDBaseT Extender Set

Key Features

● HDMI 1.4 and HDCP 2.2 compliant

● Support input of HDCP 2.2 standard and output HDCP 1.1

● Support resolution up to 2160p@30Hz and

backward compatible with 1080p 3D

● Extend HDMI 1080p@60Hz up to 150m or 2160p@30Hz up to 40m

over one single CAT-5e or CAT-6a cable

● Bi-directional 12V POE.

● Bi-directional IR and RS232 pass-through.

● Bi-directional RS232 communication

● Bi-directional IR Control

● 2-pin DIP switch for choosing RS232 control and firmware upgrade.

Specification

Connectors

InputTX HDMI 1.41×HDMI Type A

RX HDBaseT1×RJ45

OutputTX HDBaseT1×RJ45

RXHDMI 1.41×HDMI Type A

Communication TXRS2321×Euroblock (3-pin phonex connector)

IR (IN| Out)2×3.5mm Phone Jack

RX RS2321×Euroblock (3-pin phonex connector)

IR (IN| Out)2× 3.5mm Phone Jack

Performance

Supported Input

Resolutions

SMPTE[email protected]/24/25/29.97/30/50/59.94/60 | 1080[email protected]/24/25/29.97/30/50/59.94/60 |

1080p@23.98/24/25/29.97/30/50/59.94/60 |2160p@30

VESA

800x600@60 | 1024x768@60 | 1280x768@60 | 1280x1024@60 | 1366x768@60 | 1600x1200@60 |

1920x1080@60 | 2048x1152@60 | 2560x1600@60 | 3840x1080@60 | 3840x2160@30

Supported Output

Resolutions

SMPTE[email protected]/24/25/29.97/30/50/59.94/60 | 1080[email protected]/24/25/29.97/30/50/59.94/60 |

1080p@23.98/24/25/29.97/30/50/59.94/60 |2160p@30

VESA

800x600@60 | 1024x768@60 | 1280x768@60 | 1280x1024@60 | 1366x768@60 | 1600x1200@60 |

1920x1080@60 | 2048x1152@60 | 2560x1600@60 | 3840x1080@60 | 3840x2160@30

Power

Input Voltage

TXDC 12V/1A

RX DC 12V/1A

Enviroment

Working Temperature

0 ~40℃

Storage Temperature

-10~55℃

Humidity

10- 90%

Physical

Weight

Net0.15kg (TX) 0.15kg (RX)

Packaged0.5kg (SET)

Dimensions

Net115mm×93mm×24mm (TX)115mm×93mm×24mm (RX)

Packaged160mm×120mm×80mm (SET)

Application

Dimensions

Order Codes

Product CodeItem

611-0315-02-0MSP315-4 HDMI 1.4 to HDBaseT Extender

MSP 315-4 TX | RX

Tel: +86-592-5771197 | Fax: +86-592-5788216 | E-mail: s[email protected]m

Headquarter: S601 Weiye Building,Torch Hi-Tech Development Zone,Xiamen,Fujian,P.R.C.

www.rgblink.com

Specifications are correct at time of printing and subject tochange or alteration without notice.
