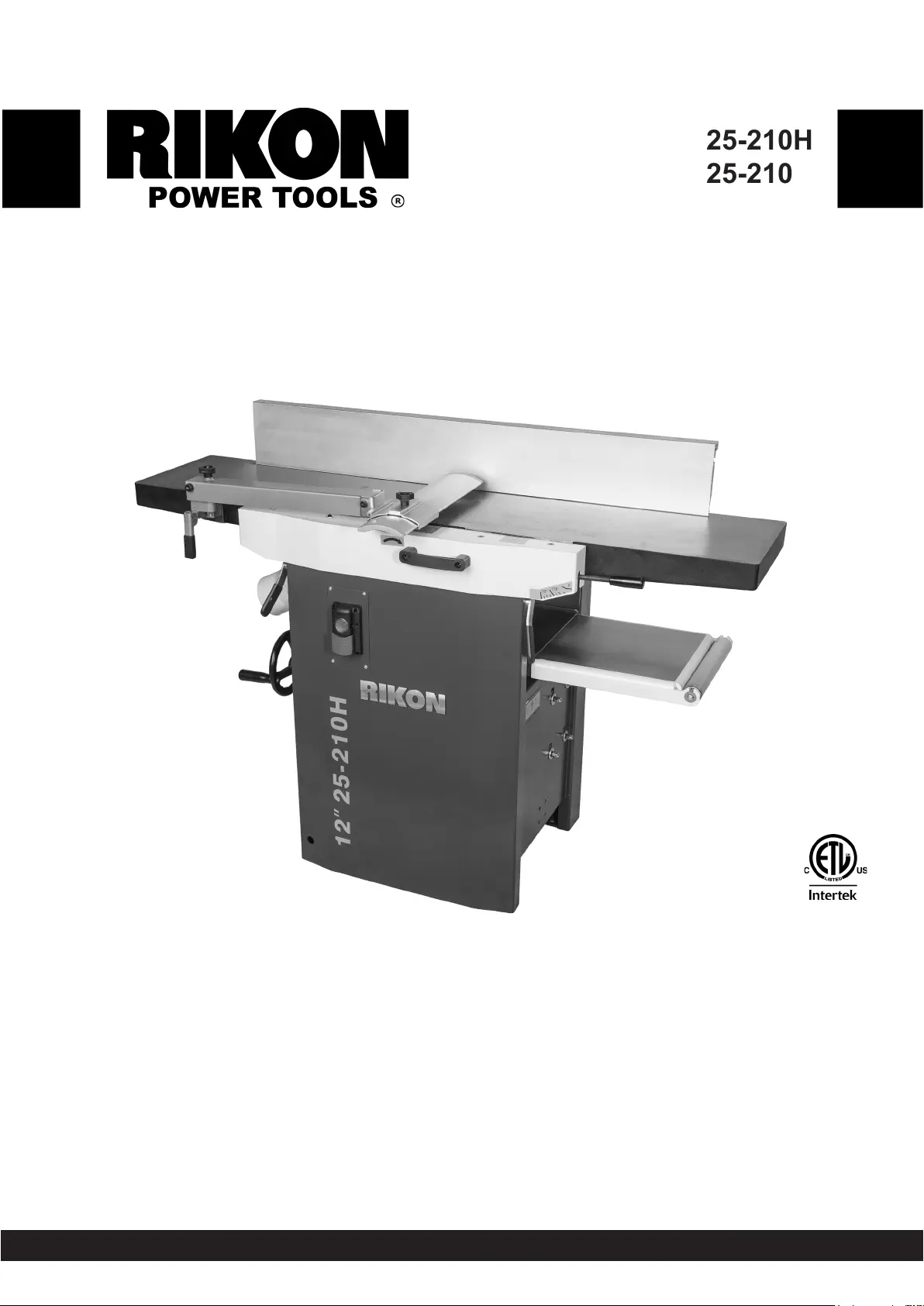

12” Planer / Jointer
25-210H Helical w/ Knife Inserts & 25-210 Straight Knife models
Operator’s Manual
Record the serial number and date of purchase in your manual for future reference.
Serial Number: _________________________ Date of purchase: _________________________
For technical support or parts questions, email techsupport@rikontools.com or call toll free at (877)884-5167
The serial number can be found on the specication label on the rear of your machine.

2
TABLE OF CONTENTS
SPECIFICATIONS
NOTE: The specications, photographs, drawings and information in this manual represent the current
models when the manual was prepared. Changes and improvements may be made at any time, with no
obligation on the part of Rikon Power Tools, Inc. to modify previously delivered units. Reasonable care
has been taken to ensure that the information in this manual is correct, to provide you with the guidelines
for the proper safety, assembly and operation of these machines.
Motor ....................................................................................................3 HP, TEFC
Motor Speed (no load)........................................................................... 3400 RPM
Volts ............................................................................................................. 220 V
Amps, Hertz .........................................................................................12 A, 60 Hz
Cutterhead Diameter ............................................................... 2-3/4" (69.85 mm)
Cutterhead Speed (RPM / CPM).....................................5000 RPM / 20,000 CPM
25-210H Number of Carbide Inserts, 4-sided .................................................... 56
25-210H Knife Insert Size (L x W x T) ....................................0.59" x 0.59" x 0.10"
25-210 Number of HSS Knives ........................................................................... 3
25-210 Knife Size (LxWxH) ..................................................... 12-3/16" x 1" x 1/8"
Maximum Depth of Cut (Planing & Jointing) .................................. 1/8" (3.18 mm)
Maximum Cutting Width (Planing & Jointing)..................................12" (304.8 mm)
Maximum Cutting Depth (Planing Height) ....................................7-7/8” (200 mm)
Planer Table Size ...............................................21-1/4" x 12-1/8" (540 x 308 mm)
Feed Speed Planing SF/min ........................................................... 23 (7 SM/min)
Jointer Table Size .............................................12-1/4" x 55-1/2" (311 x 1410 mm)
Jointer Table Height ................................................................... 33-1/2" (850 mm)
Fence Size ............................................................6" x 43-1/4" (152.4 x 1100 mm)
Fence Tilting Degree ................................................................................... 0 - 45°
Dust Port ............................................................................ 4” Diameter (100 mm)
Dust Collection Required CFM ........................................................................ 650
Noise Level (no load) .................................................................................. ≤98dB
Overall Size (LxWxH)............55-3/4" x 29-1/2" x 39-1/2" (1410 x 749 x 1003 mm)
Base Size ...........................................................21-1/4” x 19-1/4” (540 x 489 mm)
Net Weight ....................................................................................445 lbs (202 kg)
Specifications.....................................................................................................................2
Safety Instructions ........................................................................................................3 - 6
Getting To Know Your Machine ..............................................................................................7
Contents of Package ..........................................................................................................7
Installation ......................................................................................................................8
Assembly .......................................................................................................................8 - 9
Adjustments...............................................................................................................10 - 19
Operation ..................................................................................................................19 - 22
Accessories ..................................................................................................22
Maintenance .....................................................................................................23
Warranty .......................................................................................................................... 23
Troubleshooting .........................................................................................................24 - 25
Electricals & Wiring Diagram .......................................................................................5 & 25
Parts Diagrams & Parts Lists ..................................................................................26 - 39
25-210H has a Helical Cutterhead with Knife Inserts 25-210 has a Straight Knife Cutterhead
