Sida 1/40

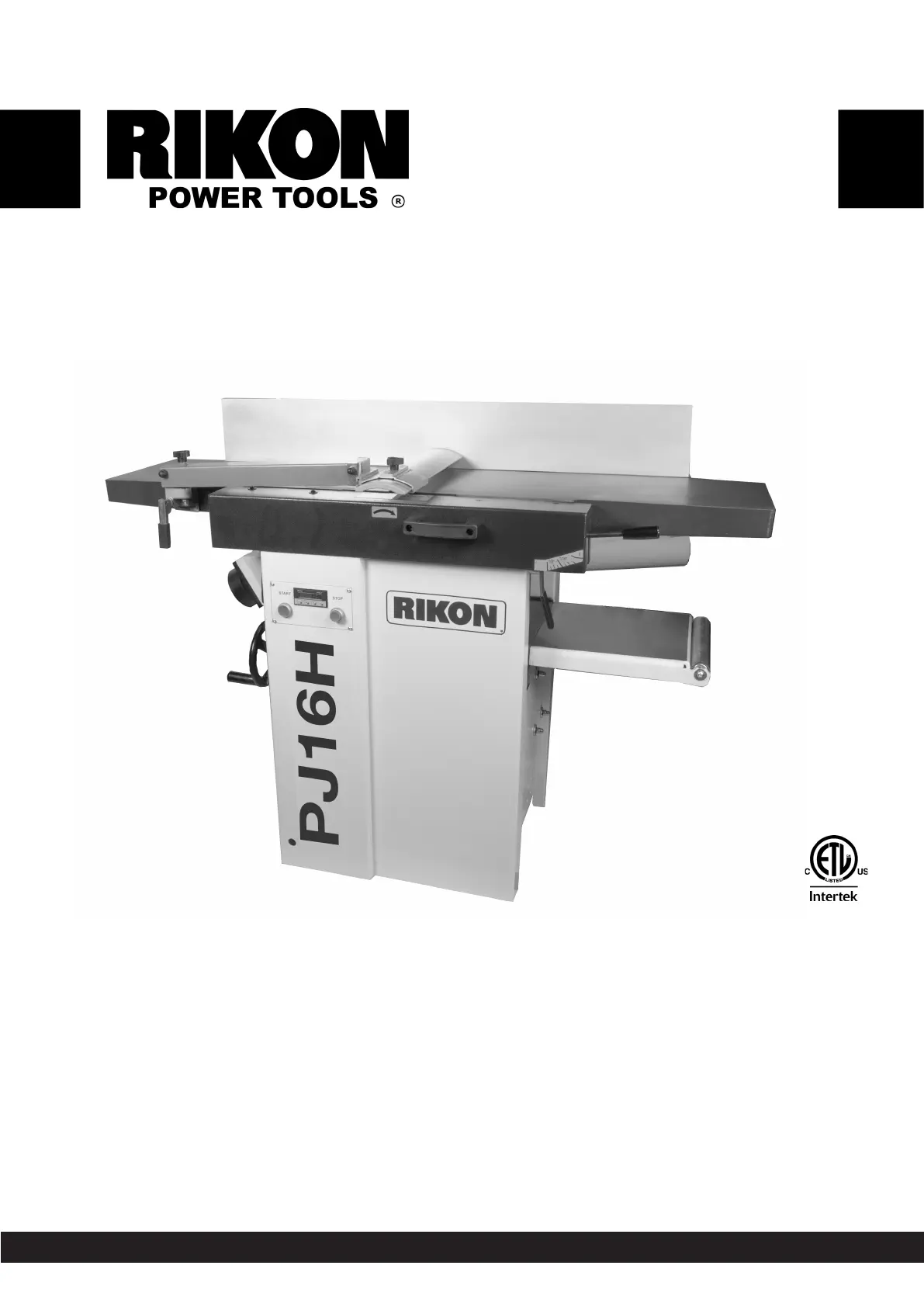

25-216H
www.rikontools.com
25-216HM1
16" Planer / Jointer
Operator’s Manual
Record the serial number and date of purchase in your manual for future reference.
Serial Number: _________________________ Date of purchase: _________________________
For technical support or parts questions, email techsupport@rikontools.com or call toll free at (877)884-5167
The serial number can be found on the specication label on the rear of your machine.
2
TABLE OF CONTENTS
SPECIFICATIONS
NOTE: The specications, photographs, drawings and information in this manual represent the current
models when the manual was prepared. Changes and improvements may be made at any time, with no
obligation on the part of Rikon Power Tools, Inc. to modify previously delivered units. Reasonable care
has been taken to ensure that the information in this manual is correct, to provide you with the guidelines
for the proper safety, assembly and operation of these machines.
Motor 4 HP, TEFC
Motor Speed (no load) 3,400 RPM
Volts 230 V
Amps, Hertz 16 A, 60 Hz
Cutterhead Diameter 2-3/4" (69.85 mm)
Cutterhead Speed (RPM / CPM) 5,500 RPM / 16,500 CPM
25-216H Number of Carbide Inserts, 4-sided 44
25-216H Knife Insert Size (L x W x T) 15mm x 15mm x 2.5mm
Maximum Depth of Cut (Planing & Jointing) 5/32" (3.98 mm)
Maximum Cutting Width (Planing & Jointing) 16" (406.4 mm)
Maximum Cutting Depth (Planing Height) 9" (228 mm)
Planer Table Size 23-1/2" x 16-1/8" (596.90 x 409.58 mm)
Planer Table Size w/Extension 38-3/4" x 13-1/8" (984.25 x 409.58 mm)
Feed Speed Planing SF/min 23 (7 SM/min)
Jointer Table Size 16-1/8" x 65-1/2" (409.58 x 1664 mm)
Jointer Table Height 33-1/2" (850 mm)
Fence Size 6" x 43-1/4" (152.4 x 1100 mm)
Fence Tilting Degree 0 - 45°
Dust Port 5" Diameter (127 mm)
Dust Collection Required CFM 650
Noise Level (no load) 3ft/1M ≤76dB
Overall Size (LxWxH) 65-1/2" x 38" x 39-1/2" (1664 x 965.20 x 1003 mm)
Base Size 25" x 23" (635 x 584.20 mm)
Specifications 2
Safety Instructions 3 - 6
Getting To Know Your Machine 7
Contents of Package 7
Installation 8
Assembly 8 - 9
Adjustments 10 - 19
Operation 20 - 22
Accessories 22
Maintenance 23
Warranty 23
Troubleshooting 24 - 25
Electricals & Wiring Diagram 5 & 25
Parts Diagrams & Parts Lists 26 - 39
Net Weight 639 lbs (289.85 kg)
