Rockford Fosgate Prime R1653 Bruksanvisning
Rockford Fosgate
högtalare
Prime R1653
Läs gratis den bruksanvisning för Rockford Fosgate Prime R1653 (8 sidor) i kategorin högtalare. Guiden har ansetts hjälpsam av 2 personer och har ett genomsnittsbetyg på 4.7 stjärnor baserat på 1.5 recensioner. Har du en fråga om Rockford Fosgate Prime R1653 eller vill du ställa frågor till andra användare av produkten? Ställ en fråga
Sida 1/8
12/2008 B.M.
1230-55419-01
Printed in China
Full Range Speakers
Serial Number: Date of Purchase:
Installation & Operation
Installation et fonctionnement
Instalación y funcionamiento
Einbau und Betrieb
Installazione e funzionamento
Rockford Corporation offers a limited warranty on Rockford Fosgate products on the following terms:
Length of Warranty
Speakers – 1 Year. Any Factory Refurbished Product – 90 days (receipt required)
What is Covered
This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate
Dealers in the United States of America or its possessions. Product purchased by consumers from an
Authorized Rockford Fosgate Dealer in another country are covered only by that country’s Distributor and
not by Rockford Corporation.
Who is Covered
This war
ranty co
v
ers onl
y the original pur
chaser of Rockford product purchased from an Authorized
Rockf
or
d F
osgate Dealer in the United States.
In or
der to receive service, the purchaser must provide
Rockf
or
d with a cop
y of the r
eceipt stating the customer name
, dealer name, product purchased and date of
pur
chase
.
Pr
oducts f
ound to be defective during the warranty period will be repaired or replaced
(with a pr
oduct deemed to be equivalent) at Rockf
or
d's discr
etion.
What is Not Covered
1. Damage caused by accident, abuse, improper operations, water, theft, shipping
2.Any cost or expense related to the removal or reinstallation of product
3. Service performed by anyone other than Rockford or an Authorized Rockford Fosgate Service Center
4.Any product which has had the serial number defaced, altered, or removed
5. Subsequent damage to other components
6.Any product purchased outside the U.S.
7.Any product not purchased from an Authorized Rockford Fosgate Dealer
Limit on Implied Warranties
Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the
period of the express warranty set forth above.Some states do not allow limitations on the length of an implied
warranty, so this limitation may not apply.No person is authorized to assume for Rockford Fosgate any other
liability in connection with the sale of the product.
Ho
w to Obtain Ser
vice
Contact the Authorized Rockford Fosgate Dealer you purchased this product from. If you need further
assistance, call 1-800-669-9899 for Rockford Customer Service.You must obtain an RA# (Return
Authorization number) to return any product to Rockford Fosgate.You are responsible for shipment
of product to Rockford.
EU
W
arr
anty
This product meets the current EU warranty requirements, see your Authorized dealer for details.
2009 Rockford Corporation.All rights reserved.
Rockford Fosgate, the Rockford Fosgate logo and the PRIME logo are either
registered trademarks or trademarks of Rockford Corporation.
LIMITED WARRANTY ST
A
TEMENT
Check our website for additional information and
updates on these products.
www.RockfordFosgate.com
2
Before beginning any installation, follow these simple rules:
1. Be sure to carefully read and understand the instructions before attempting to
install these speakers.
2. For safety, disconnect the negative lead from the battery prior to beginning the
installation.
3. For easier assembly, we suggest you run all wires prior to mounting your speakers
in place.
4. Use high quality connectors for a reliable installation and to minimize signal or
power loss.
5.
Think before you drill! Be careful not to cut or drill into gas tanks, fuel lines,
brake or hydraulic lines, vacuum lines or electrical wiring when working on any
vehicle. If installation in a boat, take care not to cut or drill through the main hull.
6. Never run wires underneath the vehicle. Running the wires inside the vehicle or
hull ar
ea provides the best protection.
7.
A
v
oid running wires over or through sharp edges. Use rubber or plastic
grommets to protect any wires routed through metal, especially the firewall.
1. Determine where the speakers will be mounted. Ensure an area large enough for
the speak
er to mount e
v
enl
y
.
Be sure that the mounting location is deep enough
for the speaker to fit; if mounting in a door, operate all functions (windows, locks,
etc.) through their entire operating range to ensure there is no obstruction.
2.
Ref
er to the specification chart to determine the proper diameter hole to cut for
your speaker model.The template provided also gives the proper cutout size.
3. Using the template provided, mark the locations for the mounting screws. Drill
the holes with a 1/8" bit.
4. Feed the speaker wires through the cutout and connect to the speaker terminals.
Be sur
e to obser
v
e pr
oper polarity when connecting the wir
es.
The speak
er's
positive terminal is indicated with a "+".
5. Fit the trim ring over the speaker and mount into place using four (4) screws.
6.
Tighten the scr
e
ws until the speak
er and trim ring ar
e sn
ug in place to prevent
rattling. Do not over tighten the screws.
SAFETY
CARTON CONTENTS
CAUTION: Before installation, disconnect the battery
negative (-) terminal to prevent damage
to the unit, fire and/or possible injury.
PRACTICE SAFE SOUND™
Continuous exposure to sound pressure levels over 100dB may
cause permanent hearing loss. High powered auto sound systems
may produce sound pressure levels well over 130dB. Use common
sense and practice safe sound.
• (1) Set Prime Series Full Range Speakers
• (1) Set of decorative trim rings
• Mounting Hardware
INSTALLATION CONSIDERATIONS
MOUNTING
Cutout
Hole
Rear
Deck
Cutout
Hole

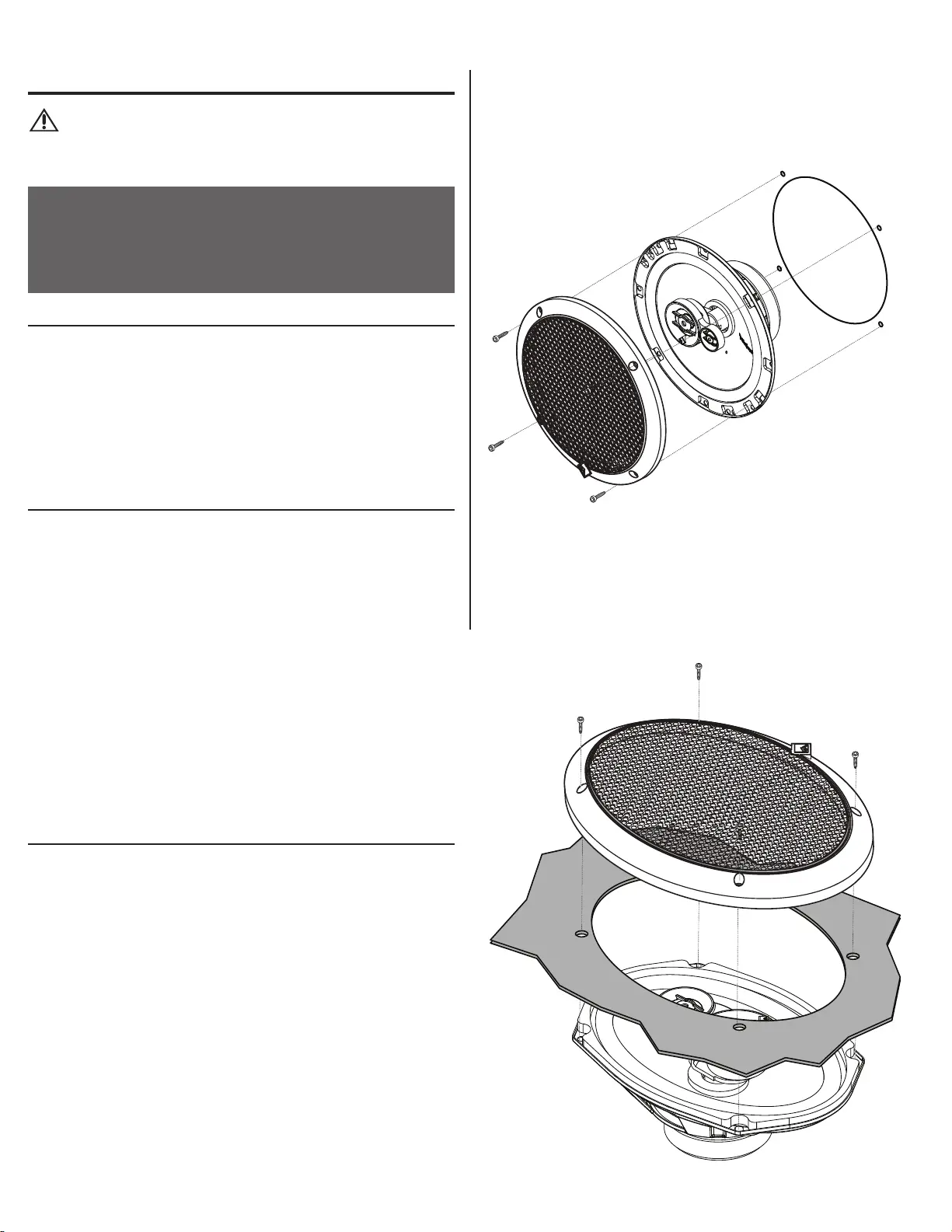

Example of standard door installation
Example of
rear deck installation
Cutout
Hole
Rear
Deck
Cutout
Hole
Example of standard door installation
Example of
rear deck installation
