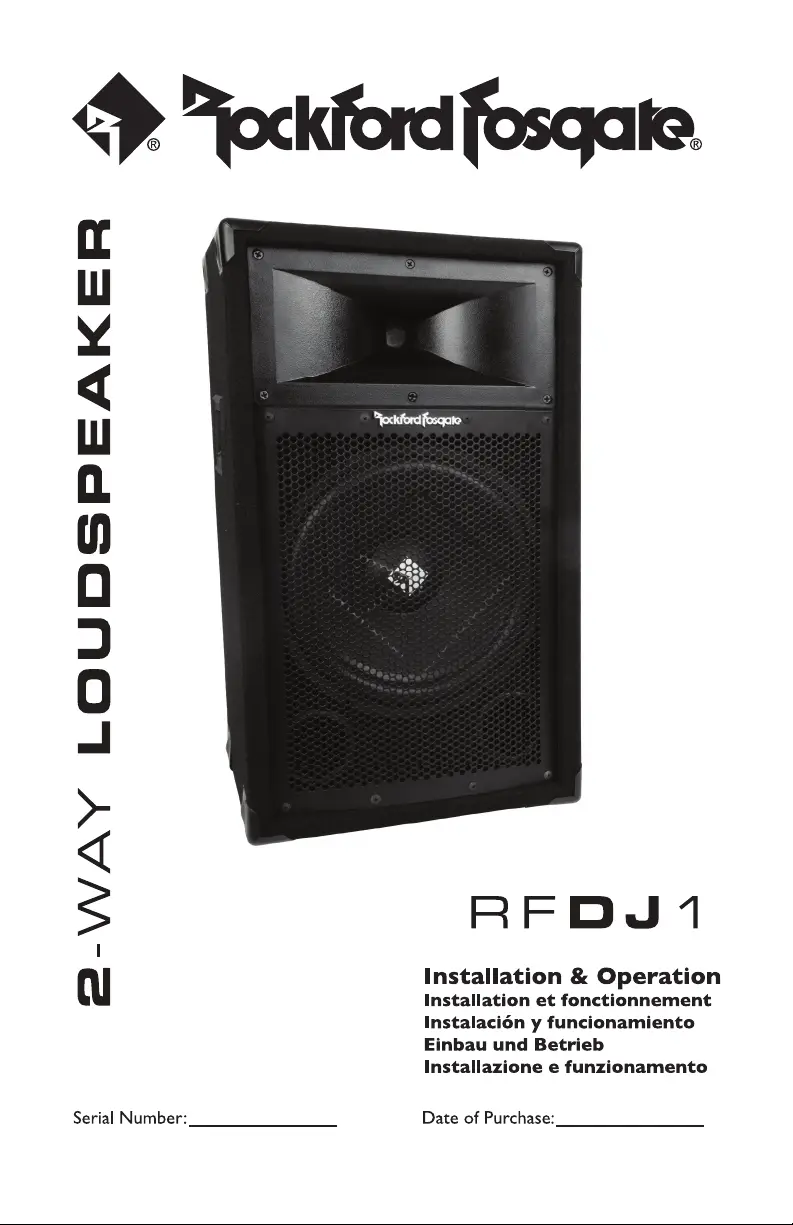

Rockford Fosgate Prime RFDJ1 Bruksanvisning
Rockford Fosgate
högtalare
Prime RFDJ1
Läs gratis den bruksanvisning för Rockford Fosgate Prime RFDJ1 (4 sidor) i kategorin högtalare. Guiden har ansetts hjälpsam av 13 personer och har ett genomsnittsbetyg på 4.5 stjärnor baserat på 7 recensioner. Har du en fråga om Rockford Fosgate Prime RFDJ1 eller vill du ställa frågor till andra användare av produkten? Ställ en fråga
Sida 1/4
Safety
CAUTION: Before installation, turn-off any part of the audio system to
prevent damage to the speaker or system components.
PRACTICE SAFE SOUND™
Continuous exposure to sound pressure levels over 100dB
may cause permanent hearing loss. High powered sound sys-
tems may produce sound pressure levels well over 130dB. Use
common sense and practice safe sound.
featureS
Horn Loaded Compression Driver
• 1" Titanium diaphragm
• Horn loading provides off axis response and midrange vocal clarity
• Overload protection circuitry
• Field replaceable
12" Passive Speaker
• High efficiency, low distortion design
• High output with minimal power requirements
High Output Enclosure
• Bass reflex design
• Large volume for better low frequency response
• Integrated ergonomically designed handles
• Interlocking corners allow stacking of multiple cabinets
• Dual Input
- 5-way binding posts
- 1/4” phono jack
• Heavy gauge steel mesh grille
• Industry standard 1-3/8” pole socket
InStallatIon
ST RIP 1/2”
(1 8mm)
SE PARAT E 2”
(5 0mm)
WIRE P REP ARATIO N
1/4” ST ERE O PHO NO PL UG
STE RE O SIG NAL
FRO M AMPL IFIER
5-Way
Binding Posts
Strip and insert
16AWG (min) and
tighten terminals.
Observe proper
polarity (+) and (-).
1/4” Phone Jack
If your amplifier has
phono outputs, you
can alternatively use
the 1/4” phone jack
connector.
- 2 -
LEF T RI GHT
LEFT RIGHT
AMPLIFIER/TUNER
SpecIfIcatIonS
FEATURE VALUE
SPEAKER CONFIGURATION ........ 2-Way Passive Loudspeaker
DRIVER DIAMETER.............................1" Compression Driver / 12" Woofer
POWER HANDLING ........................ 150 Watts RMS / 300 Watts MAX
IMPEDANCE ........................................ 4Ω
DESIGN .................................................2nd Order Vented (Ported)
FREQUENCY RESPONSE .................33Hz - 22kHz
SENSITIVITY.......................................... 92dB
ENCLOSURE MATERIAL................... 18mm (0.71")
STAND RECEPTACLE.........................1.375" (35mm)
DIMENSIONS....................................... (H) 24.8" x (W) 14.37" x (D) 12.59"
630mm x 365mm x 320mm
WEIGHT (ea).........................................41 Lbs. (18.59kg)
WARRANTY..........................................1 Year
Amplifier/Tuner
For stereo amplifier/tuners, you
can connect a stereo pair of speak-
ers to the LEFT and RIGHT out-
puts. Connect the amplifier (+) to
the speaker (+) and the amplifier
(-) to the speaker (-). For proper
stereo imaging, connect the LEFT
output to the LEFT speaker and
the RIGHT output to the RIGHT
speaker.
Example Speaker
Stand Setup
Product
Dimensions
RFDJ1 shown
with optional
speaker stands.
Stands not
included.
- 3 -
