Installation & Operation
Serial Number: Date of Purchase:
P1 10" 12"
Single P1-1X10 P1-1X12
Dual P1-2X10 P1-2X12
P2 10" 12"
Single P2-1X10 P2-1X12
Dual P2-2X10 P2-2X12
P3 10" 12"
Single P3-1X10 P3-1X12
Dual P3-2X10 P3-2X12
P1 – P2 – P3 - LOADED ENCLOSURES
SVC - SINGLE VOICE COIL SUBWOOFERS DVC - DUAL VOICE COIL SUBWOOFERS
INSTALLATION – ENGLISH
FEATURES

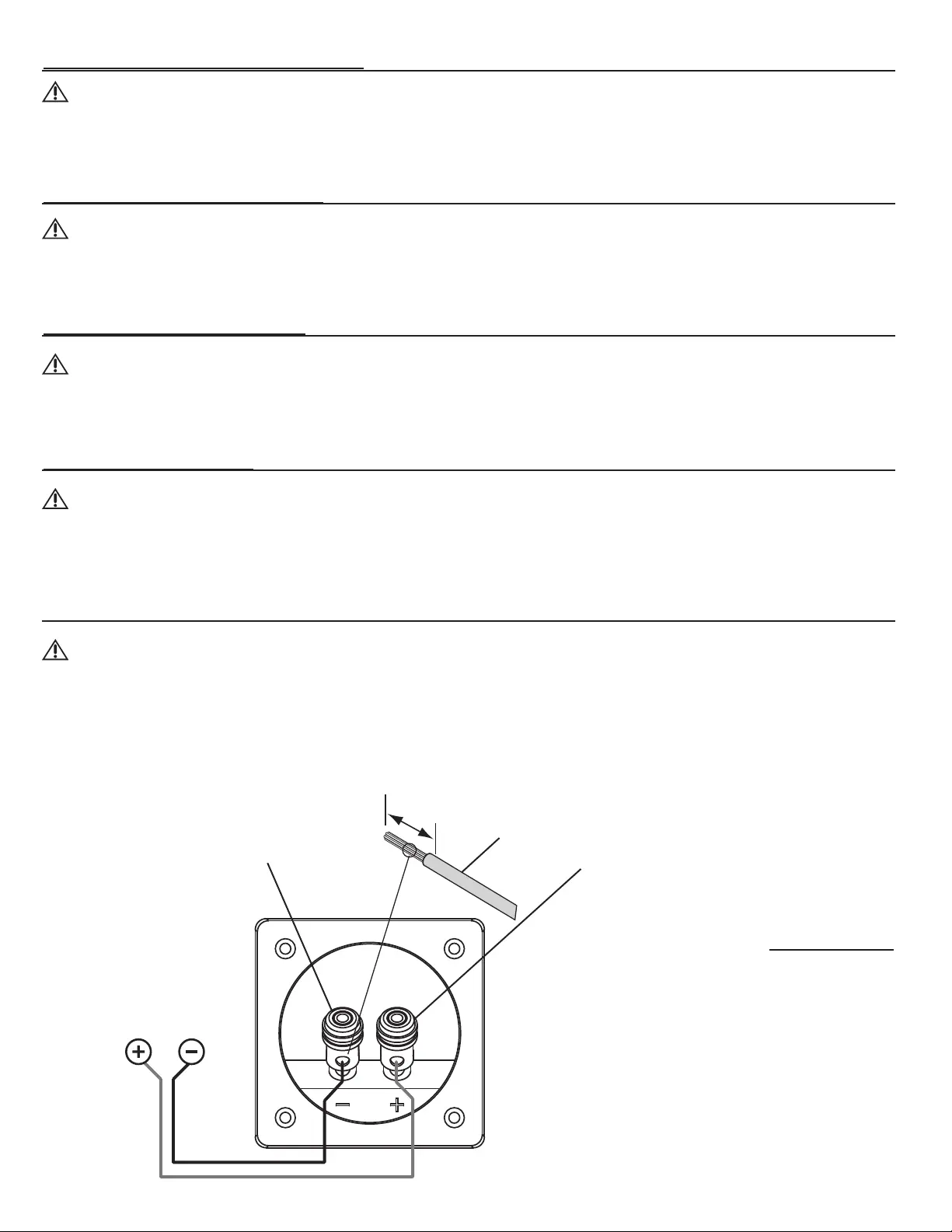

CAUTION: Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury.
Run the speaker cable from the amp. When routing the speaker cable from the amplifier, avoid running it close to any sources of high current
(wiring harnesses).The positive (+) speaker output from the amp connects to the red terminal of the enclosure, and the negative (-) connects to the
black terminal.
INSTALACIÓN – ESPAÑOL
PRECAUCIÓN: Antes de la instalación, desconecte el terminal negativo de la batería (-) para prevenir daño a la unidad, incendio
y/o posibles lesiones.
Recorrido del Cable de Altavoz Desde el Amplificador. Al llevar el cable de altavoz desde el amplificador, evite que pase cerca de cualquier
fuente de alto corriente (cables de alimentacion). El terminal positive (+) de las salida de rojo, y el terminal negativo (-) al terminal negro.
INSTALLATION – FRANÇAIS
MISE EN GARDE : avant d'entamer l'installation, déconnectez la broche négative (-) de la batterie pour éviter tout risque de
blessures, d’incendie ou de dommages à l'appareil.
Branchement du câble du haut-parleur de l’amplificateur. En plaçnt le câble du haut-parleur de l’ampli, éviter de l’approcher d’une source
de courant important. La sortie positive de l’ampli se branche sur le terminal rouge du caisson, et le négatif se branche sur le terminal noir.
EINBAU – DEUTSCH
VORSICHT: Entfernen Sie vor dem Einbau den negative Batteriepol, um Schäden am Gerät, Feuer bzw. mögliche Verletzungen zu
vermeiden.
Anschluß des Lautsprecherkabels. Beim Anschluß des Lautsprecherkables sollten Sie darauf achten, daß das Kabel keine Fahrzeugstromkabel
kreuzt, um Einsteuungen zu verhindern. Die Plus-Leitung des Lautsprecherkabels kommt in die rote Klemme des Terminals, die Negativ-Leitung in die
schwarze Klemme des Terminals.
INSTALLAZIONE – ITALIANO
ATTENZIONE: Prima dell’installazione, scollegate il terminale negativo (-) della batteria per evitare danni all’unità,
pericoli d’incendio e/o potenziali lesioni personali.
Far correre il cavo dell’altoparlante all’amplificatore. Quando fate correre il cavo dell’altoparlante all’amplificatore non
fatelo passare vicino a qualsiasi cavo dell’impianto elettrico di serie dell’auto. Il segnale positivo dell’altoparlante (+) in uscita dall’amplificatore á col-
legato al terminale rosso del diffusore, e il negativo (-) al terminale nero.
Strip 5/8"
(16mm)
From
Amplifier
Amplifier 1Ω Mono
Amplificador 1Ω Mono
Amplificateur de 1Ω Mono
Amplifier 1Ω Mono
Amplificatore 1Ω Mono
Black
Negro
Noir
Schwarz
Nero
Red
Rojo
Rouge
Rot
Rosso

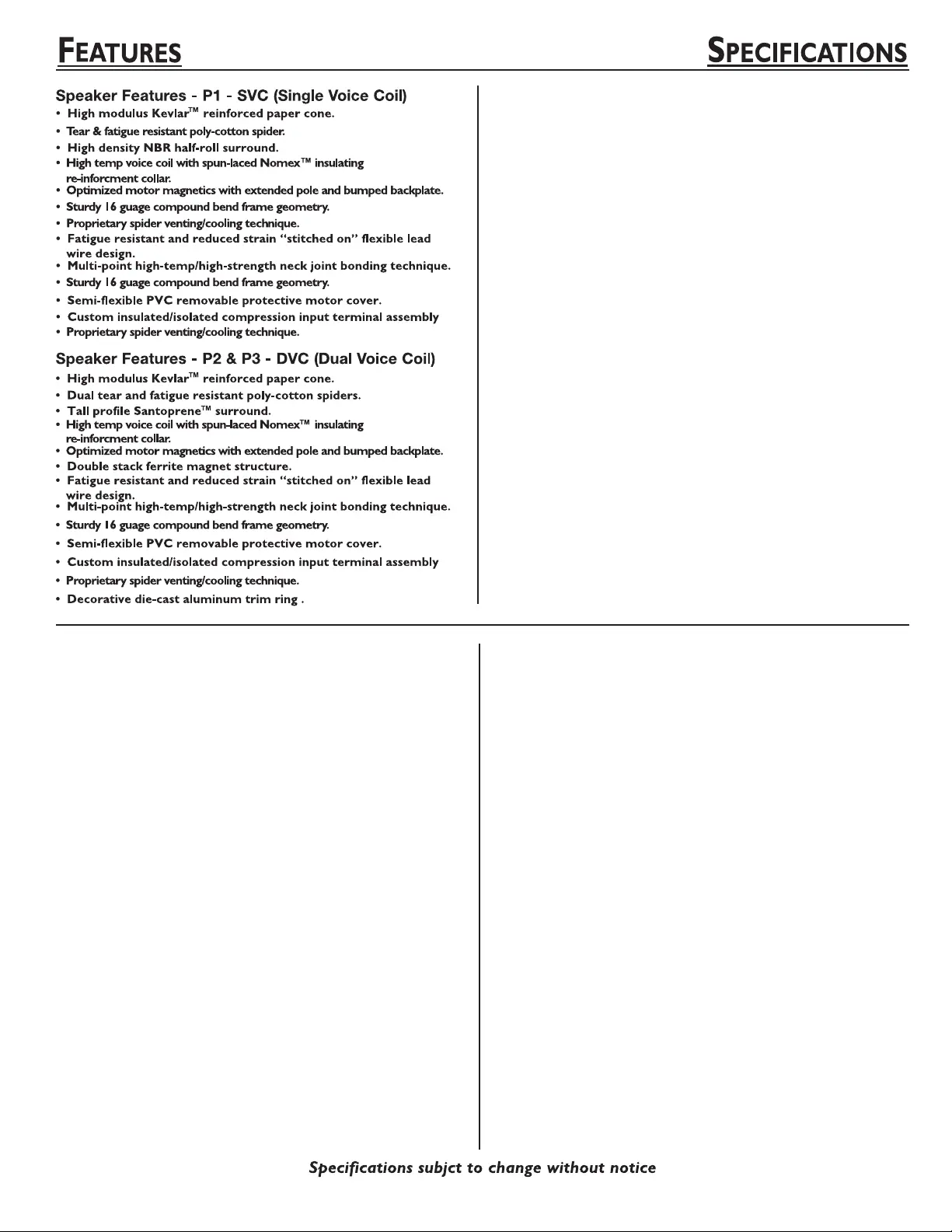

Vented Enclosure Features
• Proprietary High-Flow, Low-Noise Ports
• High Current Binding Posts
• Constructed with 5/8" MDF
• Covered with High Density Carpet
• Wired Exclusively with Rockford Accessories
16 AWG
-to-
12 AWG
P2-1X10 Single 10" DVC
Nominal Impedance (Ohms) 1 Ω
Replacement Woofer P2D2-10 (wired internally)
Power Handling (Watts) 300 RMS / 600 Max
Overall Dimensions (HxWxD) 13.125” x 17.0” x 15.125”
(33.3cm x 43.2cm x 38.4cm)
CVD "01 lauDP2-2X10
Nominal Impedance (Ohms) 1 Ω
Replacement Woofer P2D4-10 (wired internally)
Power Handling (Watts) 600 RMS / 1200 Max
Overall Dimensions (HxWxD) 13.125” x 31.125” x 15.125”
(33.3cm x 79.1cm x 38.4cm)
CVD "21 elgniSP2-1X12
Nominal Impedance (Ohms) 1 Ω
Replacement Model P2D2-12 (wired internally)
Power Handling (Watts) 400 RMS / 800 Max
Overall Dimensions (HxWxD) 15.125” x 19.125” x 15.75”
(38.4cm x 48.6cm x 40.0cm)
CVD "21 lauDP2-2X12
Nominal Impedance (Ohms) 1 Ω
Replacement Model P2D4-12 (wired internally)
Power Handling (Watts) 800 RMS / 1600 Max
Overall Dimensions (HxWxD) 15.125” x 33.875” x 15.75”
(38.4cm x 86.0cm x 40.0cm)
P3-1X10 Single 10" DVC
Nominal Impedance (Ohms) 1 Ω
Replacement Model P3D2-10 (wired internally)
Power Handling (Watts) 500 RMS / 1000 Max
Overall Dimensions (HxWxD) 13.125” x 17.0” x 15.125”
(33.3cm x 43.2cm x 38.4cm)
CVD "01 lauDP3-2X10
Nominal Impedance (Ohms) 1 Ω
Replacement Mode
l P3D4-10 (wired internally)
Power Handling (Watts) 1000 RMS / 2000 Max
Overall Dimensions (HxWxD) 13.125” x 31.125” x 15.125”
(33.3cm x 79.1cm x 38.4cm)
CVD "21 elgniSP3-1X12
Nominal Impedance (Ohms) 1 Ω
Replacement Model P3D2-12 (wired internally)
Power Handling (Watts) 600 RMS / 1200 Max
Overall Dimensions (HxWxD) 15.125” x 19.125” x 15.75”
(38.4cm x 48.6cm x 40.0cm)
CVD "21 lauDP3-2X12
Nominal Impedance (Ohms) 1 Ω
Replacement Model P3D4-12 (wired internally)
Power Handling (Watts) 1200 RMS / 2400 Max
Overall Dimensions (HxWxD) 15.125” x 33.875” x 15.75”
(38.4cm x 86.0cm x 40.0cm)
P1-1X10 Single 10" SVC
Nominal Impedance (Ohms) 4 Ω
P1S4-10ledoM tnemecalpeR
Power Handling (Watts) 250 RMS / 500 Max
Overall Dimensions (HxWxD) 13.125” x 17.0” x 15.125”
(33.3cm x 43.2cm x 38.4cm)
CVS "01 lauDP1-2X10
Nominal Impedance (Ohms) 2 Ω
Replacement Model P1S4-10 (wired internally)
Power Handling (Watts) 500 RMS / 1000 Max
Overall Dimensions (HxWxD) 13.125” x 31.125” x 15.125”
(33.3cm x 79.1cm x 38.4cm)
CVS "21 elgniSP1-1X12
Nominal Impedance (Ohms) 4 Ω
P1S4-12ledoM tnemecalpeR
Power Handling (Watts) 250 RMS / 500 Max
Overall Dimensions (HxWxD) 15.125” x 19.125” x 15.75”
(38.4cm x 48.6cm x 40.0cm)
CVS "21 lauDP1-2X12
Nominal Impedance (Ohms) 2 Ω
Replacement Model P1S4-12 (wired internally)
Power Handling (Watts) 500 RMS / 1000 Max
Overall Dimensions (HxWxD) 15.125” x 33.875” x 15.75”
(38.4cm x 86.0cm x 40.0cm)
