WARNINGS
2
EN
PLEASE READ THE FOLLOWING INSTRUCTIONS
CAREFULLY BEFORE USING THE APPLIANCE AND
KEEP FOR FUTURE REFERENCE.
• This appliance is intended for domestic household use only
and should not be used for any other purpose or in any
other application, such as for non-dom tices use or in a
commercial environment.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be
made by children without supervision.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualied persons
in order to avoid a hazard.
• For the details concerning the method of cleaning, please
see section “Cleaning and Maintenance” on pages 18&19.
• The battery must be removed from the appliance before it is
scrapped.
• The battery is to be disposed of safely.
• Batteries are to be inserted with the correct polarity.
• Exhausted batteries are to be removed from the product.
• Attention should be drawn to the environmental aspects of
battery disposal. Don’t throw used batteries in dustbin.
Please contact your retailer in order to protect the
environment.
• The batteries (batteries installed) shall not be exposed to
excessive heat such as sunshine, re or the like.
• This product contains non-uorinated greenhouse gas
(hermetically sealed) which is dangerous for the environment
and contributes to global warming if released to the atmosphere.
• Refrigerant type: R290 Global warming potential (GWP): 3
3
• Refrigerant leakage contributes to climate change.
Refrigerant with lower global warming potential (GWP)
would contribute less to global warming than a refrigerant
with higher GWP, if leaked to the atmosphere.
• This product contains a refrigerant fluid with a GWP equal
to 3. This means that if 1 kg of this refrigerant fluid would be
leaked to the atmosphere, the impact on global warming
would be 3 times higher than 1 kg of CO2 , over a period of
100 years. Never try to interfere with the refrigerant circuit
yourself or disassemble the product yourself and always ask
a professional.
• For disposal of the appliance:
To prevent possible harm to the environment or human
health from uncontrolled waste disposal, recycle the
appliance responsibly to promote the sustainable reuse of
material resources, the refrigerants and the flammable
insulation blowing gases. The disposal should only be done
through public collection points; contact the waste
treatment center nearest your home for more details on the
correct procedures for disposal.
• For installation, servicing:
The appliance should be placed on a horizontal floor and
keep the ventilation freely.
Don’t try to replace or repair any components by yourself,
ask the service agency for help if necessary.
• For handling:
Always handle the appliance to avoid any damage.
EN
• The batteries should only be replaced by adults. Do not allow
children to use the remote control unless the battery cover is
attached.
• Replace the battery only with the same type. The batteries
used in the remote control are two AAA 1.5V batteries which
are accessible and can be replaced. 4

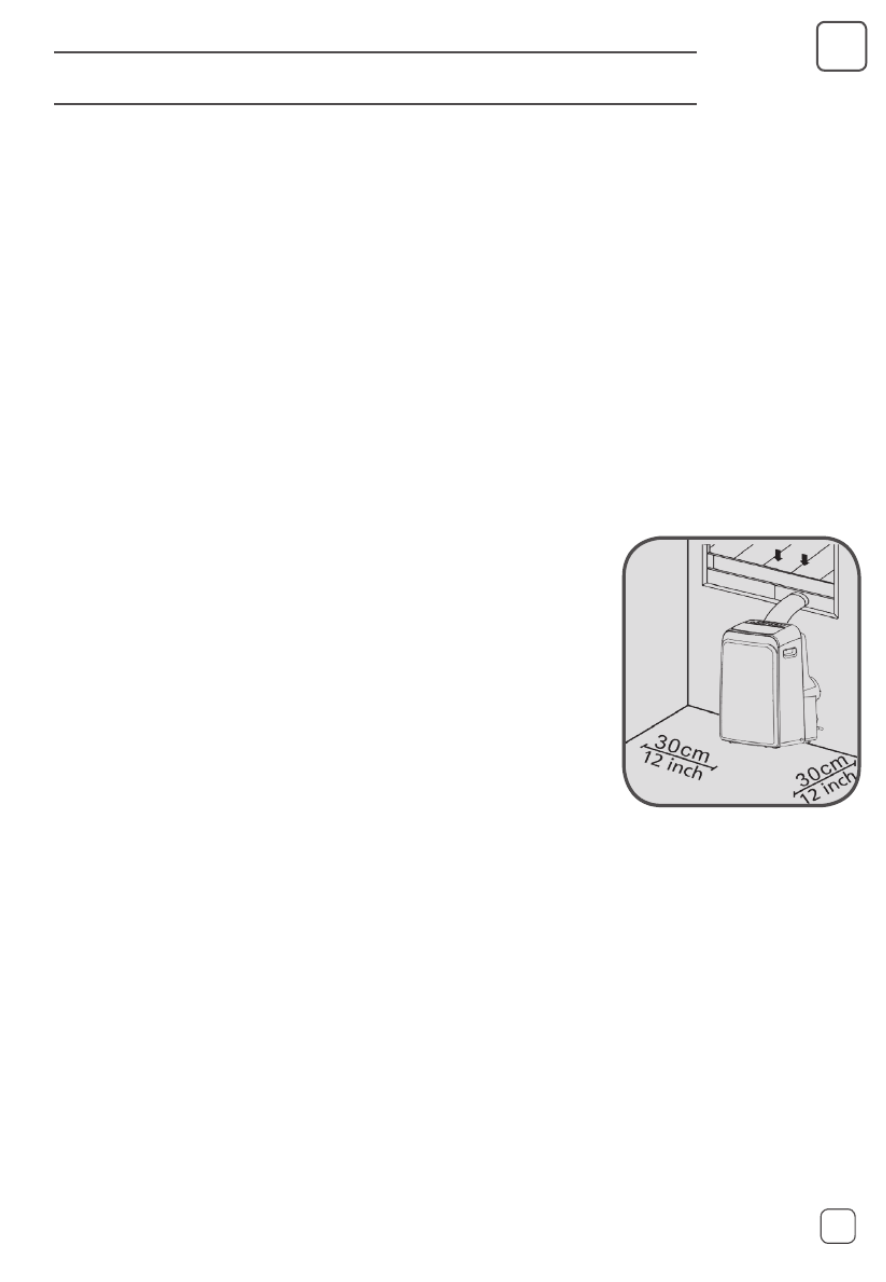

• Only use the appliance in the upright position on a flat level
surface and at least 30 cm from the wall or any objects.
• Read all instructions.
• To protect against fire, electric shock and personal injury, do
not immerse cord, plugs, or the unit in water or other liquid.
• Turn off and disconnect the appliance from the mains
socket when it is not in use and before cleaning.
• Transport and store the appliance in an upright position only.
• Always place the appliance on a stable, level surface.
• Do not cover or insert any objects into the air inlet and/or
outlet.
• Do not use the appliance in a wet room, such as a bathroom
or laundry room to avoid the risk of electrical shocks.
• Do not place articles on the appliance.
IMPORTANT SAFETY INSTRUCTIONS
Battery handling and usage
Remote control batteries (included):
• Do not use the appliance with wet or
damp hands.
• Do not use the appliance in the presence
of flammable substances or vapours such
as alcohol, insecticides, petrol, etc.
• Do not use the plug to start and stop the
appliance. ALWAYS use the control panel
to start and stop the appliance.
• The filter must be used with the appliance
at all times.
• Be sure to drain water with the drain tube
connected to the middle drainage point
when the appliance is operated in heating
mode.
EN
Service Operations
WARNING
Installation (Space)
that the installation of pipe-work shall be kept to a minimum;
that pipe-work shall be protected from physical damage and shall not be installed in an unventilated space;
that compliance with national gas regulations shall be observed;
that mechanical connections shall be accessible for maintenance purpo s; se
Maximum refrigerant charge amount ( ): 0.23kg M
Dispose of refrigerant based on local regulations, properly proc ed; ess
Minimum oor area of the room: 12 m2
Keep ventilation openings clear of obstruction;
An unventilated area where the appliance using ammable refrigerants is installed shall be so constructed that should any
refrigerant leak, it will not stagnate so as to create a re or explosion hazard. This shall include:
the appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as spec d for
operation;
the appliance shall be stored in a room without continuously operating open ames (for example an operating gas appliance)
and ignition sources (for example an operating electric heater).
The appliance shall be stored so as to prevent mechanical damage from occurring.
Information on servicing
Do not use means to accelerate the defrosting process or to clean, other
than those recommended by the manufacturer. The appliance shall be
stored in a room without continuously operating ignition sources (for
tric heater. Do not pierce or burn.Be aware that refrigerants may not
contain an odour. Appliance shall be installed, operated and stored in a
room with a floor area larger than 12 m2.

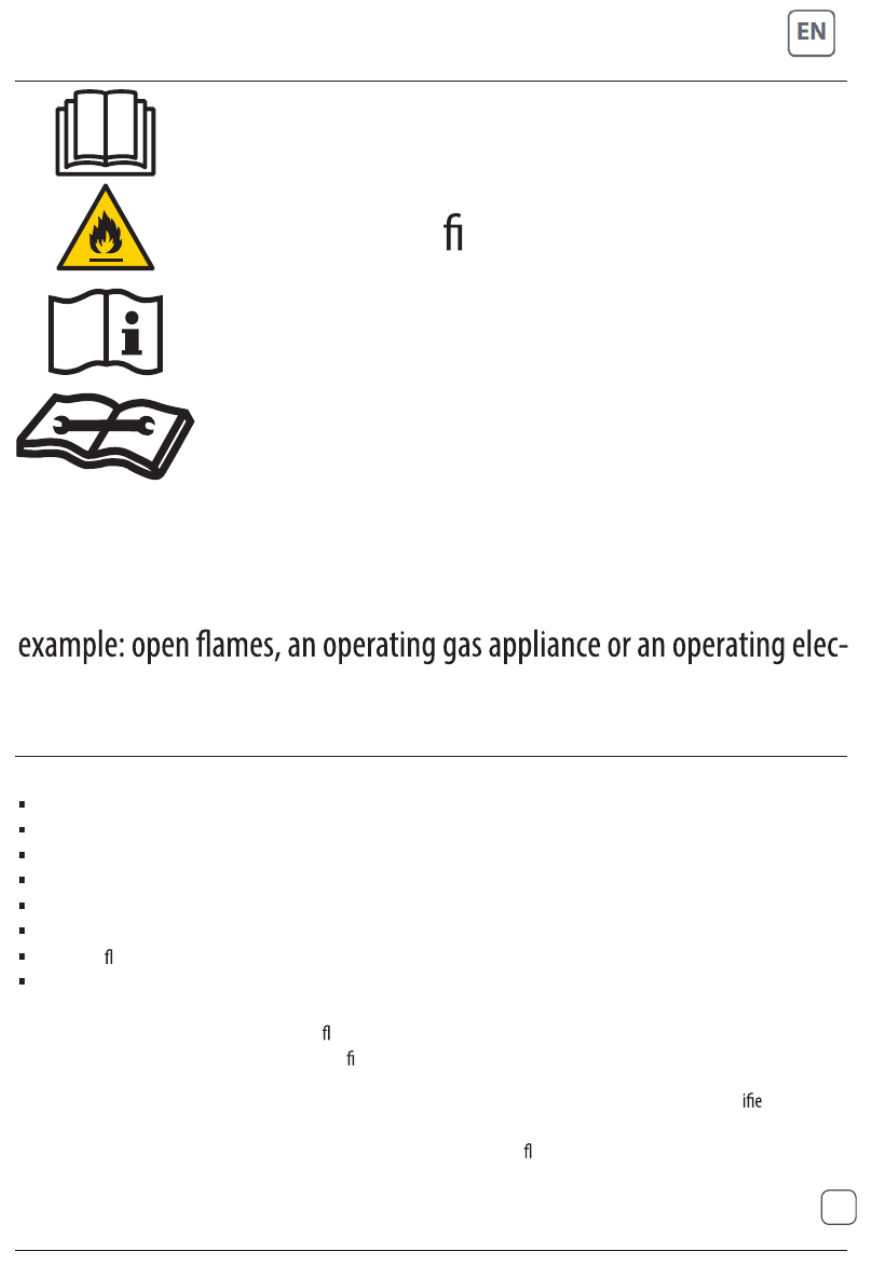

Symbols
Read the instructions.
Warning: Risk of re/Flammable materials!
Operator’s manual; operating instructions
Service indicator; read technical manual
-
-
-5
for assistance.
The following checks shall be applied to installations using flammable refrigerants:
– the charge size is in accordance with the room size within which the refrigerant containing parts are installed;
– the ventilation machinery and outlets are operating adequately and are not obstructed;
– if an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant;
– marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall be corrected;
– refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any substance which may
corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to
being corroded or are suitably protected against being so corroded.
Checks to electrical devices
Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures. If a fault
exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If
the fault cannot be corrected immediately but it is necessary to continue operation, an adequate temporary solution shall be used.
This shall be reported to the owner of the equipment so all parties are advised.
Initial safety checks shall include:
§ that capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking;
§ that no live electrical components and wiring are exposed while charging, recovering or purging the system;
§ that there is continuity of earth bonding.
Repairs to sealed components
During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked upon prior to
any removal of sealed covers, etc. If it is absolutely necessary to have an electrical supply to equipment during servicing, then a
permanently operating form of leak detection shall be located at the most critical point to warn of a potentially hazardous
situation.
Particular attention shall be paid to the following to ensure that by working on electrical components, the casing is not altered in
such a way that the level of protection is affected. This shall include damage to cables, excessive number of connections, terminals
not made to original specification, damage to seals, incorrect fitting of glands, etc.
Ensure that apparatus is mounted securely.
Ensure that seals or sealing materials have not degraded such that they no longer serve the purpose of preventing the ingress of
flammable atmospheres. Replacement parts shall be in accordance with the manufacturer’s specifications.
NOTE The use of silicon sealant may inhibit the effectiveness of some types of leak detection equipment. Intrinsically safe
components do not have to be isolated prior to working on them.
Repair to intrinsically safe components
Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible
voltage and current permitted for the equipment in use.
Intrinsically safe components are the only types that can be worked on while live in the presence of a flammable atmosphere. The
test apparatus shall be at the correct rating.
Replace components only with parts specified by the manufacturer. Other parts may result in the ignition of refrigerant in the 7
Ensure that the outlet for the vacuum pump is not close to any ignition sources and there is ventilation available.
Charging procedures
In addition to conventional charging procedures, the following requirements shall be followed.
– Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as
short as possible to minimise the amount of refrigerant contained in them.
– Cylinders shall be kept upright.
– Ensure that the refrigeration system is earthed prior to charging the system with refrigerant.
– Label the system when charging is complete (if not already).
– Extreme care shall be taken not to overfill the refrigeration system.
Prior to recharging the system, it shall be pressure tested with OFN. The system shall be leak tested on completion of charging but
prior to commissioning. A follow up leak test shall be carried out prior to leaving the site.
Decommissioning
Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is
recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant
sample shall be taken in case ana use of reclaimed refrigerant. It is essential that electrical power is lysis is required prior to re-
available before the task is commenced.
a) Become familiar with the equipment and its operation.
b) Isolate system electrically.
c) Before attempting the procedure ensure that:
§ mechanical handling equipment is available, if required, for handling refrigerant cylinders;
§ all personal protective equipment is available and being used correctly;
§ the recovery process is supervised at all times by a competent person;
§ recovery equipment and cylinders conform to the appropriate standards.
d) Pump down refrigerant system, if possible.
e) If a vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the system.
f) Make sure that cylinder is situated on the scales before recovery takes place.
g) Start the recovery machine and operate in accordance with manufacturer's instructions.
h) Do not overfill cylinders. (No more than 80 % volume liquid charge).
i) Do not exceed the maximum working pressure of the cylinder, even temporarily.
j) When the cylinders have been filled correctly and the process completed, make sure that the cylinders and the equipment are
removed from site promptly and all isolation valves on the equipment are closed off.
k) Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked.
Labelling
Equipment shall be labelled stating that it has been de commissioned and emptied of refrigerant. The label shall be dated and -
signed. Ensure that there are labels on the equipment stating the equipment contains flammable refrigerant.
Recovery
When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all
refrigerants are removed safely.
When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are employed. Ensure that
9
the correct number of cylinders for holding the total system charge are available All cylinders to be used are designated for the .
recovered refrigerant and labelled for that refrigerant (i.e. special cylinders for the recovery of refrigerant). Cylinders shall be
complete with pr sure relief valve and associated shut-oes valves in good working order. Empty recovery cylinders are evacuated
and, if possible, cooled before recovery occurs.
The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and
shall be suitable for the recovery of ammable refrigerants. In addition, a set of calibrated weighing scales shall be available and in
good working order. Ho s shall be complete with leak-free disconnect couplings and in good condition Before using the recovery se .
machine, check that it is in satisfactory working order, has been properly maintained and that any associated electrical components
are sealed to prevent ignition in the event of a refrigerant release. Consult manufacturer if in doubt.
The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant Waste
Transfer Note arranged. Do not mix refrigerants in recovery units and especially not in cylinders.
If compr sors or compr sor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain es es
that ammable refrigerant does not remain within the lubricant. The evacuation proc s shall be carried out prior to returning the es
compr sor to the suppliers. Only electric heating to the compr sor body shall be employed to accelerate this proc s. When oiles es es is
drained from a system, it shall be carried out safely.
10
4
3
1
2
5
13
12
11
10
98
7
6

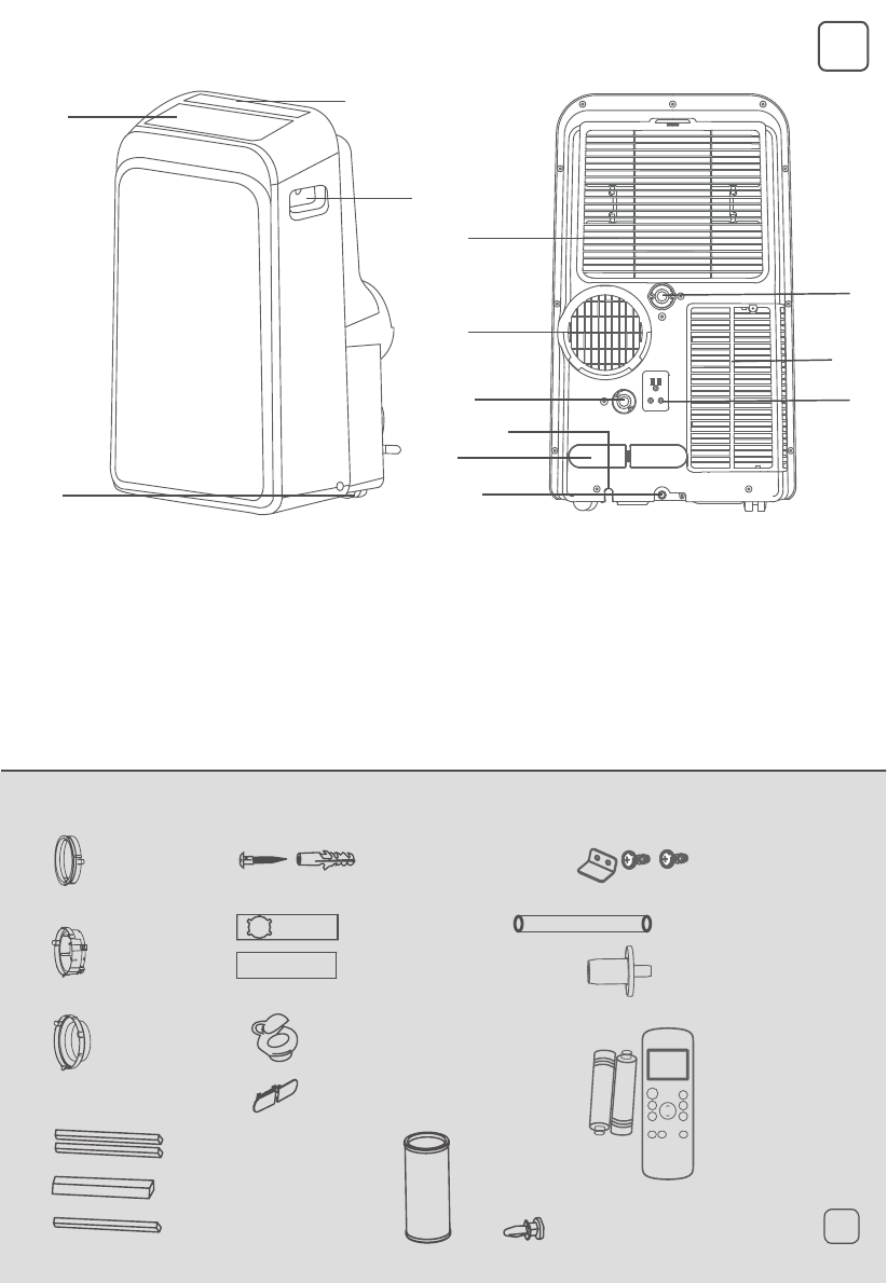

1. Control panel
2. Louver
3. Caster
4. Carrying handle (on both sides)
5. Upper air inlet grille
6. Air outlet grille
7. Middle drainage point
(for heating mode)
8. Power cord outlet
9. Power cord wraps
10. Bottom drainage point
11. Power plug sockets
(use only when storing the appliance)
12. Lower air inlet grille
13. Upper drainage point
ON/OF F
TEMP
SH TOR
C
U
T
TIME R
ON
TIMER
OFF
MODE
FAN
SLEEP SWIN G LED
Unit Adaptor *Screw and anchor
(only for wall installation)
*Security Bracket
and Screw
*Window Slider
Adaptor
*Wall Exhaust
Adaptor A
(only for wall
installation)
*Window Slider A
*Window Slider B
Drain Hose
Drain Hose Adaptor
(only for heat pump mode)
Wall Exhaust Adaptor B(with cap)
(only for wall installation)
Power Cord Buckle
Remote Control
and Battery
*Foam Seal A (Adhesive)
*Foam Seal C (Non-adhesive)
*Foam Seal B (Adhesive)
Exhaust Hose
*Bolt
NOTE: Items with * are optional. Slight variations in design may occur.
EN
11

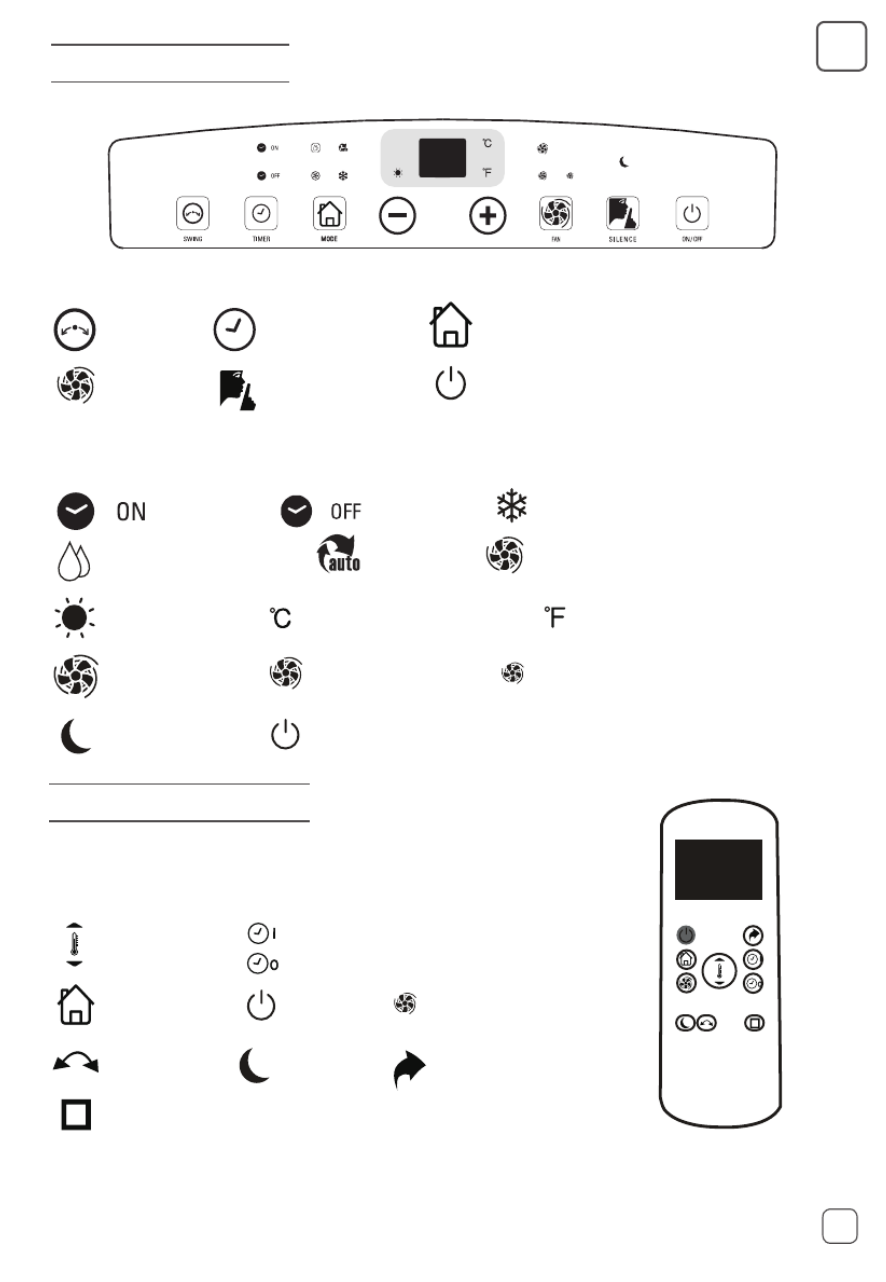

CONTROL PANEL
Buttons:
+/-
Swing Setting timer Setting mode Adjusting
temperature or
time
Setting fan
speed
Sleep mode ON/OFF
Indicator lights:
Timer on Timer o
Dehumidification mode AUTO Fan mode
Cooling mode
Heating mode Temperature in Celsius
High fan speed Medium fan speed
Temperature in Fahrenheit
Small fan speed
Sleep mode Power ON
REMOTE CONTROL
Buttons:
Adjusting
temperature
Setting mode Power ON Setting fan speed
Swing
Setting timer ON
Sleep mode
Swinging display blacklight on/o
Short cut
Setting timer OFF
Battery installation: Remove the cover on the back of the remote control and insert two batteries with “+” and “-” marks
correctly aligned.
Caution: Remove the batteries if the remote control is not in use for long periods of time.
The functions work the same as the control panel of the appliance.
EN
12
INSTALLATION
This appliance is a portable air conditioner, which can be moved from room to room.
EN

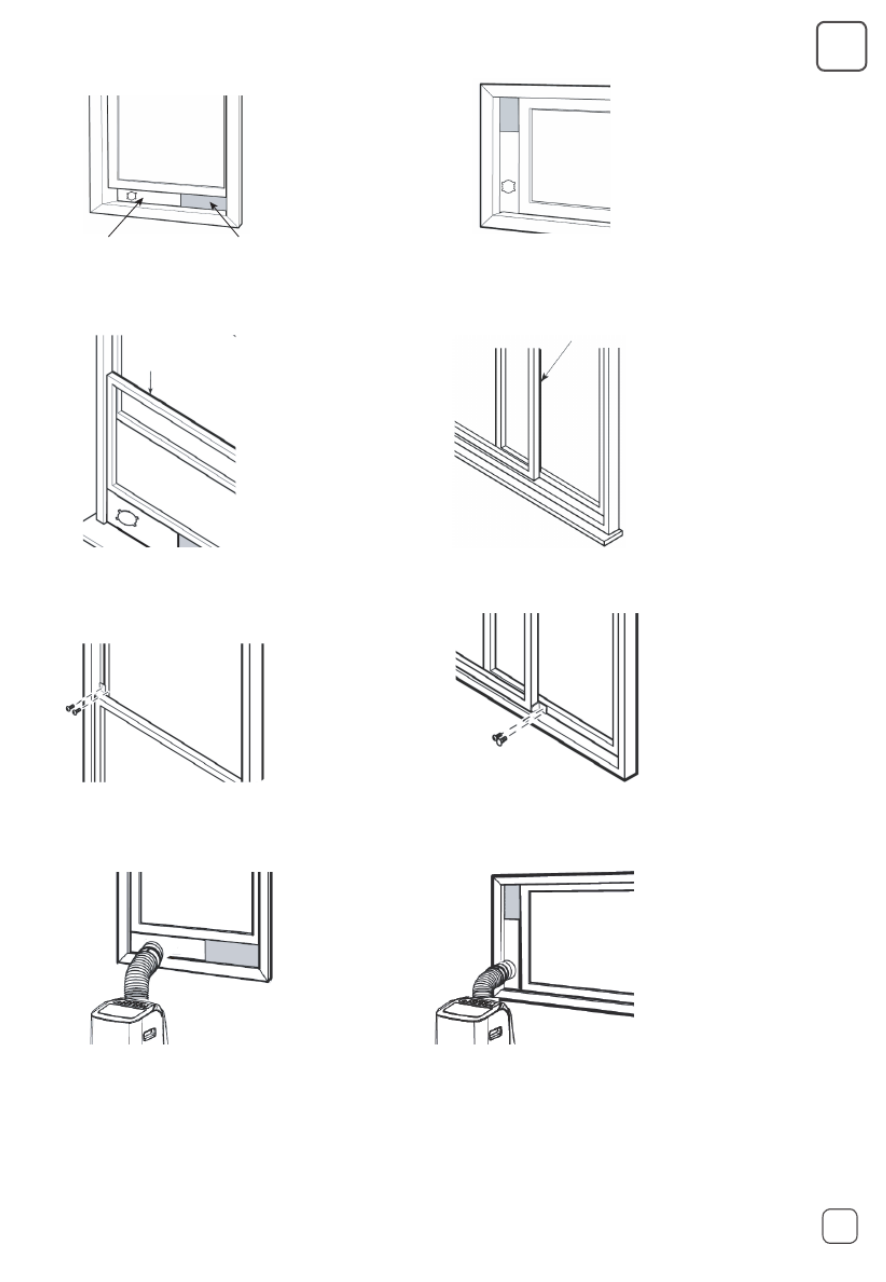

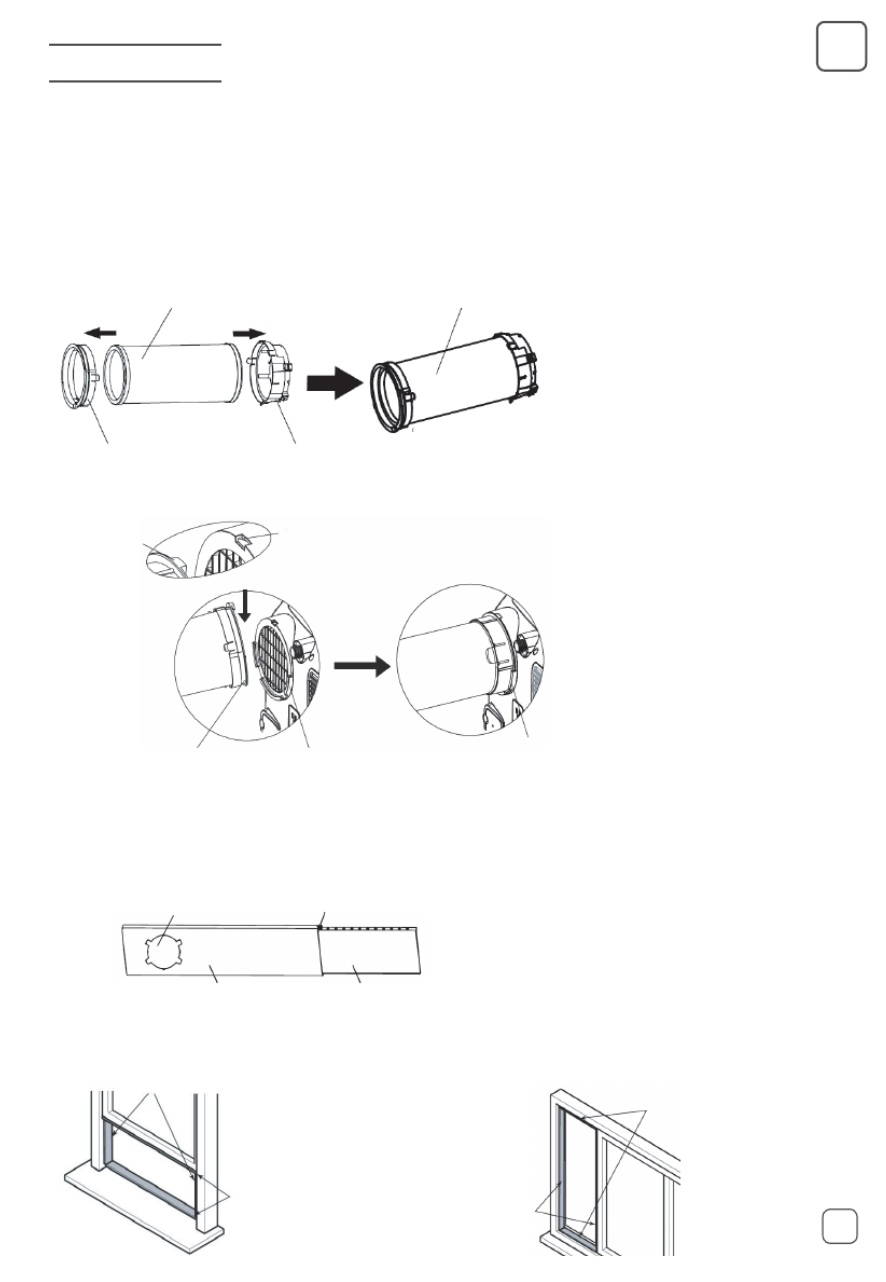

Windows Installation Kit
1. Install the unit adaptor and window slider adaptor on both sides of the exhaust hose.
2. Connect the exhaust hose assembly to the back of the appliance. Slide in the hose until it is locked in place.
3. Adjust the window sliders as per width or height of your window and insert the supplied bolt to fix at the desired position.
There is a hole where the exhaust hose will be inserted. Make sure this hole is not blocked.
4. Cut the foam seals A and B to the proper lengths and attach them to the window frame.
INSTALLATION
Exhaust hose
Unit adaptor
Hook
Unit adaptor
Hole
Window slider A Window slider B
Bolt
Lower groove Make sure the unit adaptor is
inserted into the lower groove
of the air outlet.
Hook groove
Window slider adaptor
Exhaust hose assembly
Foam seal B
(shorter)
Foam seal A Foam seal A
OR
Foam seal B
(shorter)
Note: The window kit is only designed to be installed with sliding windows.
The window kit is not designed or to be used with casement style windows.
13
EN
5. Connect the window slider assembly to the window.
6. Cut the non-adhesive foam seal C to match the width (or height) of the window. Insert the seal between the glass and
the window frame to prevent air and insects from getting into the room.
7. If desired, install the security bracket with 2 screws supplied.
8. Insert the window slider adaptor into the hole of the window slider.
OR
OR
OR
OR
Window slider A Window slider B
14
EN

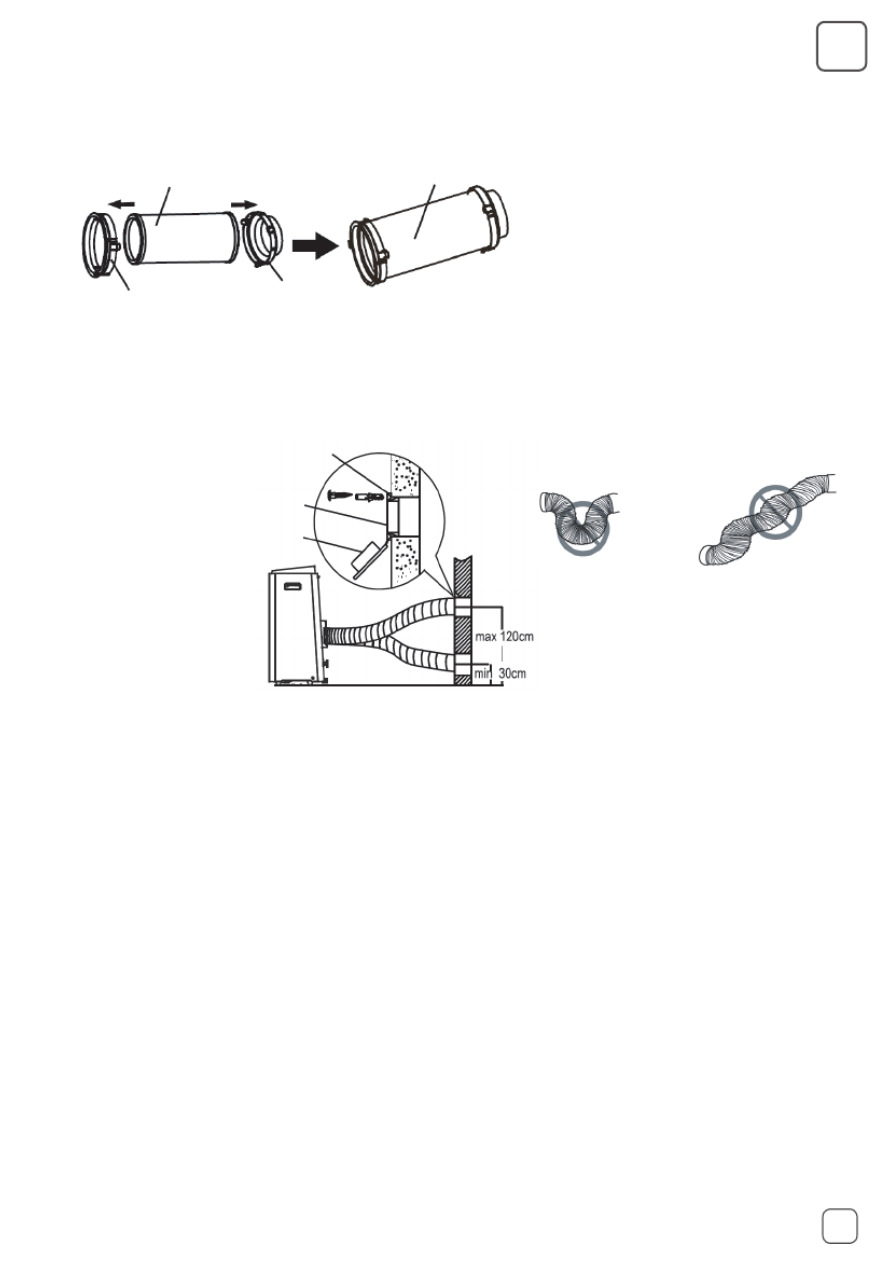

Wall Installation Kit
1. Install the unit adaptor and wall exhaust adaptor A on both sides of the exhaust hose.
Exhaust hose
Unit adaptor
2. Connect the exhaust hose assembly to the back of the appliance.
3. Cut a 125mm hole into the wall for the wall exhaust adaptor B.
4. Secure the wall exhaust adaptor B to the wall using the supplied anchors and screws.
5. Connect the exhaust hose assembly to the wall exhaust adaptor B.
Wall exhaust adaptor A
Exhaust hose assembly
Expansion anchor position
Wall exhaust adaptor B
Adaptor cap
NOTE: Do not bend the exhaust hose.
NOTE: Cover the hole in the
wall using the adaptor cap
when not in use.
15

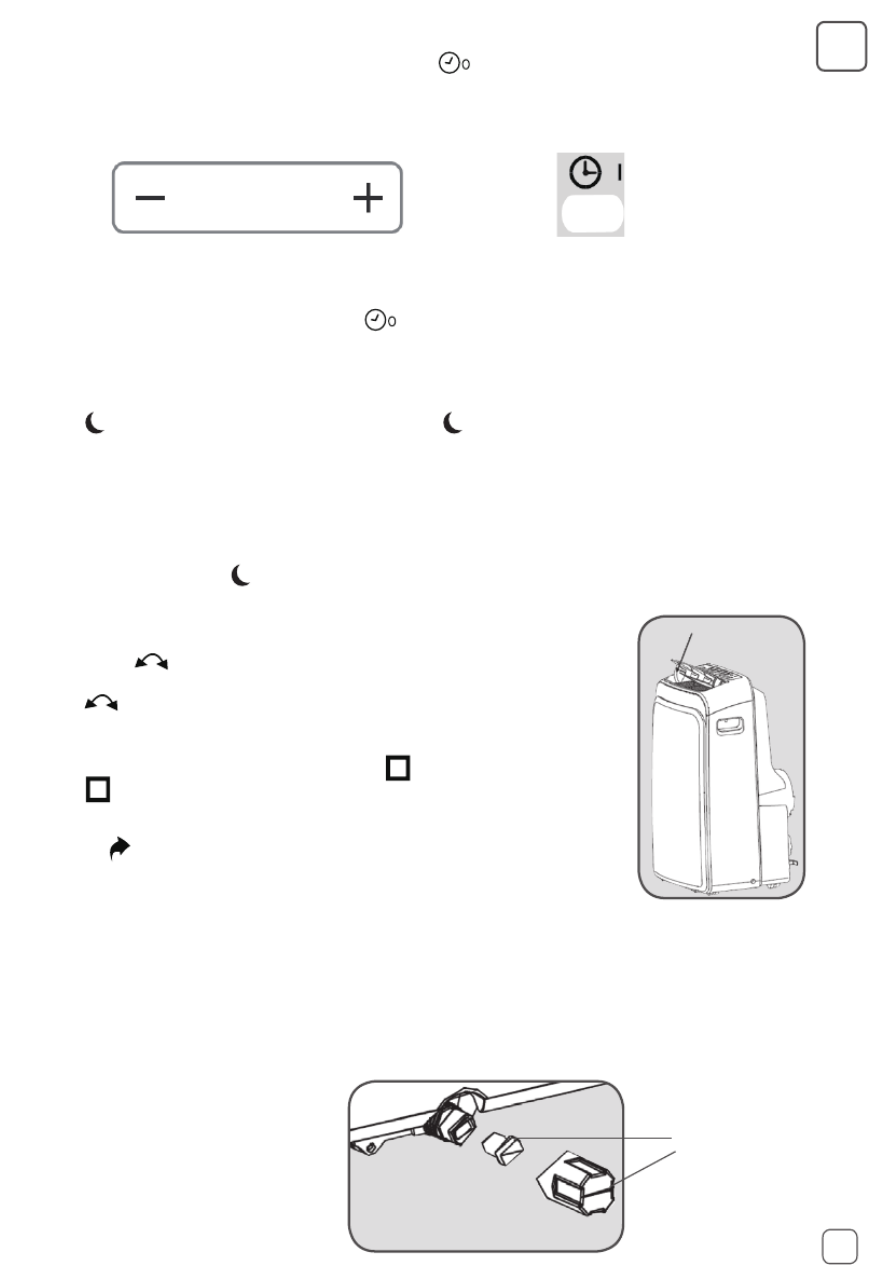

SWING
AUTOMATICALLY
To cancel the timer setting
Press or hold down +/- on the control panel or on the remote control until either remote display or the display of the
control panel shows “0.0”.
Swing opeartion
On the control panel On the remote control
Repeatedly press or hold down +/- on the control panel or on the remote control to change the time in half an hour
increments up to 10 hours, and then in 1 hour increments up to 24 hours.
The set time will be confirmed after about 5 seconds and then the delay stop timer will start.
When the set time has been reached, the appliance will turn o automatically.
Sleep operation
The sleep function adjusts the set temperature of the appliance to the thermal needs of the body falling asleep.
Press to operate the sleep mode. The sleep indicator light will illuminate.
The set temperature will increase (cooling) or decrease (heating) 1°C/2°F after about 30 minutes. The temperature will
then increase or decrease by another 1°C/2°F after an additional 30 minutes. This new temperature will be maintained for
about 7 hours before it returns to the originally selected temperature.
NOTE: This function is unavailable in fan and dehumidification modes.
To cancel the function, press . The sleep indicator light will go out.
When you turn on the appliance, the louver will swing and stop at a certain angle.
You can press to let the louver swing automatically.
Press again when you want the louver stop at a desired angle.
Switching display backlight ON/OFF (remote control only)
If you prefer to switch the display backlight o, press .
Press again the backlight will switch on.
Reset (remote control only)
Once the pinhold button is pressed, all settings will be cancelled and
the remote control will return to default settings.
DRAINAGE
When the internal water tank is full the display will show “P1”.
To empty the water tank do the following:
1. Switch o the appliance and remove the plug from the mains socket.
2. Place a water tray (not supplied) on the oor underneath the bottom drainage point.
3. Remove the drain cap and rubber plug from the drain and let the water run out.
4. Replace the rubber plug and drain cap, plug the appliance into the mains socket, and switch the appliance on.
• “P1” will disappear on the display.
RUBBER PLUG AND
DRAIN CAP
EN
17
TROUBLESHOOTING
Never try to repair or dismantle the air conditioner yourself.
The battery is to be disposed of safely.
Dierent types of batteries or new and used batteries are not to be mixed.
Batteries of the same or equivalent type as recommended are to be used.
Batteries are to be inserted with the correct polarity.
Exhausted batteries are to be removed from the product.
Attention should be drawn to the environmental aspects of battery disposal.
Don’t throw used batteries in dustbin. Please contact your retailer in order to protect
the environment.
The batteries (batteries installed) shall not be exposed to excessive heat such as
sunshine, fire or the like.
Problem Possible Cause Possible Solution
The air conditioner does
not function.
No power supply.
“P1” is shown on the display.
The room temperature is lower than
the selected temperature.
Connect to a functioning outlet
and switch on.
Empty the internal water tank.
Change temperature selection.
The air conditioner seems
to have little cooling eect.
In direct sunlight.
Windows or doors open, many
people or a heat source in the room.
Dirty filters.
The room temperature is lower than
the selected temperature.
The room temperature is lower than
the selected temperature.
The room temperature is lower than
the selected temperature.
Air inlet or air outlet blocked.
Close curtains.
Close doors and windows, remove
the heat sources, and place an
extra air conditioner.
Clean the filters.
Change temperature selection.
Remove the blockage.
The air conditioner is noisy. The appliance stands uneven. Place the appliance on an even, solid
surface (less vibrations).
The remote control does
not function.
Distance too great.
The remote control signal is not
detected by the control panel.
The batteries are drained.
Make sure the remote control is
correctly aimed at the control panel.
Replace the batteries.
EN
19
Error codes
Display Cause Solution
E1
E2
E3
E4
The room temperature sensor has failed.
The evaporator temperature sensor has
failed.
The condenser temperature sensor has
failed.
The display panel communication has failed.
Unplug the appliance and
plug it back in. If
error repeats, call for service.

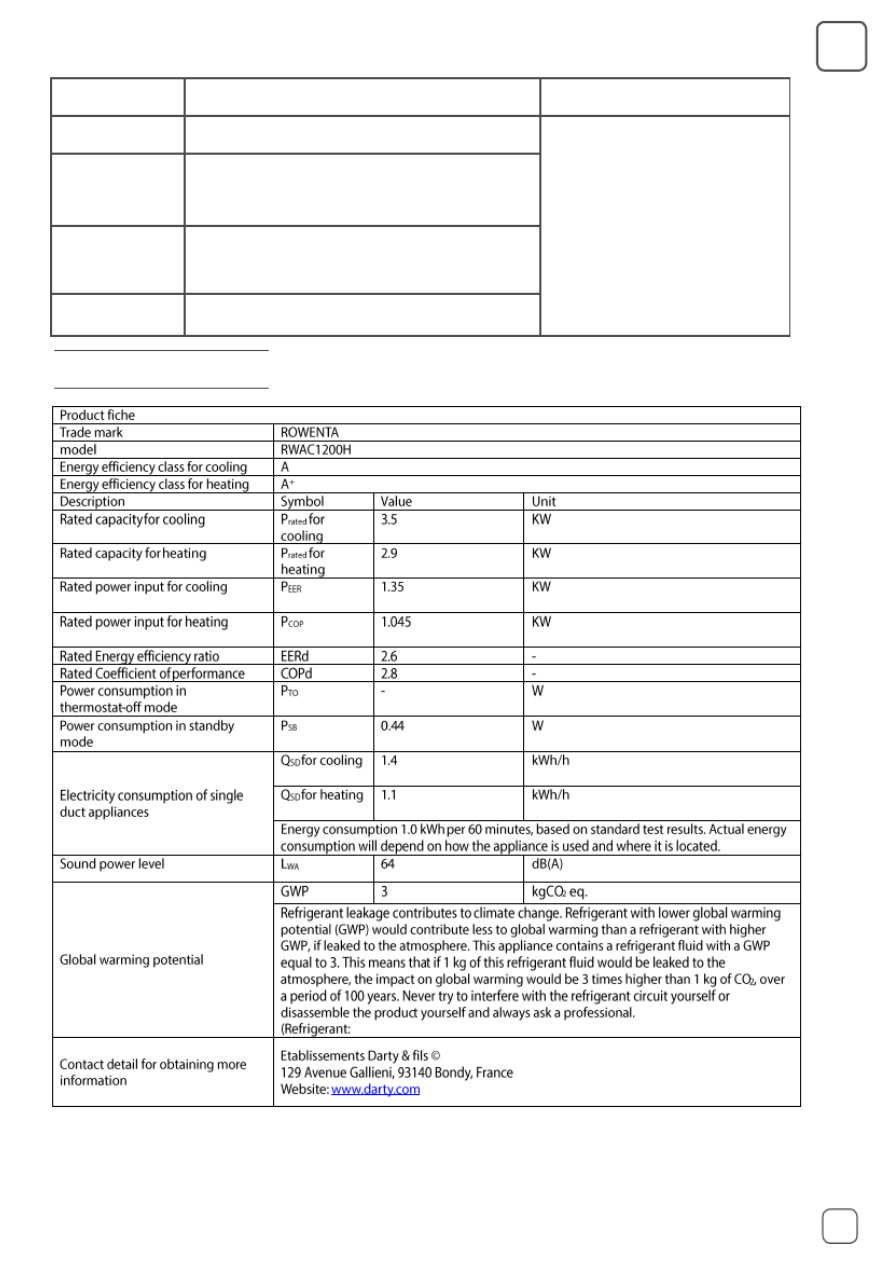

TECHNICAL DATA
EN
R290/0,23kg).
20
Produktspecifikationer
| Varumärke: | Rowenta |
| Kategori: | Luftkonditionering |
| Modell: | RWAC1200H |
Behöver du hjälp?
Om du behöver hjälp med Rowenta RWAC1200H ställ en fråga nedan och andra användare kommer att svara dig
Luftkonditionering Rowenta Manualer
14 September 2024
10 September 2024
20 Augusti 2024
19 Augusti 2024
14 Augusti 2024
7 Augusti 2024
5 Augusti 2024
5 Augusti 2024
24 Juli 2024
23 Juli 2024
Luftkonditionering Manualer
- Prem-i-air
- Black And Decker
- Malmbergs
- Olimpia Splendid
- Qlima - Zibro
- Toyotomi
- Climadiff
- Daizuki
- Zelmer
- Truma
- Equation
- AireMax
- Heinner
- Norpole
- Sinclair
Nyaste Luftkonditionering Manualer
19 Augusti 2025
19 Augusti 2025
19 Augusti 2025
19 Augusti 2025
19 Augusti 2025
19 Augusti 2025
19 Augusti 2025
19 Augusti 2025
19 Augusti 2025
19 Augusti 2025
