Sida 1/16
D-SERIES MULTI-CHANNEL
POWER AMPLIFIERS
D890, D1290, D1675
Designed for multi-room, home theater, and advanced audio systems
INSTALLATION GUIDE
D890
STATUS 1 2 3 4
D1290
STATUS 1 2 3 4 5 6
D1675
STATUS 1 2 3 4 5 6 7 8
2 Russound D-Series Amplier Installation Guide Russound D-Series Amplier Installation Guide
3
OVERVIEW OVERVIEW
The latest generation of multi-channel Class D digital amplifiers from
Russound expand on Russound’s 55+ year history of audio design, adding
high performance to even the most demanding audio systems, with the
flexibility, power, and quality needed to be the backbone of your favorite audio
system for years to come.
WHAT’S IN THE BOX
• 1 Russound Multi-Channel Amplifier
• 1 6-foot Power Cord
• 1 Set of Removable, Screw-Down 4-pin Speaker Connectors
(accepts up to 14AWG wire) (4, 6, or 8 depending on model)
• 1 Set of Rack Mount Ears with Attachment Screws
(Rack Mount Screws Not Included)
• 1 Owner’s Manual
WHAT YOU NEED FOR THE INSTALLATION
Flat 1/8” (3mm) mini-screwdriver for the speaker connectors
#2 Phillips screwdriver for attaching the included rack mount ears
Wire Strippers
MAKING THE CONNECTIONS
Note: All wiring connections must be made with the system powered o and
the power cord disconnected from the electrical mains (unplugged from the
wall outlet).
The D-Series Power Amplifier is very easy to install and only requires three
connection types: audio source, power and loudspeakers.
Power is provided from the included 3-prong grounded electrical cord. The
amplifier accepts AC power from 115-230V, 50/60Hz.
The amplifier may be placed on a shelf or installed into an equipment rack
using the rack ears included within the box.

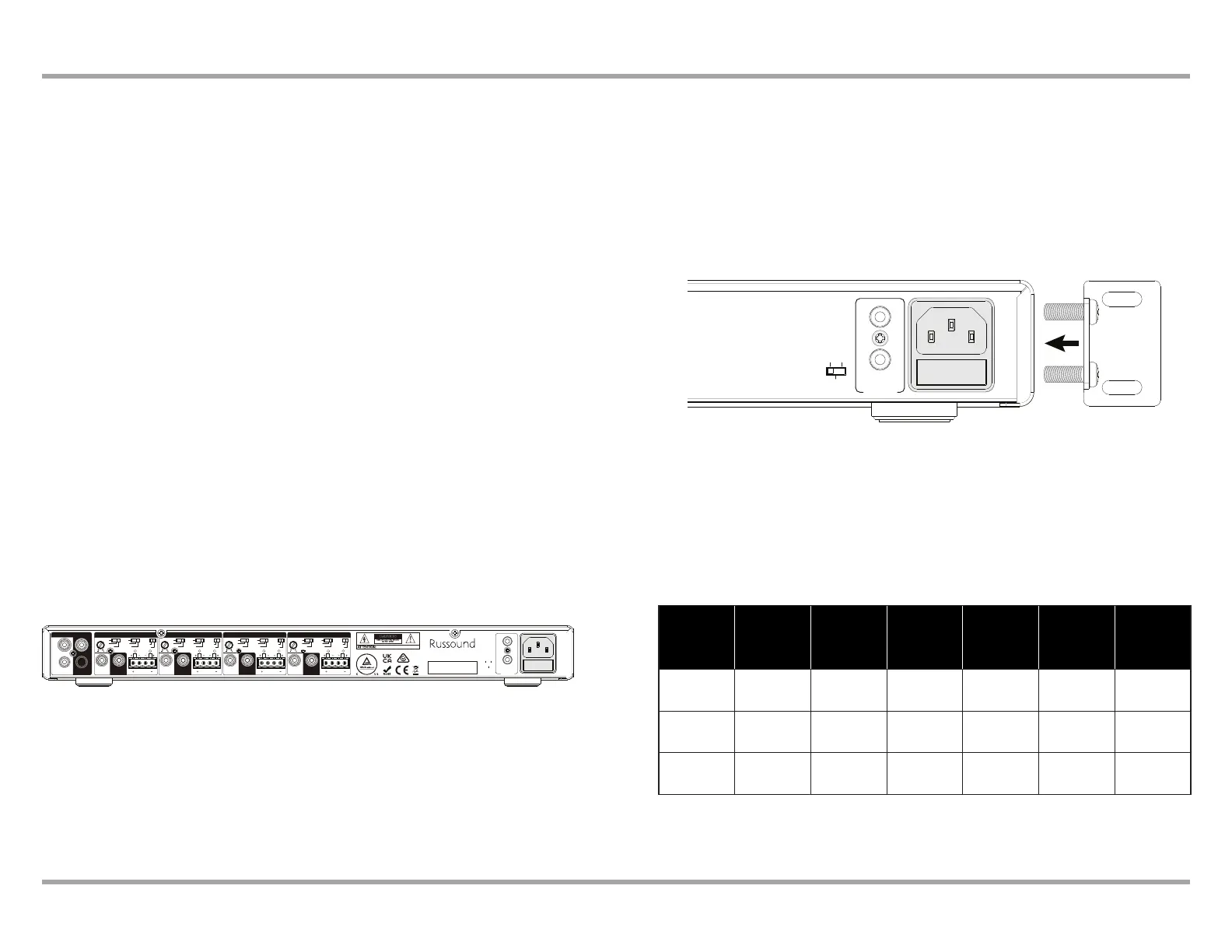

RACK MOUNTING
When installed in a rack, the four mounting feet on the bottom of the chassis
may be removed if needed. Save the feet in case the amplifier is ever moved
back to a shelf-mounted type of installation so that they may be re-attached.
Do not use the amplifier on a shelf or other surface without the mounting
feet being installed. They help provide ventilation space at the bottom of
the amplifier. Leave at least 2” (5cm) of clearance around the amplifier for
ventilation.
CONNECTING LOUDSPEAKERS
Loudspeakers will always connect directly to the D-Series amplifiers unless
a separate impedance matching volume control, speaker selector or similar
device is required (all sold separately). CL2 rated wire must be used when
running wire within a home’s walls. The loudspeaker connectors are
designed to use up to 14ga wire.
Model
Number of
Channels
Minimum
Impedance
Bridgeable (8
ohms only)
Max Number
of 8-ohm
Speakers
Supported
Per Channel
Max Number
of 6-ohm
Speakers
Supported
Per Channel
Max Number
of 4-ohm
Speakers
Supported
Per Channel
D890
8
(Organized
into 4 zones)
2.66 Ohms Yes 3 2 1
D1290
12
(Organized
into 6 zones)
2.66 Ohms Yes 3 2 1
D1675
16
(Organized
into 8 zones)
2.66 Ohms Yes 3 2 1
ZONE 1
LEVEL
FULL
LINE IN
BRIDGED
SPEAKER
BRIDGED 8Ω
STEREO
B
A
HP
LP
L R
ZONE 2
LEVEL
FULL
LINE IN
BRIDGED
SPEAKER
BRIDGED 8Ω
STEREO
B
A
HP
LP
L R
ZONE 3
LEVEL
FULL
LINE IN
BRIDGED
SPEAKER
BRIDGED 8Ω
STEREO
B
A
HP
LP
L R
LINE IN
R
L
ZONE 4
LEVEL
FULL
LINE IN
BRIDGED
SPEAKER
BRIDGED 8Ω
STEREO
B
A
HP
LP
L R
LINE IN
R
L
Designed In New Hampshire | M ade In China
D890 Amplifier
ON
AUTO
12V
DC 12 V
TRIGGER
IN
OUT
115/230VAC 60/50Hz Max 600W
FUSE: T6.3AL/250V
LINE IN
R
L
LINE IN
R
L
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
BUS IN
L
B
A
R
SN:
R
ON
AUTO
12V
DC 12V
TRIGGER
IN
ON
115/230V 60/50Hz Max 600W
FUSE: T6.3AL/250V
4 Russound D-Series Amplier Installation Guide Russound D-Series Amplier Installation Guide
5
OVERVIEW
When connecting the loudspeaker wires, be sure to observe proper polarity.
The positive and negative terminals on the Russound D-Series amplifier must
correspond with the positive and negative terminals at both the left and right
loudspeakers. This is also true of the power connections at the loudspeaker
side of the connection.
Strip 1/8” (about 3mm) from each of the conductors for both the left and
right loudspeaker connections and insert them into the removable screw-
down terminal, making sure to match the proper polarity of each connection.
Tighten the screw-down connections securely and make sure that there are
no exposed strands that might cause a short-circuit.
BRIDGING LOUDSPEAKER CONNECTION
Please note that all wiring changes and changes to the settings switches on
the rear of the Russound D-Series amplifier should be done with the amplifier
powered o by removing the power cord from the rear of the amplifier.
The Russound D-Series amplifier includes a powerful feature called
“Bridging”. Bridging combines 2 adjacent output channels to form a single,
higher power mono output. It is perfect for larger spaces, and especially for
any outdoor audio zones where higher power is required.
COOLING FAN
The D-Series amplifiers use an internal cooling fan to minimize the internal
temperature when needed. The fan can operate at multiple speeds
depending on the environmental conditions and usage of the amplifier.
D890 and D1290 – When the unit is in Auto or 12V turn-on mode, the fan
should only be active when the amplifier is under heavy use or requires more
ventilation.
D1675 – When the unit is active, the fan will run at all times, at a low speed,
ramping up under heavy usage or if the unit requires more ventilation.
For the most eco-friendly operation, we recommend always using the
amplifiers on Auto mode which will allow the amplifiers to enter a low
power standby mode using less than ½-watt of power when not in use.
BRIDGING LOUDSPEAKER CONNECTION
2.1 SOUND SYSTEM CONNECTION
ZONE 1
LEVEL
FULL
LINE IN
BRIDGED
SPEAKER
BRIDGED 8Ω
STEREO
B
A
HP
LP
L R
LINE IN
R L
ZONE 1
LEVEL
FULL
LINE IN
BRIDGED
SPEAKER
BRIDGED 8Ω
STEREO
B
A
HP
LP
L R
LINE IN
R L

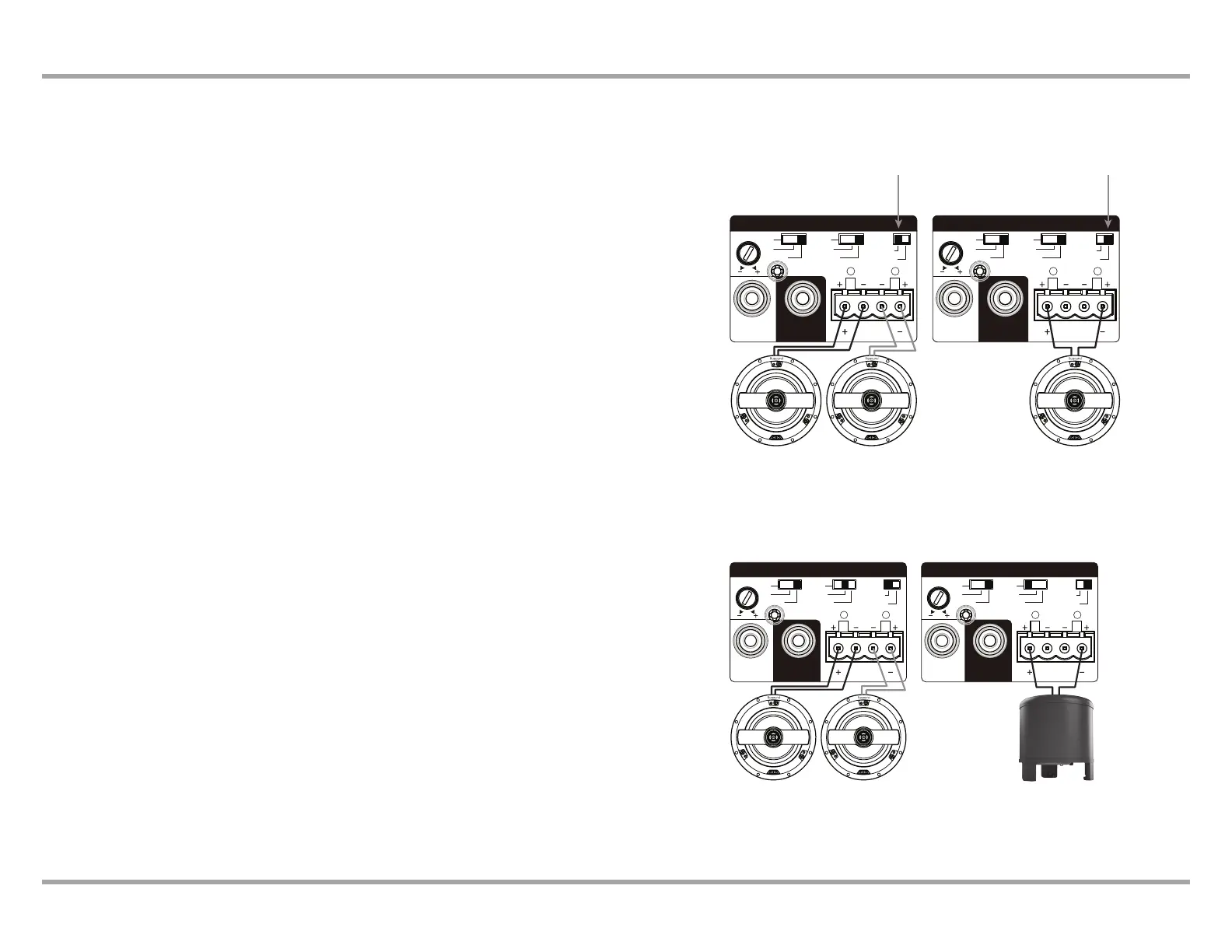

STEREO SPEAKER
WIRING EXAMPLE
BRIDGED SPEAKER
WIRING EXAMPLE
ZONE 1
LEVEL
FULL
LINE IN
BRIDGED
SPEAKER
BRIDGED 8Ω
STEREO
B
A
HP
LP
L R
LINE IN
R L
ZONE 1
LEVEL
FULL
LINE IN
BRIDGED
SPEAKER
BRIDGED 8Ω
STEREO
B
A
HP
LP
L R
LINE IN
R L
Hardscape Subwoofer
SPEAKER CONNECTIONS
