D-SERIES MULTI-CHANNEL
POWER AMPLIFIERS
D890, D1290, D1675
Designed for multi-room, home theater, and advanced audio systems
I N S T A L L A T I O N G U I D E
STATUS 1 2 3 4
STATUS 1 2 3 4 5 6
STATUS 1 2 3 4 5 6 7 8
D890
STATUS 1 2 3 4
D1290
STATUS 1 2 3 4 5 6
D1675
STATUS 1 2 3 4 5 6 7 8
2Russound D-Series Amplier Installation Guide Russound D-Series Amplier
OVERVIEW
The latest generation of multi-channel Class D digital amplifiers from
Russound expand on Russound’s 55+ year history of audio design, adding
high performance to even the most demanding audio systems, with the
flexibility, power, and quality needed to be the backbone of your favorite audio
system for years to come.
WHAT’S IN THE BOX
• 1 Russound Multi-Channel Amplifier
• 1 6-foot Power Cord
• 1 Set of Removable, Screw-Down 4-pin Speaker Connectors
(accepts up to 14AWG wire) (4, 6, or 8 depending on model)
• 1 Set of Rack Mount Ears with Attachment Screws
(Rack Mount Screws Not Included)
• 1 Owner’s Manual
WHAT YOU NEED FOR THE INSTALLATION
Flat 1/8” (3mm) mini-screwdriver for the speaker connectors
#2 Phillips screwdriver for attaching the included rack mount ears
Wire Strippers
MAKING THE CONNECTIONS
Note: All wiring connections must be made with the system powered o and
the power cord disconnected from the electrical mains (unplugged from the
wall outlet).
The D-Series Power Amplifier is very easy to install and only requires three
connection types: audio source, power and loudspeakers.
Power is provided from the included 3-prong grounded electrical cord. The
amplifier accepts AC power from 115-230V, 50/60Hz.
The amplifier may be placed on a shelf or installed into an equipment rack
using the rack ears included within the box.

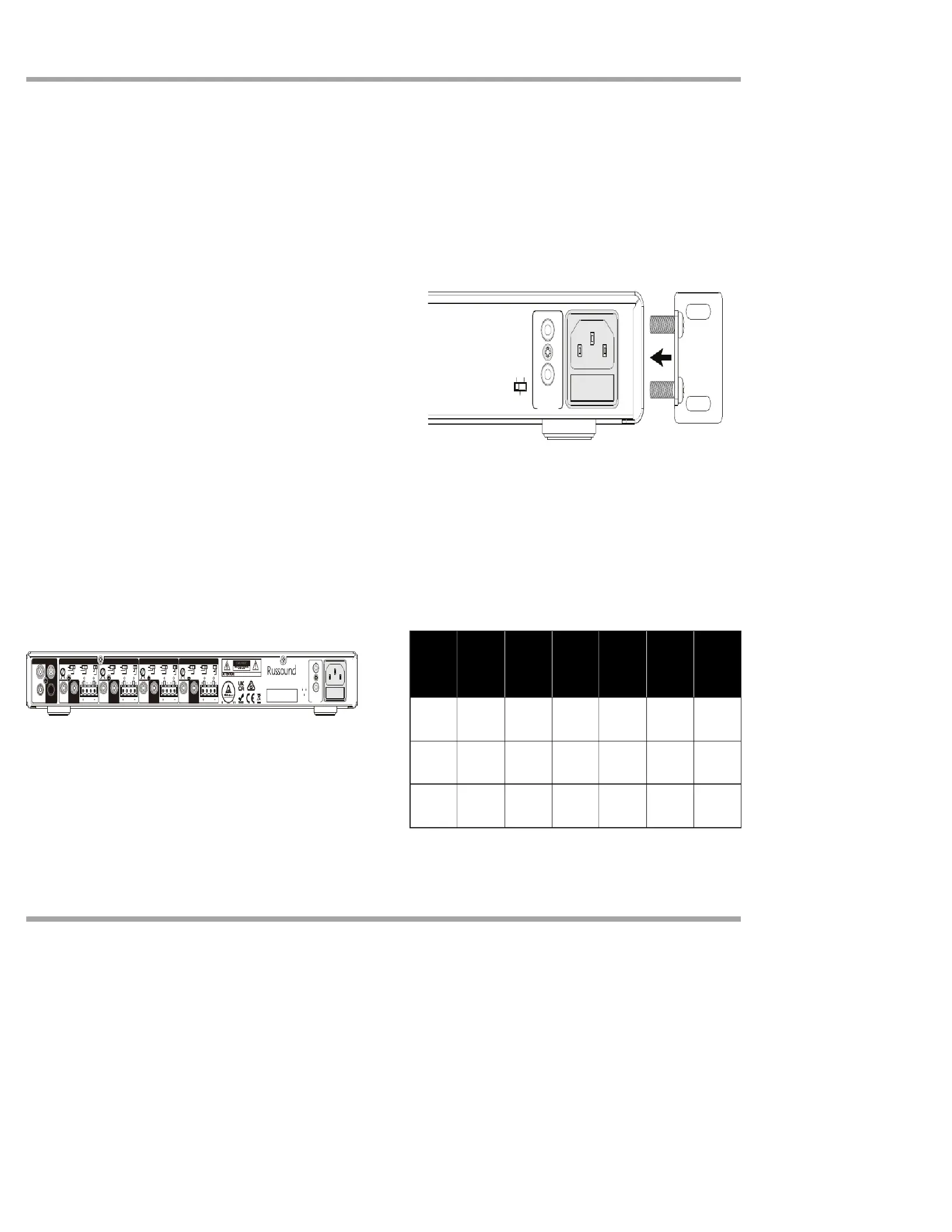

RACK MOUNTING
When installed in a rack, the four mounting
may be removed if needed. Save the feet in
back to a shelf-mounted type of installation
Do not use the amplifier on a shelf or other
feet being installed. They help provide venti
the amplifier. Leave at least 2” (5cm) of clea
ventilation.
CONNECTING LOUDSPEAKERS
Loudspeakers will always connect directly t
a separate impedance matching volume co
device is required (all sold separately). CL2
running wire within a home’s walls. The lou
designed to use up to 14ga wire.
Model
Number of
Channels
Minimum
Impedance
Bridgeable (8
ohms only)
D890
8
(Organized
into 4 zones)
2.66 Ohms Yes
D1290
12
(Organized
into 6 zones)
2.66 Ohms Yes
D1675
16
(Organized
into 8 zones)
2.66 Ohms Yes
LEVEL
FULL
LINE IN
BRIDGED
SPEAKER
BRIDGED 8Ω
STEREO
B
A
HP
LP
L R
LEVEL
FULL
LINE IN
BRIDGED
SPEAKER
BRIDGED 8Ω
STEREO
B
A
HP
LP
L R
LEVEL
FULL
LINE IN
BRIDGED
SPEAKER
BRIDGED 8Ω
STEREO
B
A
HP
LP
L R
LINE
R
LEVEL
FULL
LINE IN
BRIDGED
SPEAKER
BRIDGED 8Ω
STEREO
B
A
HP
LP
L R
LINE
R
Designed In New Hampshire | M ade In China
D890 Ampli erfi

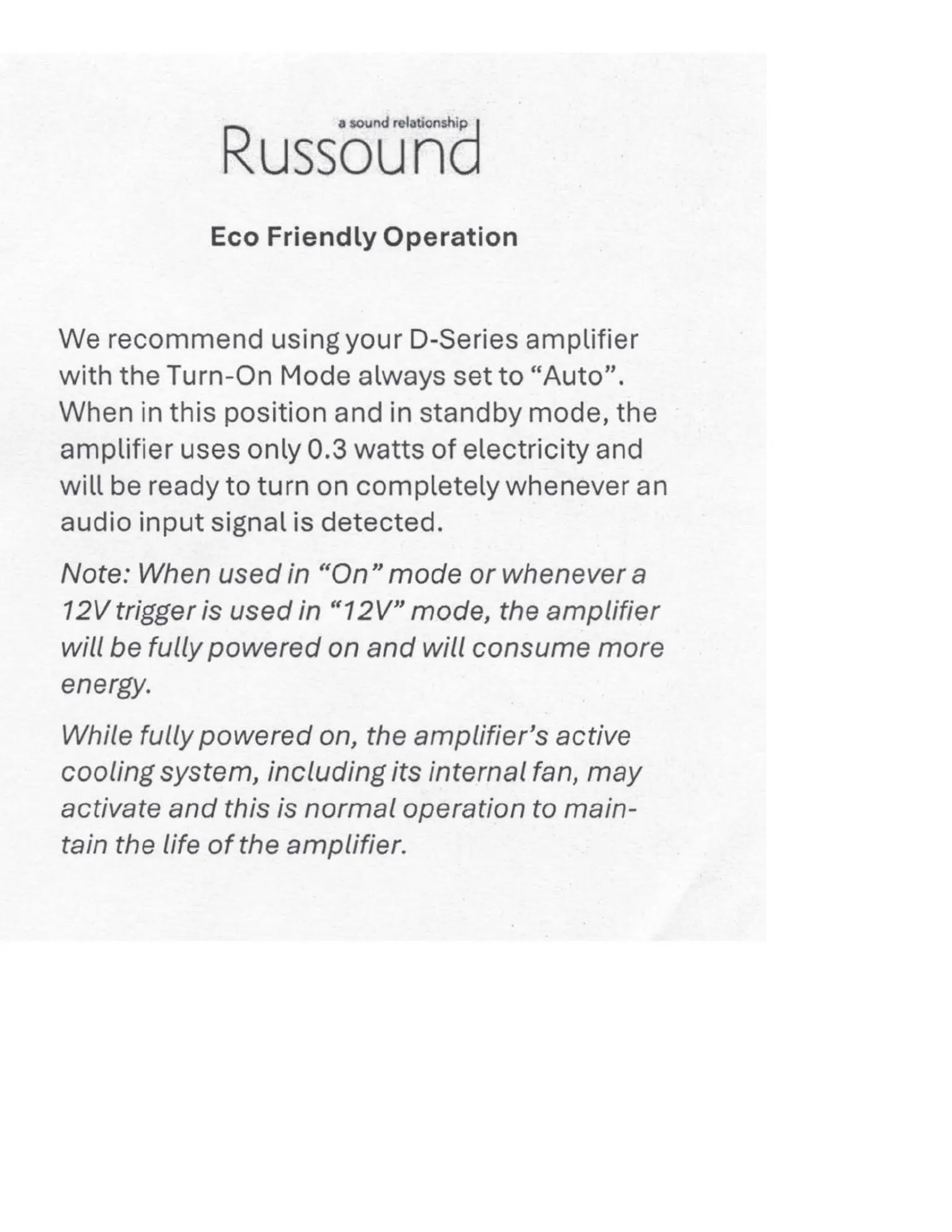

ON
AUTO
12V
DC 12 V
TRIGGER
IN
OUT
115/230VAC 60/50Hz Max 600W
FUSE: T6.3AL/250V
LINE
R
LINE
R
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
BUS IN
B
A
R
SN:
ON
AUTO
12V
DC 12V
TRIGGER
IN
ON
ZONE 1
LEVEL
FULL
LINE IN
BRIDGED
SPEAKER
BRIDGED 8Ω
STEREO
B
A
HP
LP
L R
ZONE 2
LEVEL
FULL
LINE IN
BRIDGED
SPEAKER
BRIDGED 8Ω
STEREO
B
A
HP
LP
L R
ZONE 3
LEVEL
FULL
LINE IN
BRIDGED
SPEAKER
BRIDGED 8Ω
STEREO
B
A
HP
LP
L R
LINE IN
RL
ZONE 4
LEVEL
FULL
LINE IN
BRIDGED
SPEAKER
BRIDGED 8Ω
STEREO
B
A
HP
LP
L R
LINE IN
RL
Designed In New Hampshire | M ade In China
D890 Ampli erfi
ON
AUTO
12V
DC 12 V
TRIGGER
IN
OUT
115/230VAC 60/50Hz Max 600W
FUSE: T6.3AL/250V
LINE IN
RL
LINE IN
RL
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
BUS IN
L
B
A
R
SN:
R
ON
AUTO
12V
DC 12V
TRIGGER
IN
ON
