Sida 1/12
Tools Needed:
Herramientas necesarias:
Outils nécessaires:
Included Items:
Accesorios incluidos:
Éléments inclus :
Rear wheel strap x 1
Front wheel block x 1
Tray cover and block screws x 4
Truss attachment bolt x 4
Add on security screw x 4
ADD-ON PLATE INSTALL PROCEDURE
Align lower add-on plate with the 4 bolts on the bottom side
of the spine. With a 6mm hex key, begin threading each bolt
into the lower add-on plate. Continue tightening in an X pattern
until all bolts are fully tightened (15ft-lb/20Nm).
Remove Top and bottom add-on plugs with a large flathead
screwdriver at each corner
Align add-on top plate with the holes on the top surface of the
rack spine. Feed all 4 long bolts through the 4 central holes in
the top plate, and through the main spine.
Hand thread the 4 security bolts only slightly into the top plate, do not
tighten at this point.
1 2
3 4
MHS DUO Add-On #4650
Assembly Instructions | Instrucciones de montaje | Instructions d’assemblage
Truss extrusion x 2
Top plate x 1
Bottom threaded plate x 1
Assembly bolt x 4
Security bolt key
5mm hex key
Flathead Screwdriver
4650A MHS Manual_EN_ES_FR.indd 1
4650A MHS Manual_EN_ES_FR.indd 1
4650A MHS Manual_EN_ES_FR.indd 1
4650A MHS Manual_EN_ES_FR.indd 14650A MHS Manual_EN_ES_FR.indd 1 12/29/2021 8:59:32 AM
12/29/2021 8:59:32 AM
12/29/2021 8:59:32 AM
12/29/2021 8:59:32 AM12/29/2021 8:59:32 AM

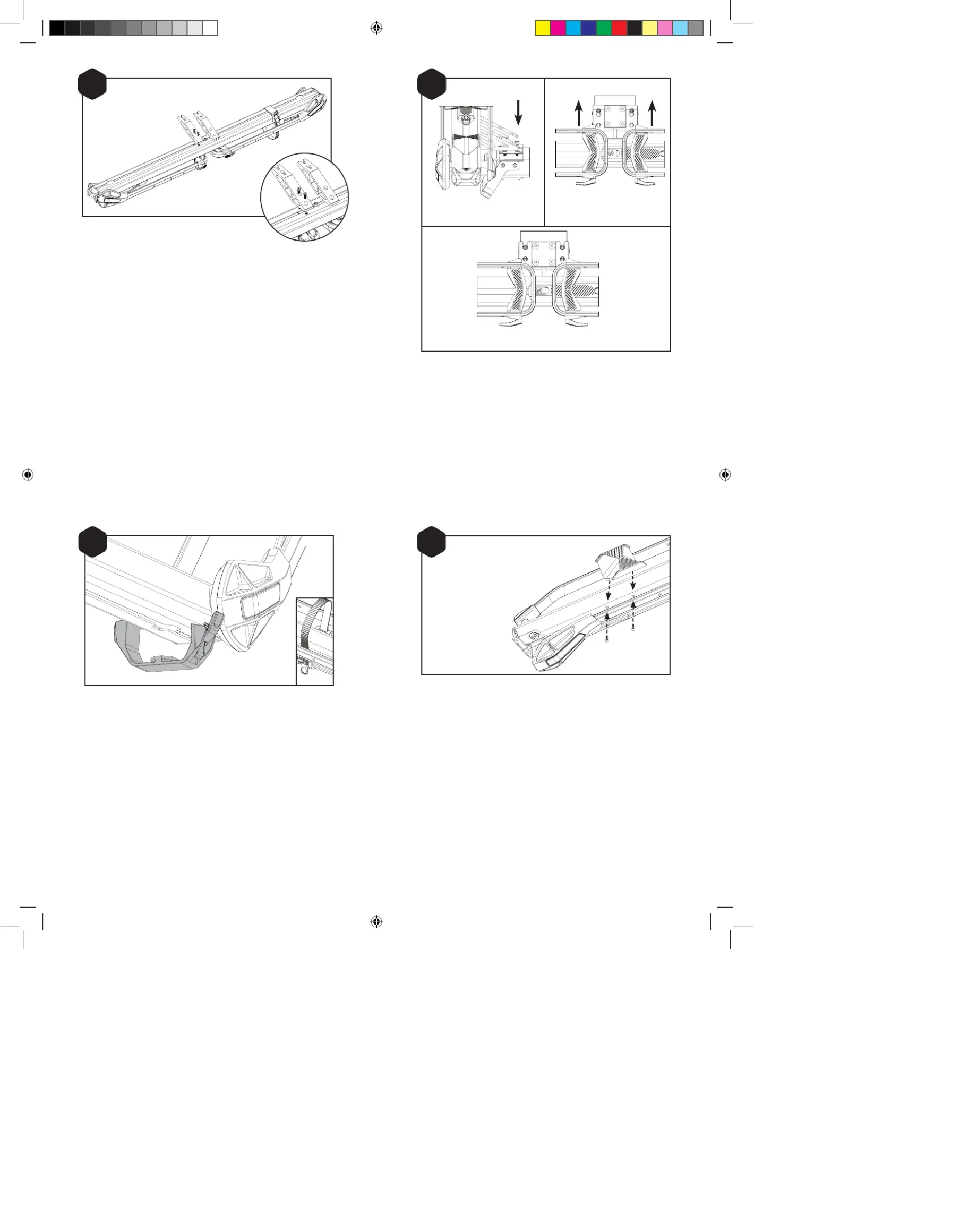

Flip tray assembly over. Align add on truss with two of the tray mount holes (the truss
has a raised surface on the top surface which should fit snugly into the tray groove to
help with alignment). Ensure the truss is correctly oriented to the front of the tray, as
shown in the picture. Install each add on truss onto bottom of tray using two M8 bolts
(5mm hex key, torque to 12ft-lb/16Nm).
Using the 4 security bolts on the top of the add-on plate as a guide, lower
the add-on tray to the top plate. Ensure that all four bolts are aligned
correctly and slide the add-on toward the vehicle until the bolts are fully
seated in the slot. Using the security wrench, tighten all 4 bolts snugly
(about 10ft-lb/13Nm).
When removing the add on tray, loosen the 4 security bolts most of the
way so that the bolt heads clear the recessed groove in order to slide back
and lift off. The security bolts should be left installed when the add-on tray
is removed, to prevent the threaded holes from filling with grime. Grease
threads as needed to prevent corrosion.
5 6
ADD-ON TRUSS INSTALL PROCEDURE:
ADD-ON TRAY TO SPINE INSTALL PROCEDURE:
Side View Top View
Top View - Add On Installed
Install rear wheel strap carriage by inserting the plastic T-plug into the
corresponding cutout on the underside of the tray. Slide the carriage toward
the tray center and adjust as needed for varying bike lengths. Ensure the
strap is secured through the buckle when traveling in order to prevent the
loss of the strap.
7
FRONT WHEEL BLOCK AND REAR WHEEL STRAP INSTALL.
Secure front wheel block with included screws through the bottom of the
tray. Using a 3mm hex key, tighten the screws only until wheel block is snug
to the tray. DO NOT OVERTIGHTEN
8
4650A MHS Manual_EN_ES_FR.indd 2
4650A MHS Manual_EN_ES_FR.indd 2
4650A MHS Manual_EN_ES_FR.indd 2
4650A MHS Manual_EN_ES_FR.indd 24650A MHS Manual_EN_ES_FR.indd 2 12/29/2021 8:59:33 AM
12/29/2021 8:59:33 AM
12/29/2021 8:59:33 AM
12/29/2021 8:59:33 AM12/29/2021 8:59:33 AM
>24”-27.5”
24”
20”
Front wheel: <20”.
Rear wheel: For use below
rear fender on fendered bikes.
Note: Fendered E-Bikes and
other heavy bikes are not
recommended to transport
using this method. Check often
that bikes have not shifted
during transport and always
use the rear wheel strap.
Install lock cores into tray lock cables as shown.
*Lock cores included with MHS bases or available separately
Install the hole cover on the rear wheel strap side with the
included screws. Using a 3mm hex key, tighten the screws only
until rear plug is snug to the tray. DO NOT OVERTIGHTEN
Upper wheel block positions are defi ned above for front wheels. Rear arm upper
wheel block position will vary depending on bike length. Ensure rear wheel is
held securely by the upper wheel block, as well as the lower wheel strap.
Use Saris Fender Bike Accessory (sold seperately) for proper mounting of bikes
equipped with fenders
9
11
Secure rear wheel arm fi rst, then rear wheel.
12
BIKE INSTALL:
FRONT WHEEL
PLACEMENT
REAR WHEEL
PLACEMENT
REAR WHEEL
STRAP
29”
Arm position should land in
the grey triangle.
10
4650A MHS Manual_EN_ES_FR.indd 3
4650A MHS Manual_EN_ES_FR.indd 3
4650A MHS Manual_EN_ES_FR.indd 3
4650A MHS Manual_EN_ES_FR.indd 34650A MHS Manual_EN_ES_FR.indd 3 12/29/2021 8:59:36 AM
12/29/2021 8:59:36 AM
12/29/2021 8:59:36 AM
12/29/2021 8:59:36 AM12/29/2021 8:59:36 AM
