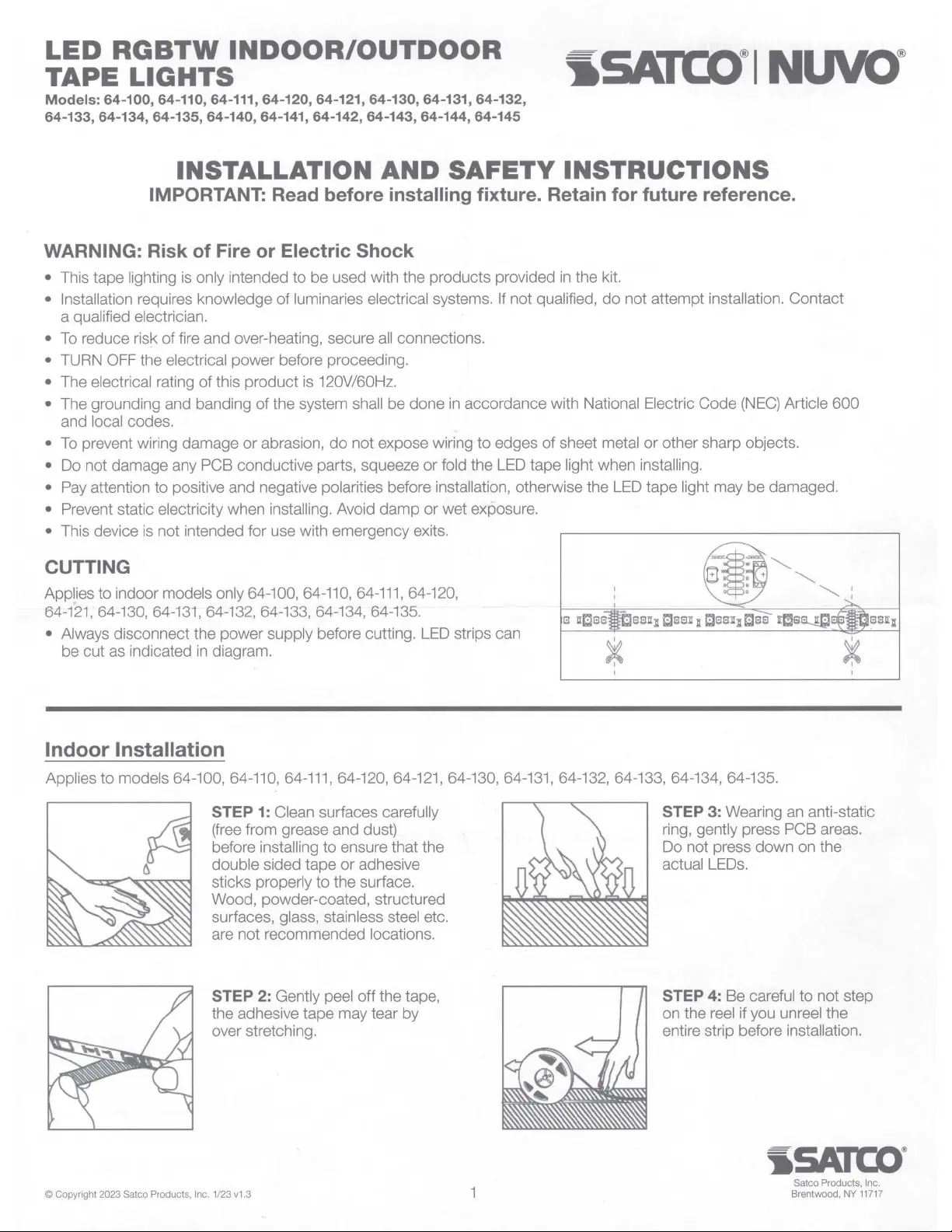

LED
RGBTW
INDOOR/OUTDOOR
TAPE
LIGHTS
Models: 64-100, 64-110, 64-111, 64-120, 64-121, 64-130, 64-131, 64-132,
64-133, 64-134, 64-135, 64-140, 64-141, 64-142, 64-143, 64-144, 64-145
INSTALLATION
AND
SAFETY
INSTRUCTIONS
IMPORTANT: Read before installing fixture. Retain for future reference.
WARNING: Risk of Fire or Electric Shock
• This tape lighting
is
only intended to be used with the products provided
in
the kit.
• Installation requires knowledge of luminaries electrical systems.
If
not qualified,
do
not attempt installation. Contact
a qualified electrician.
•
To
reduce risk of fire and over-heating, secure
all
connections.
• TURN
OFF
the electrical power before proceeding.
• The electrical rating of this product
is
120V/60Hz.
• The grounding and banding of the system shall be done
in
accordance with National Electric Code
(NEC)
Article
600
and local codes.
•
To
prevent wiring damage or abrasion,
do
not expose wiring to edges of sheet metal
or
other sharp objects.
• Do not damage any PCB conductive parts, squeeze or fold the LED tape light when installing.
•
Pay
attention to positive and negative polarities before installation, otherwise the
LED
tape light may be damaged.
• Prevent static electricity when installing. Avoid damp or wet exposure.
• This device
is
not intended for use with emergency exits.
CUTTING
Applies to indoor models only 64-100, 64-110, 64-
111,
64-
120,
64-121,
64-130,
64-131
, 64-132, 64-133, 64-
134,
64-135.
• Always disconnect the power supply before cutting.
LED
strips can
be cut as indicated
in
diagram.
Indoor Installation
"-
X
I
X
I
Applies to models 64-100, 64-110, 64-
111
, 64-120, 64-121, 64-130,
64-131
, 64-132, 64-133, 64-134, 64-135.
STEP
1:
Clean surfaces carefully
(free from grease and dust)
before installing to ensure that the
double sided tape or adhesive
sticks properly to the surface.
Wood, powder-coated, structured
surfaces, glass, stainless steel etc.
are not recommended locations.
STEP
2:
Gently peel off the tape,
the adhesive tape may tear by
over stretching.
© Copyright 2023 Satco Products, Inc. 1/23 v1.3
STEP
3:
Wearing an anti-static
ring, gently press PCB areas.
Do not press down on the
actual LEDs.
STEP
4:
Be careful to not step
on the
reel
if you unreel the
entire strip before installation.
Sa
t
co
Pr
oduc
ts, Inc.
Bren
twoo
d, NY
11
717

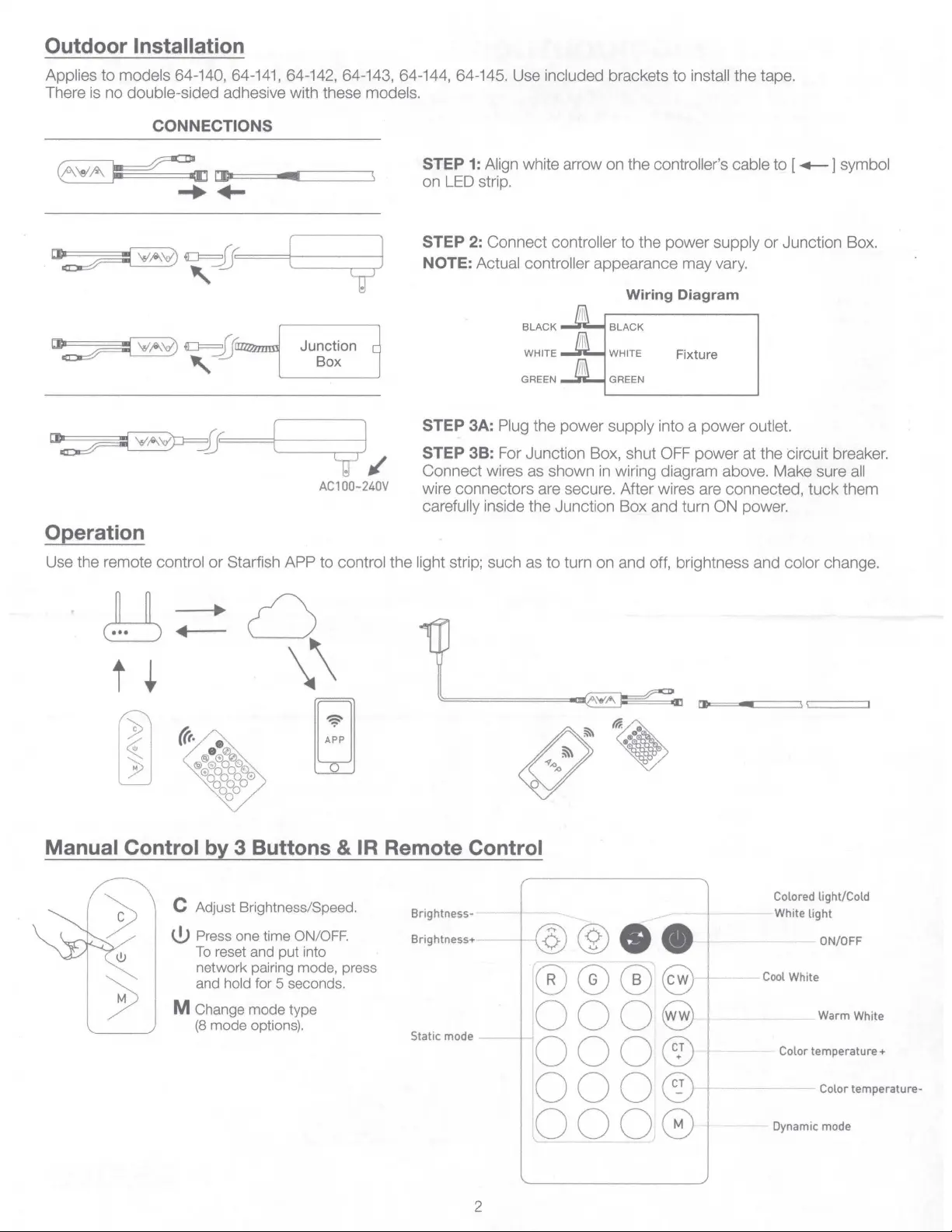

Outdoor Installation
Applies to models 64-140, 64-141, 64-142, 64-143, 64-144, 64-145. Use included brackets to install the tape.
There
is
no double-sided adhesive with these models.
CONNECTIONS
~
~=~--------1]
..
,
1f
Junction
Box
~===I-~-_-_-~-
~---------jl
lf
,I
AC100-240V
Operation
STEP
1:
Align white arrow on the controller's cable to [
+-]
symbol
on
LED
strip.
STEP
2:
Connect controller to the power supply or Junction Box.
NOTE: Actual controller appearance may vary .
BLACK
WHITE
GREEN
Wiring Diagram
BLACK
WHITE
GREEN
Fixture
STEP 3A: Plug the power supply into a power outlet.
STEP 3B: For Junction Box, shut OFF power at the circuit breaker.
Connect wires as shown
in
wiring diagram above. Make sure
all
wire connectors are secure. After wires are connected,
tuck
them
carefully inside the Junction Box and turn ON power.
Use the remote control or Starfish APP to control the light strip; such as to turn on and off, brightness and color change.
~ ~
►
~
-◄
t i
00
Manual Control
by
3 Buttons &
IR
Remote Control
C Adjust Brightness/Speed.
cJ.J
Press one time ON/OFF.
To
reset and put into
network pairing mode, press
and hold for 5 seconds.
M Change mode type
(8
mode options).
Brightness-
Brightness+
--
ר
•
®0®0
0008
Static
mode
--+-
0
0
0
(CT\
'
(i;
2
000®
0000
Colored light/Cold
White light
ON/OFF
Cool
White
Warm White
Color
temperature+
- Color
temperature-
Dynamic mode
