WARNING: Risk of Fire or Electric Shock

• Luminaire wiring and electrical parts may be damaged when drilling for

installation of LED retrot. Check for enclosed wiring and components.

• LED Retrot installation requires knowledge of luminaires electrical systems.

If not qualied, do not attempt installation. Contact a qualied electrician.

• Install this lamp only in luminaires that have the construction features and dimensions

shown in the photographs and/or drawings and where the input rating of the retrot

does not exceed the input rating of the luminaire.

• Do not make or alter any open holes in an enclosure of wiring or electrical

components during kit installation.

• To prevent wiring damage or abrasion, do not expose wiring to edges of sheet metal

or other sharp objects.

• Disable all power to the Luminaire. The lamp holder must be disconnected from

the wiring to the ballast, capacitor, or ignitor. Verify that voltage does not exceed 277V AC.

Please see “Wiring Diagram”. Failure to follow instructions can result in a damaged product

and will void warranty. It could also result in an electric shock or re.

• These lamps must be operated in conjuction with the required minimum compartment

sizes listed on the inner pack box and etching on the lamp.

IMPORTANT:

• Added weight of the device may cause instability of a free-standing portable luminaire.

• Installers should not disconnect existing wires from lampholder terminals to make new

connections at lampholder terminals. Instead installers should cut existing lampholder

leads away from the lampholder and make new electrical connections to lampholder

lead wires by employing applicable connectors.

• If used in a portable table luminaire, a shade is required for all models.

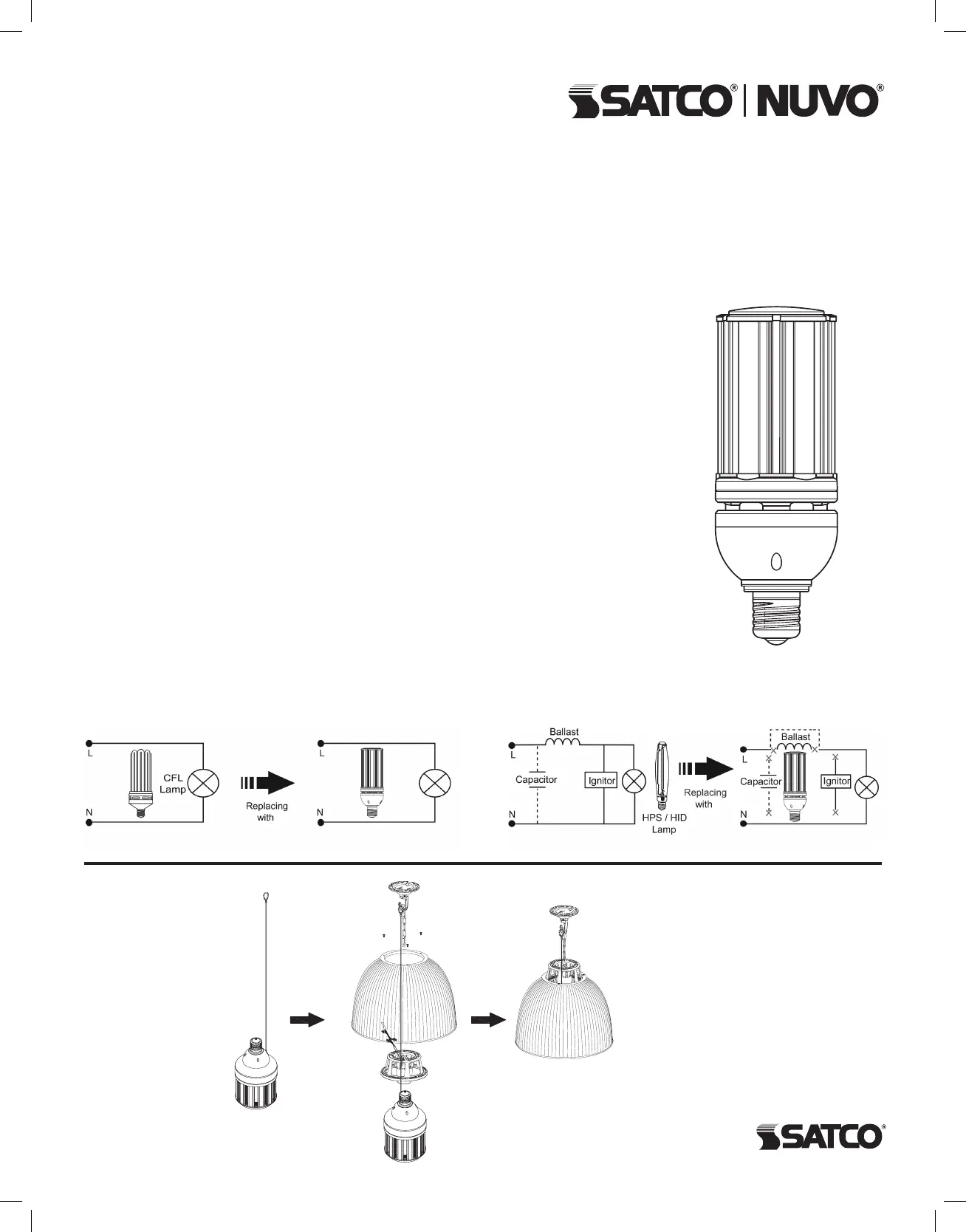

WIRING DIAGRAM:

HI-PRO LED LAMPS 100-277V

Models: S39390-S39397, S39670-S39677, S39738, S39739

S39024, S39078, S39219, S39279, S39289

Satco Products, Inc.

Brentwood, NY 11717

SAFETY CHAIN INSTALLATION:

INSTALLATION AND SAFETY INSTRUCTIONS

IMPORTANT: Read before installing xture. Retain for future reference.

© Copyright 2019 Satco Products, Inc. 4/19

Replacing CFL Lamp

CFL Wiring DiagramHi–Pro Wiring DiagramHPS/HID Wiring DiagramHi–Pro Wiring Diagram

Replacing HPS/HID Lamp

Safety chain must be

installed if included

with lamp.

100-277V

(L1)(L1)(L1)(L1)

100-277V

100-277V

100-277V
