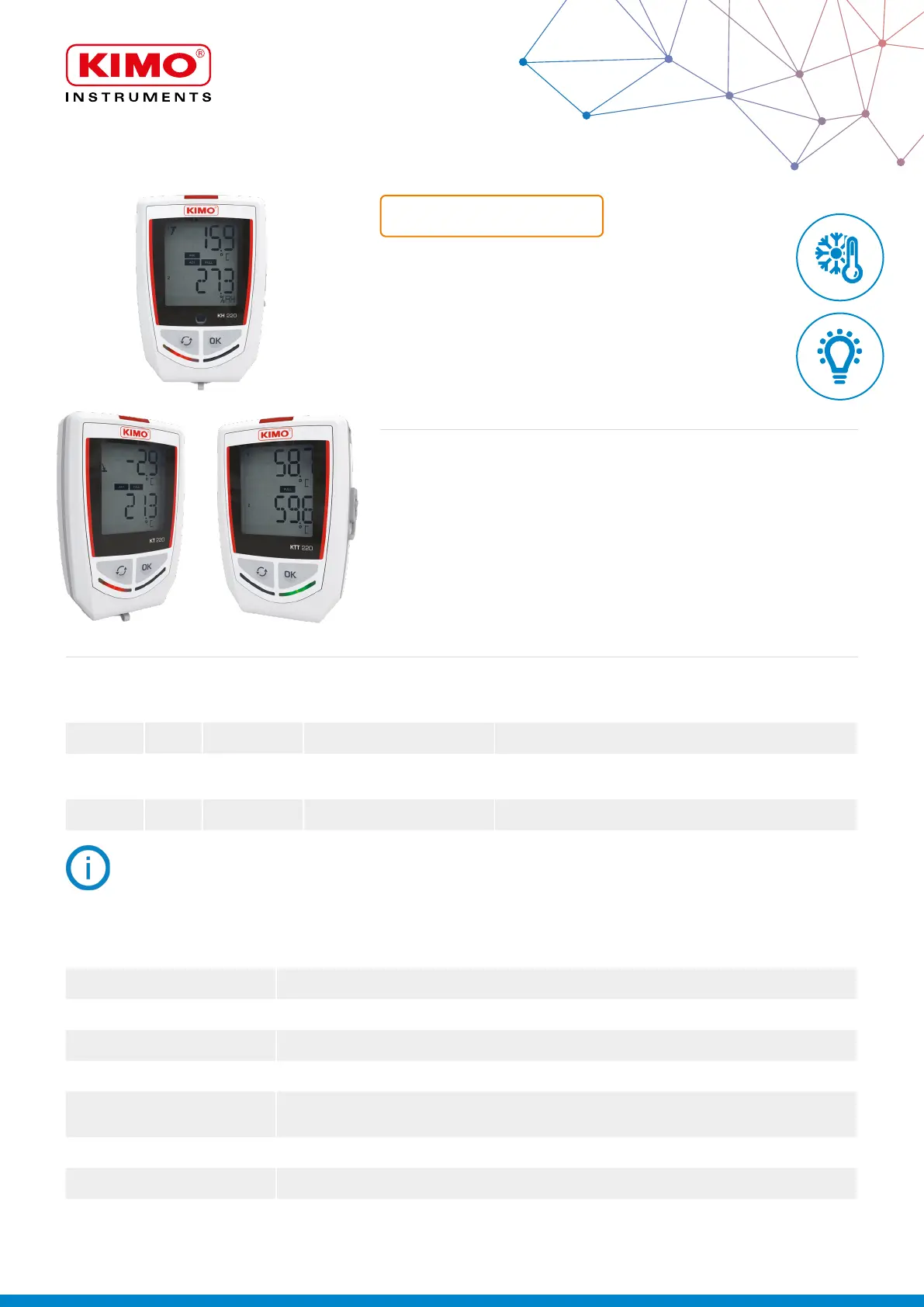

KISTOCK DATALOGGER

KT220 / KH 220 / KTT 220

Temperature / Humidity / Light / Current

Voltage / Impulsion / Water pressure

Features

• Software for conguration and data

visualisation freely downloadable

• Software for conguration and data

processing available as option

• Storage capacity of 1,000,000 points

• Fast data downloading (18,000

points/s)

• Up to 5 recordable parameters

simultaneously

• 2 congurable setpoint alarms for

each channel

• 2 lines LCD screen

• F Magnetic mounting

Reference Display Internal sensor External sensor Parameters

KT 220-O Yes 1: Temperature 1 input for universal probe

(1)

Temperature, humidity, current, voltage, impulsion, water pressure

KH 220-O Yes

3: Temperature,

humidity & light

1 input for universal probe

(1)

Temperature, humidity, current, voltage, impulsion, water pressure, light

KTT 220-O Yes N/A 2 inputs for thermocouple probes

(2)

Temperature

References

For a fast measurement of temperature and humidity variations, it is better to use a remote probe

(KTHA or KTHD probe, see page 3).

(1)

Input which allows to plug different compatible probes, see the optional probes and cables page 3.

(2)

For more details about the available thermocouple probes, please see the ‘’Thermocouple probes’’ datasheet.

(3)

With all the thermocouple probes connected.

Display 2 lines LCD screen. Dimensions: 39 x 34 mm / 1

’’ x 1

’’. 2 indication LEDs (red and green)

PC communication 1 micro-USB input

Power supply 1x AA lithium 3.6 V battery

Protection KT 220: IP65. KH 220 : IP20. KTT 220

(3)

: IP54

Material Compatible with food industry environment. ABS housing

Dimensions

KT220, KH220: 96 x 65.2 x 30.5 mm / 3

’’ x 2

’’ x 1

’’

KTT220: 93.2 x 65.2 x 30.5 mm / 3

’’ x 2

’’ x 1

’’

Weight (with battery) 115 g / 4 oz

Environmental conditions of use Air and neutral gases. Hygrometry: in non condensing condition. Maximumaltitude: 2000 m / 2188 yd.

Warranty 1 year

Gereral features

DATA SHEET

KT 220 KH 220 KTT 220

Units displayed °C, °F, °Ctd, °Ftd, %RH, mV, V, mA, A, bar

(1)

°C, °F, °Ctd, °Ftd, %RH, lux, fc, mV, V, mA, A, bar

(1)

°C, °F

Resolution

0.1 °C, 0.1 °F, 0.1 %RH, 1 mV, 0.001 V,

0.001 mA, 0.1 A, 0.1 bar

0.1 °C, 0.1 °F, 0.1 %RH, 1 lux, 0.1 fc, 1 mV,

0.001 V, 0.001 mA, 0.1 A, 0.1 bar

0.1 °C, 0.1 °F

External input Female micro-USB connector

Input for probe 1 universal input

(2)

2 inputs for thermocouple probes (K, J, T, N,

Internal sensor Temperature Temperature, humidity, light -

Type of sensor NTC

Temperature: NTC. Humidity: capacitive.

Light: photodiode.

Thermocouple

Measuring range

Measuring range of the internal sensor

(3)

From -40 to +70 °C / -40 to 158 °F

Measuring range of the internal sensor

(3)

:

Temperature: from -20 to +70 °C / -4 to 158 °F

Humidity: from 0 to 100 %RH

Light: from 0 to +10,000 lux / 0 to 929 fc

K: From -200 to +1300 °C / -328 to 2372 °F

J: From -100 to +750 °C / -148 to 1382 °F

T: From -200 to +400 °C / -328 to 752 °F

N: From -200 to +1300 °C / -328 to 2372 °F

S: From 0 to 1760 °C / 32 to 3200 °F

Accuracies

(4)

±0.4 °C from -20 to 70 °C

±0.8 °F from -4 to 158 °F

±0.8 °C below -20 °C

±1.5 °F below -4 °F

Temperature: ±0.4 °C from 0 to 50 °C

±0.8 °F from 32 to 122 °F

±0.8 °C below 0 °C or above 50 °C

±1.5 °F below 32 °F or above 122 °F

Humidity

(5)

: ±2 %RH from 5 to 95 %RH

from 15 to25 °C / from 59 to 77 °F

Light: ±10% of reading +10 lux / + 1 fc

K, J, T, N: ±0.4 °C from 0 to 1300°C

±0.8°F from 32 to 2372°F

±(0.3% of reading +0.4 °C) below 0 °C

±(0.3% of the reading +0.8 °F) below 32

°F

S : ±0.6 °C / ±1.1 °F

Setpoints alarm 2 setpoint alarms on each channel

Frequency of measure-

ment

From 1 second to 24 hours

Operating tempera-

ture

(6)

From -40 to +70 °C / -40 to 158 °F From -20 to +70 °C / -4 to 158 °F From -20 to +70 °C / -4 to 158 °F

Storage temperature From -20 to +50 °C / -4 to 122 °F

Battery life 4 years

(7)

Directives 2011/65/EU RoHS II; 2012/19/EU WEEE; 2014/30/EU EMC; 2014/35/UE; FCC part 15; UL 61010

(1)

Some units are available only with optional probes.

(2)

Input which allows to plug different compatible probes: see optional probes and cables page 3.

(3)

Other measuring ranges are available according to the connected probe: see optional probes and cables page 3.

(4)

All accuracies indicated in this document were stated in laboratory conditions and can be guaranteed for measurement carried out in the same conditions, or carried out with calibration compensation.

(5)

Factory calibration uncertainty: ±0.88 %RH. Temperature dependence: ±0.04 x (T-20) %RH (if T<15°C or T>25 °C) / ±0.04 x [((T °F -32) x 5/9) -20] % RH (if T≤59 °F or T≥77 °F).

(6)

The screen can be hard to read, and its display speed often slows down at temperatures lower than 0 °C / 32 °F. This has no effect on the accuracy of measurements.

(7)

Non-contractual value. Based on 1 measurement each 15 minutes at 25 °C / 77 °F. A correct operation of the device and the storage conditions must be respected.

Technical specications

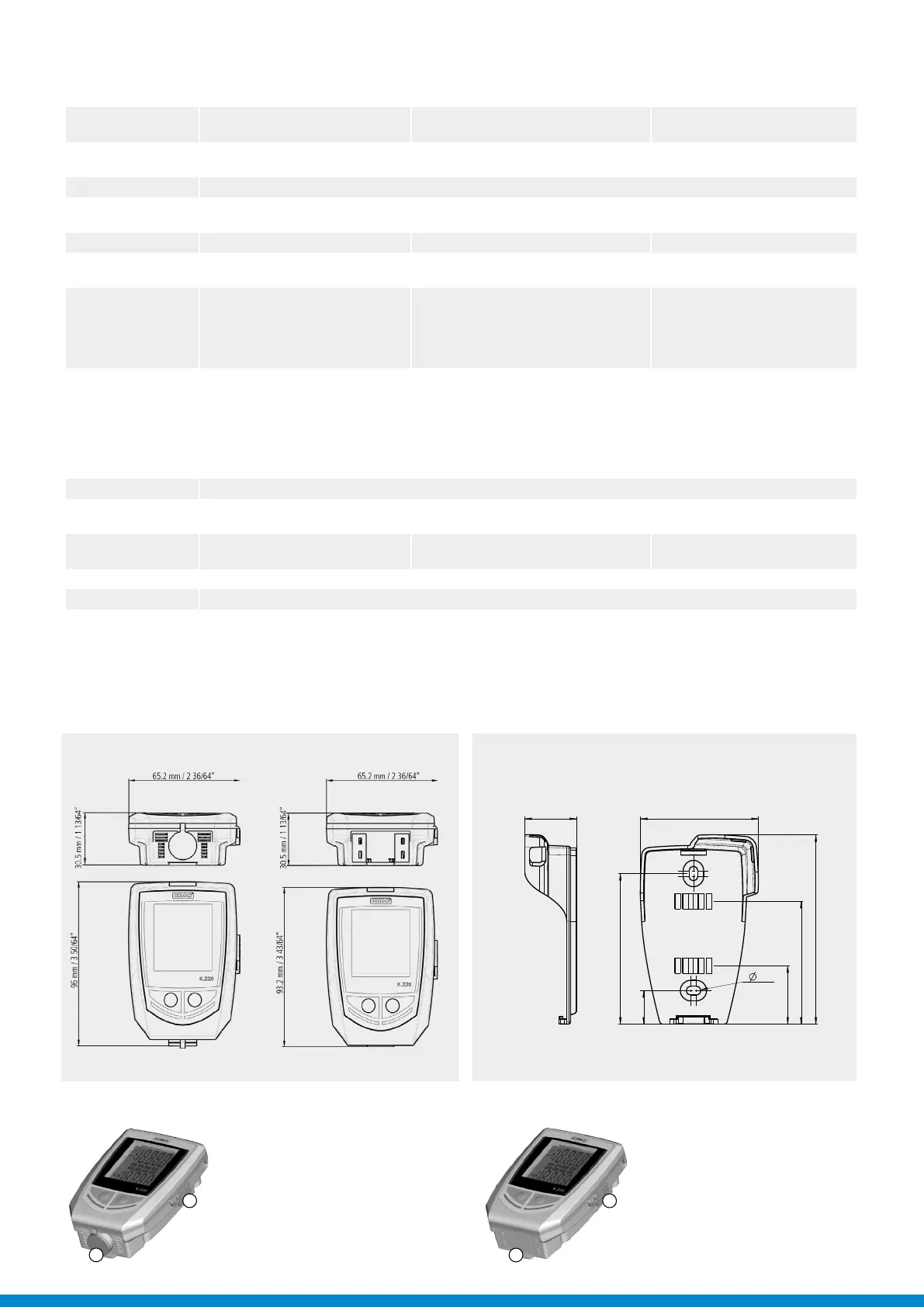

Dimensions

KT/KH 220 KTT 220

Dimensions of the safety lock wall mount

26.5 mm / 1 3/64’’

60 mm / 2 23/64’’

77 mm / 3 2/64’’

17 mm

43/64’’

17 mm

11/64’’

30 mm / 1 12/64’’
