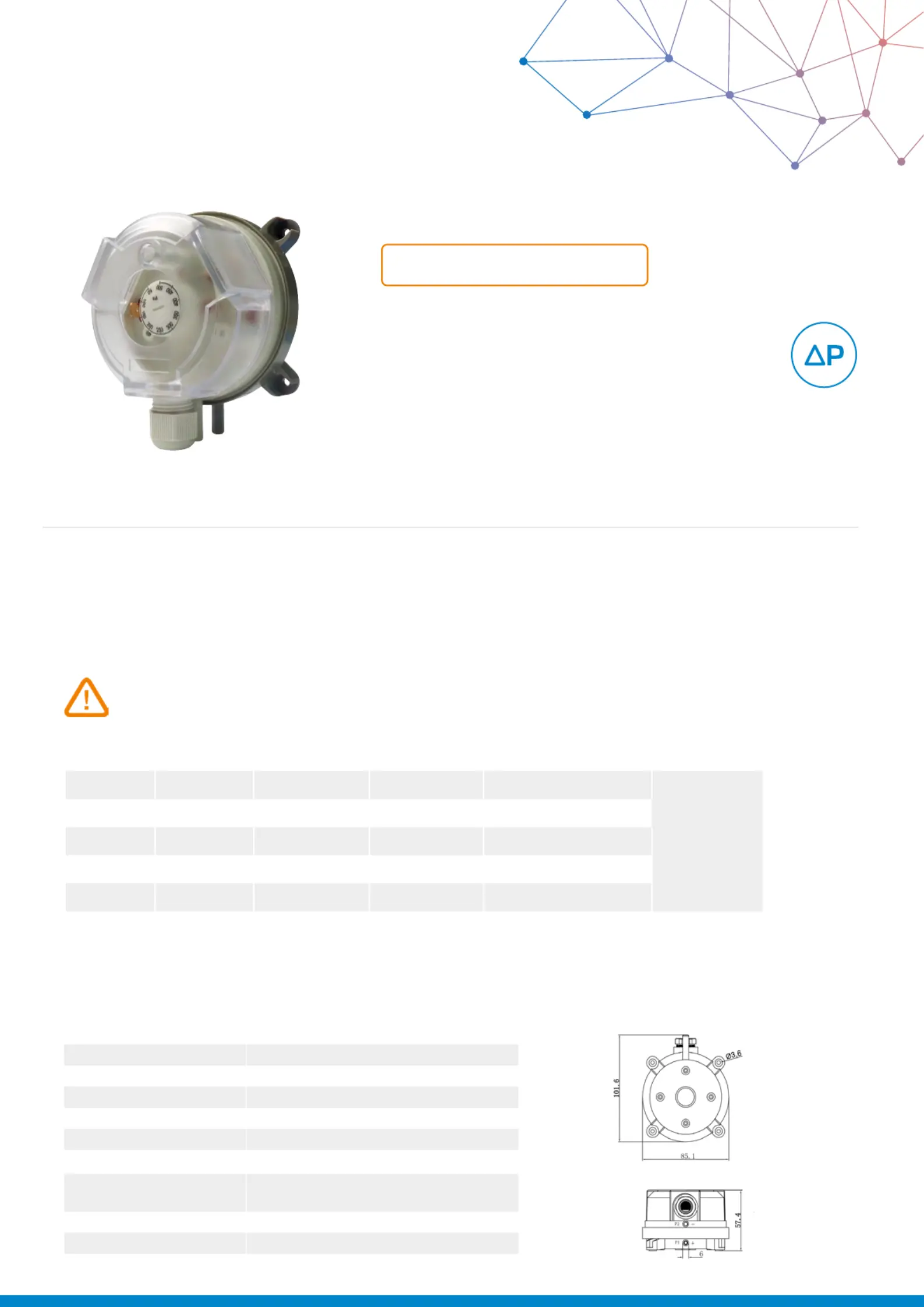

Si-DPMS
Differential Pressure Switches
USER MANUAL
Presentation
The differential air pressure switches with membrane are used for the control of air treatment system installations. They allow, without
supply, to establish a switching contact during a cut-off pressure exceeding. They can be mounted in parallel with a manometer.
They allow to control systems working under or over pressure, fans or lter.
Description
Before the commissioning of the pressure switch, please read carefully this user manual.
*

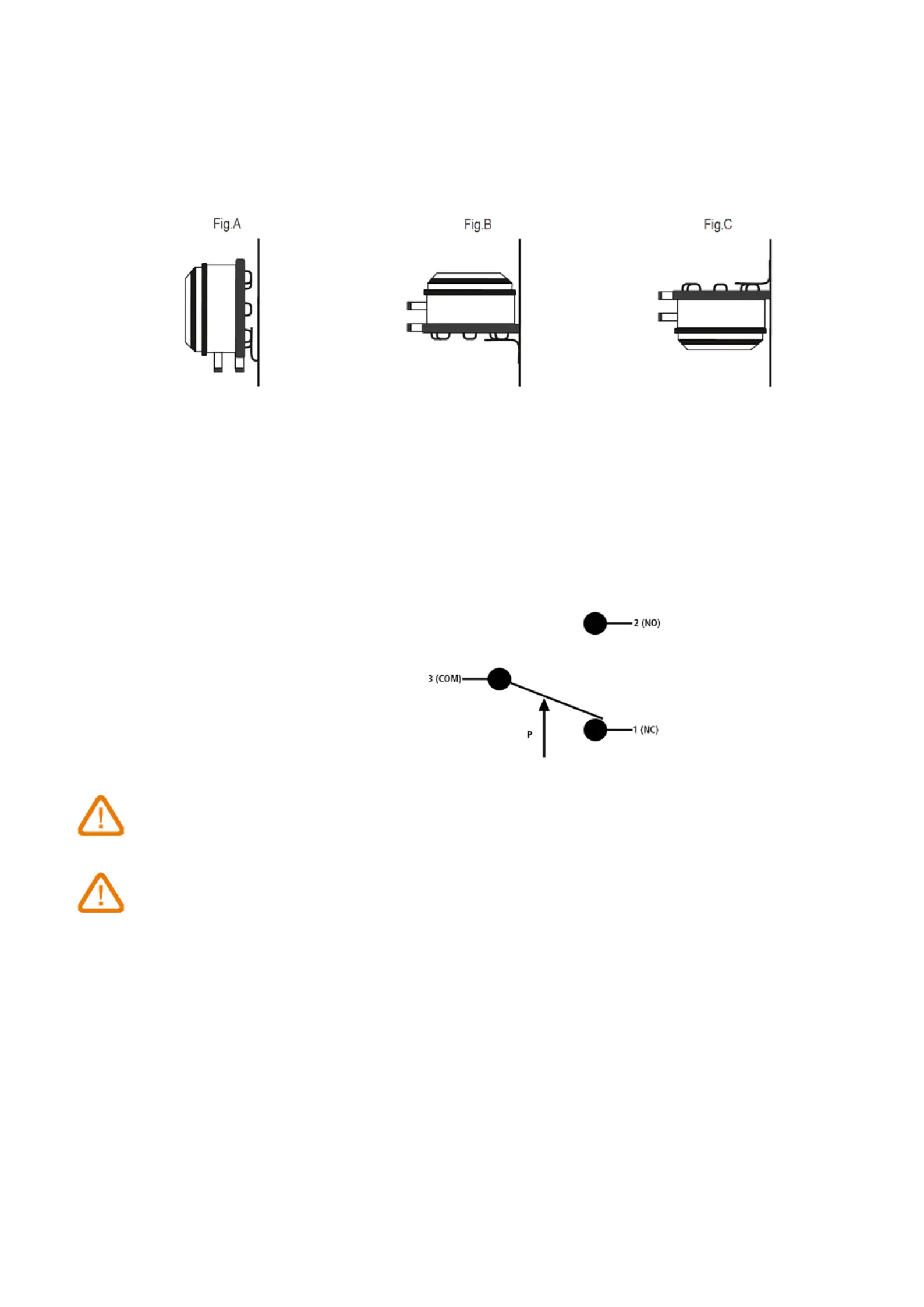

Pressure values referred to vertical installation. If the device is installed horizontally, these values increase by 20 Pa.
The differential pressure switches have a round shape and two connections of Ø 6.2 mm (for hoses, of Ø 5 x 8 mm for example).
They are supplied with the needed installation accessories.
General features
MediaAir, non-combustible and non-aggressive gases
Maximum pressure10 kPa
Voltage250 V / 1.5 A (0.4 A)
Mounting Vertical
ProtectionIP54 (with cover), IP00 (without cover)
Operating temperature-40 °C to 85 °C
Relay typeSPDT
Electrical rating
Resistance: initial: < 50 mΩ
Current: 1.5 A (0.4 A) / 250 V
Contact terminals6.3 mm x 0.8 mm blade or screw terminal
ConnectionØ 6.0 mm for tube connection
CerticationCE
Dimensions (mm)

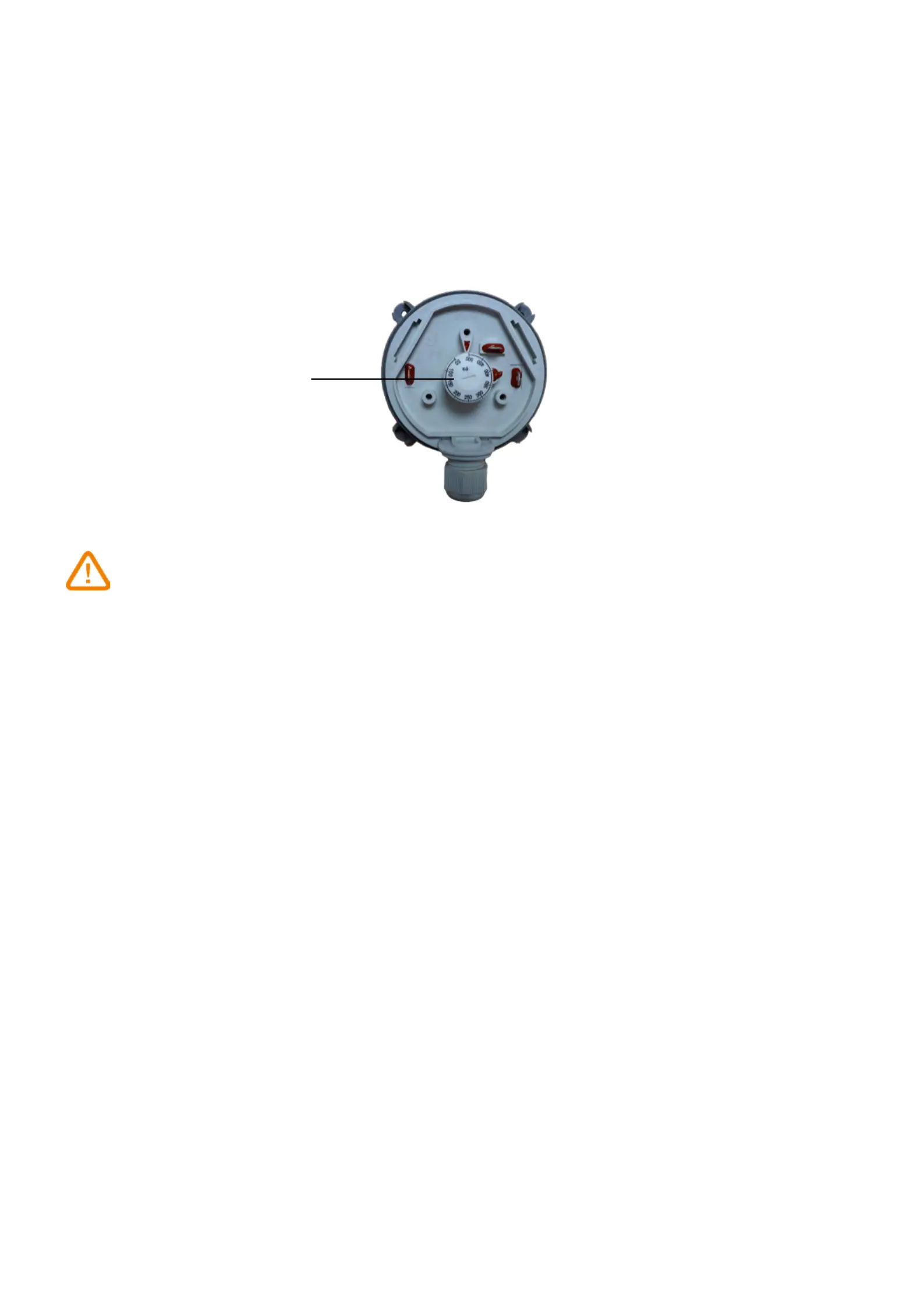

Model
Measuring
range (Pa)*
High point
tolerance
Switching
differential (Pa)
Tolerance of switching
differential (Pa)
Max Pressure
(Pa)
Si-DPMS-120 - 200±15%10±5
10 000
Si-DPMS-250 - 500±15%20±10
Si-DPMS-3200 - 1000±15%100±20
Si-DPMS-4500 - 2500±15%150±40
Si-DPMS-51000 - 5000±15%250±70
