CR 110

Solar radiation transmitter

• 0-10 V active output, power supply

24 Vac/Vdc (3-4 wires) or 4-20 mA

output, passive loop, power supply

from 16 to 30 Vdc (2 wires)

• “¼ turn” system mounting with

wall-mount plate

• Housing with simplied mounting

system

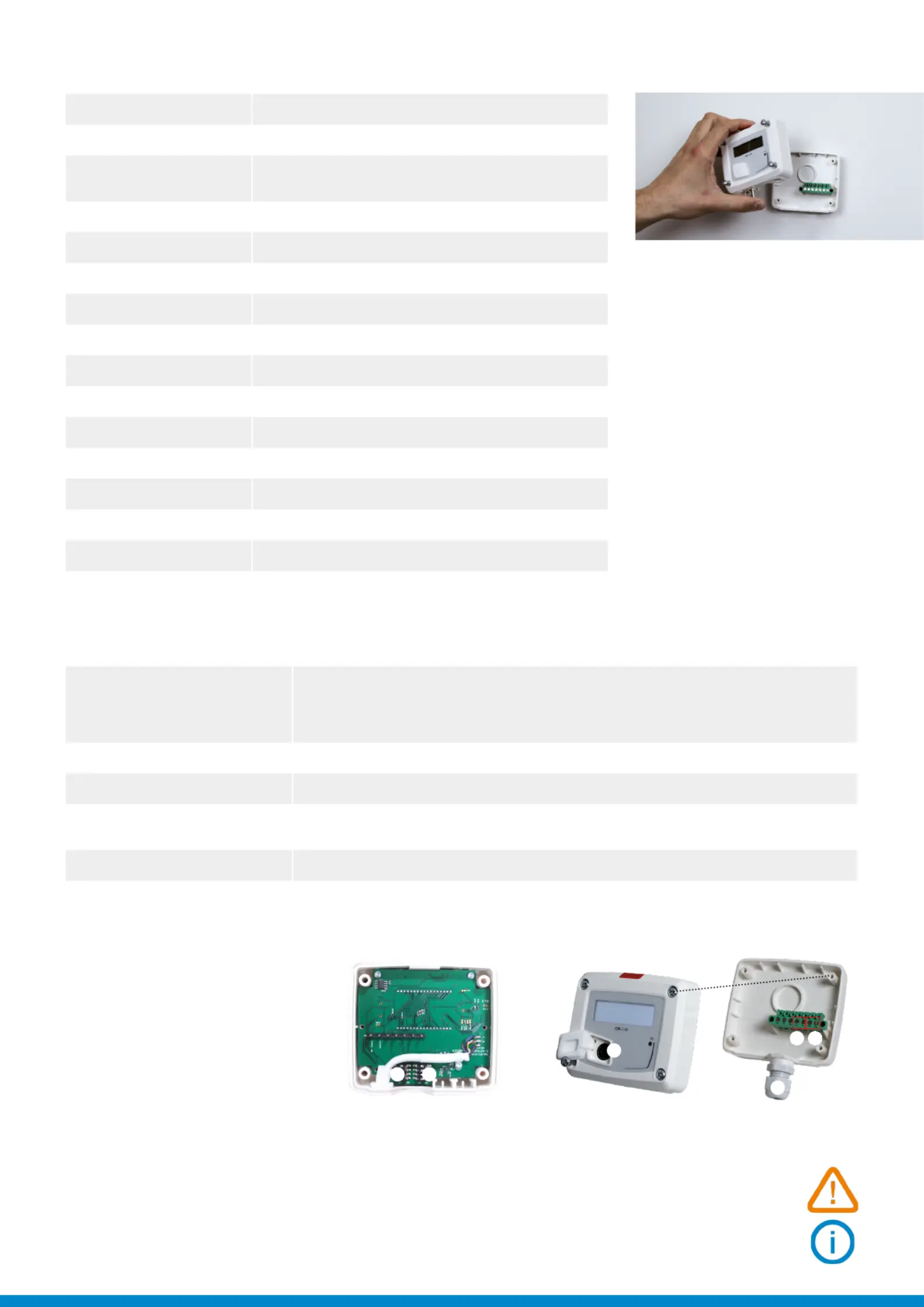

DATA SHEET

Unit of measurementW/m²

Measuring rangeFrom 0 to 1500 W/m²

Accuracy*5% of reading

Resolution1 W/m²

Type of uidAir and neutral gas

Conditions of use

(°C/%RH/m)

From 0 to +50 °C. In non-condensing conditions.

From 0 to 2000 m.

Storage temperatureFrom -10 to +70 °C

General features

MatierialABS V0 as per UL94

ProtectionIP65

Display

LCD 10 digits.

Dimensions: 50 x 17 mm

Height of digitsValues: 10 mm; Units: 5 mm

Weight140 g

Cable glandFor cables Ø 8 mm maximum

Remote probeCable of 5 m length in PVC

Features of the housing

46 mm

90 mm

109 mm

*All the accuracies indicated in this technical datasheet were stated in laboratory conditions, and can be guaranteed

for measurements carried out in the same conditions, or carried out with calibration compensation.

Part number

Power supply / Output

A: Active – 24 Vac/Vdc – 0-10 V

P: Passive – 16/30 Vdc – 4-20 mA

Display

O: With display

CR 110

Example: CR 110-PO

Solar radiation transmitter with 4-20 mA passive output and 5 m of probe cable length.

Range from 0 to

1500 W/m²

PO

ABS V0 housing,

with display

Interval thread

1/4’’

M6 thread

(notch side)

Ø 30 mm

Ø 25 mm

10 mm

Probe cable length

05M: cable length 5 m

10M: cable length 10 m

05M
