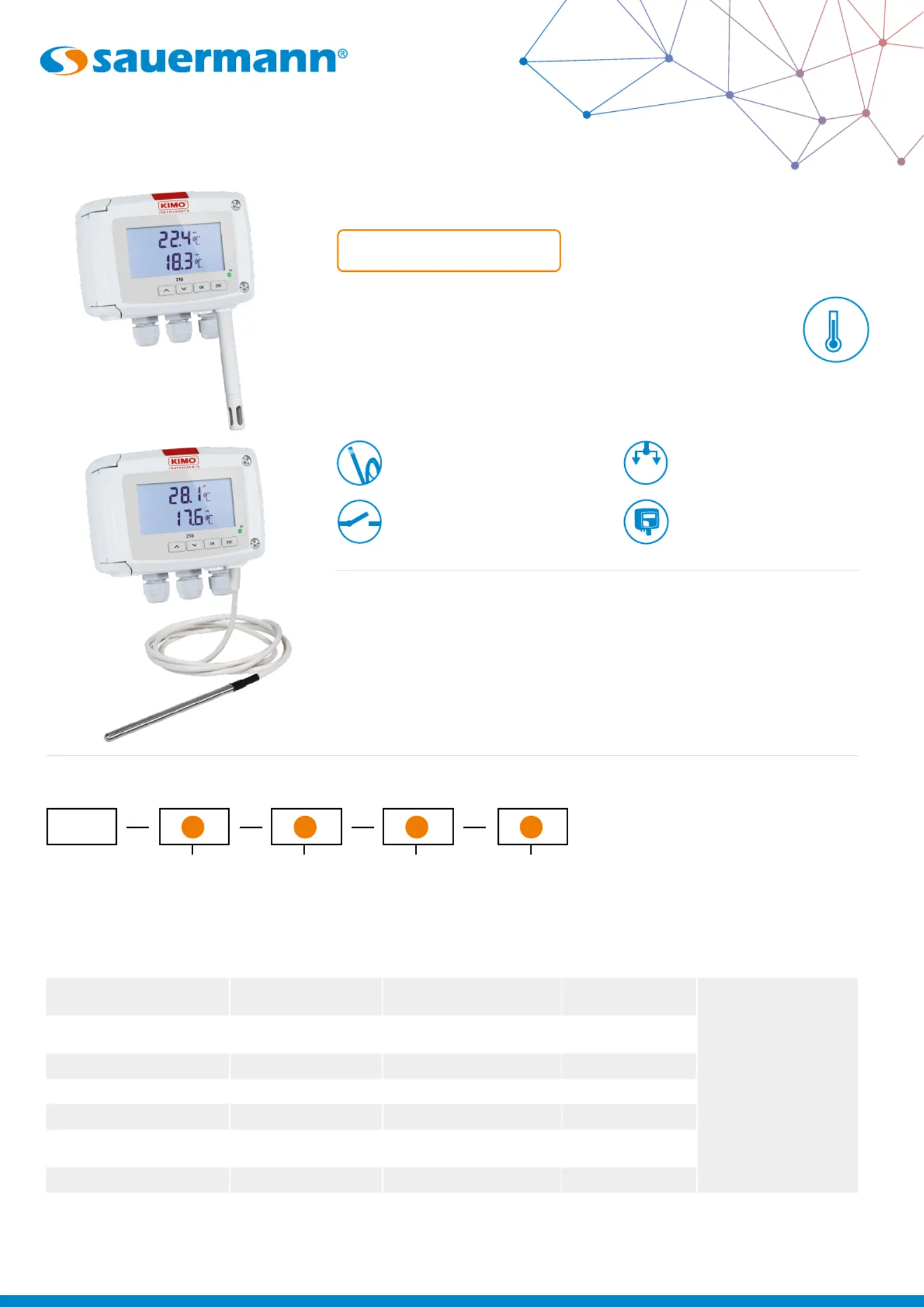

TM 210-R

Temperature transmitter

DATA SHEET

Parameter Accuracy

(1)

Measuring range Resolution Response time

Channel 1 Pt100 temperature (°C, °F)

±0.3% of reading ±0.25 °C

According to probe

From -20 to +80 °C (ambient model)

From -100 to +400 °C (remote model)

0.1 °C

= 0.9 second for V

air

= 1 m/s

Channel 2 Pt100 temperature (°C, °F) or

Wet temperature (°C

, °F

)

According to probe

From -100 to +400 °C

From -50 to 100 °C

0.1 °C

Relative humidity

(2)

(%RH) - From 0 to 100% RH 0.1% RH

Dew point

(2)

(°C

, °F

)- From -50 to +100 °C

0.1 °C

Absolute humidity

(2)

(g/m

)- From 0 to 600 g/m

0.1 g/m

Enthalpy

(2)

(kJ/kg) - From 0 to 15 000 kJ/kg

From 0 to 9999.9: 0.1 kJ/kg

From 10 000 to 15 000: 1 kJ/kg

Combination ratio

(2)

(g/kg) - From 0 to 9999.9 g/kg 0.1 g/kg

(1)

All the accuracies indicated in this technical datasheet were stated in laboratory conditions, and can be guaranteed for measurements carried out in the same conditions, or carried out with calibration compensation.

(2)

Calculated values.

Features

• Congurable ranges from 0 to 50 °C

(ambient model) and from -100 to

400 °C (model with terminal block)

• 24 Vdc/Vac power supply

• Display of the minimum and

maximum values and trend indicator

• “¼ turn” system mounting with

wall-mount plate

Technical specications

˚C

˚F

4 wires analogue outputs

0-5/10 V or 0/4-20 mA

Possibility of a second remote

probe on terminal block

ABS V0 IP65 housing,

with display

2 relay outputs

Part number

Example: TM 210 – BOS – R

Temperature transmitter, ambient probe and

relay outputs.

TM 210 transmitter can measure up to two temperatures (temperature 1 and temperature 2). When two temperature probes are connected, the transmitter can display the difference

between both measured temperatures. It can also calculate different parameters in psychrometry thanks to the KHP psycrometric probe available as option (only for models with two

Pt100 terminal blocks).

0-5 / 10 V

4-20 mA

Power supply /

Output

B: 24 Vac/Vdc

Display

O: with display

Type of probe

S: ambiant + Pt100

terminal block

B: two Pt100 terminal blocks
