Sida 1/2
107
12
CO Y1
CO Y2/CO Y3
CS Y1
CO Y4
CO Y1,
CO Y2
CO Y3 CO Y4
**
SAUTER
CS 1-Y1 1 kg/10 N
CS 2-Y1
2 kg/20 N
CS 5-Y1
5 kg/50 N
CS 10-Y1
10 kg/100 N
CS 20-Y1 20 kg/200 N
SAUTER
CO 10-Y1 10 kg/100 N
CO 20-Y1
20 kg/200 N
CO 50-Y1 50 kg/500 N
CO 100-Y1 100 kg/1 kN
CO 200-Y1
200 kg/2 kN
CO 500-Y1
500 kg/5 kN
CO 1000-Y1 1000 kg/10 kN
CO 2000-Y1 2000 kg/20 kN
CO 10-Y2
10 kg/100 N
CO 20-Y2
20 kg/200 N
CO 50-Y2 50 kg/500 N
CO 100-Y2 100 kg/1 kN
CO 200-Y2
200 kg/2 kN
CO 500-Y2
500 kg/5 kN
CO 1000-Y2 1000 kg/10 kN
CO 2000-Y2
2000 kg/20 kN
CO 5-Y3
5 kg/50 N
CO 10-Y3
10 kg/100 N
CO 5-Y4 5 kg/50 N
CO 10-Y4 10 kg/100 N
SAUTER
CO 0.5-Y5 0,5 kg/5 N
CO 1-Y5
1 kg/10 N
CO 5-Y5
5 kg/50 N
CO 10-Y5
10 kg/100 N
CO 0.5-Y5
www.sauter.eu · Order Hotline +49 7433 9933 - 0 Load Cells
Model
Nominal load
Model
Nominal load

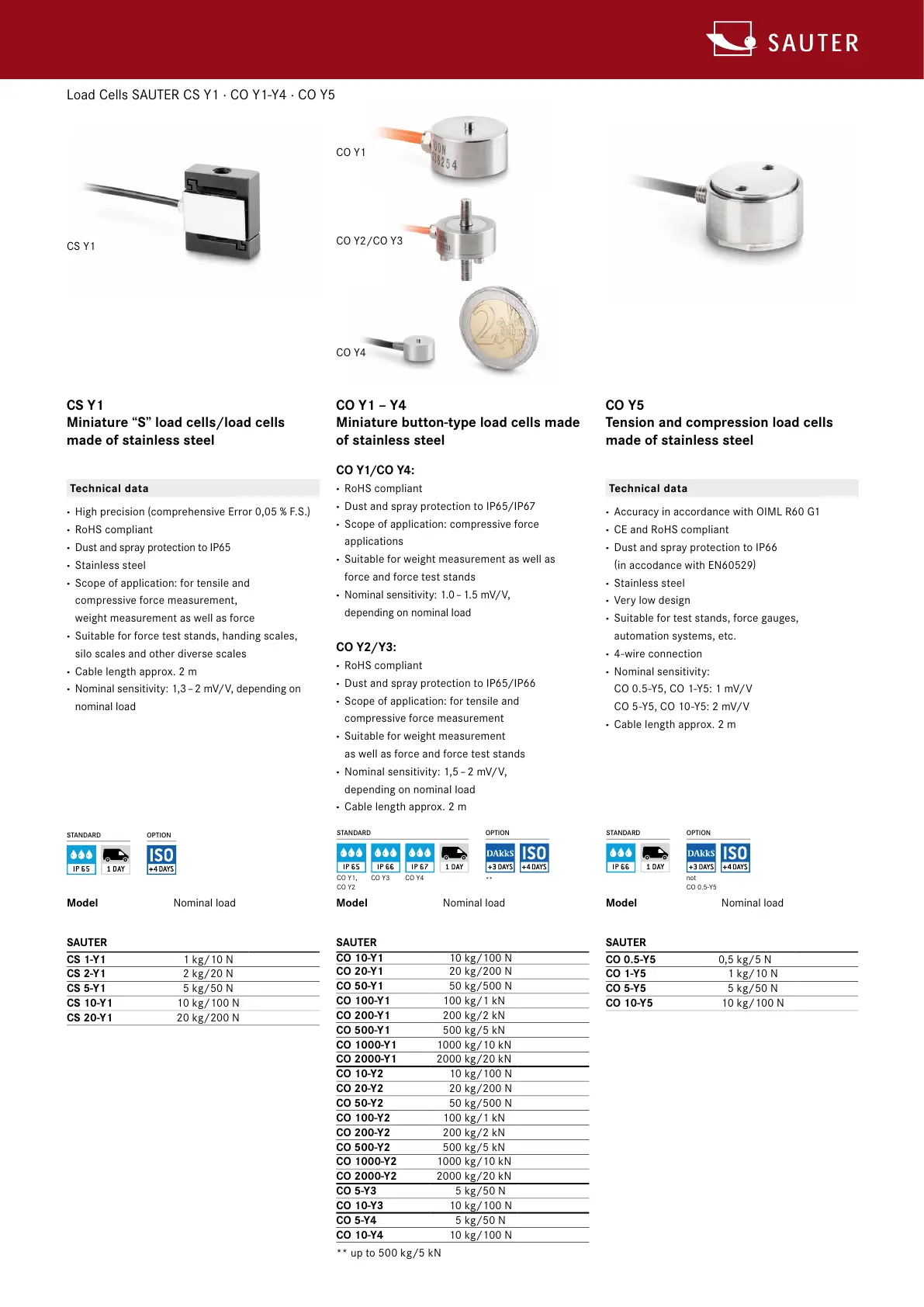

Load Cells SAUTER CS Y1 · CO Y1-Y4 · CO Y5
CS Y1
Miniature “S” load cells/load cells
made of stainless steel
CO Y1/CO Y4:
· RoHS compliant
· Dust and spray protection to IP65/IP67
· Scope of application: compressive force
applications
· Suitable for weight measurement as well as
force and force test stands
· Nominal sensitivity: 1.0 – 1.5 mV/V,
depending on nominal load
CO Y2/Y3:
· RoHS compliant
· Dust and spray protection to IP65/IP66
· Scope of application: for tensile and
compressive force measurement
· Suitable for weight measurement
as well as force and force test stands
· Nominal sensitivity: 1,5 – 2 mV/V,
depending on nominal load
· Cable length approx. 2 m
CO Y1 – Y4
Miniature button-type load cells made
of stainless steel
Technical data
· High precision
(
comprehensive Error 0,05% F.S.
)
· RoHS compliant
· Dust and spray protection to IP65
· Stainless steel
· Scope of application: for tensile and
compressive force measurement,
weight measurement as well as force
· Suitable for force test stands, handing scales,
silo scales and other diverse scales
· Cable length approx. 2 m
· Nominal sensitivity: 1,3 – 2 mV/V, depending on
nominal load
STANDARD OPTION
STANDARD OPTION
** up to 500 kg/5 kN
STANDARD OPTION
not
Technical data
· Accuracy in accordance with OIML R60 G1
· CE and RoHS compliant
· Dust and spray protection to IP66
(
in accodance with EN60529
)
· Stainless steel
· Very low design
· Suitable for test stands, force gauges,
automation systems, etc.
· 4-wire connection
· Nominal sensitivity:
CO 0.5-Y5, CO 1-Y5: 1 mV/V
CO 5-Y5, CO 10-Y5: 2 mV/V
· Cable length approx. 2 m
CO Y5
Tension and compression load cells
made of stainless steel
Model
Nominal load
Order Hotline: Go to back page of catalogue
SAUTER GmbH · c/o KERN & SOHN GmbH · Ziegelei 1 · 72336 Balingen · Germany · Tel. +49 7433 9933 - 0 · info@sauter.eu · www.sauter.eu
MEASURING TECHNOLOGY & TEST SERVICE 2024
Load cells
