Sida 1/2
106
12
* ** * **
SAUTER
CS 25-3P1 25 kg/250 N
CS 50-3P1
50 kg/500 N
CS 100-3P1
100 kg/1 kN
CS 150-3P1
150 kg/1,5 kN
CS 250-3P1 250 kg/2,5 kN
CS 500-3P1
500 kg/5 kN
CS 600-3P1
600 kg/6 kN
CS 750-3P1 750 kg/7,5 kN
CS 1000-3P1 1 t/10 kN
CS 1500-3P1
1.5 t/15 kN
CS 2000-3P1
2 t/20 kN
CS 2500-3P1 2.5 t/25 kN
CS 5000-3P1 5 t/50 kN
CS 7500-3P1
7.5 t/75 kN
CS 10000-3P1
10 t/100 kN
CS 15000-3P1 15 t/150 kN
CS 20000-3P1 20 t/200 kN
CS 30000-3P1
30 t/300 kN
SAUTER
CS 50-3Q1 50 kg/500 N
CS 100-3Q1
100 kg/1 kN
CS 150-3Q1
150 kg/1,5 kN
CS 200-3Q1
200 kg/2 kN
CS 300-3Q1 300 kg/3 kN
CS 500-3Q1
500 kg/5 kN
CS 750-3Q1
750 kg/7,5 kN
CS 1000-3Q1
1 t/10 kN
CS 1500-3Q1 1.5 t/15 kN
CS 2000-3Q1
2 t/20 kN
CS 3000-3Q1
3 t/30 kN
CS 5000-3Q1 5 t/50 kN
CS 6000-3Q1 6 t/60 kN
CS P2 0,5–7,5 t
CS P2 50–250 kg
*
SAUTER
CS 50-3P2 50 kg/500 N
CS 100-3P2
100 kg/1 kN
CS 250-3P2
250 kg/2,5 kN
CS 500-3P2
500 kg/5 kN
CS 1000-3P2 1 t /10 kN
CS 2000-3P2
2 t/20 kN
CS 5000-3P2
5 t/50 kN
CS 7500-3P2 7.5 t/75 kN
www.sauter.eu · Order Hotline +49 7433 9933 - 0Load Cells

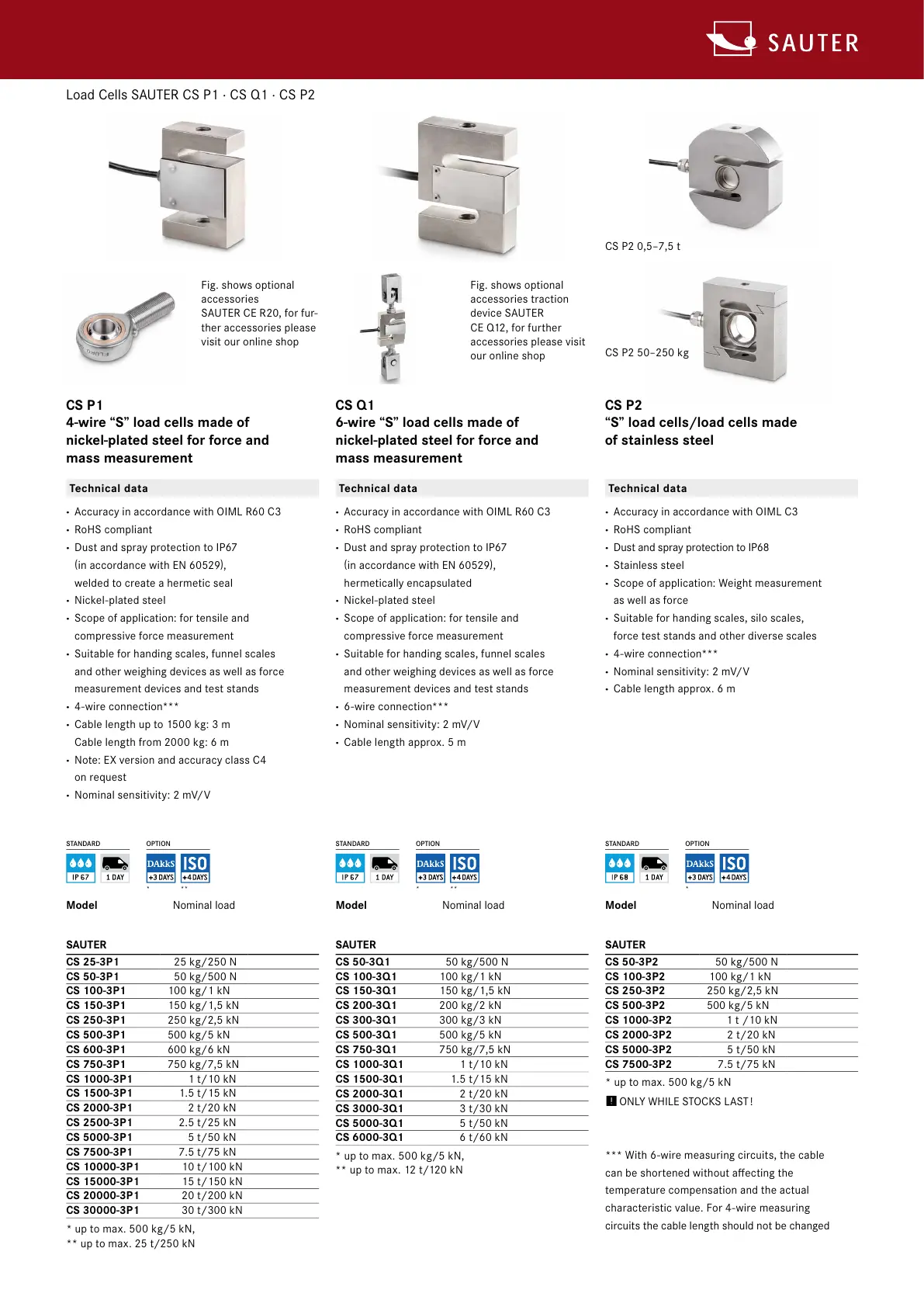

Load Cells SAUTER CS P1 · CS Q1 · CS P2
Model
Nominal load
Model
Nominal load
Technical data
· Accuracy in accordance with OIMLR60C3
· RoHS compliant
· Dust and spray protection to IP67
(
in accordance with EN 60529
)
,
welded to create a hermetic seal
· Nickel-plated steel
· Scope of application: for tensile and
compressive force measurement
· Suitable for handing scales, funnel scales
and other weighing devices as well as force
measurement devices and test stands
· 4-wire connection***
· Cable length up to 1500 kg: 3 m
Cable length from 2000 kg: 6 m
· Note: EX version and accuracy class C4
on request
· Nominal sensitivity: 2 mV/V
Technical data
· Accuracy in accordance with OIMLR60C3
· RoHS compliant
· Dust and spray protection to IP67
(
in accordance with EN 60529
)
,
hermetically encapsulated
· Nickel-plated steel
· Scope of application: for tensile and
compressive force measurement
· Suitable for handing scales, funnel scales
and other weighing devices as well as force
measurement devices and test stands
· 6-wire connection***
· Nominal sensitivity: 2 mV/V
· Cable length approx. 5 m
CS P1
4-wire “S” load cells made of
nickel-plated steel for force and
mass measurement
CS Q1
6-wire “S” load cells made of
nickel-plated steel for force and
mass measurement
Fig. shows optional
accessories
SAUTER CE R20, for fur-
ther accessories please
visit our online shop
Fig. shows optional
accessories traction
device SAUTER
CE Q12, for further
accessories please visit
our online shop
STANDARD OPTION STANDARD OPTION
* up to max. 500 kg/5 kN,
** up to max. 25 t/250 kN
* up to max. 500 kg/5 kN,
** up to max. 12 t/120 kN
*** With 6-wire measuring circuits, the cable
can be shortened without affecting the
temperature compensation and the actual
characteristic value. For 4-wire measuring
circuits the cable length should not be changed
Model Nominal load
Technical data
· Accuracy in accordance with OIML C3
· RoHS compliant
· Dust and spray protection to IP68
· Stainless steel
· Scope of application: Weight measurement
as well as force
· Suitable for handing scales, silo scales,
force test stands and other diverse scales
· 4-wire connection***
· Nominal sensitivity: 2 mV/V
· Cable length approx. 6 m
CS P2
“S” load cells/load cells made
of stainless steel
STANDARD OPTION
* up to max. 500 kg/5 kN
ONLY WHILE STOCKS LAST !
Order Hotline: Go to back page of catalogue
SAUTER GmbH · c/o KERN & SOHN GmbH · Ziegelei 1 · 72336 Balingen · Germany · Tel. +49 7433 9933 - 0 · info@sauter.eu · www.sauter.eu
MEASURING TECHNOLOGY & TEST SERVICE 2024
Load cells
